TheZyboZ7is a feature-rich, ready-to-use embedded software and digital circuit development board built around the
Xilinx Zynq-7000 family. The Zynq family is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture,
which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array
(FPGA) logic. TheZyboZ7surrounds the Zynq with a rich set of multimedia and connectivity peripherals to create a
formidable single-board computer, even before considering the flexibility and power added by the FPGA. TheZyboZ7's
video-capable feature set, including a MIPI CSI-2 compatible Pcam connector, HDMI input, HDMI output, and high
DDR3L bandwidth, was chosen to make it an affordable solution for the high end embedded vision applications that
Xilinx FPGAs are popular for. Attaching additional hardware is made easy by theZyboZ7's Pmod connectors, allowing
access to Digilent's catalog of over 70 Pmod peripheral boards, including motor controllers, sensors, displays, and more.
TheZyboZ7is a direct replacement for the popularZybodevelopment board, which will soon be phased out of
production. The designs are very similar, however theZyboZ7adds several features and performance improvements. To
assist in migrating from theZyboto theZyboZ7, Digilent has created a migration guide, available on
theZyboZ7Resource Center.
ZyboZ7Reference Manual
ZyboZ7PDF
ZYNQ Processor
667MHzdual-core Cortex-A9 processor
DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
Programmable from JTAG, Quad-SPI flash, and microSD card
Programmable logic equivalent to Artix-7 FPGA
Memory
1GBDDR3L with 32-bit bus @ 1066MHz
16MBQuad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI48/64™ compatible identifier
microSD slot
Power
Powered from USB or any 5V external power source
USB and Ethernet
Gigabit Ethernet PHY

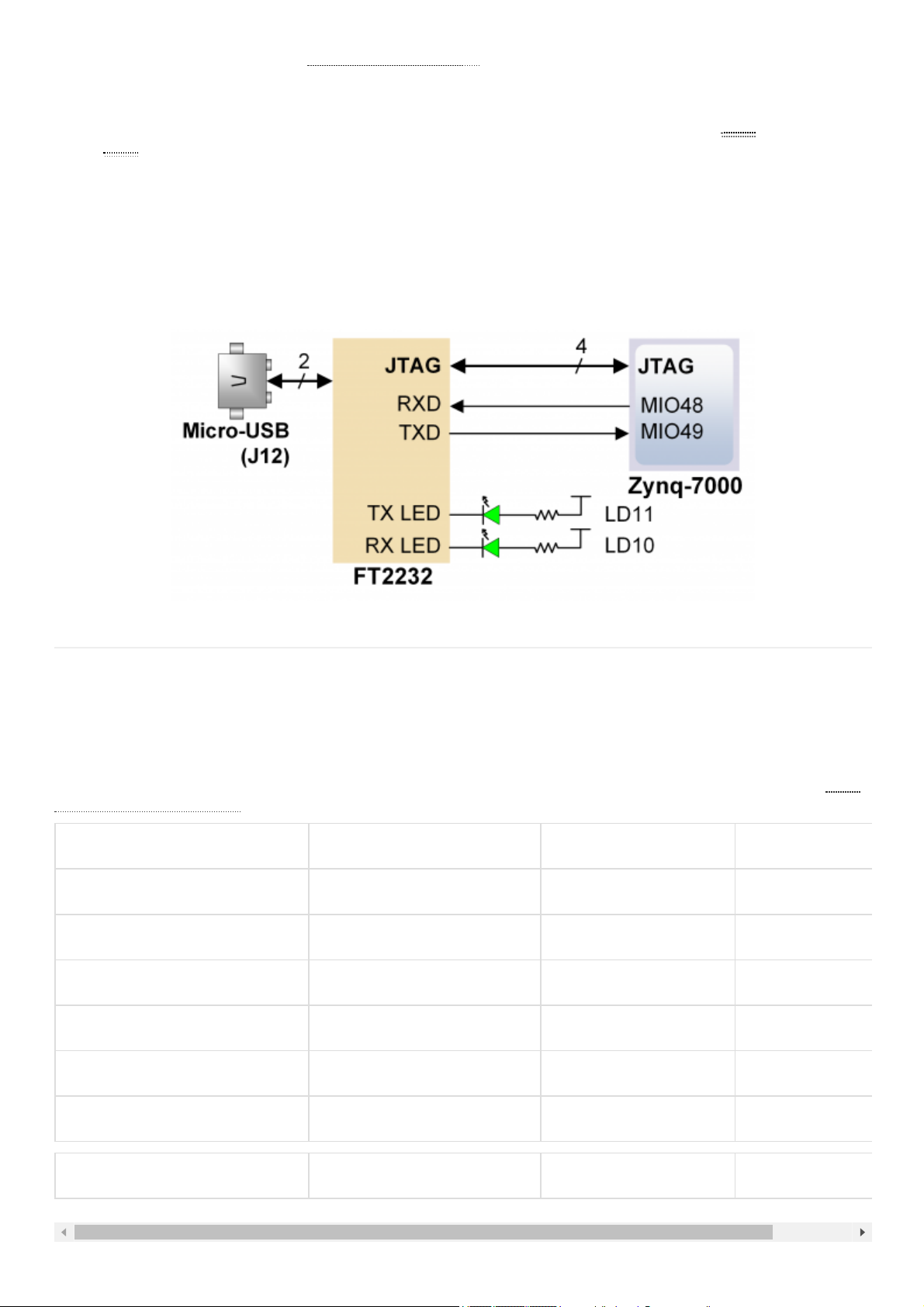

USB-JTAG Programming circuitry
USB-UART bridge
Download This Reference Manual
Features
USB 2.0 OTG PHY with host and device support
Audio and Video
Pcam camera connector with MIPI CSI-2 support
HDMI sink port (input) with/without* CEC
HDMI source port (output) with CEC
Audio codec with stereo headphone, stereo line-in, and microphone jacks

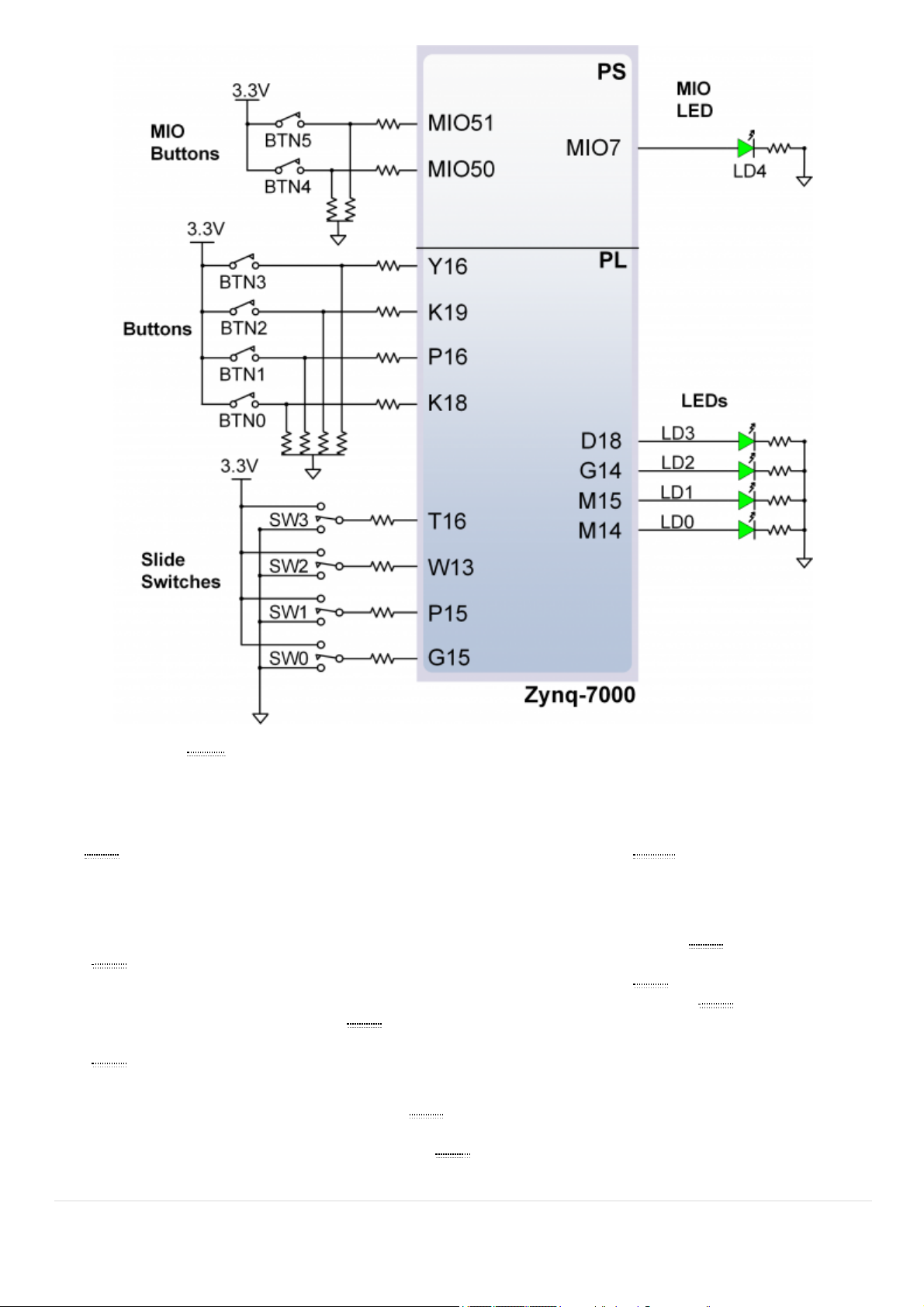

Switches, Push-buttons, and LEDs
6 push-buttons (2 processor connected)
4 slide switches
5 LEDs (1 processor connected)
2 RGB LEDs (1*)
Expansion Connectors
6 Pmod ports (5*)
8 Total Processor I/O
40 Total FPGA I/O (32*)
4 Analog capable 0-1.0V differential pairs to XADC
*The -7010 variant has several differences that are shown in parenthesis above. See Purchasing Options section for more info
*ZyboZ7-20 pictured
Callout Description Callout Description Callout Description
1 Power Switch 12 High-speed Pmod ports * 23 Ethernet port
2 Power select jumper 13 User buttons 24 External power su
connector
TheZyboZ7can be purchased with either a Zynq-7010 or Zynq-7020 loaded. These twoZyboZ7product variants are
referred to as theZyboZ7-10 andZyboZ7-20, respectively. When Digilent documentation describes functionality that is
common to both of these variants, they are referred to collectively as the “ZyboZ7”. When describing something that is
only common to a specific variant, the variant will be explicitly called out by its name.
The primary difference between the two variants is the size of the FPGA inside the Zynq AP SoC. The Zynq processors
both have the same capabilities, but the -20 has about a 3 times larger internal FPGA than the -10. Also, The Zynq-7010
has slightly fewer FPGA attached pins than the Zynq-7020, which means several features found on theZyboZ7-20 are not
available on theZyboZ7-10. The differences between the two variants are summarized below:
Callout Description Callout Description Callout Description
3 USB JTAG/UART port 14 User RGB LEDs * 25 Fan connector (5V
wire) *
4 MIO UserLED 15 XADC Pmod port 26 Programming mo
jumper
5 MIO Pmod port 16 Audio codec ports 27 Power supply goo
6 USB 2.0 Host/OTG port 17 Unique MAC address label 28 FPGA programm
doneLED
7 USB Host power enable
jumper
18 External JTAG port 29 Processor reset bu
8 Standard Pmod port 19 HDMI input port 30 FPGA clear config
button
9 User switches 20 Pcam MIPI CSI-2 port 31 Zynq-7000
10 User LEDs 21 microSD connector (other
side)
32 DDR3L Memory
11 MIO User buttons 22 HDMI output port * denotes difference betweenZ7-1
20
Purchasing Options
TheZyboZ7-20 includes a heat sink in order to dissipate the extra heat generated from the additional FPGA resources
when running complex, fast-switching designs.
The board can be purchased stand-alone or with a voucher to unlock the Xilinx SDSoC toolset. The SDSoC voucher
unlocks a 1 year license that can be used with theZyboZ7. After the license expires, any version of SDSoC that was
released during this 1 year period can continue to be used indefinitely. For more information on purchasing, see
theZyboZ7Product Page. At the time of purchase, it is also possible to add-on a microSD card, 5V 2.5A power supply,
and micro USB cable as needed. A smallfan(ZyboZ7Fan Datasheet) that attaches to the heat sink can be added on to
theZyboZ7-20 too, however this fan will not work with theZyboZ7-10.
Note that due to the smaller FPGA in the Zynq-7010, it is not very well suited to be used in SDSoC for embedded vision
applications. We recommend people purchase theZyboZ7-20 if they are interested in these types of applications.
TheZyboZ7is fully compatible with Xilinx’s high-performance Vivado ® Design Suite. This tool set melds FPGA logic
design and embedded ARM software development into an easy to use, intuitive design flow. It can be used for designing
systems of any complexity, from a complete operating system running multiple server applications, down to a simple baremetal program that controls some LEDs. It is also possible to treat the Zynq AP SoC as a standalone FPGA for those not
interested in using the processor in their design. TheZyboZ7is supported under Vivado's free WebPACK™ license,
which means the software is completely free to use, including the Logic Analyzer and High-level Synthesis (HLS) features.
The Logic Analyzer assists with debugging logic that is running in hardware, and the HLS tool allows you to compile C
code directly into HDL.
Design resources, example projects, and tutorials are available for download at theZyboZ7Resource Center.
Zynq platforms are well-suited to be embedded Linux targets, andZyboZ7is no exception. Digilent currently does not
provide a Petalinux example for this product, however one will be available in the near future on theZyboZ7Resource
Center.
Product Variant ZyboZ7-10 ZyboZ7-20
Zynq Part XC7Z010-1CLG400C XC7Z020-1CLG400C
1 MSPS On-chipADC Yes Yes
Look-up Tables (LUTs) 17,600 53,200
Flip-Flops 35,200 106,400
BlockRAM 270 KB 630 KB
Clock Management Tiles 2 4
Total Pmod ports 5 6
Fan connector No Yes
Zynq heat sink No Yes
HDMI CEC Support TX port only TX and RX ports
RGBLED 1 2
Software Support
TheZyboZ7can also be used in Xilinx's SDSoC environment, which allows you to design FPGA accelerated programs
and video pipelines with ease in an entirely C/C++ environment. For more information on SDSoC, see theXilinx SDSoC
Site. Digilent will be releasing a video capable platform with Linux and OpenCV support in the near future. Note that due
to the smaller FPGA in theZyboZ7-10, only very basic video processing demos will be included with that platform.
Digilent recommends theZyboZ7-20 for those interested in video processing.
Those familiar with the older Xilinx ISE/EDK toolsets from before Vivado was released can also choose to use
theZyboZ7in that tool set. Digilent does not provide materials to support this, but you can always ask for help on
theDigilent Forum.
The Zynq APSoC is divided into two distinct subsystems: The Processing System (PS) and the Programmable Logic (PL).
The figure below shows an overview of the Zynq APSoC architecture, with the PS colored light green and the PL in yellow.
Note that the PCIe Gen2 controller and Multi-gigabit transceivers are not available on the Zynq-7020 or Zynq-7010
devices.
The PL is nearly identical to a Xilinx 7-series Artix FPGA, except that it contains several dedicated ports and buses that
tightly couple it to the PS. The PL also does not contain the same configuration hardware as a typical 7-series FPGA, and it
must be configured either directly by the processor or via the JTAG port.
The PS consists of many components, including the Application Processing Unit (APU, which includes 2 Cortex-A9
processors), Advanced Microcontroller Bus Architecture (AMBA) Interconnect, DDR3 Memory controller, and various
peripheral controllers with their inputs and outputs multiplexed to 54 dedicated pins (called Multiplexed I/O, or MIO pins).
Peripheral controllers that do not have their inputs and outputs connected to MIO pins can instead route their I/O
through the PL, via the Extended-MIO (EMIO) interface. The peripheral controllers are connected to the processors as
slaves via the AMBA interconnect, and contain readable/writable control registers that are addressable in the processors’
Zynq APSoC Architecture
memory space. The programmable logic is also connected to the interconnect as a slave, and designs can implement
multiple cores in the FPGA fabric that each also contain addressable control registers. Furthermore, cores implemented in
the PL can trigger interrupts to the processors and perform DMA accesses to DDR3 memory.
There are many aspects of the Zynq APSoC architecture that are beyond the scope of this document. For a complete and
thorough description, refer to theZynq Technical Reference manual.
The table below depicts the external components connected to the MIO pins of theZyboZ7. The Vivado board files
found on theZyboZ7Resource Centercan be used to properly configure the PS to work with these peripherals. It is also
possible to use the example projects found on the resource center as a starting point for your own designs.
MIO 500 3.3 V Peripherals
Pin Pmod SPI Flash GPIO
0 JF7
1 CS
2 DQ0
3 DQ1
4 DQ2
5 DQ3
6 SCLK
7 LED4
8 SCLKFB
9 JF8
10 JF2
11 JF3
12 JF4
13 JF1
14 JF9
15 JF10
MIO 501 1.8V Peripherals
Pin ENET 0 USB 0 SDIO 0 UART 1
16 TXCK
17 TXD0
18 TXD1
19 TXD2
20 TXD3
21 TXCTL
22 RXCK
23 RXD0
24 RXD1
25 RXD2
26 RXD3
27 RXCTL
28 DATA4
29 DIR
30 STP
31 NXT
32 DATA0
33 DATA1
34 DATA2
35 DATA3
36 CLK
37 DATA5
38 DATA6
39 DATA7
40 CCLK
41 CMD
42 D0
43 D1
TheZyboZ7power circuitry was carefully designed to meet the requirements of the Zynq-7000 and all other peripherals
while also providing flexible input supply options. An overview of the power circuit is shown in Figure 1.1.
Figure 1.1. Power circuit overview
All on-board power supplies are enabled or disabled by the power switch (SW4). The power indicatorLED(LD13, labeled
PGOOD) is on when all the supply rails reach their nominal voltage.
44 D2
45 D3
46 RESETN
47 CD
48 RXD (output)
49 TXD (input)
50 B
51 B
52 MDC
53 MDIO
Functional Description
1 Power Supplies
1.1 Power Input Sources
TheZyboZ7can be powered from several different sources. Jumper JP6 (near the power switch) determines which power
source is used. There are three valid configurations for this jumper corresponding to the three powering options: USB, wall
wart supply with barrel jack, and battery pack. Figure 1.1 depicts all three, and a diagram on the board silkscreen does as
well.
The recommended power source is an external power supply (such as a wall-wart) with a barrel jack connector (also known
as a coaxial power connector). The supply must use a center-positive 2.1mm internal-diameter plug and deliver between
4.5V to 5.5V DC. It should also be able to output at least 2.5 A (12.5 Watts) in order to support power hungry Zynq
projects and external peripherals. To use an external supply with a barrel jack, plug it into the power jack (J17), set jumper
JP6 to “WALL”, and then set SW4 to “ON”. Suitable supplies can be purchased from the Digilent website or Digilent
distributors, as well as popular electronics vendors.
An external power source, such as a battery pack, that does not have a suitable barrel jack connector can still be used by
wiring it’s positive terminal to the center pin of JP6 and the negative terminal to the pin labeled J16 next to JP6. The
external supply must still meet the same voltage requirements as a supply attached to the barrel jack.
It is also possible to power theZyboZ7from the USB programming port (J12), however theZyboZ7often requires more
current than the 0.5 A of current that is allowed by a USB 2.0 device. If this limit is exceeded, many USB hosts will begin to
droop the voltage briefly until theZyboZ7resets, dropping current consumption into acceptable ranges. To help prevent
this, a USB host port should be chosen that can support higher current (often referred to as a “fast charging USB port” or
similar by laptop/PC vendors). Many USB battery packs and wall supplies will also support higher current draws. Even
when attached to a host capable of providing more current, theZyboZ7will limit itself to .75 A (typ), and will reset if this
current is reached. If you experience your project resetting (indicated by a brief flicker on the PGOODLEDand the
DONELEDturning off) while powered from a high current USB port, you will either need to lower the power
consumption of your project or use an external power source with a barrel jack.
For reference, we found that the out of box demo loaded on theZyboZ7at the factory consumes about 0.5 A from the
input power source. More demanding applications, including any that drive multiple peripheral boards or other USB
devices, will likely draw more.
TheZyboZ7has over-voltage protection up to 20 V on all power inputs that will kick in when a voltage of greater than 5.7
V is detected on the selected input. It will also limit current draw to .75 A (typ) when powered from USB and 4 A (typ)
when powered from an external source through the barrel jack. This protection is implemented using a Texas Instruments
TPS25940 eFuse, please refer to its datasheet for further specifications.
Table 1.1.1 provides an overview of the power input specifications for theZyboZ7.
Table 1.1.1.ZyboZ7Power Input Specifications
Table 1.2.1 describes the characteristics theZyboZ7's on-board power rails. It can be used to estimate power consumption
for a project, or determine how much current attached peripherals can draw before being limited.
Connector
Type
JP6
Configuration
Connector
Label
Schematic net
name
Min/Rec/Max
Voltage (V)
Min Curr
(A)
Barrel jack WALL J17 VJACK 4.5/5/5.5 3.99
Battery/Other BAT JP6, J16 VU5V0 4.5/5/5.5 0.73
USB USB J12 VBUS See USB specification 0.73
Net name
Upstream
net name
Power IC
Type
Power IC
Label
Min/Typ/Max
Voltage (V)
Max.
Current
Major Device
Connectors
1.2 Power Specifications
Table 1.2.1.ZyboZ7Power Rail Specifications
Input power to the board is gated by the TPS25940, a protection circuit providing both inrush and general current limit,
over-voltage protection and current sense. Inrush current is limited by a ~4ms soft-start time.
The supply rails downstream are daisy-chained to follow the Xilinx-recommended start-up sequence. Flicking the power
switch (SW4) will enable the 1.0V rail, which enables the 1.8V digital supply rail, which in turn enables the I/O supply rails
3.3V and 1.35V. The 1.25V reference and 1.8V analog supply ramp together with the 3.3V rail. Once all the channels of the
ADP5052 (IC25) supply reach regulation, the PGOOD signal will assert, enabling the 3.3V audio supply, lighting up the
powerLED(LD13), and de-asserting the Power-On Reset signal (PS_POR_B) of the Zynq.
Each power supply uses a soft-start ramp of 1-10ms to limit in-rush current. There is an additional delay of at least 130ms
after the power rails reach regulation and before the Power-On Reset signal de-assert to allow for the PS_CLK (IC22) to
stabilize.
The current being consumed by theZyboZ7from the power input can be monitored using the IMON signal of the
TPS25940 eFuse device (IC26). The voltage on the IMON signal is directly proportional to the current being consumed,
and is connected to the dedicated analog input pair on the Zynq-7000 (V_P/V_N) so it can be measured using the
internalADC(called the XADC core). For information on how to use the XADC core, please see section “16.3 Dual
Analog/Digital Pmod (XADC Pmod)”. It is recommended that 256 averaging mode be used for more accurate results.
Once a 12-bit value is obtained from the XADC, you can use the equation in Figure 1.4.1 to convert it to current
consumption.Xis the 12-bit value from the XADC andIis the current consumption in Amps. Be careful not to use the
16-bit value obtained directly from the XADC registers with this equation; it needs to be right-shifted by four in order to
ignore the four least significant bits.
Figure 1.4.1. Current Consumption Equation
Net name
Upstream
net name
Power IC
Type
Power IC
Label
Min/Typ/Max
Voltage (V)
Max.
Current
Major Device
Connectors
VCC5V0 VU5V0 Power
protection
IC26 2.3V/5V/5.7V See Table
1.1.1
Power input
VCC3V3 VCC5V0 Buck IC25 3.3V +-10% 1.5A FPGA banks, E
USB, HDMI
VCC1V0 VCC5V0 Buck IC25 1.0V +-5% 2.1A FPGA, Ethern
VCC1V35 VCC5V0 Buck IC25 1.35V +-5% 1.2A FPGA, DDR3
VCC1V8 VCC5V0 Buck IC25 1.8V +-10% 0.6A FPGA, Ethern
XADC_1V8 VCC5V0 LDO IC25 1.8V +-10% 0.1A FPGA XADC
XADC_1V25 VCC3V3 LDO IC27 1.25V +-0.12% 5mA FPGA XADC
ANA3V3 VCC5V0 LDO IC5 3.3V +-10% 0.1A Analog audio s
1.3 Power Sequencing
1.4 Current Monitoring
Unlike Xilinx FPGA devices, AP SoC devices such as the Zynq-7020 and Zynq-7010 are designed around the processor,
which acts as a master to the programmable logic fabric and all other on-chip peripherals in the processing system. This
causes the Zynq boot process to be more similar to that of a microcontroller than an FPGA. This process involves the
processor loading and executing a Zynq Boot Image, which includes a First Stage Bootloader (FSBL), a bitstream for
configuring the programmable logic (optional), and a user application. The boot process is broken into three stages:
Stage 0
After theZyboZ7is powered on or the Zynq is reset (in software or by pressing PS-SRST), one of the processors (CPU0)
begins executing an internal piece of read-only code called the BootROM. If and only if the Zynq was just powered on, the
BootROM will first latch the state of the mode pins into the mode register (the mode pins are attached to JP5 on
theZyboZ7). If the BootROM is being executed due to a reset event, then the mode pins are not latched, and the previous
state of the mode register is used. This means that theZyboZ7needs a power cycle to register any change in the
programming mode jumper (JP5). Next, the BootROM copies an FSBL from the form of non-volatile memory specified
by the mode register to the 256 KB of internalRAMwithin the APU (called On-Chip Memory, or OCM). The FSBL must
be wrapped up in a Zynq Boot Image in order for the BootROM to properly copy it. The last thing the BootROM does is
hand off execution to the FSBL in OCM.
Stage 1
During this stage, the FSBL first finishes configuring the PS components, such as the DDR memory controller. Then, if a
bitstream is present in the Zynq Boot Image, it is read and used to configure the PL. Finally, the user application is loaded
into memory from the Zynq Boot Image, and execution is handed off to it.
Stage 2
The last stage is the execution of the user application that was loaded by the FSBL. This can be any sort of program, from a
simple “Hello World” design, to a Second Stage Boot loader used to boot an operating system like Linux. For a more
thorough explanation of the boot process, refer to Chapter 6 of theZynq Technical Reference manual.
The Zynq Boot Image is created using Vivado and Xilinx Software Development Kit (Xilinx SDK). For information on
creating this image please refer to the available Xilinx documentation for these tools.
TheZyboZ7supports three different boot modes: microSD, Quad SPI Flash, and JTAG. The boot mode is selected using
the Mode jumper (JP5), which affects the state of the Zynq configuration pins after power-on. Figure 2.1 depicts how the
Zynq configuration pins are connected on theZyboZ7.
Figure 2.1.ZyboZ7configuration pins.
The three boot modes are described in the following sections.
2 Zynq Configuration
2.1 microSD Boot Mode
TheZyboZ7supports booting from a microSD card inserted into connector J4. The following procedure will allow you to
boot the Zynq from microSD with a standard Zynq Boot Image created with the Xilinx tools:
1. Format the microSD card with a FAT32 file system.
2. Copy the Zynq Boot Image created with Xilinx SDK to the microSD card.
3. Rename the Zynq Boot Image on the microSD card to BOOT.bin.
4. Eject the microSD card from your computer and insert it into connector J4 on theZyboZ7.
5. Attach a power source to theZyboZ7and select it using JP6.
6. Place a single jumper on JP5, shorting the two leftmost pins (labeled “SD”).
7. Turn the board on. The board will now boot the image on the microSD card.
TheZyboZ7has an onboard 16MB Quad-SPI Flash that the Zynq can boot from. Documentation available from Xilinx
describes how to use Xilinx SDK to program a Zynq Boot Image into a Flash device attached to the Zynq. Once the Quad
SPI Flash has been loaded with a Zynq Boot Image, the following steps can be followed to boot from it:
1. Attach a power source to theZyboZ7and select it using JP6.
2. Place a single jumper on JP5, shorting the two center pins (labeled “QSPI”).
3. Turn the board on. The board will now boot the image stored in the Quad SPI flash.
When placed in JTAG boot mode, the processor will wait until software is loaded by a host computer using the Xilinx
tools. After software has been loaded, it is possible to either let the software begin executing, or step through it line by line
using Xilinx SDK.
It is also possible to directly configure the PL over JTAG, independent of the processor. This can be done using the Vivado
Hardware Server.
TheZyboZ7is configured to boot in Cascaded JTAG mode, which allows the PS to be accessed via the same JTAG port
as the PL. It is also possible to boot theZyboZ7in Independent JTAG mode by loading a jumper in JP3 and shorting it.
This will cause the PS to not be accessible from the onboard JTAG circuitry, and only the PL will be visible in the scan
chain. To access the PS over JTAG while in independent JTAG mode, users will have to route the signals for the PJTAG
peripheral over EMIO, and use an external device to communicate with it.
TheZyboZ7includes two Micron MT41K256M16HA-125 DDR3L memory components creating a single rank, 32-bit
wide interface and a total of 1 GiB (Gibi-byte, or 1,073,741,824 bytes) of capacity. The DDR3L is connected to the hard
memory controller in the Processor Subsystem (PS), as outlined in the Zynq documentation.
The PS incorporates an AXI memory port interface, a DDR controller, the associated PHY, and a dedicated I/O bank.
DDR3L memory interface speeds up to 533MHz/1066 Mbps are supported.
ZyboZ7was routed with 40 ohm (+/-10%) trace impedance for single-ended signals, and differential clock and strobes set
to 80 ohms (+/-10%). A feature called DCI (Digitally Controlled Impedance) is used to match the drive strength and
termination impedance of the PS pins to the trace impedance. On the memory side, each chip calibrates its on-die
termination and drive strength using a 240 ohm resistor on the ZQ pin.
Due to layout reasons, the two lower data byte groups (DQ[0-7], DQ[8-15]) were swapped. To the same effect, the data bits
inside byte groups were swapped as well. These changes are transparent to the user. During the whole design process the
Xilinx PCB guidelines were followed.
Both the memory chips and the PS DDR bank are powered from the 1.35V supply. The mid-point reference of 0.675V is
created with a simple resistor divider and is available to the Zynq as external reference.
For proper operation it is essential that the PS memory controller is configured properly. Settings range from the actual
memory flavor to the board trace delays. For your convenience, theZyboZ7Vivado board files are available on
theZyboZ7Resource Centerand automatically configure the Zynq Processing System IP core with the correct
parameters.
For best DDR3L performance, DRAM training is enabled for write leveling, read gate, and read data eye options in the PS
Configuration Tool in Xilinx tools. Training is done dynamically by the controller to account for board delays, process
variations and thermal drift. Optimum starting values for the training process are the board delays (propagation delays) for
2.2 Quad SPI Boot Mode
2.3 JTAG Boot Mode
3 DDR3L Memory
certain memory signals.
Board delays are specified for each of the byte groups. These parameters are board-specific and were calculated from the
PCB trace length reports. The DQS to CLK Delay and Board Delay values are calculated specific to theZyboZ7memory
interface PCB design.
For more details on memory controller operation, refer to the XilinxZynq Technical Reference manual.
TheZyboZ7features a Spansion S25FL128S 4-bit Quad-SPI serial NOR flash. The key device attributes are:
Part number S25FL128S
16 MiB (16,777,216 bytes)
1-bit, 2-bit, and 4-bit bus widths supported
General use clock speeds up to 100MHz, translating to 400 Mbps in Quad-SPI mode
Zynq configuration clock speeds up to 94MHz.
Powered from 3.3V
The Flash memory is used to provide non-volatile code and data storage. It can be used to initialize the PS and PL of the
Zynq device with a Zynq Boot Image (also known as BOOT.BIN) generated using Xilinx tools such as Petalinux or Xilinx
SDK. For information on booting theZyboZ7with a Zynq Boot image, see section “2.2 Quad SPI Boot Mode”.
The Flash is also commonly used to store non-configuration data needed by the application. If doing this from a bare-metal
application, The flash memory can be freely accessed using standalone libraries included with a Xilinx SDK BSP project. If
doing this from a Petalinux generated embedded Linux system, the Flash can be partitioned as desired and
mounted/accessed like a standard MTD block device. See the Petalinux and Xilinx SDK documentation for more
information.
The Flash connects to the Quad-SPI Flash controller of the Zynq-7000 PS via pins in MIO Bank 0/500 (specifically
MIO[1:6,8]), as outlined in the Zynq Technical Reference Manual. Quad-SPI feedback mode is used, thus
qspi_sclk_fb_out/MIO[8] is left to freely toggle and is connected only to a 20K pull-up resistor to 3.3V. This allows a
Quad-SPI clock frequency greater than FQSPICLK2. The details of these connections do not need to be known when
using theZyboZ7Vivado Board files, as they will automatically configure your project to work correctly with the on-board
Flash.
A globally unique MAC address is programmed into the One-Time-Programmable (OTP) region of the Flash on
eachZyboZ7at the factory. For more information on this, see section “10 Ethernet”.
The OTP region also includes a factory-programmed read-only 128-bit random number. The very lowest address range
[0x00;0x0F] can be read to access the random number. See the Spansion S25FL128S datasheet for information on this
random number and accessing the OTP region.
TheZyboZ7provides a 33.3333MHzclock to the Zynq PS_CLK input, which is used to generate the clocks for each of
the PS subsystems. The 33.3333MHzinput allows the processor to operate at a maximum frequency of 667MHzand the
DDR3 memory controller to operate at a maximum clock rate of 533MHz(1066 MT/s). TheZyboZ7board files,
available on theZyboZ7Resource Center, will automatically configure the Zynq processing system IP core in Vivado to
work with all PS attached devices, including the 33.3333MHzinput oscillator.
The PS has a dedicated PLL capable of generating up to four reference clocks, each with settable frequencies, that can be
used to clock custom logic implemented in the PL. Additionally, TheZyboZ7provides an external 125MHzreference
clock directly to pin K17 of the PL. The external reference clock allows the PL to be used completely independently of the
PS, which can be useful for simple applications that do not require the processor.
The PL of the Zynq-Z7010 also includes two MMCM’s and two PLL’s that can be used to generate clocks with precise
frequencies and phase relationships. Any of the four PS reference clocks or the 125MHzexternal reference clock can be
used as an input to the MMCMs and PLLs. For a full description of the capabilities of the Zynq PL clocking resources,
refer to the “7 Series FPGAs Clocking Resources User Guide” available from Xilinx.
4 Quad-SPI Flash
5 Oscillators/Clocks
Xilinx offers the Clocking Wizard IP core to assist in integrating the MMCM's and PLL's into a design. This wizard will
properly instantiate the needed MMCMs and PLLs based on the desired frequencies and phase relationships specified by
the user. The wizard will then output an easy-to-use wrapper component around these clocking resources that can be
inserted into the user’s design. The clocking wizard can be accessed from within the Vivado and IP Integrator tools.
Figure 5.1 outlines the clocking scheme used on theZyboZ7. Note that the reference clock output from the Ethernet
PHY is used as the 125MHzreference clock to the PL, in order to cut the cost of including a dedicated oscillator for this
purpose. Keep in mind that CLK125 will be disabled when the Ethernet PHY is held in hardware reset by driving the
PHYRSTB signal low.
Figure 5.1.ZyboZ7clocking.
TheZyboZ7provides several different methods of resetting the Zynq-7000 device, as described in the following sections.
The Zynq PS supports external power-on reset signals. The power-on reset is the master reset of the entire chip. This signal
resets every register in the device capable of being reset. TheZyboZ7drives this signal from the PWRGD signal of the
ADP5052 power regulator in order to hold the system in reset until all power supplies are valid.
A red push button, labeled PROGB, toggles the Zynq-7000's PROG_B input. This resets the PL and causes DONE to be
de-asserted. The PL will remain unconfigured until it is reprogrammed by the processor or via JTAG.
The external system reset button, labeled PS-SRST, resets the Zynq device without disturbing the debug environment. For
example, the previous break points set by the user remain valid after system reset. Due to security concerns, system reset
erases all memory content within the PS, including the On-Chip-Memory (OCM). The PL is also cleared during a system
reset. System reset does not cause the boot mode strapping pins to be re-sampled. After changing boot moode jumpers a
power cycle is needed to act on the new setting.
TheZyboZ7includes an FTDI FT2232HQ USB-UART bridge (attached to connector J12) that lets you use PC
applications to communicate with the board using standard COM port commands (or the tty interface in Linux). Drivers
are automatically installed in Windows and newer versions of Linux when theZyboZ7is attached. Serial port data is
exchanged with the Zynq using a two-wire serial port (TXD/RXD). After the drivers are installed, I/O commands can be
used from the PC directed to the COM port to produce serial data traffic on the Zynq pins. The port is tied to PS (MIO)
pins and can be used in combination with the UART 1 controller.
6 Reset Sources
6.1 Power-on Reset
6.2 Programmable Logic Reset
6.3 Processor Subsystem Reset
7 USB-UART Bridge (Serial Port)
The Zynq presets file (available in theZyboZ7Resource Center) takes care of mapping the correct MIO pins to the UART
1 controller and uses the following default protocol parameters: 115200 baud rate, 1 stop bit, no parity, 8-bit character
length.
Two on-board status LEDs provide visual feedback on traffic flowing through the port: the transmitLED(LD11) and the
receiveLED(LD10). Signal names that imply direction are from the point-of-view of the DTE (Data Terminal
Equipment), in this case the PC.
The FT2232HQ is also used as the controller for the Digilent USB-JTAG circuitry, but the USB-UART and USB-JTAG
functions behave entirely independent of one another. Programmers interested in using the UART functionality of the
FT2232 within their design do not need to worry about the JTAG circuitry interfering with the UART data transfers, and
vice-versa. The combination of these two features into a single device allows theZyboZ7to be programmed,
communicated with via UART, and powered from a computer attached with a single Micro USB cable.
The connections between the FT2232HQ and the Zynq-7000 are shown in Figure 7.1.
Figure 7.1. UART Connections
TheZyboZ7provides a microSD slot (J4) for non-volatile external memory storage as well as booting the Zynq. The slot
is wired to Bank 1/501 MIO[40-45], and also includes a card detect signal attached to MIO 47. On the PS side peripheral
SDIO 0 is mapped out to these pins and controls communication with the SD card. The pinout can be seen in Table 8.1.
The peripheral controller supports 1-bit and 4-bit SD transfer modes, but does not support SPI mode. Based on theZynq
Technical Reference Manual, SDIO host mode is the only mode supported.
Table 8.1. MicroSD pinout
Signal Name Description Zynq Pin SD Slot Pin
SD_D0 Data[0] MIO42 7
SD_D1 Data[1] MIO43 8
SD_D2 Data[2] MIO44 1
SD_D3 Data[3] MIO45 2
SD_CCLK Clock MIO40 5
SD_CMD Command MIO41 3
SD_CD Card Detect MIO47 9
8 microSD Slot
The SD slot is powered from 3.3V, but is connected through MIO Bank 1/501 (1.8V). Therefore, a TI TXS02612 level
shifter performs this translation. The TXS02612 is actually a 2-port SDIO port expander, but only its level shifter function
is used. The connection diagram can be seen on Figure 8.1. Mapping out the correct pins and configuring the interface is
handled by theZyboZ7board files, available on theZyboZ7resource center.
Figure 8.1. microSD slot signals
Both low speed and high speed cards are supported, the maximum clock frequency being 50MHz. A Class 4 card or better
is recommended.
Refer to section “2.1 microSD Boot Mode” for information on how to boot from a microSD card that contains a Zynq
Boot Image.
The microSD is also commonly used to store non-configuration data needed by the application. If doing this from a baremetal application, the microSD card can be freely accessed using standalone libraries included with a Xilinx SDK BSP
project. If doing this from a Petalinux generated embedded Linux system, the microSD can be mounted/accessed like a
standard block device, typically with a device node named /dev/mmcblk0. See the Petalinux and Xilinx SDK
documentation for more information.
TheZyboZ7implements one of the two available PS USB OTG interfaces on the Zynq device. A Microchip USB3320
USB 2.0 Transceiver Chip with an 8-bit ULPI interface is used as the PHY. The PHY features a complete HS-USB Physical
Front-End supporting speeds of up to 480Mbs. The PHY is connected to MIO Bank 1/501, which is powered at 1.8V. The
usb0 peripheral is used on the PS, connected through MIO[28-39]. The USB OTG interface can act as an embedded host
or a peripheral device. The USB mode is controlled from software by manipulating the USB0 peripheral controller in the
Zynq PS. When acting as a peripheral, the USB Micro AB connector (J10) should be used to connect to a USB host device,
and JP1 and JP2 should not be shorted. When acting as an embedded host, the USB A connector (J11) should be used to
connect to a USB peripheral device, and JP2 should be shorted while JP1 is not shorted. TheZyboZ7should never have a
peripheral device and a host device connected to these two connectors at the same time.
While in host mode, theZyboZ7is technically an “embedded host”, because it does not provide the required 150 µF of
capacitance on VBUS required to qualify as a general purpose host. It is possible to modify theZyboZ7so that it complies
with the general purpose USB host requirements by loading C71 with a 150 µF capacitor and shorting JP1. Only those
experienced at soldering small components on PCBs should attempt this rework. Most USB peripheral devices will work
just fine without loading C71. Whether theZyboZ7is configured as an embedded host or a general purpose host, it can
provide 500 mA on the 5V VBUS line. Note that loading C71 may cause theZyboZ7to reset when booting embedded
Linux while powered from the USB port, regardless of if any USB device is connected to the host port. This is caused by
the in-rush current that C71 causes when the USB host controller is enabled and the VBUS power switch (IC12) is turned
on.
Note that if your project uses the USB host feature (embedded or general purpose), then theZyboZ7is very likely to
consume more current than is allowed by a USB peripheral, causing it to periodically reset. When this occurs the
PGOODLEDwill quickly flicker and the DONELEDwill go low, indicating the PL is no longer programmed. To
9 USB Host/OTG
prevent this, power theZyboZ7from an external source capable of providing more power. See section “1 Power Supplies”
for information on acceptable non-USB power sources.
TheZyboZ7uses a Realtek RTL8211E-VL PHY to implement a 10/100/1000 Ethernet port for network connection.
The PHY connects to MIO Bank 501 (1.8V) and interfaces to the Zynq-7000 AP SoC via RGMII for data and MDIO for
management. The auxiliary interrupt (INTB) and reset (PHYRSTB) signals connect to PL pins to be accessed via EMIO.
The connection diagram can be seen on Figure 10.1.
After power-up the PHY starts with Auto Negotiation enabled, advertising 10/100/1000 link speeds and full duplex. If
there is an Ethernet-capable partner connected, the PHY automatically establishes a link with it, even with the Zynq not
configured.
Figure 10.1. Ethernet PHY signals
Two status indicator LEDs are on-board near the RJ-45 connector that indicate traffic (LD8) and valid link state (LD7).
Table 10.1 shows the default behavior.
Function Designator State Description
LINK LD7 Steady on Link 10/100/1000
Blinking 0.4s ON, 2s OFF Link, Energy Efficient Ethernet (EEE) mod
ACT LD8 Blinking Transmitting or Receiving
10 Ethernet
Table 10.1. Ethernet status LEDs
The Zynq incorporates two independent Gigabit Ethernet Controllers. They implement a 10/100/1000 half/full duplex
Ethernet MAC. Of these two, GEM 0 can be mapped to the MIO pins where the PHY interfaces. Since the MIO bank is
powered from 1.8V, the RGMII interface uses 1.8V HSTL Class 1 drivers. For this I/O standard an external reference of
0.9V is provided in bank 501 (PS_MIO_VREF). Mapping out the correct pins and configuring the interface is handled by
theZyboZ7Vivado board files.
Although the default power-up configuration of the PHY might be enough in most applications, the MDIO bus is available
for management. The RTL8211E-VL is assigned the 5-bit address 00001 on the MDIO bus. With simple register read and
write commands, status information can be read out or configuration changed. The Realtek PHY follows industry-standard
register map for basic configuration.
The RGMII specification calls for the receive (RXC) and transmit clock (TXC) to be delayed relative to the data signals
(RXD[0:3], RXCTL and TXD[0:3], TXCTL). Xilinx PCB guidelines also require this delay to be added. The RTL8211E-VL
is capable of inserting a 2ns delay on both the TXC and RXC so that board traces do not need to be made longer.
On an Ethernet network each node needs a unique MAC address. To this end, the one-time-programmable (OTP) region
of the Quad-SPI flash has been programmed at the factory with a 48-bit globally unique EUI-48/64™ compatible
identifier. The OTP address range [0x20;0x25] contains the identifier with the first byte in transmission byte order being at
the lowest address. Refer to theFlash memory datasheetfor information on how to access the OTP regions. When using
Petalinux, this is automatically handled in the U-boot boot-loader, and the Linux system is automatically configured to use
this unique MAC address. The identifier is also printed on a sticker found on the top-side of theZyboZ7right next to the
mode jumper (JP5) and above the headphone output jack.
For getting started using the ethernet port in a bare-metal application, Xilinx provides a lwip TCP/IP stack that can be
automatically generated in Xilinx SDK along with an echo server example. When using theZyboZ7with a Petalinux
generated embedded Linux system, the ethernet port will automatically appear as a network device typically named eth0.
See the Petalinux and Xilinx SDK documentation for more information.
For more low-level information on using the Zynq-7000 Gigabit Ethernet MAC, refer to the Xilinx Zynq Technical
Reference Manual.
TheZyboZ7contains one unbuffered source port (output, labeled HDMI TX), and one buffered sink port (input, labeled
HDMI RX). Both ports use HDMI type-A receptacles with the data and clock signals terminated and connected to the
Zynq PL. The buffer used on the HDMI RX port works by terminating, equalizing, conditioning, and forwarding the
HDMI stream between the connector and FPGA pins.
The HDMI TX port does not include a buffer for improving signal integrity, but does include an HDMI multiplexer
configured as a simple switch. This device is used to prevent displays from back-powering theZyboZ7, and otherwise has
no effect on functionality. The benefit this adds is to make it possible to power cycle theZyboZ7while a display is
attached to HDMI TX, which was not possible on theZybo.
Both HDMI and DVI systems use the same TMDS signaling standard, directly supported by Zynq PL's user I/O
infrastructure. Also, HDMI sources are backward compatible with DVI sinks, and vice versa. Thus, simple passive adaptors
(available at most electronics stores) can be used to drive a DVI monitor or accept a DVI input. The HDMI receptacle only
includes digital signals, so only DVI-D mode is possible.
The 19-pin HDMI connectors include three differential data channels, one differential clock channel,
fiveGNDconnections, a one-wire Consumer Electronics Control (CEC) bus, a two-wire Display Data Channel (DDC) bus
that is essentially an I2C bus, a Hot Plug Detect (HPD) signal, a 5V signal capable of delivering up to 50mA, and one
reserved (RES) pin. All non-power signals are wired to the Zynq PL with the exception of RES, and the CEC bus of the
HDMI RX port on theZyboZ7-10 (it is connected on theZyboZ7-20).
Pin/Signal HDMI TX HDMI RX
Description FPGA
pin
Description
11 HDMI
Table 11.1. HDMI pin description and assignment
HDMI/DVI is a high-speed digital video stream interface using transition-minimized differential signaling (TMDS). To
make proper use of either of the HDMI ports, a standard-compliant transmitter or receiver needs to be implemented in the
Zynq PL. The implementation details are outside the scope of this manual. Check out the vivado-library IP Core repository
on theDigilent githubfor ready-to-use reference IP. The IP cores for transmitting and receiving are called rgb2dvi and
dvi2rgb, respectively.
Whenever a sink is ready and wishes to announce its presence, it connects the 5V0 supply pin to the HPD pin. On
theZyboZ7, this is done by driving the Hot Plug Assert signal (HDMI_RX_HPD) high. Note this should only be done
after a DDC channel slave has been implemented in the Zynq PL and is ready to transmit display data.
The Display Data Channel, or DDC, is a collection of protocols that enable communication between the display (sink) and
graphics adapter (source). The DDC2B variant is based on I2C, the bus master being the source and the bus slave the sink.
When a source detects high level on the HPD pin, it queries the sink over the DDC bus for video capabilities. It determines
whether the sink is DVI or HDMI-capable and what resolutions are supported. Only afterwards will video transmission
begin. Refer to VESA E-DDC specifications for more information. IP supplied by Digilent in our Github repository
vivado-library (Digilent github) includes DDC support and some pre-defined display descriptor data.
The Consumer Electronics Control, or CEC, is an optional protocol that allows control messages to be passed around on
an HDMI chain between different products. A common use case is a TV passing control messages originating from a
universal remote to a DVR or satellite receiver. It is a one-wire protocol at 3.3V level connected to a Zynq PL user I/O pin.
The wire can be controlled in an open-drain fashion allowing for multiple devices sharing a common CEC wire. Refer to
the CEC addendum of HDMI 1.3 or later specifications for more information.
An Analog Devices SSM2603 Audio Codec provides integrated digital audio processing to the Zynq-7000 AP SoC. It
allows for stereo record and playback at sample rates from 8kHzto 96kHz.
D[2]_P,
D[2]_N
Data output B19,
A20
Data input
D[1]_P,
D[1]_N
Data output C20,
B20
Data input
D[0]_P,
D[0]_N
Data output D19,
D20
Data input
CLK_P,
CLK_N
Clock output H16,
H17
Clock input
CEC Consumer Electronics Control
bidirectional (optional)
E19 CEC bidirectional (optional, N/A
onZyboZ7-10)
SCL, SDA DDC bidirectional (optional) G17,
G18
DDC bidirectional
HPD/HPA Hot-plug detect input (inverted, optional) E18 Hot-plug assert output
11.1 TMDS Signals
11.2 Auxiliary signals
12 Audio
On the analog side, the codec connects to three 3.5 mm standard audio jacks. There are two inputs: a mono microphone
and a stereo line in. There is one stereo output, the headphone jack. Analog power is provided by a dedicated linear power
supply (IC5).
Table 12.1. Analog audio signals
The digital interface of the SSM2603 is wired to the programmable logic side of the Zynq. Audio data is transferred via the
I²S protocol. Configuration is done over an I2C bus. The device address of the SSM2603 is 0011010b. All digital I/O are
3.3V level and connect to a 3.3V-powered FPGA bank.
Table 12.2. Digital audio signal with the SSM2603 in default slave mode
The audio codec needs to be clocked from the Zynq on the MCLK pin. This master clock will be used by the audio codec
to establish the audio sampling frequency. This clock is required to be an integer multiple of the desired sampling rate. The
default settings require a master clock of 12.288 Mhz, resulting in a 48kHzsampling rate. For other frequencies and their
respective configuration parameters, consult the SSM2603 datasheet.
The codec has two modes: master and slave, with the slave being default. In this mode, the direction of the signals is
specified in Table 12.2. When configured as master, the direction of BCLK, PBLRC and RECLRC is inverted. In this
mode, the codec generates the proper frequencies for these clocks. No matter where the clocks are generated, PBDAT
needs to be driven out and RECDAT sampled in sync with them. The master clock is always driven out of the Zynq. The
timing diagram of an I²S stream can be seen on Figure 12.1. Note the one-cycle delay of the data stream with respect to the
left/right clock changing state. Audio samples are transmitted MSB first, noted as 1 in the diagram.
Audio Jack Description Channels Color
J5 Headphone Out Stereo Black
J6 Microphone In Mono Pink
J7 Line In Stereo Light Blue
SSM2603 pin Protocol Direction from Zynq Zynq
BCLK I²S (Serial Clock) Output R19
PBDAT I²S (Playback Data) Output R18
PBLRC I²S (Playback Channel Clock) Output T19
RECDAT I²S (Record Data) Input R16
RECLRC I²S (Record Channel Clock) Output Y18
SDIN I²C (Data) Input/Output N17
SCLK I²C (Clock) Output N18
MUTE Digital Enable (Active Low) Output P18
MCLK Master Clock Output R17
Figure 12.1. I²S timing diagram.
The digital mute signal (MUTE) is active-low, with a pull-down resistor. This means that when not used in the design, it will
stay low and the analog outputs of the codec will stay muted. To enable the analog outputs, drive this signal high.
To use the audio codec in a design with non-default settings, it needs to be configured over I2C. The audio path needs to
be established by configuring the (de)multiplexers and amplifiers in the codec. Some digital processing can also be done in
the codec. Configuration is read out and written by accessing the register map via I2C transfers. The register map is
described in the SSM2603 datasheet.
A demo project that uses theZyboZ7audio codec in a bare-metal application can be found on theZyboZ7Resource
Center. The audio codec is also supported in Petalinux generated embedded Linux systems, and will appear as a standard
ALSA audio device.
TheZyboZ7board includes four slide switches, four push-buttons, four individual LEDs, and two tri-color LEDs
connected to the Zynq PL, as shown in Figure 13.1 (theZyboZ7-10 only has one tri-colorLED). There are also two
pushbuttons and oneLEDconnected directly to the PS via MIO pins, also shown in Figure 13.1. The push-buttons and
slide switches are connected to the Zynq via series resistors to prevent damage from inadvertent short circuits (a short
circuit could occur if a pin assigned to a push-button or slide switch was inadvertently defined as an output). The pushbuttons are “momentary” switches that normally generate a low output when they are at rest, and a high output only when
they are pressed. Slide switches generate constant high or low inputs depending on their position.
13 Basic I/O
Figure 13.1.ZyboZ7GPIO
The high-efficiency LEDs are anode-connected to the Zynq via 330-ohm resistors, so they will turn on when a logic high
voltage is applied to their respective I/O pin. Additional LEDs that are not user-accessible indicate power-on, FPGA
programming status, and USB and Ethernet port status.
TheLEDand two pushbuttons attached directly to the PS are accessed using the ZynqGPIOcontroller. This core is
described in full in Chapter 14 of the Zynq Technical Reference Manual.
TheZyboZ7-20 board contains two tri-color LEDs and theZyboZ7-10 contains one tri-colorLED. Each tricolorLEDhas three input signals that drive the cathodes of three smaller internal LEDs: one red, one blue, and one green.
Driving the signal corresponding to one of these colors high will illuminate the internalLED. The input signals are driven
by the Zynq PL through a transistor, which inverts the signals. Therefore, to light up the tri-colorLED, the corresponding
signals need to be driven high. The tri-colorLEDwill emit a color dependent on the combination of internal LEDs that
are currently being illuminated. For example, if the red and blue signals are driven high and green is driven low, the tricolorLEDwill emit a purple color.
Note: Digilent strongly recommends the use of pulse-width modulation (PWM) when driving the tri-color LEDs. Driving
any of the inputs to a steady logic ‘1’ will result in theLEDbeing illuminated at an uncomfortably bright level. You can
avoid this by ensuring that none of the tri-color signals are driven with more than a 50% duty cycle. Using PWM also
greatly expands the potential color palette of the tri-colorLED. Individually adjusting the duty cycle of each color between
50% and 0% causes the different colors to be illuminated at different intensities, allowing virtually any color to be displayed.
13.1 Tri-Color LEDs
14 Fan
TheZyboZ7-20 has a connector that can be used to power a fan mounted to the included heat sink. In order to attach the
fan to theZyboZ7-20 heat sink, two of the included screws must be tightened into the space between the heat sink fins
(the heat sink does not contain mounting holes). The fan must be attached with the label facing down, towards the Zynq
device, in order to push the air flow in the correct direction. After mounting the fan, plug the fan into the 3-pin fan
connector (J14) on theZyboZ7-20 to use it. AZyboZ7-20 with the fan properly attached is shown in Figure 14.1.
Figure 14.1.ZyboZ7-20 with Fan
Once the fan has been installed and connected, it will always be on when theZyboZ7-20 is turned on. It is possible to
monitor the speed of the fan using the “FAN_FB_PU” signal, which is connected to the feedback signal of the fan. This
generates a pulse with a frequency proportional to the rotation speed of the fan. Each rotation generates two pulses. The
period of these pulses shortens with higher rotation speed and lengthens at slower speeds. If the fan speed feedback signal
is held at logic high or logic low and is not changing then the fan is locked and is not spinning. The behavior of the fan
speed feedback signal is shown in Figure 14.2.
Figure 14.2. Fan Speed Feedback Signal
It is possible to monitor the temperature of the Zynq device during operation over JTAG from the hardware server in
Vivado. The maximum recommended operating temperature for the Zynq-7020 device is 85°C. If your design causes the
temperature of the Zynq to approach the maximum, Digilent recommends you turn off theZyboZ7-20 and attach a fan
before running your design again. The temperature that the Zynq reaches is largely based on the number of resources used
in the Zynq PL and the rate at which they are switching. Most designs should not reach temperatures that will require a fan.
When powering theZyboZ7-20 from USB, a fan is not necessary because the current limit will cause the board to reset
before a dangerous amount of heat can be generated.
The fan connector is not loaded on theZyboZ7-10 because additional cooling is typically not needed with the fewer
available FPGA resources.
Digilent recommends two different fan choices for theZyboZ7-20: A Sunon MC17080V2-0000-A99 or a Sunon
MF17080V2-1000G99.
The Pcam port included on theZyboZ7is a 15-pin, 1 mm pitch, zero insertion force (ZIF) connector designed specifically
for attaching camera sensor modules to host systems. The Pcam connector pin-out is rigidly defined and includes a two
lane MIPI CSI-2 bus for camera data, an I2C bus for camera configuration, two additional general purpose signals, and 3.3
V for powering the camera module, as depicted in Figure 15.1 and Table 15.1. Digilent is developing a catalog of Pcam
peripheral camera modules with various different types of sensors that all conform to this pin-out. The pin-out was also
chosen so that many camera modules designed to work with the Raspberry Pi will also work when connected to the Pcam
port.
Figure 15.1. Pcam Pin-out
Pin Number Function ZyboZ7Connection Details
1 GND GND
2 MIPI CSI-2 Lane 0 (-) Terminated and connected to 2 FPGA pins as described in XAPP
3 MIPI CSI-2 Lane 0 (+) Terminated and connected to 2 FPGA pins as described in XAPP
15 Pcam Port
Table 15.1. Pcam Pin-out
Pcam modules are connected to the Pcam host port using a flexible flat cable (FFC). To connect the cable to
theZyboZ7follow these instruction (Figure 15.2 depicts each step):
1. Locate the Pcam connector between the two HDMI ports.
2. Pull directly up on the off-white colored tab to open the connector.
3. Insert the FFC with the contacts facing the top edge, away from the center of theZyboZ7.
4. Ensure the FFC is fully inserted.
5. Gently press down on both sides of the off-white colored tab to latch the FFC into the connector.
6. The FFC is now connected properly.
Pin Number Function ZyboZ7Connection Details
4 GND GND
5 MIPI CSI-2 Lane 1 (-) Terminated and connected to 2 FPGA pins as described in XAPP
6 MIPI CSI-2 Lane 1 (+) Terminated and connected to 2 FPGA pins as described in XAPP
7 GND GND
8 MIPI CSI-2 Clock (-) Terminated and connected to 2 FPGA pins as described in XAPP
9 MIPI CSI-2 Clock (+) Terminated and connected to 2 FPGA pins as described in XAPP
10 GND GND
11 GPIO/Power enable Direct Connection to FPGA, usage module-dependent
12 GPIO/Clock feedback Direct Connection to FPGA, usage module-dependent
13 SCL Direct Connection to FPGA, with 1.5 KOhm Pull-up
14 SDA Direct Connection to FPGA, with 1.5 KOhm Pull-up
15 3V3 3.3 V Power rail
Figure 15.2. Attaching a Pcam
The MIPI CSI-2 bus is passively terminated on theZyboZ7and connected directly to the Zynq PL. The guidelines
described in Xilinx application noteXAPP894 D-PHY solutionswere followed in order to implement a compatible DPHY receiver using the Zynq. The interface is tested to operate at up to 672 Mbps on each lane. Speeds up to 950 Mbps on
each lane are possible based on the Zynq-7000 timing specifications, however they are not validated on theZyboZ7.
AMIPI CSI-2 Receiver IP coreis available from Xilinx, and includes embedded Linux support. It requires a license in
order to use, however it is possible to obtain an evaluation license from Xilinx for free.
A reference implementation with a basic feature set of both D-PHY and CSI-2 will be provided by Digilent in our Github
repository.
Pmod ports are 2×6, right-angle, 100-mil spaced female connectors that mate with standard 2×6 pin headers. Each 12-pin
Pmod port provides two 3.3VVCCsignals (pins 6 and 12), two Ground signals (pins 5 and 11), and eight logic signals, as
shown in Figure 16.1. TheVCCand Ground pins can deliver up to 1A of current, but care must be taken not to exceed any
of the power budgets of the on-board regulators or the external power supply (these are described in the “Power supplies”
section).
Warning:Since the Pmod pins are connected to Zynq PL I/O pins using a 3.3V logic standard, care should be taken not to drive these pins
over 3.4V.
Figure 16.1. Pmod port
Digilent produces a large collection of Pmod accessory boards that can attach to the Pmod ports to add ready-made
functions like A/D’s, D/A’s, motor drivers, sensors, and other functions. Seewww.digilentinc.comfor more information.
The vivado-library repository on theDigilent Githubcontains pre-made IP cores for many of these Pmods that greatly
reduces the work of integrating them into your project. See the “Using Pmod IP” tutorial on theZyboZ7Resource Center
for help using them.
TheZyboZ7has six Pmod ports, some of which behave differently than others. Each Pmod port falls into one of four
categories: standard, MIO connected, XADC, or high-speed. Table 16.1 specifies which category each Pmod port falls into,
and also lists the Zynq pins they are connected to. The sections that follow describe the different types of Pmods.
Pmod JA Pmod JB* Pmod JC Pmod JD Pmod JE P
Pmod Type XADC High-Speed High-Speed High-Speed Standard M
Pin 1 N15 V8 V15 T14 V12 M
Pin 2 L14 W8 W15 T15 W16 M
Pin 3 K16 U7 T11 P14 J15 M
Pin 4 K14 V7 T10 R14 H15 M
Pin 7 N16 Y7 W14 U14 V13 M
Pin 8 L15 Y6 Y14 U15 U17 M
Pin 9 J16 V6 T12 V17 T17 M
16 Pmod Ports
*Pmod JB is not available on theZyboZ7-10
Table 16.1.ZyboZ7Pmod Pinout
The standard Pmod ports are connected to the Zynq PL via 200 Ohm series resistors. The series resistors prevent short
circuits that can occur if the user accidentally drives a signal that is supposed to be used as an input. The downside to this
added protection is that these resistors can limit the maximum switching speed of the data signals. If the Pmod being used
does not require high-speed access, then the standard Pmod port should be used to help prevent damage to the devices.
The MIO Pmod port is connected to the MIO bus in the Zynq PS via 200 Ohm series resistors. Like the standard Pmod
port, these series resistors add protection at the cost of maximum switching speed. Since these data signals are connected to
the MIO interface, they can only be accessed by the PS peripheral controller cores. TheGPIO, UART, I2C, and SPI cores
can all be used to drive devices connected to this Pmod. Note that the pin layout of the UART and I2C cores will not align
perfectly with the typical Pmod pinouts for these interfaces. This means that UART or I2C devices connected to this Pmod
may require some of the pins to be swapped around externally using individual wires between theZyboZ7and the Pmod.
The Pmod port labeled “XADC” is wired to the auxiliary analog input pins of the PL. Depending on the Zynq PL
configuration, this port can be used to input differential analog signals to the analog-to-digital converter inside the Zynq
XADC core. Any or all pairs in the port can be configured either as analog input or digital input-output.
In analog input mode, the voltage on these pins must be limited to 1V peak-to-peak. In digital mode, the regular VCCOdependent limits apply. See Xilinx datasheets for more information.
The Dual Analog/Digital Pmod on theZyboZ7differs from the rest in the routing of its traces. The eight data signals are
grouped into four pairs, with the pairs routed closely coupled for better analog noise immunity. Pins 1 and 7, pins 2 and 8,
pins 3 and 9, and pins 4 and 10 are paired up. Furthermore, each pair has a partially loaded anti-alias filter laid out on the
PCB. The filter does not have capacitors C101-C104 loaded. In designs where such filters are desired, the capacitors can be
manually loaded by the user.
NOTE: The coupled routing and the anti-alias filters might limit the data speeds when used for digital signals.
The XADC core within the Zynq is a dual channel 12-bit analog-to-digital converter capable of operating at 1 MSPS. Either
channel can be driven by any of the auxiliary analog input pairs connected to the XADC port. The XADC core is
controlled and accessed from the PL via the Dynamic Reconfiguration Port (DRP). The DRP also provides access to
voltage monitors that are present on each of the Zynq's power rails, and a temperature sensor that is internal to the Zynq.
For more information on using the XADC core, refer to the Xilinx document titled “7 Series FPGAs and Zynq-7000 All
Programmable SoC XADC Dual 12-Bit 1 MSPS Analog-to-Digital Converter.” It is also possible to access the XADC core
directly using the PS, via the “PS-XADC” interface. This interface is described in full in chapter 30 of the Zynq Technical
Reference Manual.
The High-speed Pmod ports use the standard Pmod connector, but have their data signals routed as impedance matched
differential pairs for maximum switching speeds. They have pads for loading resistors for added protection, but
theZyboZ7ships with these loaded as 0-Ohm shunts. With the series resistors shunted, these Pmods offer no protection
against short circuits, but allow for much faster switching speeds. The signals are paired to the adjacent signals in the same
row: pins 1 and 2, pins 3 and 4, pins 7 and 8, and pins 9 and 10.
Traces are routed 80 ohm (+/- 10%) differential.
These ports should be used only when high speed signaling is required or the other suitable ports are occupied. If used as
single-ended, coupled pairs may have significant cross-talk. In applications where this is a concern, the standard Pmod port
should be used. Another option would be to ground one of the signals and use its pair for the signal-ended signal.
Since the High-Speed Pmods have 0-ohm shunts instead of protection resistors, the operator must take precaution to
ensure that they do not cause any shorts.
Pmod JA Pmod JB* Pmod JC Pmod JD Pmod JE P
Pin 10 J14 W6 U12 V18 Y17 M
16.1 Standard Pmod
16.2 MIO Pmod
16.3 Dual Analog/Digital Pmod (XADC Pmod)
16.4 High-Speed Pmod
Although we strive to provide perfect products, we are not infallible. TheZyboZ7is subject to the limitations below.
rm,doc,zybo-z7
Product
Name Variant Revision Problem
ZyboZ7 All All Negative CK-to-DQS delays in the board files are causing critical warnings in
Vivado >2017.4:
[PSU-1] Parameter : PCW_UIPARAM_DDR_DQS_TO_CLK_DELAY_0
has negative value -0.050 . PS DDR interfaces might fail when entering
negative DQS skew values.
The negative values are due to CK trace being shorter than any of the four
DQS traces.
In the early days of Zynq board design negative values where listed as suboptimal, but not erroneous. Tree topology instead of fly-by was also among th
routing recommendations for DDR3 layouts. So theZybo(Z7) was designed
with this sub-optimal layout due to space constraints. During Write Leveling
calibration, 0 is used as an initial value instead of the negative preset delays.
After calibration, if the skew is still too low, the clock is inverted. See ug585 pg
316 for more details. AllZybo(Z7)s shipped to customers are functionally
tested and pass the DDR3 calibration process.
Xilinx recommendations changed in the mean time, both in terms of routing
topology and delay values. A trace of this can be found
here:https://www.xilinx.com/support/answers/53039.html. The > 0ns
requirement was introduced to be in line with non-Zynq MIG-based designs,
where negative delays were never permitted.
To silence the warnings, zero board delays can be set in Processing System
configuration. The calibration algorithm seems to be using zero starting value
anyway when negative delays are given.
Hardware errata
Loading...
