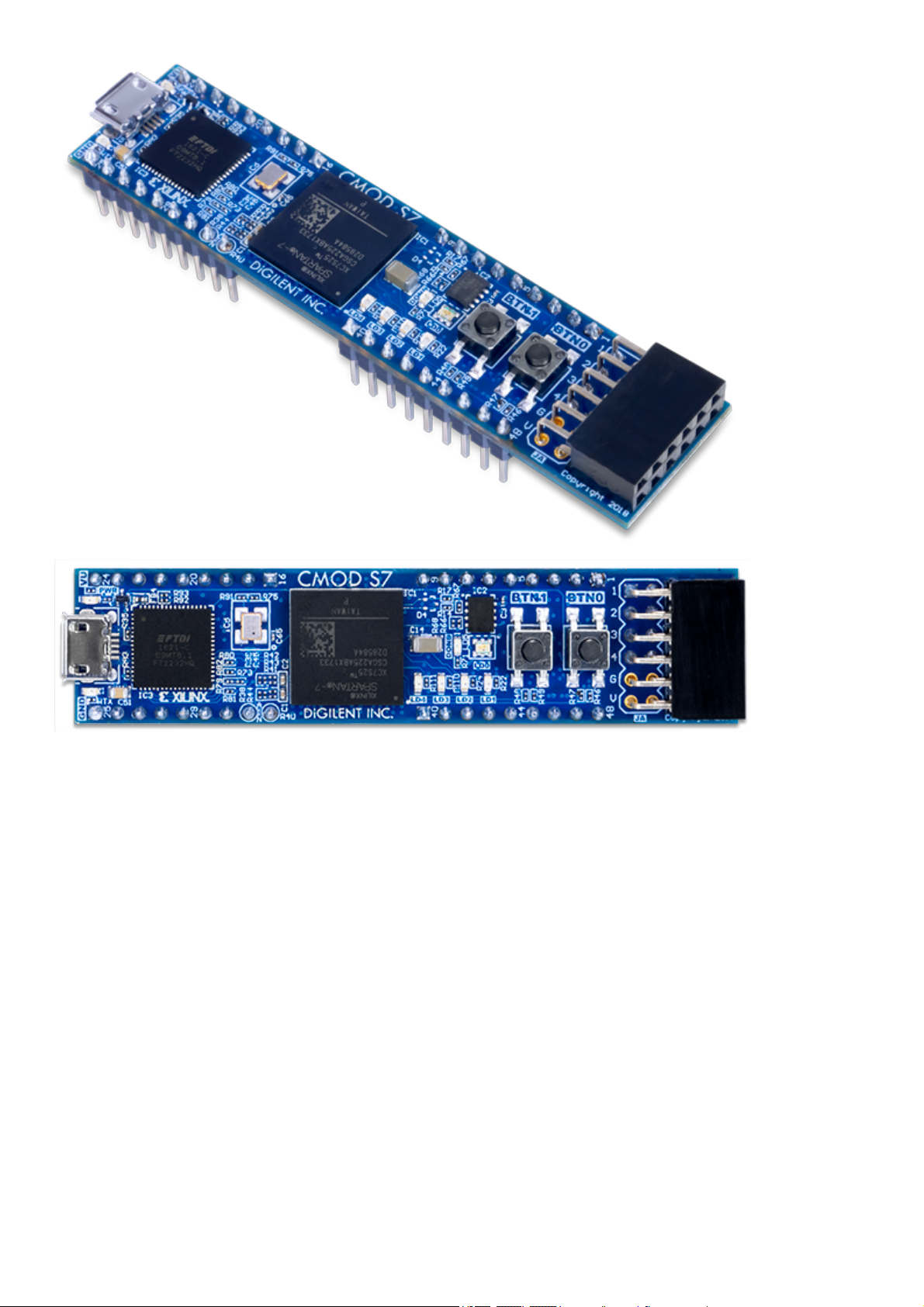

The Digilent Cmod S7 is a small, 48-pin DIP form factor board built around a Xilinx Spartan 7 FPGA. 32 FPGA digital
I/O signals, 2 FPGA analog input signals, an external power input rail, and ground are routed to 100-mil-spaced throughhole pins, making the Cmod S7 well suited for use with solderless breadboards. At just 0.7” by 3.05” inches, it can be
loaded in a standard socket and used in embedded systems. The board also includes a programmingROM, clock source,
USB programming and data transfer circuit, power supplies, LEDs, and buttons.
Cmod S7 Reference Manual
Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C)
3,650 slices containing four 6-input LUTs and 8 flip-flops
1,620 Kbits of fast blockRAM
3 clock management tiles, each with a phase-locked loop and mixed-mode clock manager
80 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
Programmable over JTAG and Quad-SPI Flash
Memory
4MBQuad-SPI Flash
Power
Powered from USB or 5V external supply connected to DIP pin 24
USB
USB-JTAG programming circuitry
USB-UART bridge
Push-buttons and LEDs
2 Buttons
4 LEDs
1 RGBLED
Expansion Connectors
1 Pmod connector
8 total FPGA I/O
48-pin DIP form-factor header
32 total FPGA I/O
2 single-ended 0-3.3V analog inputs to XADC
2 power pins
Features
The Cmod S7 is fully compatible with the high-performance Vivado ® Design Suite versions 2018.1 and newer. It is
supported under the free WebPACK™ installation option, which does not require a license, so designs can be implemented
at no additional cost. This free installation includes the ability to create MicroBlaze™ soft-core processor designs. Design
resources, example projects, and tutorials are available for download at theCmod S7 Resource Center.
The Cmod S7 can be used with Vivado 2017.4, but WebPACK installations of this version of Vivado may not contain the
device files for the specific Spartan-7 FPGA used on the Cmod S7. See thisXilinx Answer Recordfor more information,
and for a solution.
The Cmod S7 uses a Linear Technologies LTC3569 triple output buck power regulator to generate the needed voltages for
the onboard components. It is connected as shown in Figure 1.1. The characteristics of the outputs are shown in Table 1.1.

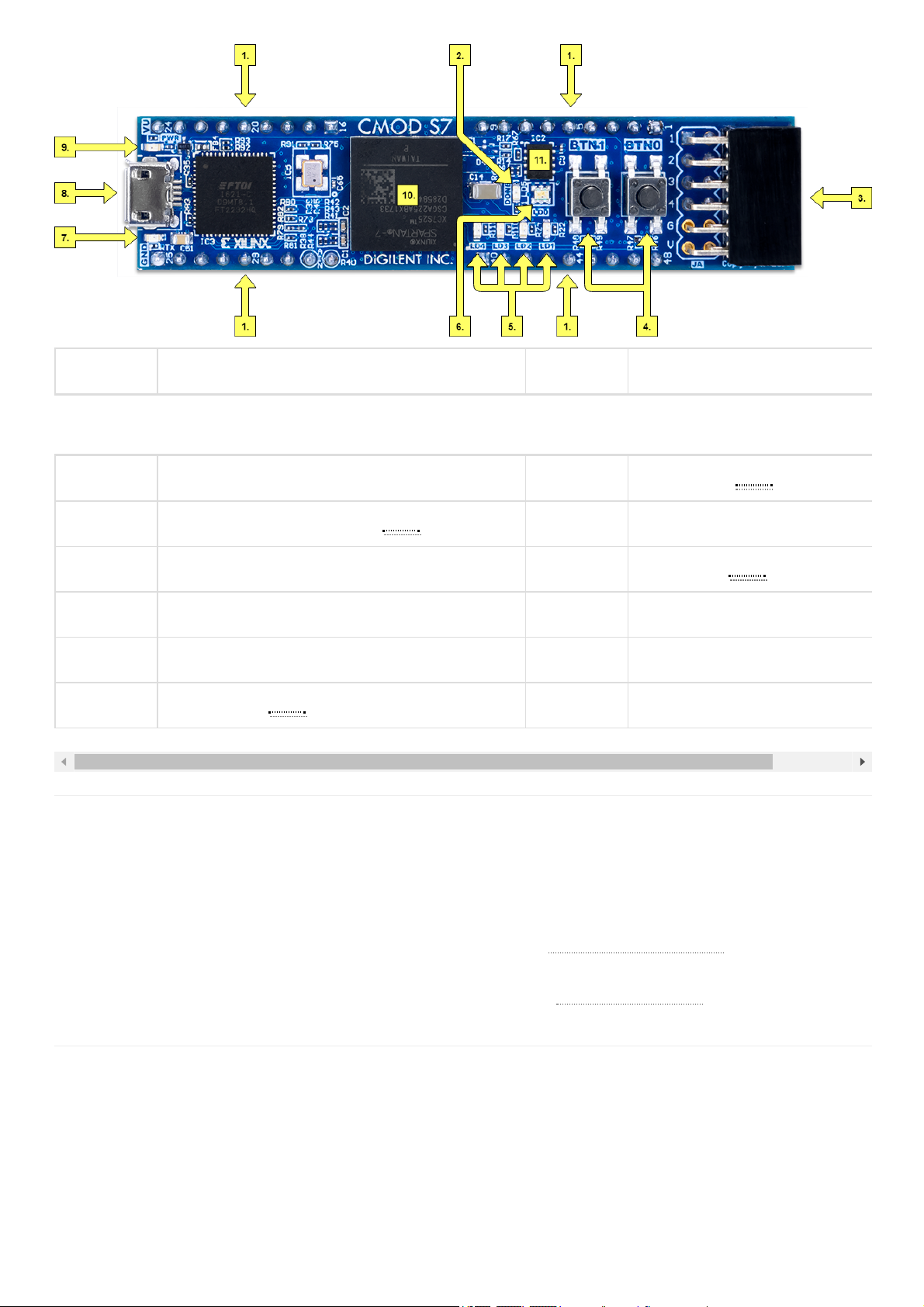

Callout Description Callout Description
1 48-pin DIP form factor header 7 UART statusLED
2 FPGA programming DONELED 8 Shared USB JTAG/UART port
3 Pmod connector 9 Power goodLED
4 User push buttons 10 Spartan-7 FPGA
5 User LEDs 11 SPI Flash
6 User tri-colorLED
Software Support
Functional Description
1 Power Supplies

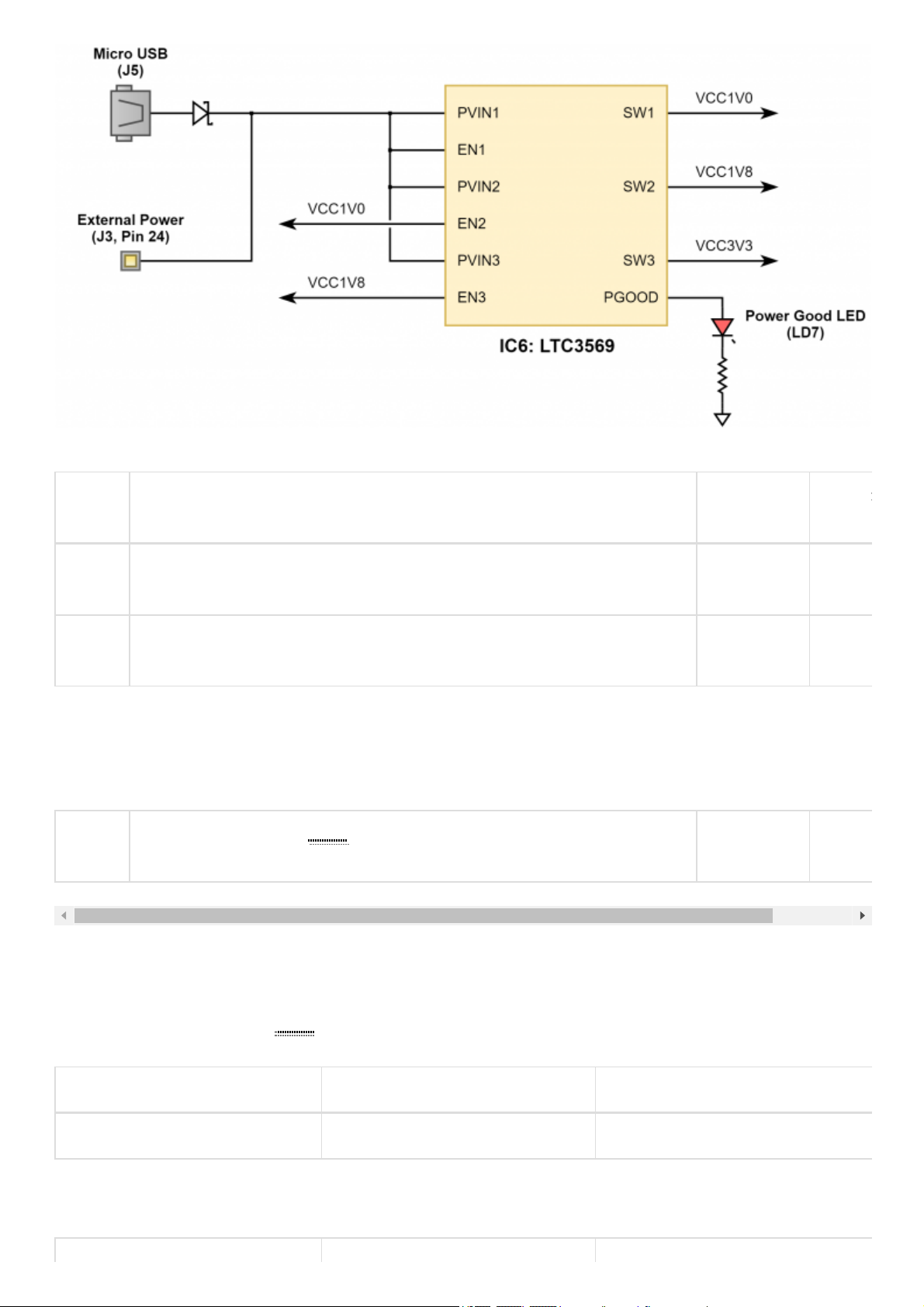

Figure 1.1 Power Supply
Table 1.1 Power Rail Characteristics
It is possible to power the Cmod S7 from either USB or from an external power supply attached to pins 24 and 25 of the
DIP headers, labeled “VU” and “GND”, respectively. The required characteristics of a power source attached to either of
these two options is outlined in Table 1.1.1.
Supply Circuits Device
Max
Cu
3.3V FPGA User I/O, USB Controller, Flash Memory, Pmod Connector, LEDs,
Buttons
IC6:
LTC3569
1.2A
1.8V FPGA, USB Controller IC6:
LTC3569
0.6A
1.0V FPGA Core and BlockRAM IC6:
LTC3569
0.6A
Connector Type Connector Label Min/Rec/Max Voltage
USB J5 Per USB Specification
1.1 Power Input Options
When the Cmod S7 is powered by the USB connector, the voltage from the USB device is driven onto the VU pin. This
makes it possible to power an external circuit from the USB host in addition to the Cmod S7. The VU pin is driven via a
schottky diode, so a small voltage drop will occur, but it should be assumed that the voltage present on VU will be close to
5V.
Warning: When a USB host is attached to the micro USB connector, the VU pin on the DIP headers (pin 24) is
driven to the voltage being provided by the USB host (typically 4.5V-5.5V). To avoid risk of damage, any power
source attached to the VU pin must be disconnected before a USB host is attached. Not taking this precaution
can be particularly dangerous if the power source is a battery.
After power-on, the Spartan-7 FPGA must be configured (or programmed) before it can perform any functions. The
FPGA can be configured in one of two ways:
A PC can use the Digilent USB-JTAG circuitry (port J5) to program the FPGA any time the power is on.
A file stored in the nonvolatile serial (SPI) flash device can be transferred to the FPGA using the SPI port.
Figure 2.1 shows the different options available for configuring the FPGA.
Figure 2.1 Configuration
The FPGA configuration data is stored in files called bitstreams that have the .bit file extension. The Vivado software from
Xilinx can create bitstreams from VHDL, Verilog®, or block-level designs.
Bitstreams are stored in volatile memory cells within the FPGA. This data defines the FPGA's logic functions and circuit
connections, and it remains valid until it is erased by removing board power, or by writing a new configuration file using the
JTAG port.
A Spartan-7 25T bitstream is typically 9,935,224 bits. The time it takes to program the Cmod S7 can be decreased by
compressing the bitstream before programming, and then allowing the FPGA to decompress the bitstream itself during
configuration. Depending on design complexity, compression ratios of 10x can be achieved. Bitstream compression can be
enabled within the Xilinx tools to occur during generation, and is enabled by default in Digilent's master XDC file for the
Cmod S7. For more information on how to do this, consult the Xilinx documentation for the toolset being used.
After successful programming, the FPGA will cause the “DONE”LEDto illuminate.
The following sections provide greater detail about programming the Cmod S7 using the different methods available.
The Xilinx tools typically communicate with FPGAs using the Test Access Port and Boundary-Scan Architecture,
commonly referred to as JTAG. During JTAG programming, a .bit file is transferred from the PC to the FPGA using the
onboard Digilent USB-JTAG circuitry (port J5). JTAG programming can be performed any time after the Cmod S7 has
been powered on. If the FPGA is already configured, then the existing configuration is overwritten with the bitstream being
transferred over JTAG.
Programming the Cmod S7 with an uncompressed bitstream using the onboard USB-JTAG circuitry usually takes around
seconds. JTAG programming can be performed by Vivado's Hardware Manager.
Connector Type Connector Label Min/Rec/Max Voltage
DIP J3 (Pin 24) 4.5/5.0/5.5
2 FPGA Configuration
2.1 JTAG Configuration
Since the FPGA's memory on the Cmod S7 is volatile, it relies on the Quad-SPI flash memory to store the configuration
between power cycles. This configuration mode is called Master SPI. The blank FPGA takes the role of master and reads
the configuration file out of the flash device upon power-up. To that effect, a configuration file needs to first be written to
the flash. When programming a non-volatile flash device, a bitstream file is transferred to the flash in a two-step process.
First, the FPGA is programmed with a circuit that can program flash devices, and then data is transferred to the flash
device via the FPGA circuit (this complexity is hidden from the user by the Xilinx tools). This is called indirect
programming. After the flash device has been programmed, it will automatically configure the FPGA at any subsequent
power-on event. Programming files stored in the flash device will remain until they are overwritten, regardless of powercycle events.
Quad-SPI programming can be performed using Vivado's Hardware Manager.
FPGA Configuration files can be written to the Quad-SPI Flash (Macronix part number MX25L3233F). The FPGA will
automatically read a configuration file from this device at power on. A Spartan-7 25T configuration file requires 9,935,224
bits of memory, leaving about 69% of the flash device (or ~2.8MB) available for user data. A common use for this extra
memory is to store MicroBlaze programs too big to fit in the onboard block memory. These programs are then loaded and
executed using a smaller bootloader program that can fit in the block memory. It is possible to automatically generate this
bootloader, roll it into the bitstream, and then program the bitstream and large MicroBlaze program into the Quad SPI
Flash using Xilinx SDK.
The contents of the memory can be manipulated by issuing certain commands on the SPI bus. The implementation of this
protocol is outside the scope of this document. Xilinx's AXI Quad SPI IP core can be used to read/write the flash in a
MicroBlaze design. Refer toXilinx's product guidefor this core to learn more about using it, or toMacronix's datasheetfor
the flash device to learn how to implement a custom controller. All signals in the SPI bus are general-purpose user I/O
pins after FPGA configuration and can be used like any other FPGA I/O.

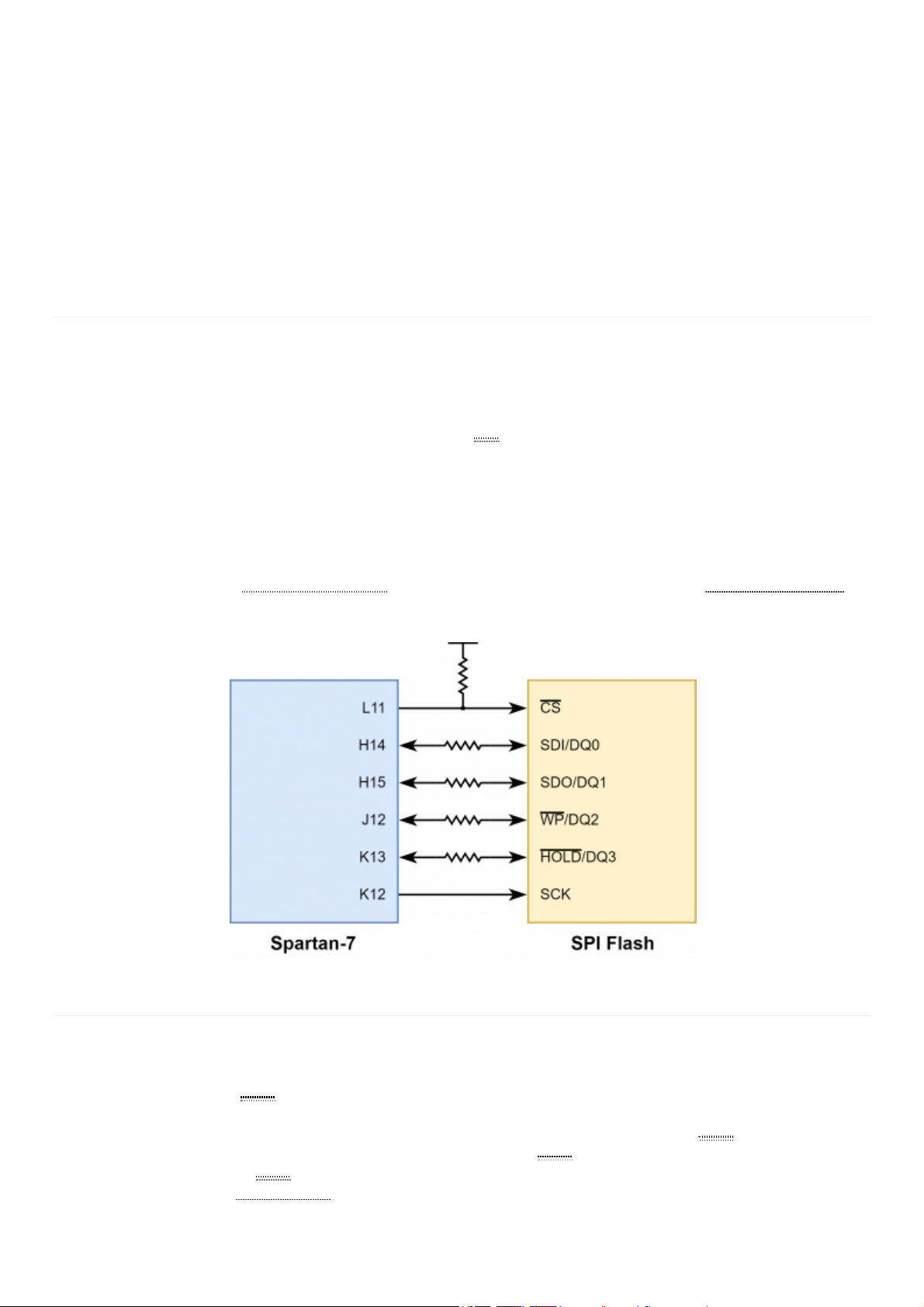

Figure 3.1 Flash Interface
The Cmod S7 includes a 12MHzcrystal oscillator connected to pin M9 (an MRCC input on bank 14). This clock is
intended to be used as a general purpose system clock. The clock can drive MMCMs to generate clocks of various
frequencies and with known phase relationships that may be needed throughout a design. The 12MHzinput clock cannot
directly drive a PLL because they have a minimum input frequency of 19MHz. Some rules restrict which MMCMs and
PLLs may be driven by the 12MHzinput clock. For a full description of these rules and of the capabilities of the Spartan-7
clocking resources, refer toXilinx UG472, titled “7 Series FPGAs Clocking Resources User Guide”.
2.2 Quad-SPI Configuration
3 Quad-SPI Flash
4 Oscillators/Clocks
Xilinx offers the Clocking Wizard IP core to help users generate the different clocks required for a specific design. This
wizard will properly instantiate the needed MMCMs and PLLs based on the desired frequencies and phase relationships
specified by the user. The wizard will then output an easy-to-use wrapper component around these clocking resources that
can be inserted into the user’s design. The clocking wizard can be accessed from within the Vivado and IP Integrator tools.

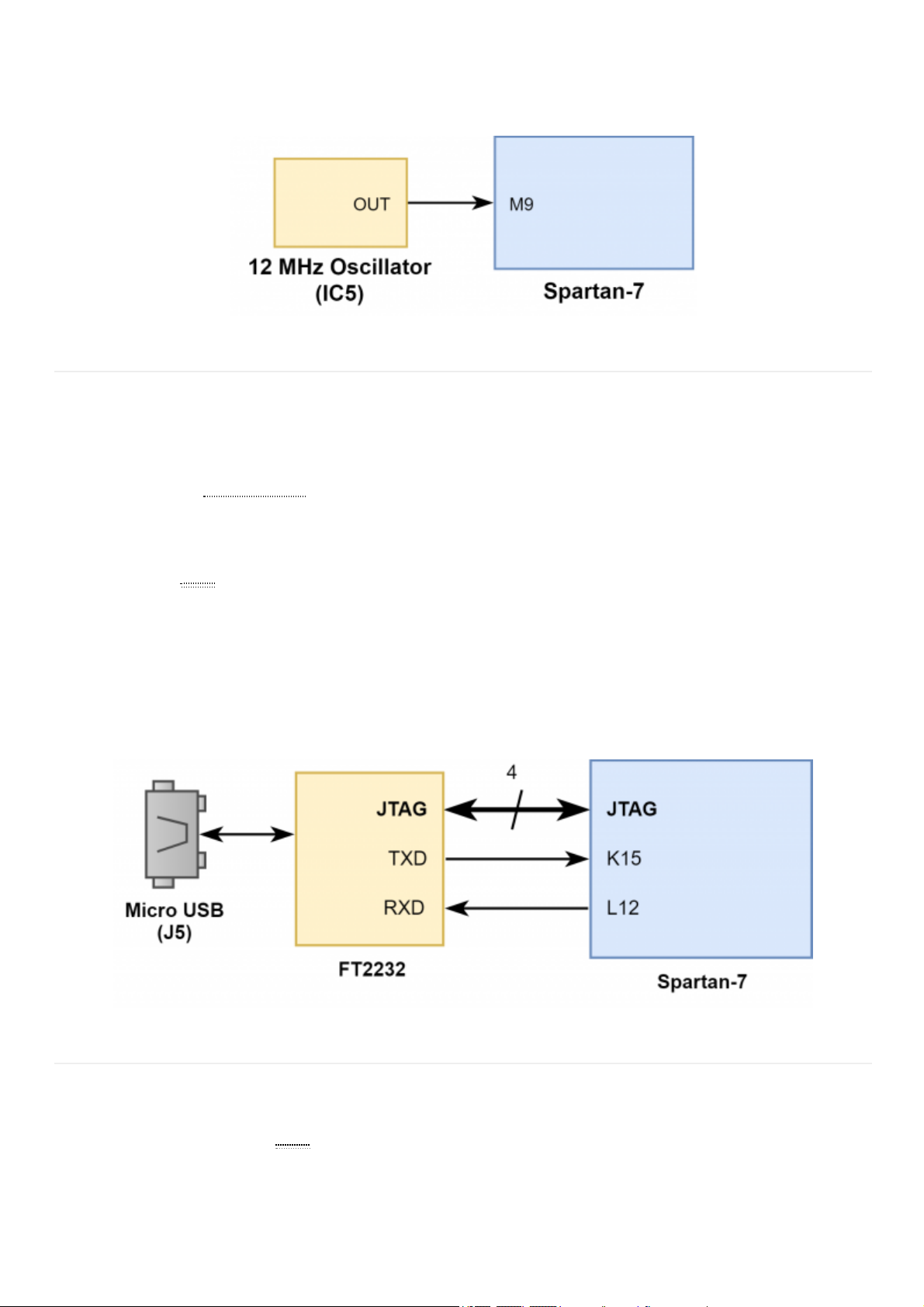

Figure 4.1 Clock Input
The Cmod S7 includes an FTDI FT2232HQ USB-UART bridge (attached to Micro-USB connector J5) that allows the user
to use PC applications to communicate with the board using standard Windows COM port commands. Free USB-COM
drivers, available fromFTDI's websiteunder the “Virtual Com Port” or VCP heading, convert USB packets to
UART/serial data. Serial port data is exchanged with the FPGA using a two-wire serial port (TXD/RXD). After the drivers
are installed, I/O commands can be used from the PC directed to the COM port to produce serial data traffic on the K15
and L12 FPGA pins.
An onboard statusLED(LD6) provides visual feedback on traffic flowing through the port.
The FT2232HQ is also used as the controller for the Digilent USB-JTAG circuitry, but the USB-UART and USB-JTAG
functions behave netirely independant of one another. Programmers interested in using the UART functionality of the
FT2232 within their designs do not need to worry about the JTAG circuitry interfering with the UART data transfers, and
vice-versa. The combination of these two features into a single device allows the Cmod S7 to be programmed,
communicated with via UART, and powered from a computer attached with a single Micro USB cable.
The connections between the FT2232HQ and the Spartan-7 are shown in Figure 5.1. Signal names that imply direction are
from the point-of-view of the DTE (Data Terminal Equipment), in this case, a PC connected to the Micro USB port.
Figure 5.1 USB-UART Bridge
The Cmod S7 includes one RGBLED, 4 individual LEDs, and 2 push buttons, as shown in Figure 6.1. The push buttons
are connected to the FPGA via series resistors to prevent damage from inadvertent short circuits (a short circuit could
occur if an FPGA pin assigned to a button was inadvertently defined as an output). The buttons are “momentary” switches
that normally generate a low output when they are at rest, and a high output only when they are pressed.
5 USB-UART Bridge (Serial Port)
6 Basic I/O
The four individual high-efficiency LEDs are anode-connected to the FPGA via 330 Ohm resistors, so that they will turn
on when a logic-high voltage is applied to their respective I/O pins. Additional LEDs that are not user-accessible indicate
power-on, FPGA programming status, and USB-UART traffic.
The single RGBLEDhas three input signals that drive the cathodes of three smaller internal LEDs: one red, one blue, and
one green. Driving the signal corresponding to one of these colors low will illuminate the internalLED. The
RGBLEDwill emit a color dependent on the combination of internal LEDs that are currently being illuminated. For
example, if the red and blue signals are driven low and green is driven high, the RGBLEDwill emit a purple color.
Note:Digilent strongly recommends the use of pulse-width modulation (PWM) when driving the RGBLED. Driving any
of the signals to a steady logic '0' will result in theLEDbeing illuminated at an uncomfortably bright level. This can be
avoided by ensuring that none of the RGB signals are driven with more than a 50% duty cycle. Using PWM also greatly
expands the potential color palette of the RGBLED. Individually adjusting the duty cycle of each each color between 50%
and 0% causes the different colors to be illuminated at different intensities, allowing virtually any color to be displayed.
Figure 6.1 shows how each of the LEDs and push buttons are connected to the Spartan-7.
Figure 6.1 Cmod S7 Basic I/O
The Cmod S7 has a 48-pin DIP form factor connector, implemented as four 9-pin headers for connecting to breadboards
and custom fixtures. The pins have 100 mil spacing, and the entire module is 0.7 inches by 3.05 inches. Headers J1 and J3
are separated by 700 mil lengthwise along the Cmod, measured from the center of the innermost pins, as are headers J2 and
J4. Headers J1 and J2 are separated by 600 mil across the board, as are headers J3 and J4. Of the 48 possible pin locations,
36 are populated on the four headers. Of these, 32 are directly connected to FPGA Digital I/Os, 2 are voltage-divided and
connected to FPGA analog inputs, and two are connected to power pins. The pin and header numbers are shown in Figure
7.1.
7 DIP Header

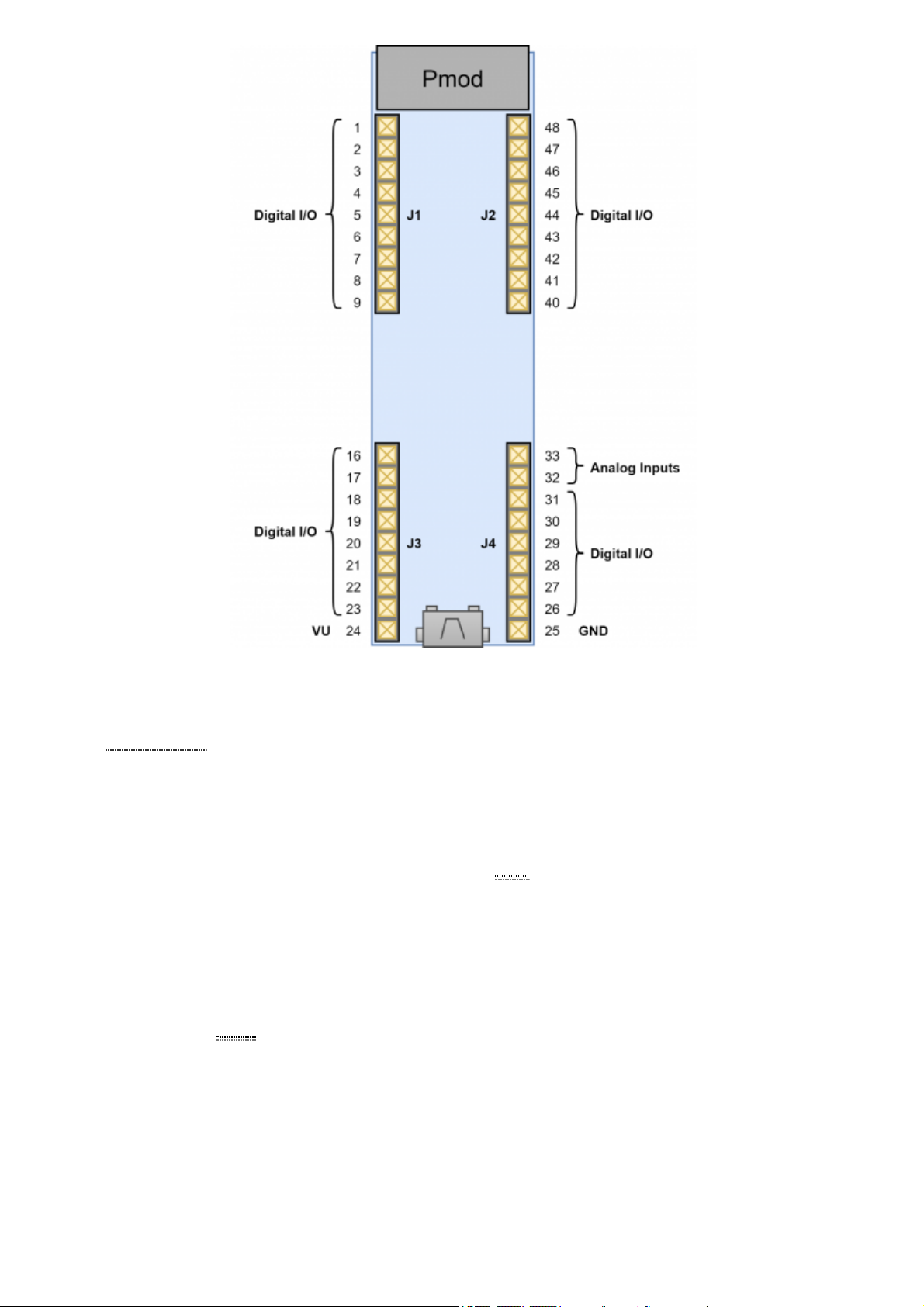

Figure 7.1 DIP Pin Diagram
VU (pin 24) can be used to power the Cmod S7 when it is not connected to a USB Host. When the device is connected to
a USB host, VU is driven by the 5V rail of the USB connector and can be used to power devices external to the Cmod S7.
See thePower Suppliessection for more information.
The pins directly connected to the FPGA can be used as general purpose inputs or outputs. Each of these pins is
connected to the FPGA via a 240 Ohm series resistor. The series resistors prevent short circuits that can occur if a user
accidentally drives a signal that is supposed to be used as an input. The downside to this added protection is that these
resistors limit the maximum switching speed of these signals to 25MHz. These pins support input voltages of up to 3.5V.
For more information on the electrical characteristics of these pins, please see Xilinx'sSpartan-7 Datasheet.
Pins 32 and 33 of the DIP headers are used as analog inputs to the XADC module of the FPGA. The FPGA expects that
the inputs range from 0V-1V, so resistor-divider circuits are used on the Cmod S7 to scale down the input voltage from

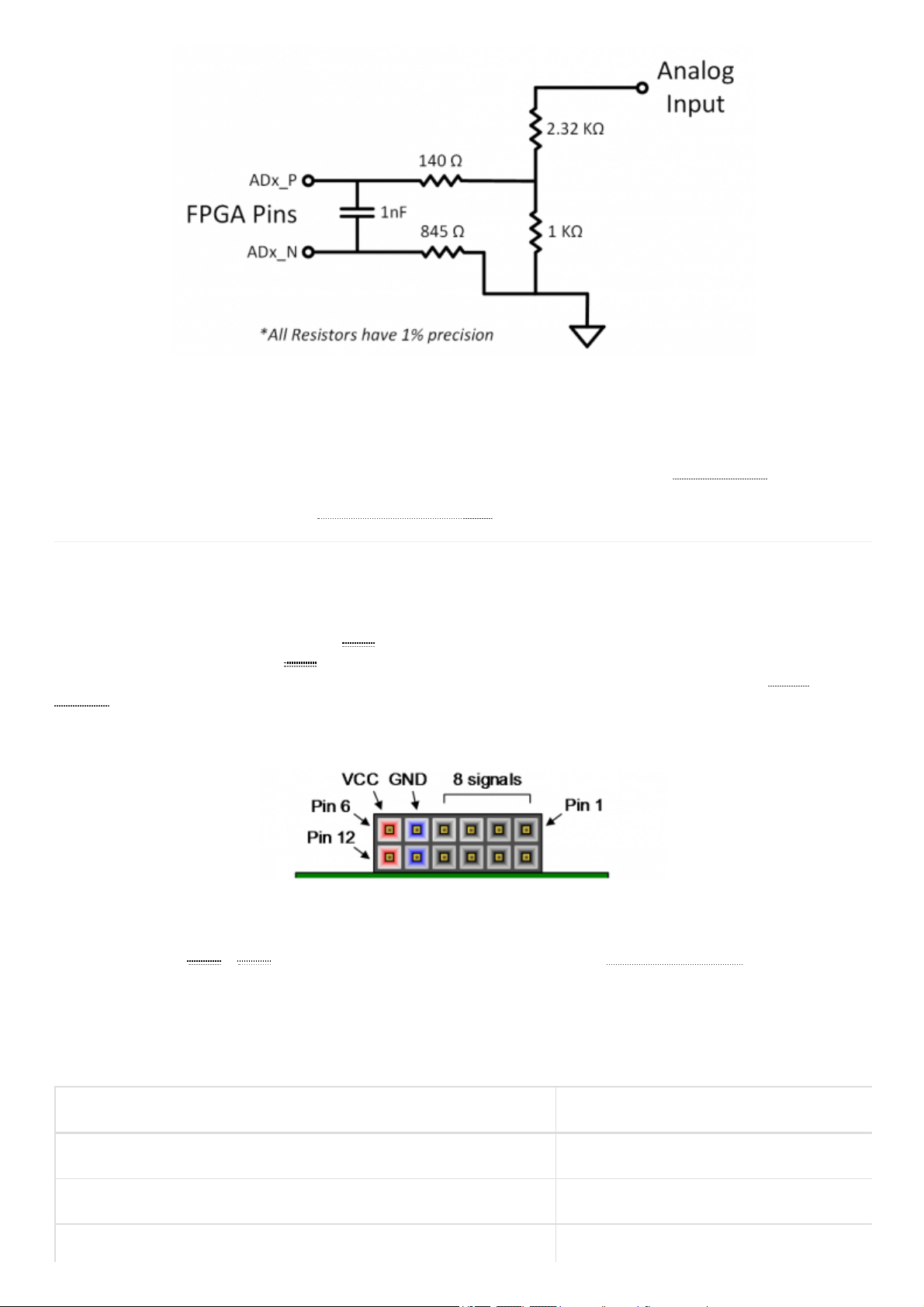

3.3V. This circuit is shown in Figure 7.2.1. This circuit allows the XADC module to accurately measure any voltage between
0V and 3.3V (relative toGNDon pin 25) that is applied to these pins. The analog inputs can tolerate input voltages of up
to 5.5V, though any voltage above 3.3V will be read as 3.3V by the XADC module.
7.1 DIP Digital I/O
7.2 Analog Inputs
Figure 7.2.1 Analog Input Circuit
The XADC core within the Spartan-7 is a dual-channel 12-bit analog-to-digital converter capable of operating at 1 MSPS.
Either channel can be driven by either of the two auxiliary analog inputs to the DIP pins. The XADC core is controlled and
accessed from a user design via the Dynamic Reconfiguration port (DRP). The DRP also provides access to a temperature
sensor that is internal to the FPGA. For more information on using the XADC core, refer toXilinx UG480, titled “7 Series
FPGAs and Zynq-7000 All Programmable SoC XADC Dual 12-Bit 1 MSPS Analog-to-Digital Converter”. A demo that
uses the XADC core is available on theCmod S7 Resource Center
Pmod connectors are 2×6, right-angle, 100-mil spaced female connectors that mate with standard 2×6 pin headers. Each
12-pin Pmod connector provides two 3.3VVCCsignals (pins 6 and 12), two Ground signals (pins 5 and 11), and eight logic
signals, as sown in Figure 8.1. TheVCCand Ground pins can deliver up to 200mA of current, but care must be taken not
to exceed any of the power budgets of the onboard regulator or the external power supply (described in thePower
Suppliessection).
Warning:Since the Pmod pins are connected to Spartan-7 FPGA pins using a 3.3V logic standard, care should be taken not to drive these
pins over 3.4V.
Figure 8.1 Pmod Diagram
Digilent provides a large collection of Pmod accessory boards that can attach to Pmod expansion connectors to add readymade functions likeA/D's,D/A's, motor drivers, sensors, and other functions. Seewww.digilentinc.comfor more
information.
The Cmod S7 has one “standard” type Pmod connector, and the FPGA pin connections for it are described in Table 8.1.
Standard Pmod connectors are connected to the FPGA via 200 Ohm series resistors. The series resistors prevent short
circuits that can occur if a user accidentally drives a signal that is supposed to be used as an input. The downside to this
added protection is that these resistors can limit the maximum switching speed of the data signals.
Pmod JA
Pmod Type Standard
Pin 1 J2
Pin 2 H2
8 Pmod Connector
Table 8.1. Cmod S7 Pmod Pinout
Pmod JA
Pin 3 H4
Pin 4 F3
Pin 7 H3
Pin 8 H1
Pin 9 G1
Pin 10 F4
Loading...
