JTAG-HS2™ Programming Cable for Xilinx® FPGAs
Revised January 22, 2015
DOC#: 502-249
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page 1 of 6
The JTAG-HS2.
Small, complete, all-in-one JTAG programming solution for
Xilinx FPGAs
Compatible with all Xilinx tools Compatible with IEEE 1149.7-2009 Class T0 - Class T4
(includes 2-Wire JTAG)
Separate Vref drives JTAG/SPI signal voltages; Vref can be
any voltage between 1.8V and 5V.
High-Speed USB2 port that can drive JTAG/SPI bus at up to
30Mbit/sec
JTAG/SPI frequency settable by user Uses micro-AB USB2 connector SPI programming solution (modes 0 and 2 up to
30Mbit/sec, modes 1 and 3 up to 2Mbit/sec)
Fully supported by the Adept SDK, allowing custom
JTAG/SPI applications to be created
Features include:
Overview
The Joint Test Action Group (JTAG)-HS2 programming cable is a high-speed programming solution for Xilinx field­programmable gate arrays (FPGAs). The cable is fully compatible will all Xilinx tools and can be seamlessly driven from iMPACT, Chipscope, and EDK. The HS2 attaches to target boards using Digilent's 6-pin, 100-mil spaced programming header or Xilinx's 2×7, 2mm connector and the included adaptor.
The PC powers the JTAG-HS2 through the USB port and will recognize it as a Digilent programming cable when connected to a PC, even if the cable is not attached to the target board. The HS2 has a separate Vdd pin to supply the JTAG signal buffers. The high speed 24mA three-state buffers allow target boards to drive the HS2 with signal voltages from 1.8V to 5V and bus speeds of up to 30MBit/sec. To function correctly, the HS2's Vdd pin must be tied to the same voltage supply that drives the JTAG port on the FPGA (see Fig. 1).
The JTAG bus can be shared with other devices as systems hold JTAG signals at high-impedance except when actively driven during programming. The HS2 comes with a standard Type-A to Micro-USB cable that attaches to the end of the module opposite the system board connector. The system board connector should hold the small and light HS2 firmly in place (see Fig. 2).
JTAG-HS2Programming Cable for Xilinx® FPGAs
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Page 2 of 6
VIO: 5V to 1.8V
USB2
Port
TMS
TDI
TDO
TCK
SS
MOSI
MISO
SCK
SPI DeviceJTAG-HS2
GND
VDD (VREF)
GND
VIO
Port Number
SPI Mode
Shift LSB First
Shift MSB First
Selectable SCK Frequency
Max SCK Frequency
Min SCK Frequency
Inter-byte Delay
0
0
Yes
Yes
Yes
30 MHz
8 KHz
0 – 1000 µS
2
Yes
Yes
Yes
30 MHz
8 KHz
0 – 1000 µS
1
0
Yes
Yes
Yes
2.066 MHz
485 KHz
0 – 1000 µS
1
Yes
Yes
Yes
2.066 MHz
485 KHz
0 – 1000 µS
2
Yes
Yes
Yes
2.066 MHz
485 KHz
0 – 1000 µS
3
Yes
Yes
Yes
2.066 MHz
485 KHz
0 – 1000 µS
Figure 1. Diagram of signal voltages and connections.
Figure 3. JTAG-HS2 SPI Device Connections.
Figure 2. Xilinx JTAG headers.
Table 1. Features supported by each port.
In addition to supporting JTAG, the JTAG-HS2 also features two highly configurable serial peripheral interface (SPI) ports that allow communication with virtually any SPI peripheral. Both SPI ports share the same pins and only one port may be enabled at any given time (see Fig. 3). Table 1 summarizes the features supported by each port. The HS2 supports SPI modes 0, 1, 2, and 3.
JTAG-HS2Programming Cable for Xilinx® FPGAs
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Page 3 of 6
TMS TDI TCK TDO
Host
+
JTAG-HS2
(DTS)
TMS TDI TCK
TDO
Target
System 0
TMS TDI TCK
TDO
Target
System 1
TMS TDI TCK
TDO
Target
System N
TMSC
TDIC
TCKC
TDOC
Target
System 0
Target
System 1
Target
System N
TMSC
TDIC
TCKC
TDOC
TMSC
TDIC
TCKC
TDOC
TMS TDI TCK TDO
Host
+
JTAG-HS2
(DTS)
TMSC TDIC TCKC TDOC
Target
System 0
Target
System 1
Target
System N
TMSC TDIC TCKC TDOC
TMSC TDIC TCKC TDOC
TMS TDI TCK TDO
Host
+
JTAG-HS2
(DTS)

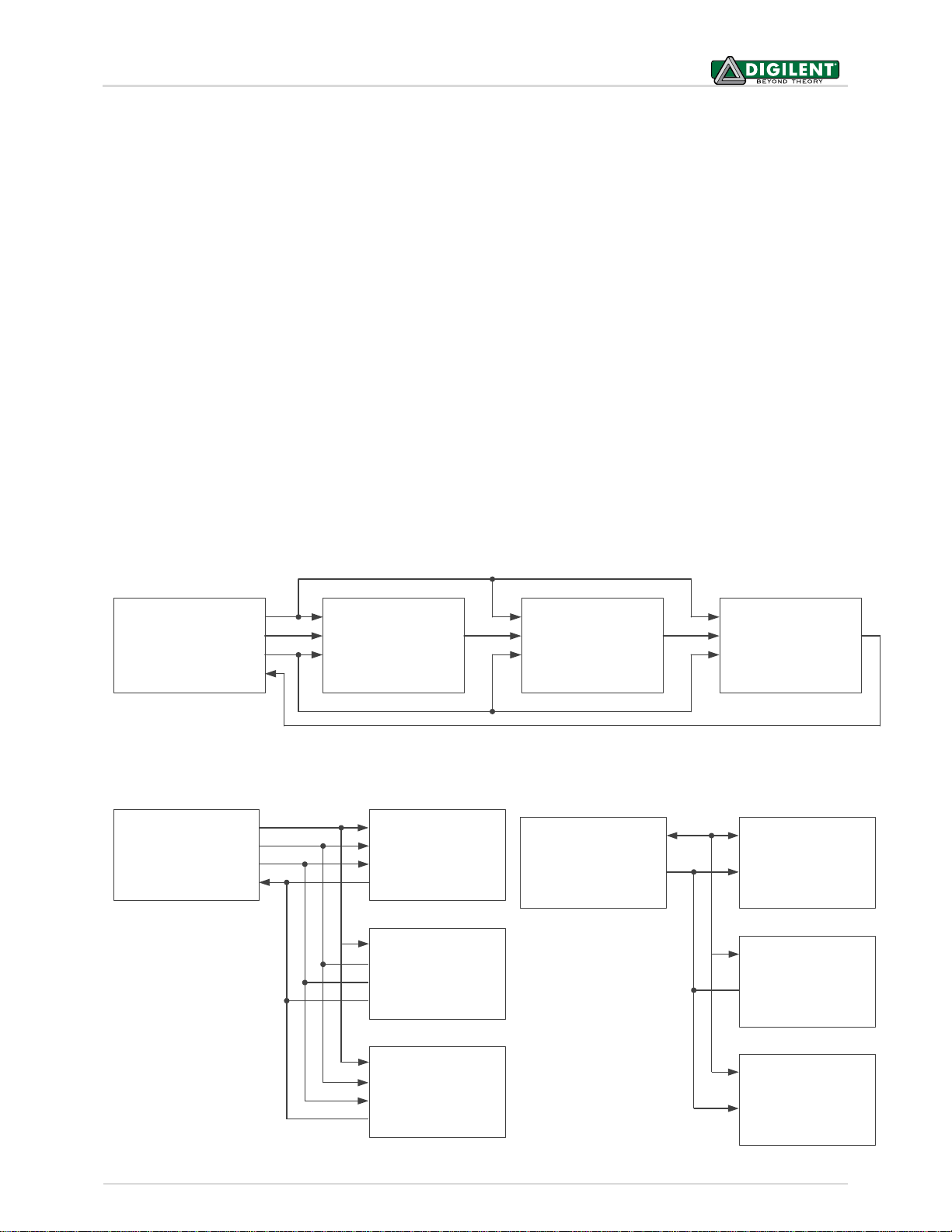

Figure 5. 4-Wire star topology (left), 2-Wire star topology (right).
Figure 4. 4-wire series topology.
Software Support
In addition to working seamlessly with all Xilinx tools, Digilent's Adept software and the Adept software development kit (SDK) support the HS2 cable. For added convenience, customers may freely downloaded the SDK from Digilent's website. This Adept software includes a full-featured programming environment and a set of public application programming interfaces (API) that allow user applications to directly drive the JTAG chain.
With the Adept SDK, users can create custom applications that will drive JTAG ports on virtually any device. Users may utilize the APIs provided by the SDK to create applications that can drive any SPI device supporting those modes. Please see the Adept SDK reference manual for more information.
Digilent's AVR programmer also supports the HS2 and the cable can be used to program any AVR device.
IEEE 1149.7-2009 Compatibility
The JTAG-HS2 supports several scan formats including; the JScan0-JScan3, MScan, and OScan0 - OScan7. It is capable of communicating in 4-wire and 2-wire scan chains that consist of Class T0 – T4 JTAG Target Systems (TS). (See Figs. 4 & 5).
JTAG-HS2Programming Cable for Xilinx® FPGAs
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Page 4 of 6
The Adept SKD provides an example application that demonstrates how to communicate with a class T4 TAP controller using the MScan, OScan0, and OScan1 scan formats.
Design Notes
The JTAG-HS2 uses high speed three-state buffers to drive the TMS, TDI, and TCK signals. These buffers are capable of sourcing or sinking a maximum of 50 mA of current. The HS2 has 100 ohm resistors between the output of the buffers and the I/O pins to ensure the cable does not exceed the maximum limit. To further limit short circuit current, additional resistance may be placed in series with the I/O pins of the HS2 and the target board. However, Digilent recommends limiting the amount of additional resistance to 100 ohms or less as higher resistance may result in degraded operation.
When the JTAG-HS2 first receives power, the three-state buffers attached to the TMS, TDI, and TCK signals move into a high-impedance state. They remain in the high-impedance state until an application enables the HS2's JTAG or SPI port. Once these ports activate, the buffers actively drive the TMS, TDI, and TCK signals until the port is disabled.
The IEEE 1149.7-2009 specification requires any device that functions as a debug and test system (DTS) to provide a pull-up bias on the TMS and TDO pins. In order to meet this requirement, the JTAG-HS2 features weak pull-ups (100K ohm) on the TMS, TDI, TDO, and TCK signals. While not strictly required, the pull-ups on the TDI and TCK signals ensure that neither signal floats while another source is not actively driving them.
The JTAG-HS2 can interface scan chains that consist of one or more IEEE 1149-7 compatible Target Systems (TS). The devices in these chains communicate using the TMS, TDI, TDO, and TCK signals or they may communicate using only the TMS and TCK signals. Communication using only the TMS and TCK signals requires both the HS2 and TS to drive the TMS pin. The current scan format, bit period, and the level of the TCK pin determine which device is allowed to drive the TMS pin.
A drive conflict may occur when the HS2 and TS disagree on the current scan format setting or bit period. In the event that a drive conflict occurs, the 100 ohm resistor between the TMS buffer and output pin will limit the maximum current to 50 mA to prevent any damage from occurring to the JTAG-HS2. The drive conflict may be resolved by having the JTAG-HS2 perform a reset escape, which will reset the scan format of the TS to JScan0/JScan1. If the TMS pin of the TS is not capable of sourcing or sinking VDD (VREF) ÷ 100 amps of current then an additional resistor should be placed in series with the TMS pin of the TS to further limit current flow.
In most cases a drive conflict can be avoided by having applications that use the HS2 communicate with the TS in two-wire mode. Use the applications to reconfigure the TS to use the JScan0, JScan1, JScan2, or JScan3 scan format prior to disabling the HS2's JTAG port.
JTAG-HS2Programming Cable for Xilinx® FPGAs
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Page 5 of 6
Symbol
Parameter
Condition
Min
Max
Unit
VDD (VREF)
I/O reference/supply voltage
-0.5
6
V
VIO
Signal Voltage
-0.5
6
V
IIK,IOK
TMS, TCK, TDI, TDO DC Input/Output Diode Current
VIO < -0.5V
-50
mA VIO > 6V
+20
I
OUT
DC Output Current
±50
mA
T
STG
Storage Temperature
-20
+120
ºC
ESD Human Body Model JESD22-A114
4000
V
Charge Device Model JESD22-C101
2000
V
Symbol
Parameter
Min
Typ
Max
Unit
VDD (VREF)
I/O reference/supply voltage
1.65
2.5/3.3
5.5
Volts
TDO Input High Voltage (VIH)
1.62 5.5
Volts
Input Low Voltage (VIL)
0 0.65
Volts
TMS, TCK, TDI Output High (VOH)
0.85 x Vdd
0.95 x Vdd
Vdd
Volts
Output Low (VOL)
0
0.05 x Vdd
0.15 x Vdd
Volts
Symbol
Parameter
Min
Max
TCK
TCK period
33.3ns
125µs
T
CKH
, T
CKL
T
CLK
pulse width
16.6ns
62.5µs
TCD
T
CLK
to TMS, TDI
0
15ns
TSU
TDO Setup time
19ns
THD
TDO Hold time
0
TMS/TDI
TCK
TDO
T
CKL
T
CKH
T
CK
T
CD
T
SU
T
HD

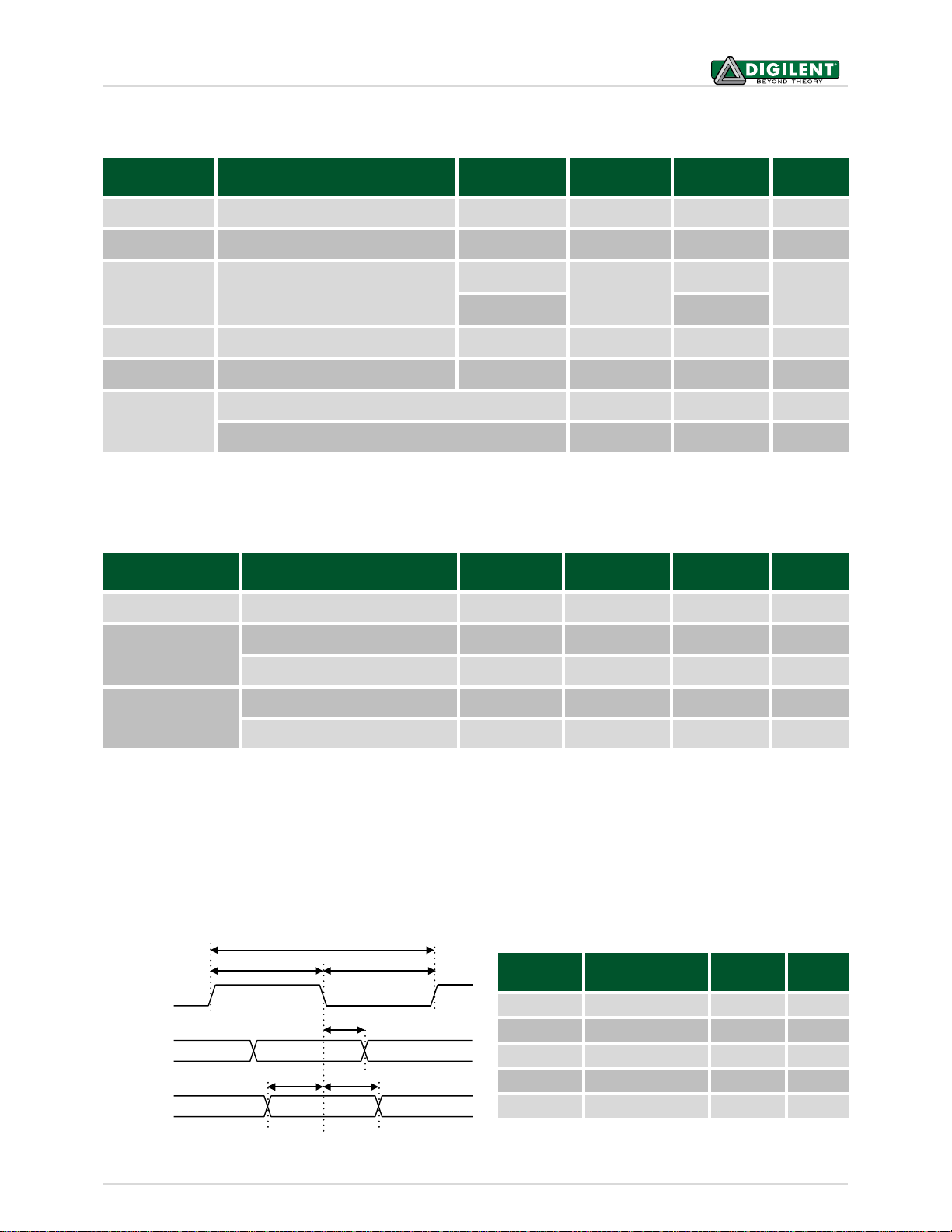

Figure 6. Timing diagram.
Table 2.Common frequencies.
Absolute Maximum Ratings
DC Operating Characteristics
AC Operating Characteristics
The JTAG-HS2 JTAG signals and SPI operate according to the timing diagram in Fig. 6. The HS2 supports TCK frequencies from 30 MHz to 8 KHz at integer divisions of 30 MHz from 1 to 3750. Common frequencies include 30 MHz, 15 MHz, 10 MHz, 7.5 MHz, and 6 MHz (see Table 2).
JTAG-HS2Programming Cable for Xilinx® FPGAs
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
Page 6 of 6
Supported Target Devices
The JTAG-HS2 is capable of targeting the following Xilinx devices:
1. Ordered List ItemXilinx FPGAs
2. Xilinx Zynq-7000
3. Xilinx CoolRunner™/CoolRunner-II CPLDs
4. Xilinx Platform Flash ISP configuration PROMs
5. Select third-party SPI PROMs
6. Select third-party BPI PROMs
The following devices cannot be targeted by the JTAG-HS2:
1. Ordered List Item Xilinx 9500/9500XL CPLDs
2. Xilinx 1700 and 18V00 ISP configuration PROMs
3. Xilinx FPGA eFUSE programming
Remote device configuration is not supported for the JTAG-HS2 when used with Xilinx's iMPACT software. Note: Please see the "Introduction to Indirect Programming – SPI or BPI Flash Memory" help topic in iMPACT for a list of supported FPGA/PROM combinations. Note: Please see the "Configuration Memory Support" section of Xilinx UG908 for a list of the FPGA/PROM combinations that Vivado supports.
