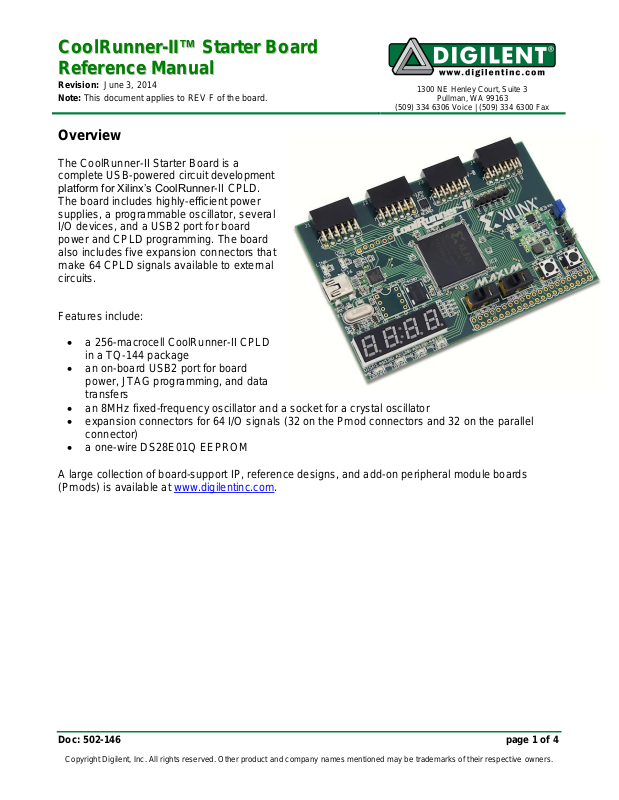

CCoooollRRuunnnneerr--III
I
™
™
SSttaarrtteerr BBooaarrdd
RReeffeerreennccee MMaannuuaal
l
Revision: June 3, 2014
Note: This document applies to REV F of the board.
1300 NE Henley Court, Suite 3
Pullman, WA 99163
(509) 334 6306 Voice | (509) 334 6300 Fax
Overview
The CoolRunner-II Starter Board is a
complete USB-powered circuit development
platform for Xilinx’s CoolRunner-II CPLD.
The board includes highly-efficient power
supplies, a programmable oscillator, several
I/O devices, and a USB2 port for board
power and CPLD programming. The board
also includes five expansion connectors that
make 64 CPLD signals available to external
circuits.
Features include:
a 256-macrocell CoolRunner-II CPLD
in a TQ-144 package
an on-board USB2 port for board
power, JTAG programming, and data
transfers
an 8MHz fixed-frequency oscillator and a socket for a crystal oscillator
expansion connectors for 64 I/O signals (32 on the Pmod connectors and 32 on the parallel
connector)
a one-wire DS28E01Q EEPROM
A large collection of board-support IP, reference designs, and add-on peripheral module boards
(Pmods) is available at www.digilentinc.com.
Doc: 502-146 page 1 of 4
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
CoolRunner-II Starter Board Reference Manual
JA
Pmod
Connectors
8
32
Expansion
Hole Pattern
Discera
Oscillator
SPI ROM
JTAG
Atmel USB
Controller
XC2C256
TQ144
External
Power
Connector
Maxim
Regulators
USB
14
JTAG
Header
V
io1
(3.3V)
V
io1
(3.3V)
V
core
(1.8V)
JP2
User I/O:
Seven-Segment
LED Display,
Pushbuttons,
Slide Switches,
and LEDs
2
2
4
12
JB
JC
JD
4
8
8
8
Parallel
User I/O
JP3
En
Configuration
The CoolRunner-II board’s CPLD must be configured (or programmed) by the user before it can
perform any functions. Files can be created from schematics or HDL source files using the free ISE
WebPack software from Xilinx. Configuration files can be transferred to the CoolRunner-II board using
a USB cable and Xilinx’s iMPACT software or using an external programming cable (not included).
Once configured, the CPLD retains its state indefinitely. When the CoolRunner-II board is powered
on, the most recently loaded CPLD configuration is available immediately. A new configuration can be
loaded at any time, and as soon as a new configuration is loaded, it defines the CPLD’s behavior.
Power Supplies
The CoolRunner-II board can be powered from its integral USB port or from an external supply
attached at connector JP3. Jumper JP2 selects whether the board uses USB power or external
power. External power, from any source, is routed through a Maxim LT3028 regulator to produce the
two voltage supplies (3.3V I/O and 1.8V core) required by the CPLD. Whenever board power is
applied, the power-on LED glows.
To use an external power source, set jumper JP2 to BAT and apply power to the JP3 pins (see the
board’s silkscreen for orientation). Any 4.5V to 9V power supply can be used (for example, a
transistor battery or a series arrangement of AA cells).
The CoolRunner-II board uses a four-layer PCB, with the inner layers dedicated to VCC and GND. The
Maxim regulators, together with good power supply routing and ample bypass capacitors on all IC
pins, results in a low-noise power supply.
www.digilentinc.com page 2 of 4
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
CoolRunner-II Starter Board Reference Manual
CoolRunner-II
38
Fixed Freq
Oscillator
DSC1033
Oscillator
Socket
32
Push-
buttons
Slide
Switches
CoolRunner-II
CPLD
143
94
BTN0
BTN1
SW0
SW1
3.3V
LD0
LD1
LD2
LD3
3.3V
LEDs
7-Seg
Display
AN1
AN2
AN3
AN4
124
39
69
68
66
64
130
129
128
126
25
16
23
21
20
17
83
CA
CB
CC
CD
CE
CF
CG
DP
22
VDD
Clocks
The CoolRunner-II board includes a fixedfrequency oscillator that produces an 8MHz
clock signal. This primary oscillator output,
labeled PCLK in the schematic, is connected to
the GCLK2 pin of the CPLD (at P38) so that it
can be routed to the internal clock divider. An
unloaded socket for a standard half-size DIP
oscillator is also provided at location IC3.
User I/O
The CoolRunner-II board provides two
pushbuttons and two slide switches for
inputs, and four red LEDs and a four-digit
LED display for outputs.
The active-low pushbuttons and slide
switches include series resistance for shortcircuit protection. The LEDs are active low,
and the seven-segment display uses
decoupled-transistor active-high common
anode signals and active-low cathodes.
Three additional LEDs indicate USB power
good (LD4), board power good (LD5), and
USB link status (LD6).
Expansion Connectors
The CoolRunner-II board provides four 12pin peripheral module connectors. Each
connector provides two VDD and GND
connections and eight unique CPLD
signals. Each connector can accommodate
a single 12-pin Pmod or two 6-pin Pmods.
Digilent makes several 6-pin Pmods that can attach to these connectors, including speaker boards, Hbridge boards, sensor boards, etc. See www.digilentinc.com for more information.
The CoolRunner-II board also provides a 40-pin expansion connector that includes three powersupply signals and 37 individual I/O signals.
www.digilentinc.com page 3 of 4
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.
CoolRunner-II Starter Board Reference Manual
Keyboard Key
Scan Code
Keyboard Key
Scan Code
F1
05
F5
03
F2
06
F6
0B
F3
04
F7
83
F4
0C
F8
0A
Demonstration Design
The design pre-programmed onto the CPLD contains several functions that can be seen when the
appropriate peripheral modules are inserted into the relevant ports.
In this sample design, the switch Pmod goes in port J8, the PS/2 Pmod goes in port J7,
and the seven-segment display Pmod goes in ports J5 and J6. Of course, the design can be changed
to use different ports.
The CPLD implements both a counter as well as a PS/2 keyboard decoder. The display switches
between the two based on the value of SW4. SW1, 2, and 3 are not used in the design. BTN0 is the
system reset for the design.
When SW4 has the PS/2 decoder selected, the output on the display is the scan code for that letter.
Here are some scan codes, the rest can be found on the Internet.
Design Recommendations
The regulator provides Vccio of 3.3V, so set the Default I/O Standard appropriately.
Unused I/O should be set to Ground to minimize power.
Input Termination should be set to Keeper to minimize power consumption on any potentially
floating input pins.
www.digilentinc.com page 4 of 4
