DiGidot C4 Quick Manual Setup

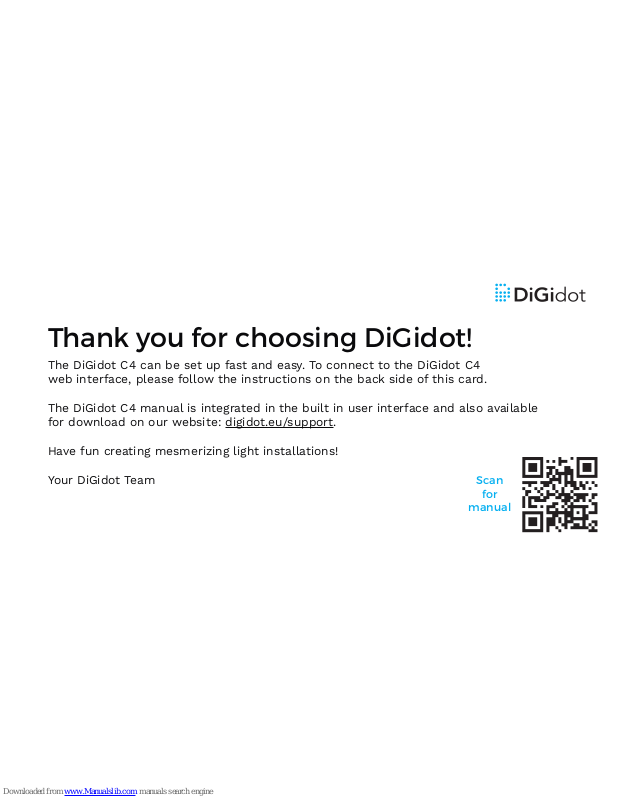

Thank you for choosing DiGidot!

The DiGidot C4 can be set up fast and easy. To connect to the DiGidot C4
web interface, please follow the instructions on the back side of this card.

The DiGidot C4 manual is integrated in the built in user interface and also available
for download on our website: digidot.eu/support.

Have fun creating mesmerizing light installations!

Your DiGidot Team

Scan

for

manual

1. Connect the DiGidot C4 to a power source.

Option 1. Connect DC+ and DC- to a switching power supply
rated 5 Vdc up to 24 Vdc, that is able to output at least 5
Watt .

Option 2. Connect the DC socket located next to the Ethernet
ports to a 5 Vdc power source (USB port).

2. Press and hold the onboard button for 10 seconds to
turn on the Wi-Fi. The status LEDs turn blue-white when
successful.

3. Install the free DiGidot app on your mobile device (optional)
or go to step 4.

4. Connect your mobile device or computer to the DiGidot C4
Wi-Fi network.

Using a computer you can access your
device(s) by browsing to http://172.16.0.1.

Wireless

1. Connect the DiGidot C4 to a power source.

Option 1. Connect DC+ and DC- to a switching power supply
rated 5 Vdc up to 24 Vdc, that is able to output at least 5
Watt .

Option 2. Connect the DC socket located next to the Ethernet
ports to a 5 Vdc power source (USB port).

2. Use an RJ45 network cable to connect the DiGidot C4 to a
network port of a computer.

3. Open your internet browser and go to http://10.254.254.254.

Note: You can also go to interface.digidot.eu to access your
device(s), but requires an active internet connection.

Wired

Setup instructions
