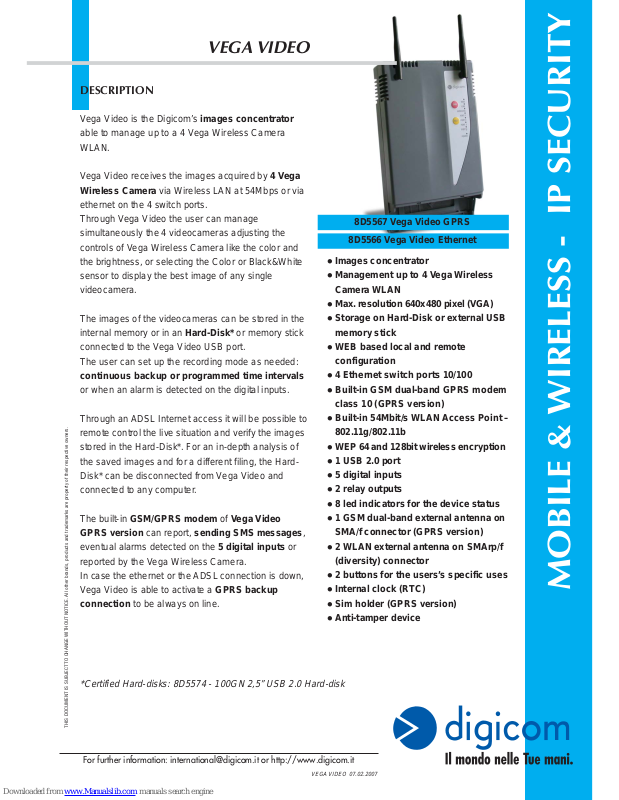

VEGA VIDEO 07.02.2007
DESCRIPTION
Vega Video is the Digicom’s images concentrator
able to manage up to a 4 Vega Wireless Camera
WLAN.
Vega Video receives the images acquired by 4 Vega
Wireless Camera via Wireless LAN at 54Mbps or via
ethernet on the 4 switch ports.
Through Vega Video the user can manage
simultaneously the 4 videocameras adjusting the
controls of Vega Wireless Camera like the color and
the brightness, or selecting the Color or Black&White
sensor to display the best image of any single
videocamera.
The images of the videocameras can be stored in the
internal memory or in an Hard-Disk* or memory stick
connected to the Vega Video USB port.
The user can set up the recording mode as needed:
continuous backup or programmed time intervals
or when an alarm is detected on the digital inputs.
Through an ADSL Internet access it will be possible to
remote control the live situation and verify the images
stored in the Hard-Disk*. For an in-depth analysis of
the saved images and for a different filing, the HardDisk* can be disconnected from Vega Video and
connected to any computer.
The built-in GSM/GPRS modem of Vega Video
GPRS version can report, sending SMS messages,
eventual alarms detected on the 5 digital inputs or
reported by the Vega Wireless Camera.
In case the ethernet or the ADSL connection is down,
Vega Video is able to activate a GPRS backup
connection to be always on line.
VEGA VIDEO
Images concentrator
Management up to 4 Vega Wireless
Camera WLAN
Max. resolution 640x480 pixel (VGA)
Storage on Hard-Disk or external USB
memory stick
WEB based local and remote
configuration
4 Ethernet switch ports 10/100
Built-in GSM dual-band GPRS modem
class 10 (GPRS version)
Built-in 54Mbit/s WLAN Access Point –
802.11g/802.11b
WEP 64 and 128bit wireless encryption
1 USB 2.0 port
5 digital inputs
2 relay outputs
8 led indicators for the device status
1 GSM dual-band external antenna on
SMA/f connector (GPRS version)
2 WLAN external antenna on SMArp/f
(diversity) connector
2 buttons for the users’s specific uses
Internal clock (RTC)
Sim holder (GPRS version)
Anti-tamper device
8D5567 Vega Video GPRS
8D5566 Vega Video Ethernet
*Certified Hard-disks: 8D5574 - 100GN 2,5” USB 2.0 Hard-disk
MOBILE & WIRELESS - IP SECURITY
For further information: international@digicom.it or http://www.digicom.it
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective o
wners.
VEGA VIDEO
Thanks to the 4 switch ports, your industrial devices,
i.e. PLC, can be connected to the Vega Video, and
communicate with the appropriate protocol, eventual
detections that will be sent as SMS messages using
the built-in GSM/GPRS modem of Vega Video.
Vega Video, so as Vega Wireless Camera, is
equipped with an internal backup battery.
In this way even if a black-out of the power
network occurs the storage of the images
will not be interrupted.
Battery backup
ARM 9 processor 280 MIPS
4 MByte Flash memory
16MByte RAM memory
Linux Operating System
Dimensions: 230 x 135 x 55mm
Weight: 500 gr
CE Mark
Note: Vega Video and Vega Wireless Camera
must be used with respect of the privacy
regulations in force for the videosurveillance
systems in the country you use them.
VEGA VIDEO ETHERNET ACCESSORIES
Code Description
8D5574 Hard Disk USB 2.0 100GB 2,5”
8D5573 Kit for Hard Disk USB 2,5”
8E4218 Directive Antenna 8dBi WLAN
8E4219 Omnidirectional Antenna 8dBi WLAN
8E4339 WLAN cable 1,5m CFD200
8E4340 WLAN cable 3m CFD200
8E4341 WLAN cable 5m CFD200
VEGA VIDEO GPRS ACCESSORIES
Code Description
8D5574 Hard Disk USB 2.0 100GB 2,5”
8D5573 Kit for Hard Disk USB 2,5”
8D4286 Directive Antenna GSM 9dBi 5m SMAm
8D4289 Omnidirectional Antenna GSM 5dBi 5m SMAm
8E4218 Directive Antenna 8dBi WLAN
8E4219 Omnidirectional Antenna 8dBi WLAN
8E4339 WLAN cable 1,5m CFD200
8E4340 WLAN cable 3m CFD200
8E4341 WLAN cable 5m CFD200
