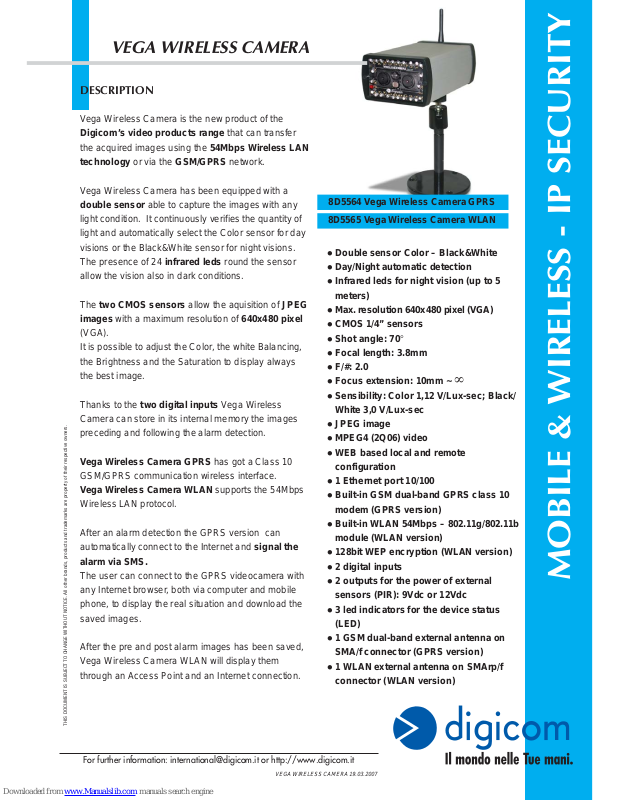

VEGA WIRELESS CAMERA 19.03.2007
DESCRIPTION
Vega Wireless Camera is the new product of the
Digicom’s video products range that can transfer
the acquired images using the 54Mbps Wireless LAN
technology or via the GSM/GPRS network.
Vega Wireless Camera has been equipped with a
double sensor able to capture the images with any
light condition. It continuously verifies the quantity of
light and automatically select the Color sensor for day
visions or the Black&White sensor for night visions.
The presence of 24 infrared leds round the sensor
allow the vision also in dark conditions.
The two CMOS sensors allow the aquisition of JPEG
images with a maximum resolution of 640x480 pixel
(VGA).
It is possible to adjust the Color, the white Balancing,
the Brightness and the Saturation to display always
the best image.
Thanks to the two digital inputs Vega Wireless
Camera can store in its internal memory the images
preceding and following the alarm detection.
Vega Wireless Camera GPRS has got a Class 10
GSM/GPRS communication wireless interface.
Vega Wireless Camera WLAN supports the 54Mbps
Wireless LAN protocol.
After an alarm detection the GPRS version can
automatically connect to the Internet and signal the
alarm via SMS.
The user can connect to the GPRS videocamera with
any Internet browser, both via computer and mobile
phone, to display the real situation and download the
saved images.
After the pre and post alarm images has been saved,
Vega Wireless Camera WLAN will display them
through an Access Point and an Internet connection.
VEGA WIRELESS CAMERA
Double sensor Color – Black&White
Day/Night automatic detection
Infrared leds for night vision (up to 5
meters)
Max. resolution 640x480 pixel (VGA)
CMOS 1/4” sensors
Shot angle: 70°
Focal length: 3.8mm
F/#: 2.0
Focus extension: 10mm ~ ∞
Sensibility: Color 1,12 V/Lux-sec; Black/
White 3,0 V/Lux-sec
JPEG image
MPEG4 (2Q06) video
WEB based local and remote
configuration
1 Ethernet port 10/100
Built-in GSM dual-band GPRS class 10
modem (GPRS version)
Built-in WLAN 54Mbps – 802.11g/802.11b
module (WLAN version)
128bit WEP encryption (WLAN version)
2 digital inputs
2 outputs for the power of external
sensors (PIR): 9Vdc or 12Vdc
3 led indicators for the device status
(LED)
1 GSM dual-band external antenna on
SMA/f connector (GPRS version)
1 WLAN external antenna on SMArp/f
connector (WLAN version)
8D5564 Vega Wireless Camera GPRS
8D5565 Vega Wireless Camera WLAN
MOBILE & WIRELESS - IP SECURITY
For further information: international@digicom.it or http://www.digicom.it
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective o
wners.
Vega Wireless Camera GPRS can be used wherever
the GSM network is active.
Vega Wireless Camera WLAN operates at its best
when connected to a wireless Access Point.
For a professional use of Vega Wireless Camera
WLAN, we suggest to use it with the Digicom Vega
Video concentrator.
VEGA WIRELESS CAMERA
ACCESSORIES
VEGA WIRELESS CAMERA GPRS
Code Description
8D4286 Directive Antenna GSM 9dBi 5mt SMAm
8D4289 Omnidirectional Antenna GSM 5dBi 5mt SMAm
8D4290 Vega Camera - External slot IP66 220Vac
VEGA WIRELESS CAMERA WLAN
Code Description
8E4218 Directive Antenna 8dBi WLAN
8E4219 Omnidirectional Antenna 8dBi WLAN
8E4339 WLAN Cable 1,5MT CFD200
8E4340 WLAN Cable 3MT CFD200
8E4341 WLAN Cable 5MT CFD200
8D4290 Vega Camera - External slot IP66 220Vac
1 reset factory default button
Sim holder (GPRS version)
Flash Memory
Battery backup
Wall mounting kit
Dimensions: 127 x 77 x 48 mm
Weight: about 300 gr
CE Mark
Note: Vega Video and Vega Wireless Camera must be used with respect of the privacy regulations in force for the
videosurveillance systems in the country you use them.
External slot forVega Wireless Camera
