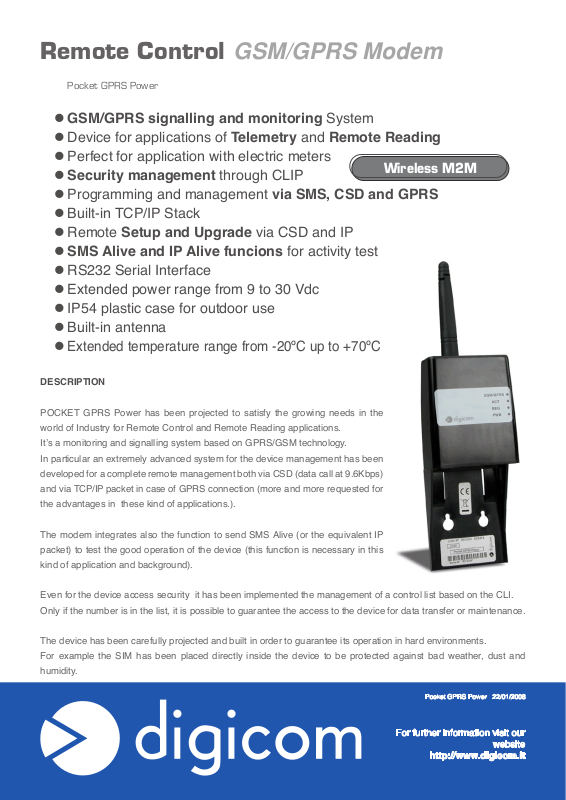

Remote Control GSM/GPRS Modem
Wireless M2M
Pocket GPRS Power
l GSM/GPRS signalling and monitoring System
l Device for applications of Telemetry and Remote Reading
l Perfect for application with electric meters
l Security management through CLIP
l Programming and management via SMS, CSD and GPRS
l Built-in TCP/IP Stack
l Remote Setup and Upgrade via CSD and IP
l SMS Alive and IP Alive funcions for activity test
l RS232 Serial Interface
l Extended power range from 9 to 30 Vdc
l IP54 plastic case for outdoor use
l Built-in antenna
l
Extended temperature range from -20ºC up to +70ºC
DESCRIPTION
POCKET GPRS Power has been projected to satisfy the growing needs in the
world of Industry for Remote Control and Remote Reading applications.
It’s a monitoring and signalling system based on GPRS/GSM technology.
In particular an extremely advanced system for the device management has been
developed for a complete remote management both via CSD (data call at 9.6Kbps)
and via TCP/IP packet in case of GPRS connection (more and more requested for
the advantages in these kind of applications.).
The modem integrates also the function to send SMS Alive (or the equivalent IP
packet) to test the good operation of the device (this function is necessary in this
kind of application and background).
Even for the device access security it has been implemented the management of a control list based on the CLI.
Only if the number is in the list, it is possible to guarantee the access to the device for data transfer or maintenance.
The device has been carefully projected and built in order to guarantee its operation in hard environments.
For example the SIM has been placed directly inside the device to be protected against bad weather, dust and
humidity.
Pocket GPRS Power 22/01/2008
For further information visit our
website
http://www.digicom.it
In fact in industrial devices often the SIM cannot
Pocket GPRS
Power
Meter
Central
Management
System
GSM/CSD/SMS
guarantee its operation for a long period of time (as the
use in the mobile phone consumer market reduced the
quality even for this basic component).
A complex work has been carried out on the product to
reduce the number of components and consequently
increase the level of reliability. We can boast a MTBF
rate able to guarantee a fault rate lower than 0,35% per
year.
TECHNICAL FEATURES
te
l Industrial modem for GPRS/GSM/SMS applications
l Perfect for applications of meters readings in electrical energy
l GSM speed up to 9600 bps
l GPRS Class 10
l Built-in TCI/IP Stack
l Security management based on CLI
l Management through standard and extended AT commands
l Security List for Maintenance and Access
l SMS Alive function
l IP Alive function
l Remote configuration via CSD (direct call) or IP
l Extended Power range from 9 to 30 Vdc
l Extended Temperature range: -20˚ + 55˚C (operation); - 20˚ +
70˚C (limit with operation restore)
l RS232 serial interface on DB9 Female
l IP 54 plastic case with washers
l Compact Size (220 x 44 x 68 mm)
l Internal Antenna with possibility to connect an external antenna
with SMA connector
l Status LED
l Version with external Microprocessor avaiable
l Version with 433MHz Receiver available
