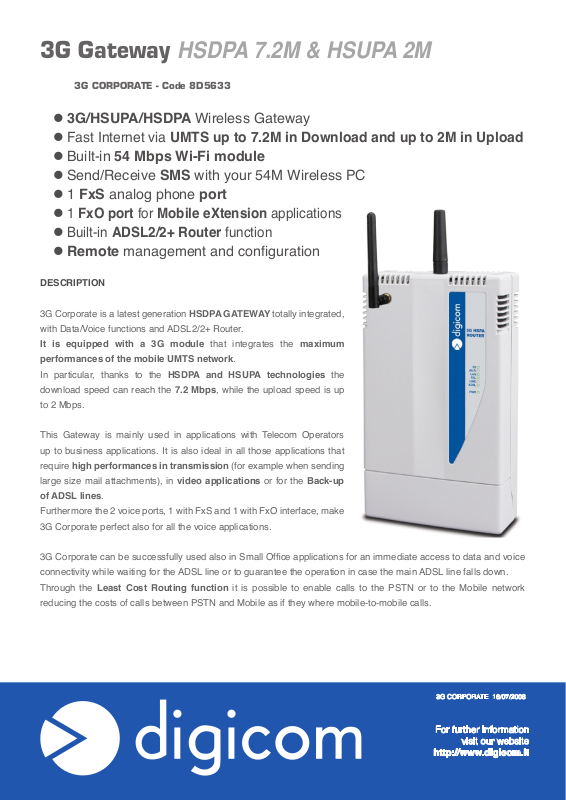

3G Gateway HSDPA 7.2M & HSUPA 2M
3G CORPORATE - Code 8D5633
l 3G/HSUPA/HSDPA Wireless Gateway
l
Fast Internet via UMTS up to 7.2M in Download and up to 2M in Upload
l Built-in 54 Mbps Wi-Fi module
l Send/Receive SMS with your 54M Wireless PC
l 1 FxS analog phone port
l
1 FxO port for Mobile eXtension applications
l
Built-in ADSL2/2+ Router function
l Remote management and conguration
DESCRIPTION
3G Corporate is a latest generation HSDPA GATEWAY totally integrated,
with Data/Voice functions and ADSL2/2+ Router.
It is equipped with a 3G module that integrates the maximum
performances of the mobile UMTS network.
In particular, thanks to the HSDPA and HSUPA technologies the
download speed can reach the 7.2 Mbps, while the upload speed is up
to 2 Mbps.
This Gateway is mainly used in applications with Telecom Operators
up to business applications. It is also ideal in all those applications that
require high performances in transmission (for example when sending
large size mail attachments), in video applications or for the Back-up
of ADSL lines.
Furthermore the 2 voice ports, 1 with FxS and 1 with FxO interface, make
3G Corporate perfect also for all the voice applications.
3G Corporate can be successfully used also in Small Ofce applications for an immediate access to data and voice
connectivity while waiting for the ADSL line or to guarantee the operation in case the main ADSL line falls down.
Through the Least Cost Routing function it is possible to enable calls to the PSTN or to the Mobile network
reducing the costs of calls between PSTN and Mobile as if they where mobile-to-mobile calls.
3G CORPORATE 16/07/2008
For further information
visit our website
http://www.digicom.it
For further information
visit our website
http://www.digicom.it
With the exclusive Mobile eXtension function you can
UMTS
Network
3G Corporate
FxS
Port
ring...ring...
ring...ring...
Hello!
335 12345678
FxO
Port
Dial
0331-702(611)
PABX
PSTN
UMTS
INTERNET
ADSL
3G Corporate
Laptop
Firewall
Computer
Wireless
Camera
forward the calls coming in the PABX to a mobile phone,
carrying out a “cordless” function without the distance
and coverage limits of this type of equipment.
The voice applications of 3G Corporate allow its use as
sole gateway in the most performing PABXs where the
Internet connectivity is often required to take advantage
of all the VoIP functions and Systems Messaging.
In this way you can use 3G Corporate to guarantee the
ADSL connectivity and the Back-up in UMTS/HSDPA,
as Least Cost Routing function to the company mobile
phones, to carry out GSM calls from PABX extensions
and as a gateway to send and receive SMS.
3G Corporate is also an ADSL 2/2+ router with speed
up to 24Mbps. With a sole device it is possible to
carry out Back-up applications of the ADSL line with
an integrated device, making easier the coexistence
of 2 gateways on the same network and no need to
recongure the LAN PCs.
With 3G Corporate you will carry out 3 different types
of connection: ADSL, 3.5G or ADSL with backup over
HSDPA.
You can also add a rechargeable backup battery for a
continuous operation of your Gateway even if the power
line falls down.
3G Corporate can be completely setup and managed
via WEB interface, apart from the used operating
system.
Furthermore it is supported the management of TR069
protocol for applications with mobile Telecom Operators.
3G Corporate can also manage 2 SIMs to guarantee
the operation in case the main telecom operator is not
available or in special applications. You can switch
manually or automatically from a SIM to the other one. (1)
With reference to HSDPA products available on the
market that have a maximum Upload speed of 384Kbps,
this means an important technological and applicative
step beyond. In this way it is possible to take all the “wired”
Internet applications over the “wireless” technology too.
Note 1: To switch from a SIM to the other one the device
must be registered to the operator network. This function
is not available in Least Cost Routing applications
