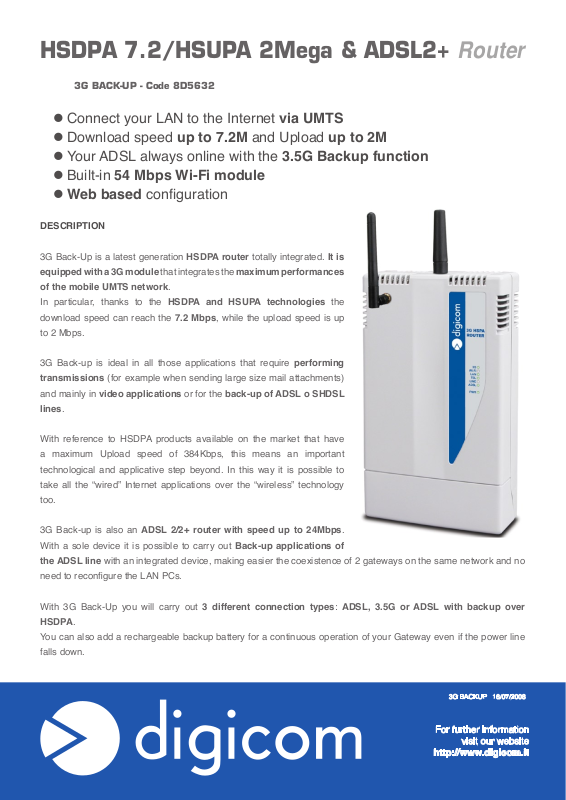

HSDPA 7.2/HSUPA 2Mega & ADSL2+ Router
3G BACK-UP - Code 8D5632
l Connect your LAN to the Internet via UMTS
l Download speed up to 7.2M and Upload up to 2M
l Your ADSL always online with the 3.5G Backup function
l Built-in 54 Mbps Wi-Fi module
l Web based conguration
DESCRIPTION
3G Back-Up is a latest generation HSDPA router totally integrated. It is
equipped with a 3G module that integrates the maximum performances
of the mobile UMTS network.
In particular, thanks to the HSDPA and HSUPA technologies the
download speed can reach the 7.2 Mbps, while the upload speed is up
to 2 Mbps.
3G Back-up is ideal in all those applications that require performing
transmissions (for example when sending large size mail attachments)
and mainly in video applications or for the back-up of ADSL o SHDSL
lines.
With reference to HSDPA products available on the market that have
a maximum Upload speed of 384Kbps, this means an important
technological and applicative step beyond. In this way it is possible to
take all the “wired” Internet applications over the “wireless” technology
too.
3G Back-up is also an ADSL 2/2+ router with speed up to 24Mbps.
With a sole device it is possible to carry out Back-up applications of
the ADSL line with an integrated device, making easier the coexistence of 2 gateways on the same network and no
need to recongure the LAN PCs.
With 3G Back-Up you will carry out 3 different connection types: ADSL, 3.5G or ADSL with backup over
HSDPA.
You can also add a rechargeable backup battery for a continuous operation of your Gateway even if the power line
falls down.
3G BACKUP 16/07/2008
For further information
visit our website
http://www.digicom.it
MANAGEMENT AND CONFIGURATION
INTERNET
ADSL
Firewall
3G Backup
Computer
Wireless
Camera
UMTS
3G Back-Up can be setup and managed via WEB
interface, apart from the used operating system.
Furthermore it is supported the management of TR069
protocol for applications with mobile telecom operators.
TECHNICAL FEATURES
Wireless WAN
l 3G Gateway for Back Up and/or 3G Router applications
l UMTS technology with HSDPA Category 8 (7.2 Donwnlink)
l HSUPA Category 5 (2.0 Uplink upgradable uo to 5.76 Mbps)
l EDGE/GPSR Class 12
l Bands: UMTS 2100/1900/850 MHz
l Bands: EDGE/GPRS/GSM 850/900/1800/1900MHz
Hardware
l Web based local and remote configuration
l LAN: 1 10/100 Ethernet port
l Size: 290 x 135 x 80 mm (antenna included)
l Reset to Factory Default button
l 12VDC/1.2A external power supply
l 2 SIM holder
l Operating temperature 0-40 ºC
l Non-condensig humidity: 20-95%
l Battery Back-up (optional) Li-ion
l CE Mark
Network Functionalities
l Full Routing IP (static and dynamic, NAT, Dynamic DNS (DDNS)
l Firewall (SPI) and protection from DoS attackes, Packet
Filtering, URL content
l DMZ, VPN Pass-through
l DHCP Server/Client support
Wireless LAN
l Wireless up to 54Mbps (IEEE802.11g, b)
l 64/128 bit WEP , WPA-PSK/WPA2-PSK encryption
Management
l WEB based local/remote configuration and management
l WEB based Firmware upgrade
l Management via TR069 protocol
ADSL
l Built-in ADSL 2/2+ router
l Standards: ADSL2+, G.dmt bisplus (ITU G.992.5); ADSL 2
G.dmt.bis (ITU G.992.3), Full.rate ANS T1.413 Issue 2, G.dmt
(ITU G.992.1), G.Lite (ITU G.992.2) G.hs (ITU G.994.1), ATM
Adaptation Layer Type 5 (AAL5)
l Multiple Protocol over AAL5 (RFC 2684 Formely RFC 1483);
Bridge or Routed Ethernet encapsulation, VC and LLC based
mux PPP over Ethernet (PPPoE) and PPP over ATM (PPPoA)
