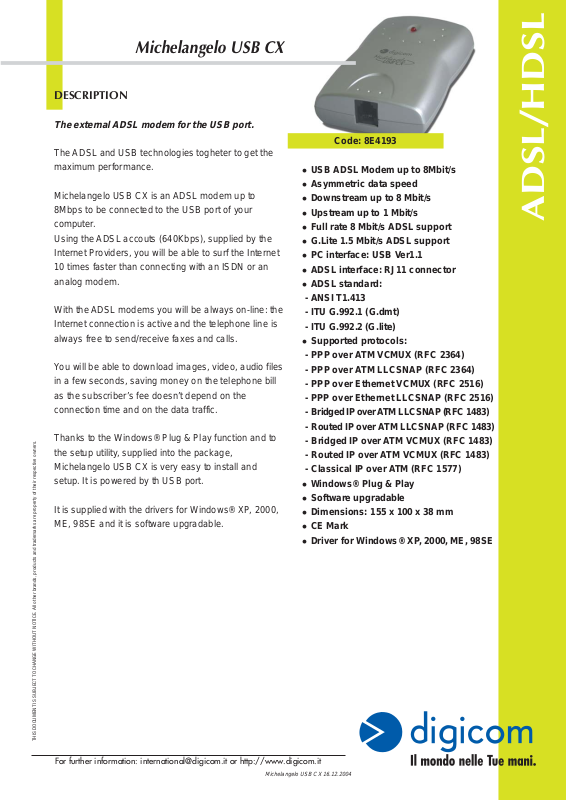

Michelangelo USB CX
DESCRIPTION
The external ADSL modem for the USB port.
The ADSL and USB technologies togheter to get the
maximum performance.
Michelangelo USB CX is an ADSL modem up to
8Mbps to be connected to the USB port of your
computer.
Using the ADSL accouts (640Kbps), supplied by the
Internet Providers, you will be able to surf the Internet
10 times faster than connecting with an ISDN or an
analog modem.
With the ADSL modems you will be always on-line: the
Internet connection is active and the telephone line is
always free to send/receive faxes and calls.
You will be able to download images, video, audio files
in a few seconds, saving money on the telephone bill
as the subscriber’s fee doesn’t depend on the
connection time and on the data traffic.
Thanks to the Windows® Plug & Play function and to
wners.
the setup utility, supplied into the package,
Michelangelo USB CX is very easy to install and
setup. It is powered by th USB port.
It is supplied with the drivers for Windows® XP, 2000,
ME, 98SE and it is software upgradable.
Code: 8E4193
USB ADSL Modem up to 8Mbit/s
Asymmetric data speed
Downstream up to 8 Mbit/s
Upstream up to 1 Mbit/s
Full rate 8 Mbit/s ADSL support
G.Lite 1.5 Mbit/s ADSL support
PC interface: USB Ver1.1
ADSL interface: RJ11 connector
ADSL standard:
- ANSI T1.413
- ITU G.992.1 (G.dmt)
- ITU G.992.2 (G.lite)
Supported protocols:
- PPP over ATM VCMUX (RFC 2364)
- PPP over ATM LLCSNAP (RFC 2364)
- PPP over Ethernet VCMUX (RFC 2516)
- PPP over Ethernet LLCSNAP (RFC 2516)
- Bridged IP over ATM LLCSNAP (RFC 1483)
- Routed IP over ATM LLCSNAP (RFC 1483)
- Bridged IP over ATM VCMUX (RFC 1483)
- Routed IP over ATM VCMUX (RFC 1483)
- Classical IP over ATM (RFC 1577)
Windows® Plug & Play
Software upgradable
Dimensions: 155 x 100 x 38 mm
CE Mark
Driver for Windows® XP, 2000, ME, 98SE
ADSL/HDSL
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective o
For further information: international@digicom.it or http://www.digicom.it
Michelangelo USB CX 16.12.2004
