NETWORKING
For further information: international@digicom.it or http://www.digicom.it
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective owners.
Ports:
l 8 ports RJ-45 10BaseT/100BaseTX
l 1 port RJ-451Gigabit on copper
l Any port can automatically turn from MDI-
X to MDI (Cross)
l Full-duplex switch for the connection of
10Mbit/s-100Mbit/s groups
l Store and Forward technology
l Separate repeater modules for Ethernet
and Fast Ethernet
l CSMA/CD access
l Fullspeed Filtering and Forwarding rate
l 4096 addresses memory
l 2Mbyte Buffer memory
l Complies with following specifications:
IEEE 802.3 10BaseT, IEEE802.3u,
100BaseTX and IEEE802.3ab 1000BaseT
Led Indicators:
l Power
l PLink/Activity
l 10/100/1000 Mbps
l Full-Duplex
Mechanical Features:
l Metal chassis
l Desktop version
l Power supply 110-220 VAC
l Custom private MIB support
l Consumption 10 Watt
Size and Weight:
l Size 251x37x118mm; Weight 1 Kg
Operating Features:
l Working temperature: from 5 to 50 °C
l Humidity: between 10% and 90% non-
condensing
l CE Mark, FCC A

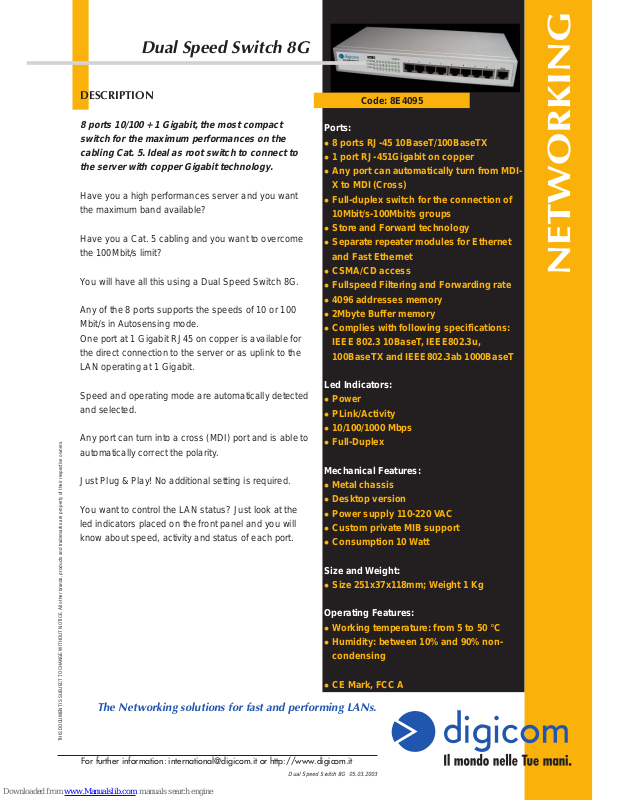

Dual Speed Switch 8G 05.03.2003
The Networking solutions for fast and performing LANs.
DESCRIPTION
8 ports 10/100 + 1 Gigabit, the most compact
switch for the maximum performances on the
cabling Cat. 5. Ideal as root switch to connect to
the server with copper Gigabit technology.
Have you a high performances server and you want
the maximum band available?
Have you a Cat. 5 cabling and you want to overcome
the 100Mbit/s limit?
You will have all this using a Dual Speed Switch 8G.
Any of the 8 ports supports the speeds of 10 or 100
Mbit/s in Autosensing mode.
One port at 1 Gigabit RJ45 on copper is available for
the direct connection to the server or as uplink to the
LAN operating at 1 Gigabit.
Speed and operating mode are automatically detected
and selected.
Any port can turn into a cross (MDI) port and is able to
automatically correct the polarity.
Just Plug & Play! No additional setting is required.
You want to control the LAN status? Just look at the
led indicators placed on the front panel and you will
know about speed, activity and status of each port.
Dual Speed Switch 8G
Code: 8E4095
