MOBILE & WIRELESS - WLAN
For further information: international@digicom.it or http://www.digicom.it
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective o
wners.
2 Ethernet ports 10/100BaseT
Access Point mode
IEEE 802.11b 2.4 GHz Wireless
technology, 13 channels
Frequency range 2412-2483,5 MHz
Wireless operating speed: from 54 to 1
Mbps
Closed space area coverage (depending
on building structure): 25m at 54Mbps,
100-300m at 5.5/2/1Mbps
802.11 standard Roaming
WEP, WPA/WPA2 encryption
DSSS Direct Sequence Spread Spectrum
modulation
Removable external antenna on reverse
female SMA connector
Led indicators: Power, Err Status, Link/
Act, MAC control, LAN1, LAN2
Flash upgradable
DHCP Client support
Wi-Fi and Airport® interoperable
Power supply 9DC, 750 mA
Operating temperature 0 - 50 °C
Non condensing humidity 10 - 95%
Dimensions 129 x 90 x 27 mm
CE Mark

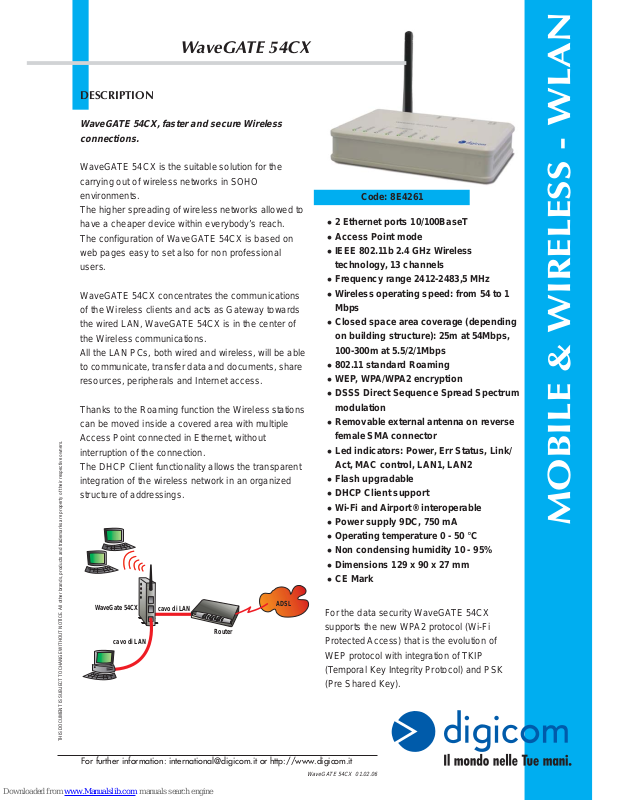

WaveGATE 54CX 01.02.06
DESCRIPTION
WaveGATE 54CX, faster and secure Wireless
connections.
WaveGATE 54CX is the suitable solution for the
carrying out of wireless networks in SOHO
environments.
The higher spreading of wireless networks allowed to
have a cheaper device within everybody’s reach.
The configuration of WaveGATE 54CX is based on
web pages easy to set also for non professional
users.
WaveGATE 54CX concentrates the communications
of the Wireless clients and acts as Gateway towards
the wired LAN, WaveGATE 54CX is in the center of
the Wireless communications.
All the LAN PCs, both wired and wireless, will be able
to communicate, transfer data and documents, share
resources, peripherals and Internet access.
Thanks to the Roaming function the Wireless stations
can be moved inside a covered area with multiple
Access Point connected in Ethernet, without
interruption of the connection.
The DHCP Client functionality allows the transparent
integration of the wireless network in an organized
structure of addressings.
WaveGATE 54CX
Code: 8E4261
WaveGate 54CX
Router
cavo di LAN
cavo di LAN
ADSL
For the data security WaveGATE 54CX
supports the new WP A2 protocol (Wi-Fi
Protected Access) that is the evolution of
WEP protocol with integration of TKIP
(Temporal Key Integrity Protocol) and PSK
(Pre Shared Key).
