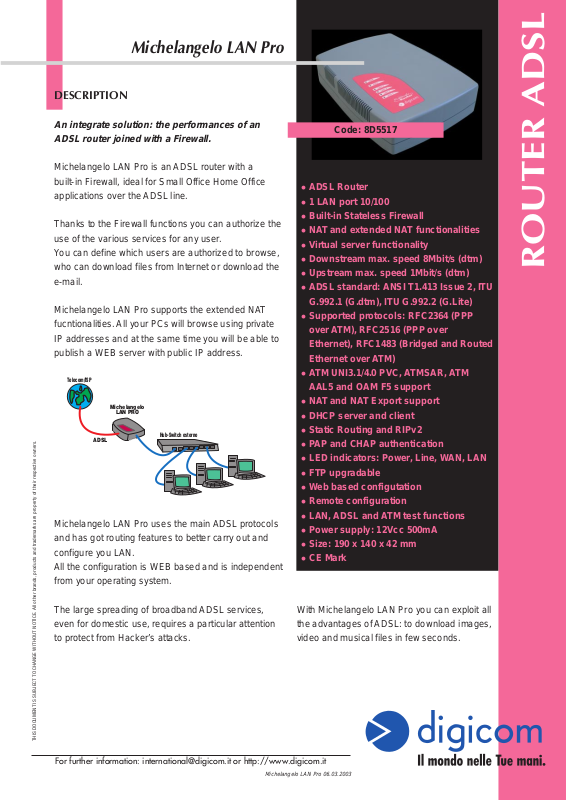

DESCRIPTION
Michelangelo LAN Pro
An integrate solution: the performances of an
ADSL router joined with a Firewall.
Michelangelo LAN Pro is an ADSL router with a
built-in Firewall, ideal for Small Office Home Office
applications over the ADSL line.
Thanks to the Firewall functions you can authorize the
use of the various services for any user.
You can define which users are authorized to browse,
who can download files from Internet or download the
e-mail.
Michelangelo LAN Pro supports the extended NAT
fucntionalities. All your PCs will browse using private
IP addresses and at the same time you will be able to
publish a WEB server with public IP address.
Telecom/ISP
Michelangelo
LAN PRO
ADSL
Hub-Switch esterno
Michelangelo LAN Pro uses the main ADSL protocols
and has got routing features to better carry out and
configure you LAN.
All the configuration is WEB based and is independent
from your operating system.
Code: 8D5517
l ADSL Router
l 1 LAN port 10/100
l Built-in Stateless Firewall
l NAT and extended NAT functionalities
l Virtual server functionality
l Downstream max. speed 8Mbit/s (dtm)
l Upstream max. speed 1Mbit/s (dtm)
l ADSL standard: ANSI T1.413 Issue 2, ITU
G.992.1 (G.dtm), ITU G.992.2 (G.Lite)
l Supported protocols: RFC2364 (PPP
over ATM), RFC2516 (PPP over
Ethernet), RFC1483 (Bridged and Routed
Ethernet over ATM)
l ATM UNI3.1/4.0 PVC, ATMSAR, ATM
AAL5 and OAM F5 support
l NAT and NAT Export support
l DHCP server and client
l Static Routing and RIPv2
l P AP and CHAP authentication
l LED indicators: Power, Line, WAN, LAN
l FTP upgradable
l Web based configutation
l Remote configuration
l LAN, ADSL and ATM test functions
l Power supply: 12Vcc 500mA
l Size: 190 x 140 x 42 mm
l CE Mark
ROUTER ADSL
The large spreading of broadband ADSL services,
even for domestic use, requires a particular attention
to protect from Hacker’s attacks.
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective owners.
For further information: international@digicom.it or http://www.digicom.it
Michelangelo LAN Pro 06.03.2003
With Michelangelo LAN Pro you can exploit all
the advantages of ADSL: to download images,
video and musical files in few seconds.
