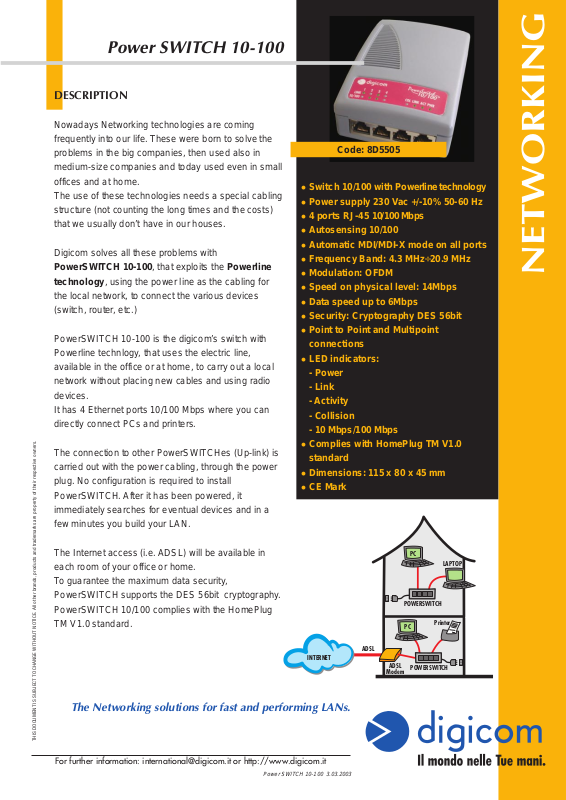

Power SWITCH 10-100

DESCRIPTION

Nowadays Networking technologies are coming
frequently into our life. These were born to solve the
problems in the big companies, then used also in
medium-size companies and today used even in small
offices and at home.
The use of these technologies needs a special cabling
structure (not counting the long times and the costs)
that we usually don’t have in our houses.

Digicom solves all these problems with

PowerSWITCH 10-100, that exploits the Powerline
technology, using the power line as the cabling for

the local network, to connect the various devices
(switch, router, etc.)

PowerSWITCH 10-100 is the digicom’s switch with
Powerline technlogy, that uses the electric line,
available in the office or at home, to carry out a local
network without placing new cables and using radio
devices.
It has 4 Ethernet ports 10/100 Mbps where you can
directly connect PCs and printers.

The connection to other PowerSWITCHes (Up-link) is
carried out with the power cabling, through the power
plug. No configuration is required to install
PowerSWITCH. After it has been powered, it
immediately searches for eventual devices and in a
few minutes you build your LAN.

Code: 8D5505

l Switch 10/100 with Powerline technology
l Power supply 230 Vac +/-10% 50-60 Hz
l 4 ports RJ-45 10/100 Mbps
l Autosensing 10/100
l Automatic MDI/MDI-X mode on all ports
l Frequency Band: 4.3 MHz÷20.9 MHz
l Modulation: OFDM
l Speed on physical level: 14Mbps
l Data speed up to 6Mbps
l Security: Cryptography DES 56bit
l Point to Point and Multipoint

connections

l LED indicators:

- Power

- Link

- Activity

- Collision

- 10 Mbps/100 Mbps

l Complies with HomePlug TM V1.0

standard

l Dimensions: 115 x 80 x 45 mm
l CE Mark

NETWORKING

The Internet access (i.e. ADSL) will be available in
each room of your office or home.
To guarantee the maximum data security,
PowerSWITCH supports the DES 56bit cryptography.
PowerSWITCH 10/100 complies with the HomePlug
TM V1.0 standard.

The Networking solutions for fast and performing LANs.

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. All other brands, products and trademarks are property of their respective owners.

For further information: [e-mail] or http://www.digicom.it

Power SWITCH 10-100 3.03.2003

INTERNET

ADSL

ADSL

Modem

PC

POWERSWITCH

PC

POWERSWITCH

LAPTOP

Printer
