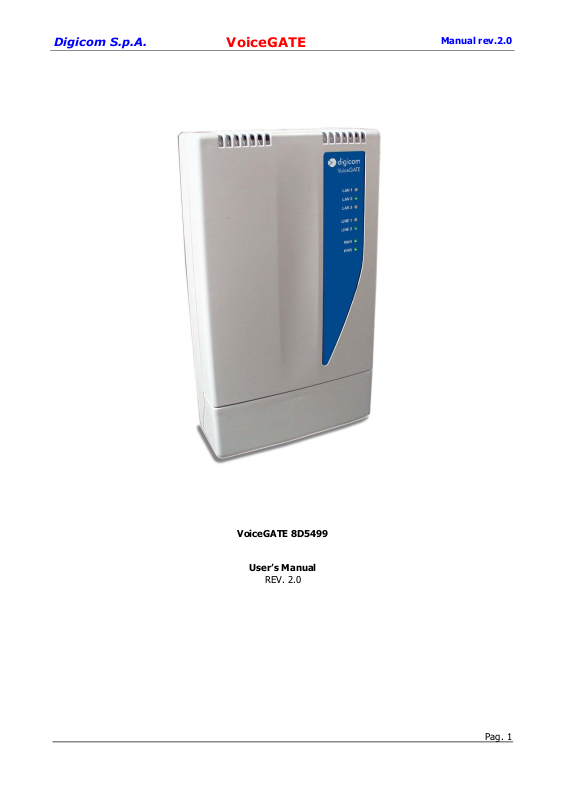

Digicom S.p.A.
VoiceGATE
Manual rev.2.0
VoiceGATE 8D5499
User’s Manual
REV. 2.0
Pag. 1
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
Index
IIDENT
PREFACE ................................................................................................................ 3
1.0 GENERAL DESCRIPTION ........................................................................................ 4
1.1 LED Description.................................................................................................. 5
1.2 Connectors Description........................................................................................ 5
2.0 Configuration........................................................................................................ 6
2.1 Computer configuration....................................................................................... 6
2.2 Access to configuration........................................................................................ 7
2.3 Save the configuration ........................................................................................ 9
2.4 VoiceGATE Working Test.....................................................................................10
2.5 Configuration Menù description............................................................................11
General Information..............................................................................................11
Telephony Configuration ........................................................................................ 12
Public Network Configuration..................................................................................16
Private Network Configuration ................................................................................17
Mac Addresses .....................................................................................................18
SNMP Agent.........................................................................................................18
RIP .....................................................................................................................19
Route Table .........................................................................................................20
Security Configuration ...........................................................................................20
Save Setting ........................................................................................................21
Reset .................................................................................................................. 21
3.0 VoiceGATE.exe ....................................................................................................22
3.1 Address Book Management .................................................................................22
3.2 Address Book Upgrade .......................................................................................24
Configuration Example...............................................................................................25
VoiceGATE Configuration Work Sheet...........................................................................28
Pag. 2
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
PREFACE
All rights reserved; no part of this publication may be reproduced, stored in a retrieval system,
or trasmitted in any form or by any means, electronic, otherwise, without the prior written
permission of Digicom S.p.A. The contents of this booklet may be modified without notice.
Every possible care has been taken in testing and putting together all the documentation
contained in this booklet, however Digicom can not take any responsability brought by the use
of this booklet.
The following installation rules should be respected in order to have the best working order of
the equipment and for the user’s safety.
ENVIROMENTAL CONDITIONS
ENVIROMENTAL TEMPERATURE from 0 to
45°C
Rapid changes of temperature or humidity should be avoided (0,03°C/min).
This equipment, including cables, should be installed in an area free from:
• Dust, humidity, heat from direct sun light.
• Objects which irradiate heat. These could cause damage to the container or other
problems.
• Objects which produce a strong electtromagnetic field (loudspeakers, etc.)
• Liquids or chemical corrosive substances.
CLEANING THE TERMINAL
Use a clean and soft cloth. Wet the cloth with water or natural detergent if it is necessary to
remove any stains. Never use chemical products such as petrol or solvents.
VIBRATIONS OR DROPPING
Caution against vibrations and dropping.
RELATIVE HUMIDITY from 20 to 80% n.c.
DECLARATION
Digicom S.p.A. via Alessandro Volta 39 21010 Cardano al Campo-Varese-
This product satisfies the basic requirements of the below indicated Directive:
• 1999/5/CE
• EN 55022
• EN 61000-3-2
• EN 55024
• EN 60950
• EN 41003
OF CONFORMITY
Pag. 3
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
1.0 GENERAL DESCRIPTION
Digicom VoiceGATE is the ideal solution for the new Telecom Operators who want to take at
home or office the new POTs with integration of Voice (Voice over IP) and Internet. VoiceGATE
has 3 Ethernet ports (10/100) for the connection of local devices (Personal Computer, Printers,
etc.), 2 analog ports and, optional, 1 SO ISDN bus with 2 RJ45 ports (for the connection ISDN
telephones).
The connection to the network backbone (Uplink) will take place through the Ethernet
10/100BT or optionally via xDSL.
VoiceGATE integrates the Router function. The hardware architecture of VoiceGATE uses an
ARM9 microprocessor of latest generation at 140 Mips, which guarantees, in Router mode, a
throughput of more than 15 Mbps in full-duplex.
Through the VoIP functions it is possible to connect up to 2 analog devices (Telephones,
Modem, Fax) using the protocols G.711, G.723.1, G.729 A for all the voice functions.
VoiceGATE can be used with two different VoIP configurations:with and without GateKeeper.
The GateKeeper is a device that takes care of associating the telephone address with the IP
address.
To simply use the VoIP in your network, Digicom carried out a Address book inside VoiceGATE
to avoid the use of the Gatekeeper.
VoiceGATE can be used both in network with Gatekeeper and with the address book. In case
you will not use the Gatekeeper, it will be possible to configure the address book through a
graphic utility. (VoiceGate AddressBook.exe).
Technical Features
• VoIP capability H.323v3
• G.711, G.723.1, G.729 support
• Modem and Fax support over IP G.711
• 2 analog ports POTs POTs
• 2 ISDN ports
• ISDN Bus (S0) to connect ISDN phones (optional)
• 3 Ethernet ports 10/100BT
• Built-in Store & Forward switch
• Built-in IP router
• RIPv2 support
• RIP1 support compliant
• NAT, TFTP, DHCP support
• Can be managed through SNMP
• Up to 8 devices on ISDN bus
• Web based ROUTER configuration
Pag. 4
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
1.1 LED Description
The VoiceGATE status can be checked through seven led indicators.
When all the LEDs are on, except the WAN led, it means the device is starting up. This
operation takes about 45 seconds and takes place at the starting up, after a saving of the
configuration or after a reset.
Lan x Indicates the LAN ports status
Off: no device connected
On: device connected
Line x Indicates the status of the two telephone lines
Off: device not registered at the GateKeeper or
internal address book not configured.
On: device registered at the GateKeeper or internal
address book configured
Flashing: line in use
Wan Indicates the WAN ports status
Flashing: activity on the WAN port
Pwr Indicates the status of the power
Off: VoiceGATE is not powered
On: VoiceGATE is powered
1.2 Connectors Description
Tel1-2 RJ11 connectors (FXS) for PSTN analog devices (telephones, modem, fax)
ISDN RJ45 connector for ISDN telephones
Lan1-3 10/100Mbs (MDI-X) switch ports
WAN 10/100Mps (MDI) Ethernet port
Pag. 5
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
2.0 Configuration
VoiceGATE can be configured using a Web browser. (Explore, Netascape, etc). This chapter
describes the test to carry out on the computer to enter the configuration and the procedure to
save the mofications in the configuration. In the paragraph “VoiceGATE working test”
you find the procedures to carry out your first tests with Digicom’s VoiceGATEs. Just
few operations and you will be able to install and test two VoiceGATEs. Then all the
configuration menus will be described.
2.1 Computer configuration
Setup minimum requirements:
• 1 PC with 10/100BT Ethernet card
• 1 LAN UTP cable Cat 5 Cross
• Browser (Explorer or Netscape)
To go on with VoiceGate setup, be sure the PC IP address belongs to the same network of
VoiceGate (example 192.168.2.xxx).
To enter the setup menu, go on as follows:
1. Setup the TCP/IP protocol for the PC Ethernet card with an IP address of the same
network of VoiceGate (example 192.168.2.3). Do not use 192.168.2.1 (default
address) and 192.168.2.2 (test address).
2. Connect the PC to VoiceGate on the Wan port using a cross LAN cable.
3. Turn on VoiceGate and wait it finishes the Start Up procedure (about 45 sec.)
4. Once the Start Up phase is finished, the led LAN will be off.
Pag. 6
Digicom S.p.A.
VoiceGATE
2.2 Access to configuration
1. Run the browser and connect to http://192.168.2.1. When the connection is
established, the following window will appear:
Manual rev.2.0
Insert in the User Name field: admin
Insert in the Password field:
NB: User name and password must be written with lower case.
Press Enter (or click OK) and the following window will be displayed:
voicegate
<-----
Attention: after you enter the
configuration menu, be sure you press the
Submit key to load the correct
configuration.
Pag. 7
Digicom S.p.A.
VoiceGATE
Manual rev.2.0
Note: in case of problems while displaying the
configuration, be sure that no proxy Server
is active.
In Microsoft Internet Explorer the Proxy setup
is in: Tools, Internet Options, Connections
LAN, Settings.
Menù Description
1. General Configuration It displays the information on the HW and SW release
of the equipment.
2. Telephony Configuration It allows the reading and the voice parameters setup.
3. Supplementary Services It allows the reading and the voice supplementary
services setup.
4. Public Network Configuration It allows the reading and the Wan (Uplink) parameters
setup.
5. Private Network Configuration It allows the reading and the LAN (private user
network) parameters setup.
6. Mac Addresses Displays the Mac Address Wan side and LAN side.
7. SNMP Agent It allows the reading and setup of SNMP protocol
parameters.
8. RIP It allows the reading and setup of Rip protocol
parameters.
9. Routing Table It allows the reading of the routing table.
10. Security Configuration It allows the password setup.
11. Save Setting Save the configuration.
12. Reset Reset the equipment without modifying the current
configuration.
The Submit button loads the current configuration.
Use the “Submit” button before going on with the
consultation of the other menus.
Pag. 8
Digicom S.p.A.
VoiceGATE
2.3 Save the configuration
To confirm the new settings you must press the Submit button at
the end of any WEB page.
To activate the modifications it is necessary, before you exit the
configuration, to enter the Save settings menu and press the
Submit button. At this point VoiceGATE will execute a StartUP,
then (after about 45 seconds) the modifications are active.
Manual rev.2.0
Pag. 9
