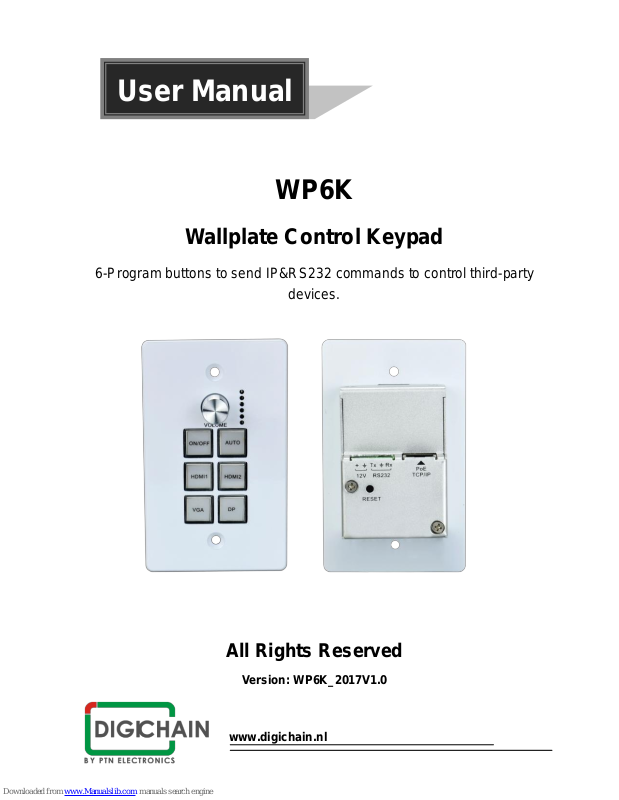

Digichain WP6K User Manual

www.digichain.nl

WP6K

Wallplate Control Keypad

6-Program buttons to send IP&RS232 commands to control third-party

devices.

All Rights Reserved

Version: WP6K_2017V1.0

User Manual

Programmable Control Panel

Digichain Electronics www.digichain.nl

Preface

Read this user manual carefully before using this product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.

This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till March, 2017. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.

All product function is valid till 2017-3-2.

Trademarks

Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.

Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Programmable Control Panel

Digichain Electronics www.digichain.nl

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing material for

possible future shipment

 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to

persons.

 Do not dismantle the housing or modify the module. It may result in electrical shock or

burn.

 Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

 Refer all servicing to qualified service personnel.
 To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

 Do not put any heavy items on the extension cable in case of extrusion.
 Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by overheat.
 Keep the module away from liquids.
 Spillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

 Do not twist or pull by force ends of the optical cable. It can cause malfunction.
 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the

device before cleaning.

 Unplug the power cord when left unused for a long period of time.
 Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

Programmable Control Panel

Digichain Electronics www.digichain.nl

Table of Contents

1. Introduction ................................................................................................................. 1

1.1 Introduction to WP6K ......................................................................................... 1

1.2 Features ............................................................................................................ 1

1.3 Package List ...................................................................................................... 1

2. Panel Description ........................................................................................................ 2

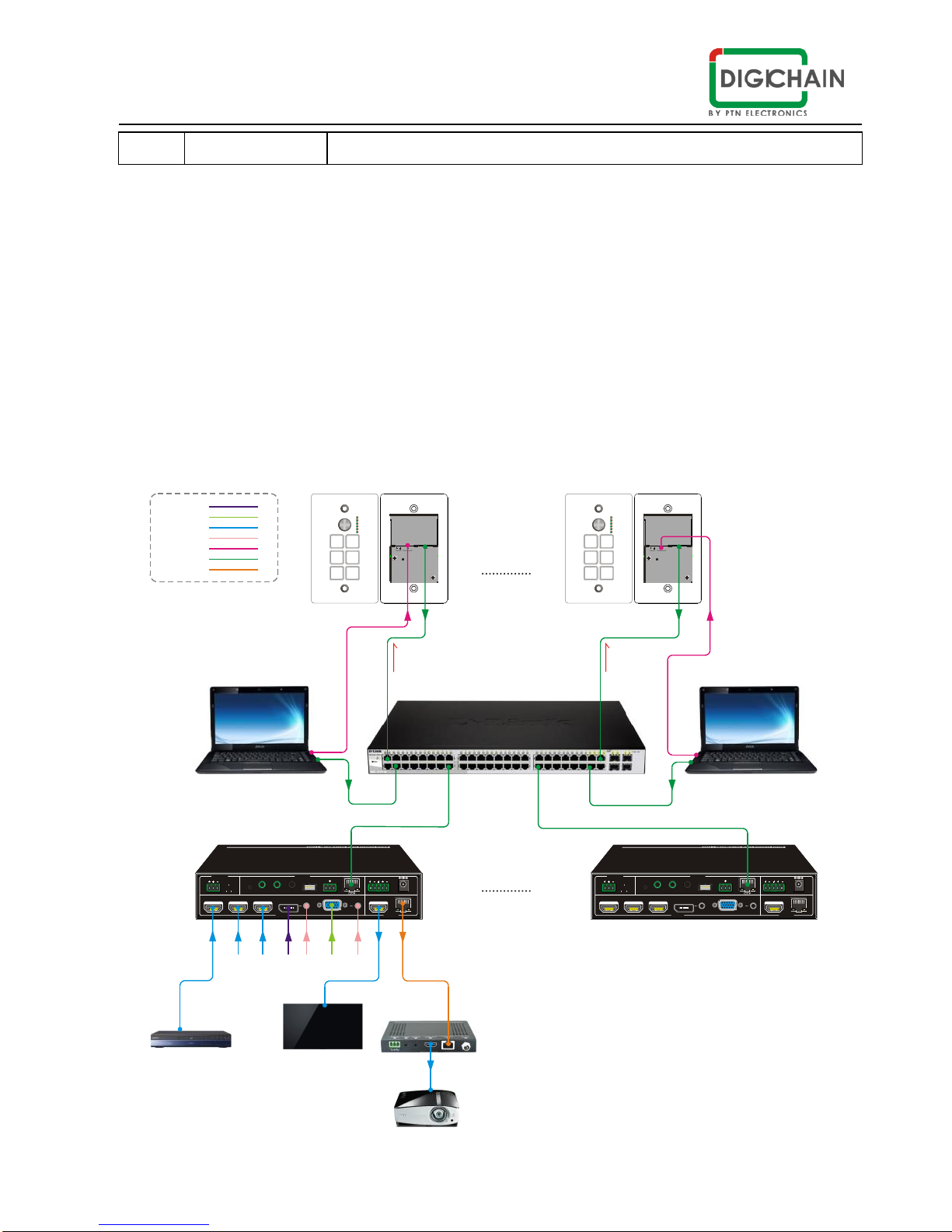

3. System Connection ..................................................................................................... 3

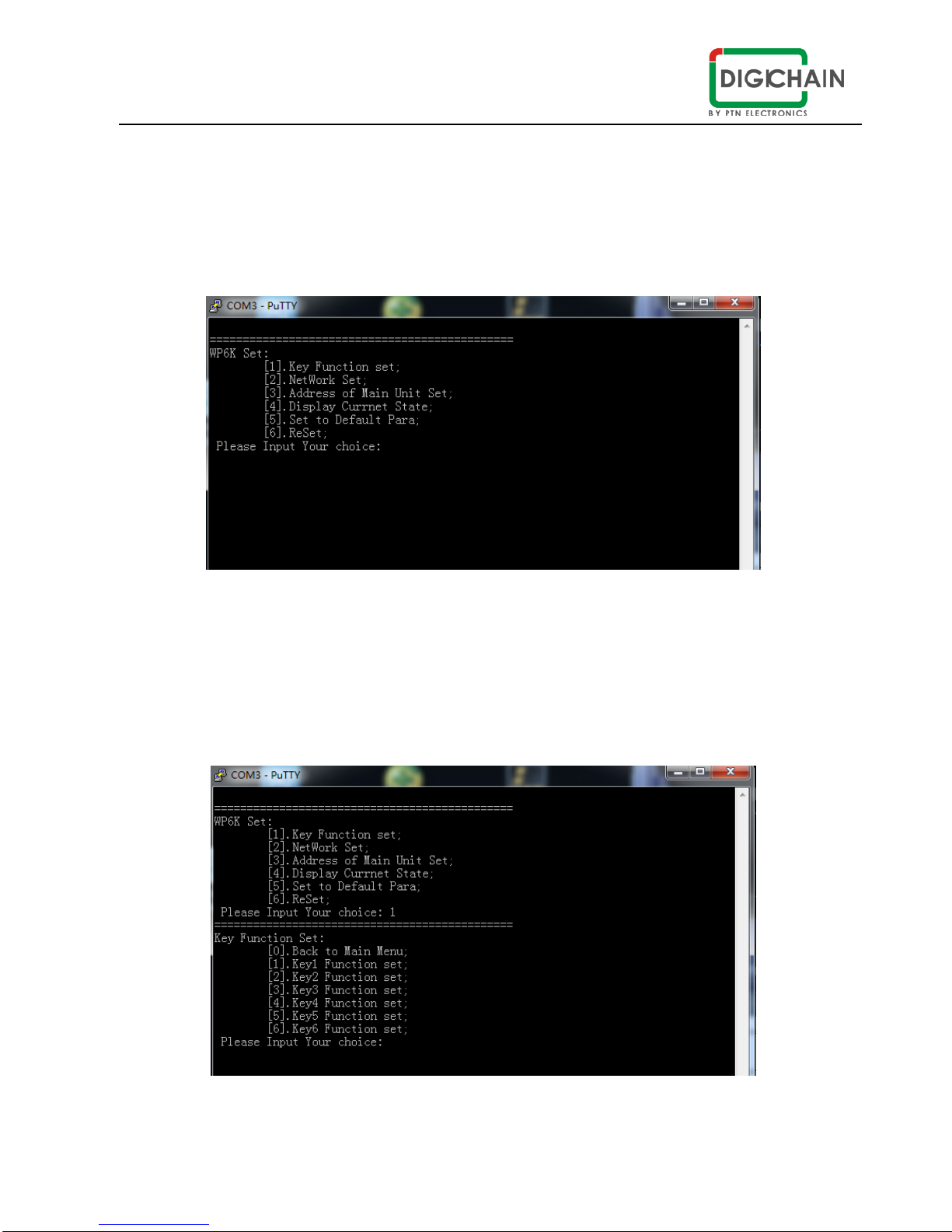

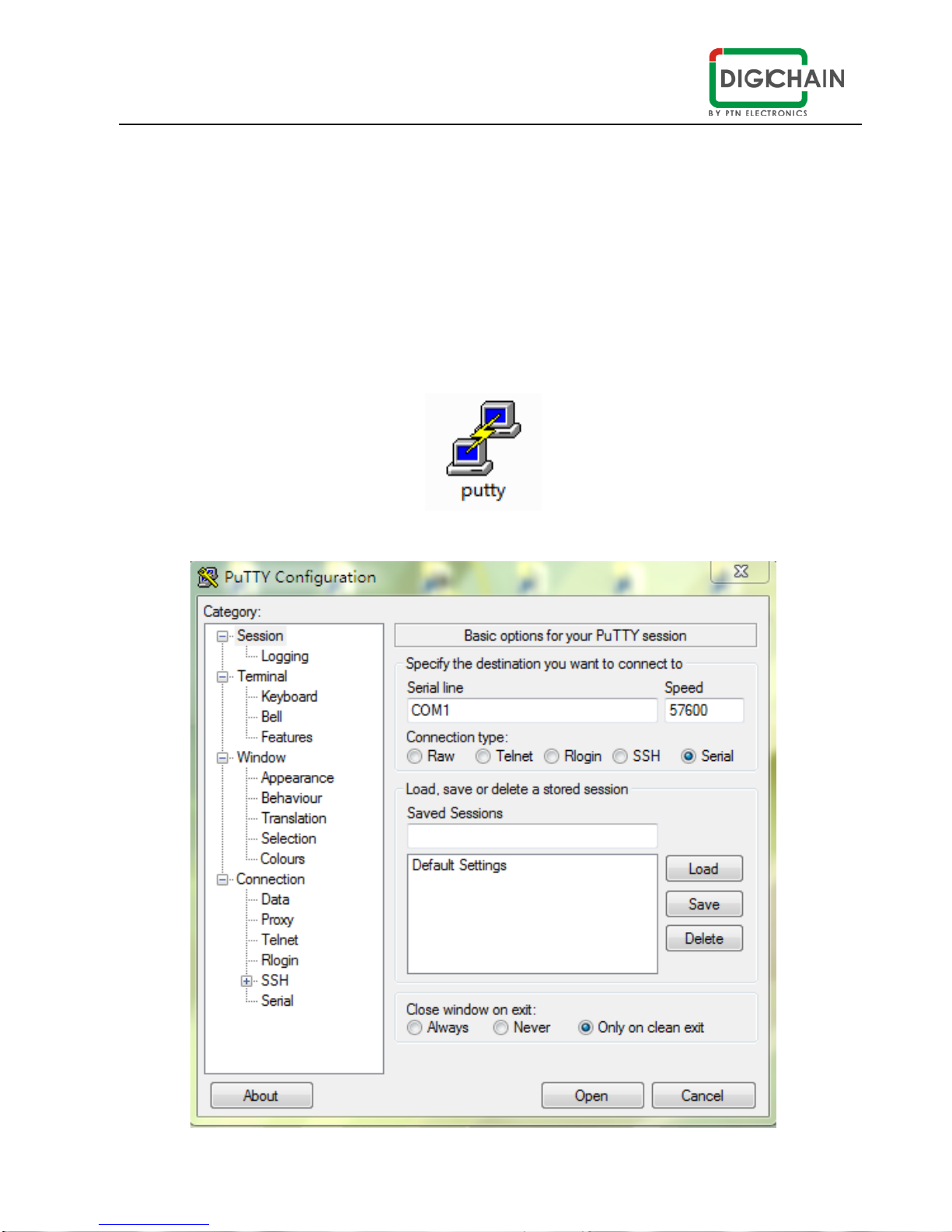

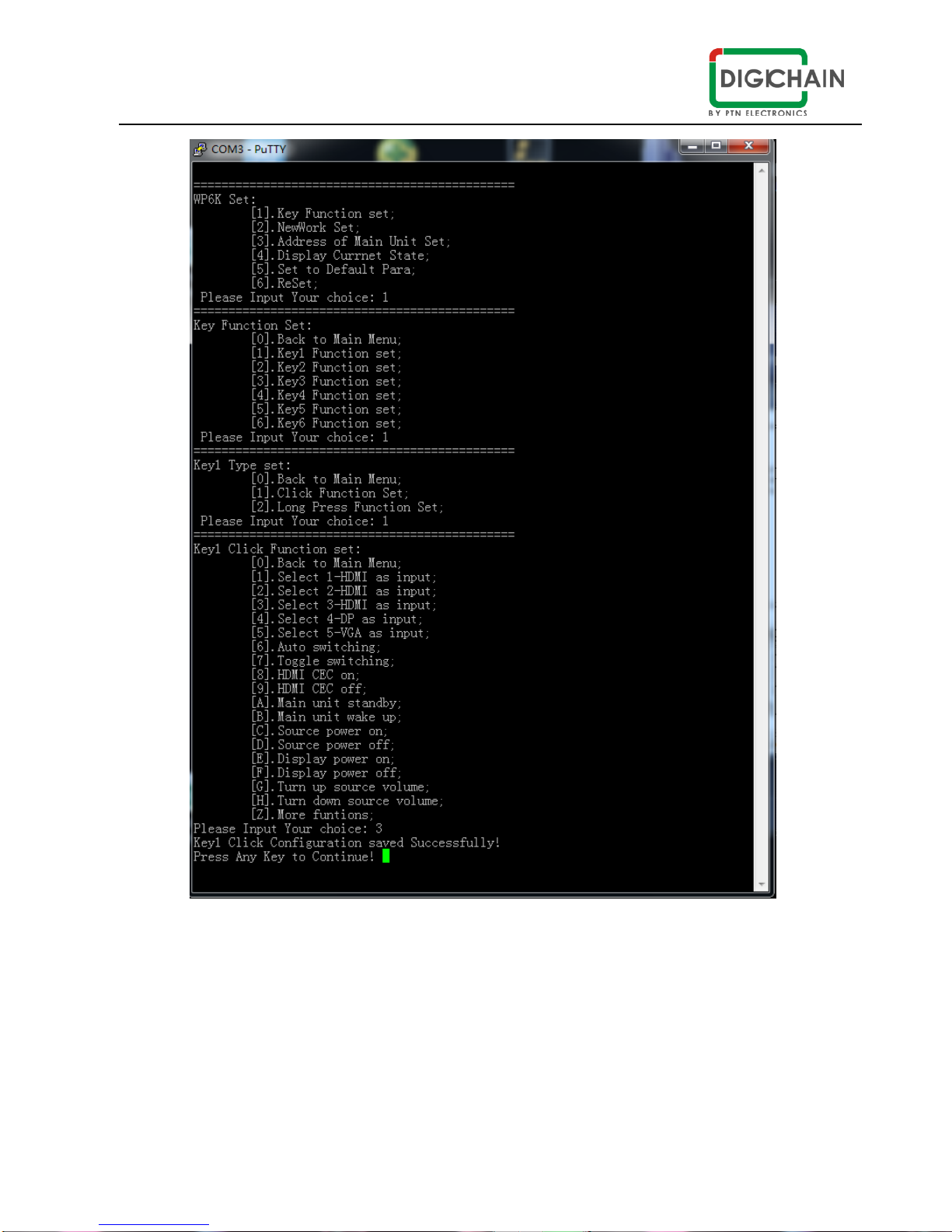

4. RS232 Control ................................................................................................ ............ 5

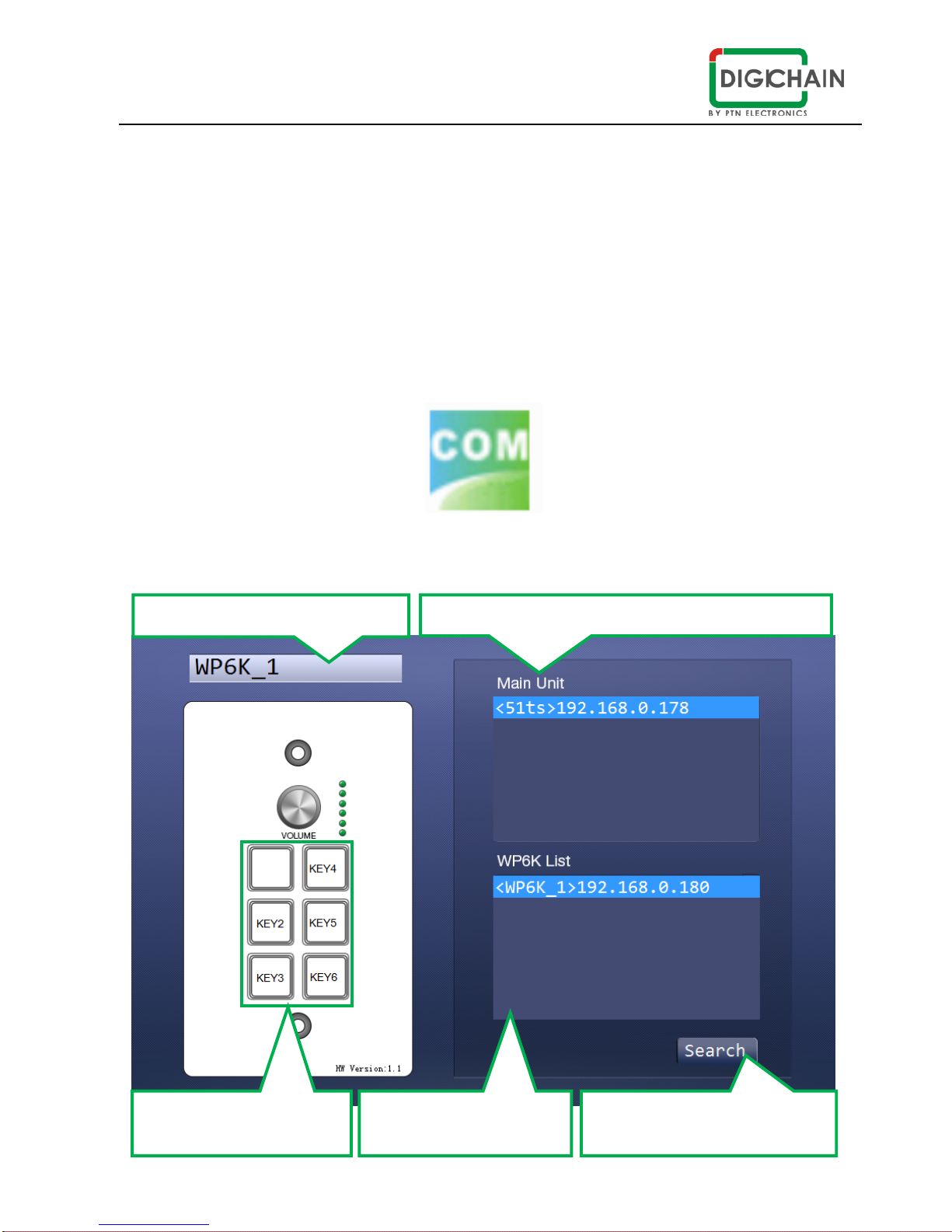

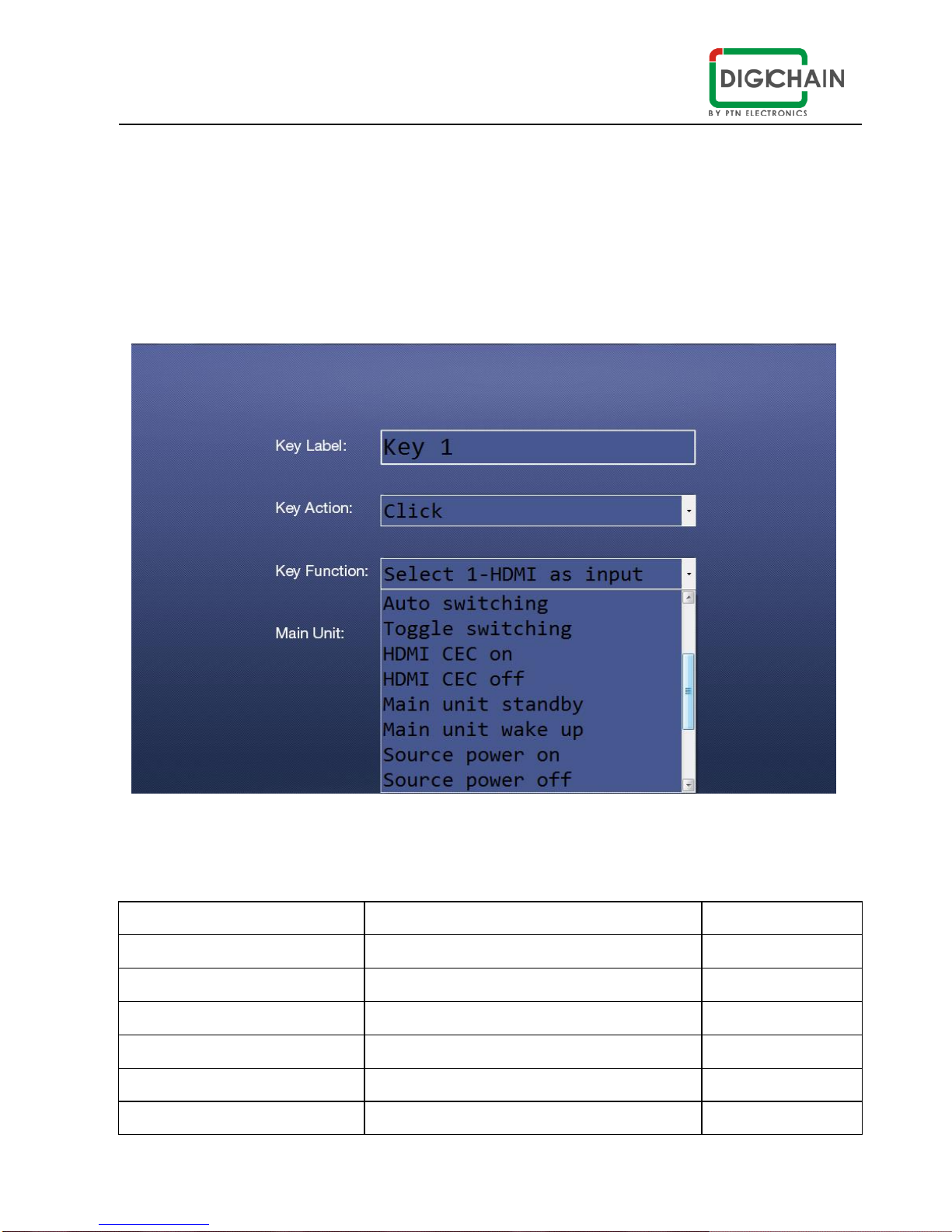

5. Control Software ......................................................................................................... 8

6. Specification .............................................................................................................. 12

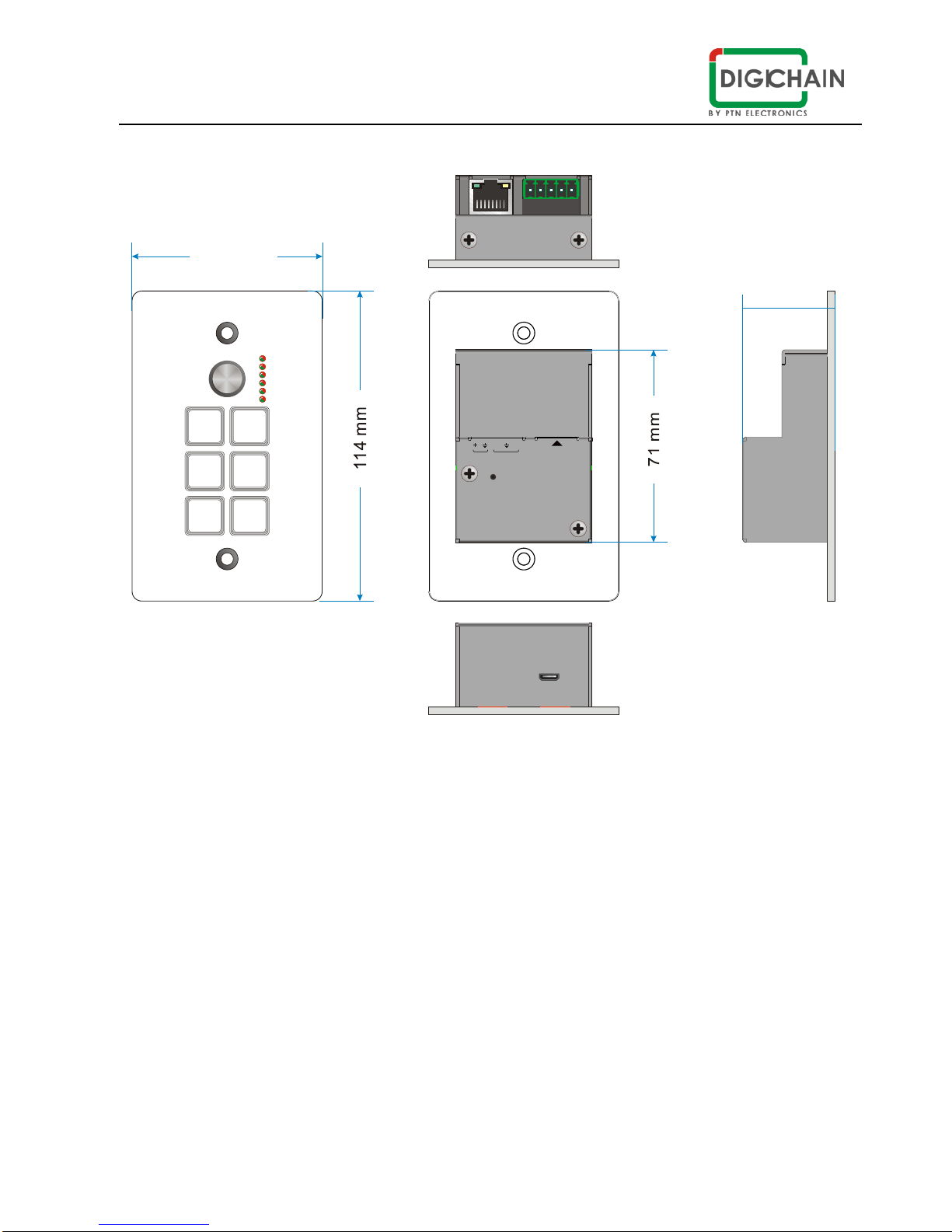

7. Panel Drawing .......................................................................................................... 13

8. Troubleshooting & Maintenance ............................................................................... 14

9. After-sales Service .................................................................................................... 15

Programmable Control Panel

Digichain Electronics 1 www.digichain.nl

1. Introduction

1.1 Introduction to WP6K

WP6K is a Wallplate Control Keypad, used as a remote control to send IP command to
control devices, with a software to define the knob and keys’ function. The software
features most of the frequently used functions which makes the usage of the device
fastest and easiest.

WP6K only requires CATx cables to connect switch and controlled devices as a
point-to-point or multipoint-to-multipoint control system, from a PoE-equipped network
switch, to deliver both control signal and power, and provide fast, hassle-free
installation.

WP6K provides a hassle-free means of controlling the AV system in a meeting room or
classroom, and will always have a consistent control interface from room to room.

Note: The WP6K Wallplate Control Keypad only works with our SC51TS Compact
Scaler Switcher.

1.2 Features

 Remote control panel for IP-based scaler and switcher products.
 Six customizable buttons, can be defined function and trigger mode by TCP/IP and

RS232, with changeable labels, Allow system designers and installers to easily
place printed labels on the controller under a protective cover.

 It can be powered by Ethernet (PoE).
 Elegant US one gang design with White Flat Paint coating.
 Crystal and backlit buttons with easy user-friendly customizable changeable labels.
 Dimension: 70mm long and 34mm wide.

1.3 Package List

 1 x WP6K

 2 x Mounting Screw

 6 x Button caps

 6 x Button label (Film)

 1 x Power adapter (12VDC 1A)

 1 x User Manual

Note: Please confirm if the product and the accessories are all included, if not, please

contact with the dealers.

Programmable Control Panel

Digichain Electronics 2 www.digichain.nl

2. Panel Description

FIRM WARE

PoE

TCP/ IP12V

RxTx

RS23 2

RESE T

VOLU ME

3

4

5

7

1

2

6

No.

Name

Description

①

VOLUME

Volume adjusting knob.

②

6 Keys

(6) crystal and luminescent programmable buttons:
Each key can be customized via the Control Software.
Each label within a key can be easily changed. Simply select

the label you need and change it as shown below:

③

POE TCP/IP

Ethernet interface for TCP/IP control with PoE function.

④

RS232

Serial port for RS232 control.

⑤

+12V

Connects with external 12VDC power adaptor.

⑥

RESET

Press this button to restore the factory default.
