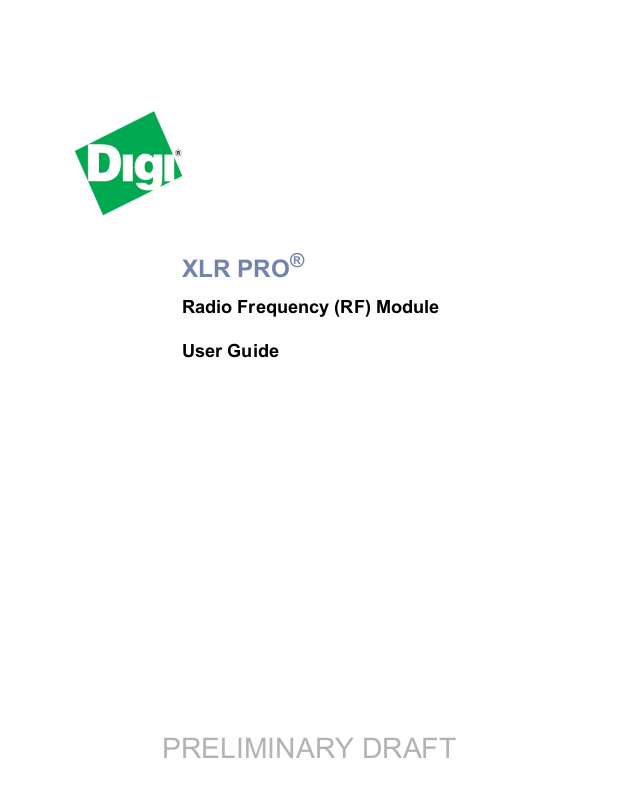

XLR PRO®
PRELIMINARY DRAFT
Radio Frequency (RF) Module
User Guide
XLR PRO Radio Frequency Module User Guide
PRELIMINARY DRAFT
Part Number 90001407
Revision Date Description
P1 April 2014 Preliminary draft.
Disclaimers
Information in this document is subject to change without notice and does not represent a commitment on
the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or
implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular
purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the
program(s) described in this manual at any time.
Trademarks and Copyright
Digi, Digi International, the Digi logo, and XLR PRO are trademarks or registered trademarks in the United
States and other countries worldwide. All other trademarks mentioned in this document are the property of
their respective owners.
© 2014 Digi International. All rights reserved.
Customer Support
If you need assistance, contact technical support:
• Telephone (8:00 am - 5:00 pm—U.S. Mountain Time):
(866) 765-9885 toll-free U.S.A. & Canada
(801) 765-9885 Worldwide
• Fax:
952-912-4952
• Online:
www.digi.com/support/eservice/
• Email:
tech.support@digi.com
Contents
PRELIMINARY DRAFT
About the XLR PRO Radio Frequency (RF) Module
XLR PRO RF Module Technical Specifications 5
XLR PRO RF Module Receiver Sensitivity 6
XLR PRO RF Module Pin Signals 6
XLR PRO RF Module Data Rates 9
XLR PRO Certifications
FCC (United States) Certification 11
FCC Labeling Requirements 11
FCC Notices 12
FCC Limited Modular Approval 12
FCC-Approved Antennas 12
IC (Industry Canada) Certification 13
IC Labeling Requirements 13
XLR PRO Approved Antennas
Omni-Directional Antennas 15
Yagi Antennas 16
XLR PRO Radio Frequency Module User Guide 3
4 XLR PRO Radio Frequency Module User Guide
PRELIMINARY DRAFT
About the XLR PRO Radio Frequency
PRELIMINARY DRAFT
(RF) Module
The XLR PRO Application Name is a high performance, industrial grade long-range RF
solution using Chirp Spread Spectrum (CSS) technology to maximize range and
significantly increase immunity to interference.
XLR PRO Application Name Technical Specifications
Specification Description
Transmit Power (Software Selectable) 30 dBm (highest power level)
Receiver Sensitivity Up to -120 dBm (see XLR PRO RF Module
Receiver Sensitivity on page 6)
Throughput Data Rate (Software
Selectable)
RF Data Rate 9 kbps to 3.1 Mbps
Networking and Security
Transmission Chirp Spread Spectrum (CSS)
Modulation Quadrature Phase Shift Keying (QPSK)
Supported Network Topologies Point-to-point, Point-to-multipoint, Broadcast
Interface Serial CMOS UART and I/O lines
Encryption 128bit AES
Power Requirements
Supply Voltage 3.8 to 5.5VDC
TBD
repeater
Note Operation below 4.5V may reduce radio
transmit power performance and LNA
sensitivity.
XLR PRO Radio Frequency Module User Guide 5
Specification Description
PRELIMINARY DRAFT
Receive Current 295 mA at 5 V
Transmit Current 1.5 A at 5 V
Shutdown Mode Power Down 3 μA
Environmental
Operating Temperature -40 C to 70 C
Certifications
FCC ID MCQ-XLRP (pending)
IC 1846A-XLRP (pending)
Hazardous Locations C1D2 (pending)
XLR PRO RF Module Receiver Sensitivity
Receiver Sensitivity (25°C)
Data Rate
(dBm)
9 kbps -120
28 kbps -119
65 kbps -116
140 kbps -113
290 kbps -109
590 kbps -106
1.1 Mbps -104
2.3 Mbps -100
3.1 Mbps -98
XLR PRO Application Name Pin Signals
Pin # Name Description
1 Reserved Do not connect
2 Reserved Do not connect
3 Reserved Do not connect
6 XLR PRO Radio Frequency Module User Guide
XLR PRO Application Name Pin Signals
PRELIMINARY DRAFT
Pin # Name Description
4 Reserved Do not connect
5 GND Ground
6 VDD-5V Power Supply
7 Reserved Do not connect
8 Reserved Do not connect
9 Reserved Do not connect
10 Reserved Do not connect
11 VDD-5V Power Supply
12 GND Ground
13 3.3V_OUT Regulated Output Voltage from VDD_5V.
Controlled by nSHUTDOWN.
14 3.3V_IN Voltage Supply for the Primary Processor
and the I/O Voltages
15 3.3V_ADJUST Voltage Control of 3.3V_OUT
16 nRESET Module Reset
17 Reserved Do not connect
18 DIO0/AD0/CommBtn GPIO/Analog Input/Commissioning Button
19 Reserved Do not connect
20 DIO1/AD1 GPIO/Analog Input
21 Reserved Do not connect
22 DIO2/AD2 GPIO/Analog Input
23 Reserved Do not connect
24 DIO1/AD1 GPIO/Analog Input
25 Reserved Do not connect
26 DIO4 GPIO
27 Reserved Do not connect
28 DIO5/ASSOC GPIO/Associate Indicator
29 DIO19/SPI_nATTN GPIO/SPI Attention
XLR PRO Radio Frequency Module User Guide 7
Pin # Name Description
PRELIMINARY DRAFT
30 DIO8/nDTR/SLP_RQ GPIO/Pin Sleep Control Line
31 DIO17/SPI_nSSEL GPIO/SPI Slave Select
32 DIO9/ON_nSLEEP GPIO/Module Status Indicator
33 DIO16/SPI_SI GPIO/SPI Slave In
34 VREF Used internally used for programmable
secondary processor. For compatibility with
other XLR modules, we recommend
connecting this pin to the voltage reference if
Analog Sampling is desired. Otherwise,
connect to GND.
35 DIO15/SPI_SO GPIO/SPI Slave Out
36 DIO10/PWM0/RSSI/DAC0 GPIO/RX Signal Strength Indicator
37 DIO18/SPI_CLK GPIO/SPI Clock
38 DIO11/PWM1/DAC1 GPIO/Pulse Witdh Modulator
39 DIO7/nCTS GPIO/Clear-to-Send Flow Control
40 DIO12/CD/PWM2/ADTRG GPIO/Pulse Width Modulator
41 DIO6/nRTS GPIO/Request-to-Send Flow Control
42 GND Ground
43 DIO13/DOUT UART Data out
44 Reserved Do not connect
45 DIO14/DIN/nConfig UART Data in
46 nSHUTDOWN Module Shutdown
47 GND Ground
48 VDD_5V Power Supply
49 Reserved Do not connect
50 Reserved Do not connect
51 Reserved Do not connect
52 Reserved Do not connect
8 XLR PRO Radio Frequency Module User Guide
XLR PRO Application Name Data Rates
PRELIMINARY DRAFT
XLR PRO Application Name Data Rates
RF Baud Rate
Setting
0x00 9.380
0x01 12.50
0x02 28.14
0x03 37.52
0x04 65.66
0x05 87.55
0x06 140.7
0x07 187.6
0x08 290.8
0x09 387.7
0x0A 590.9
0x0B 787.8
Raw Data Rate
9605 Mhz BW (Kbps)
0x0C 1191
0x0D 1588
0x0E 2392
0x0F 3189
XLR PRO Radio Frequency Module User Guide 9
10 XLR PRO Radio Frequency Module User Guide
PRELIMINARY DRAFT
XLR PRO Certifications
PRELIMINARY DRAFT
The XLR PRO radio frequency (RF) module, when used with approved antennas, complies
with the FCC and IC certifications detailed in this section. For a list of antennas approved
for use with XLR PRO, see XLR PRO Approved Antennas on page 15.
FCC (United States) Certification
The XLR PRO RF module complies with Part 15 of the FCC rules and regulations.
Compliance with the labeling requirements, FCC notices, and antenna usage guidelines is
required. To operate under Digi International FCC Certification, RF modules/integrators
must comply with the following regulations:
1 The system integrator must ensure that the text provided with this device (see FCC-
Required Label Text on page 11) is placed on the outside of the final product and
within the final product operation manual.
2 The XLR PRO RF module may be used only with antennas that have been tested and
approved for use with this module refer to XLR PRO Approved Antennas on page 15.
FCC Labeling Requirements
WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC
labeling requirements are met. This includes a clearly visible label on the outside of
the final product enclosure that displays the text shown in FCC-Required Label Text
on page 11.
FCC-Required Label Text
Contains FCC ID: MCQ-XLRP
The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept
any interference received, including interference that may cause undesired operation.
XLR PRO Radio Frequency Module User Guide 11
FCC Notices
PRELIMINARY DRAFT
IMPORTANT: The XLR PRO OEM RF Module has been certified by the FCC for use with
other products without any further certification (as per FCC section 2.1091). Modifications
not expressly approved by Digi International could void the user's authority to operate the
equipment.
IMPORTANT: The RF module has been certified for remote and base radio applications. If
the module will be used for portable applications, the device must undergo SAR testing.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: Re-orient or relocate the
receiving antenna, Increase the separation between the equipment and receiver, Connect
equipment and receiver to outlets on different circuits, or Consult the dealer or an
experienced radio/TV technician for help.
FCC Limited Modular Approval
This is an RF module approved for Limited Modular use operating as a mobile transmitting
device with respect to section 2.1091 and is limited to OEM installation for Mobile and Fixed
applications only. During final installation, end-users are prohibited from access to any
programming parameters. Professional installation adjustment is required for setting
module power and antenna gain to meet EIRP compliance for high gain antenna(s).
Final antenna installation and operating configurations of this transmitter including antenna
gain and cable loss must not exceed the EIRP of the configuration used for calculating
MPE. Grantee (Digi) must coordinate with OEM integrators to ensure the end-users and
installers of products operating with the module are provided with operating instructions to
satisfy RF exposure requirements.
The FCC grant is valid only when the device is sold to OEM integrators. Integrators are
instructed to ensure the end-user has no manual instructions to remove, adjust or install
the device.
FCC-Approved Antennas
WARNING: This device has been tested with Reverse Polarity SMA connectors with
the antennas listed in XLR PRO Approved Antennas on page 15. When integrated
into OEM products, fixed antennas require installation preventing end-users from
replacing them with non-approved antennas. Antennas not listed in the XLR PRO
Approved Antennas on page 15 must be tested to comply with FCC Section 15.203
(unique antenna connectors) and Section 15.247 (emissions).
12 XLR PRO Radio Frequency Module User Guide
IC (Industry Canada) Certification
PRELIMINARY DRAFT
WARNING: The FCC requires that all spread spectrum devices operating within the
Unlicensed radio frequency bands must limit themselves to a maximum radiated
power of 4 Watts EIRP. Failure to observe this limit is a violation of our warranty terms,
and shall void the user’s authority to operate the equipment. This can be stated as
follows:
RF power - cable loss + antenna gain <= 36 dBm eirp
Fixed Base Station and Mobile Applications
Digi RF Modules are pre-FCC approved for use in fixed base station and mobile
applications. When the antenna is mounted at least 20cm (8") from nearby persons, the
application is considered a mobile application.
Portable Applications and SAR Testing
If the module will be used at distances closer than 20cm to all persons, the device may be
required to undergo SAR testing. Co-location with other transmitting antennas closer than
20cm should be avoided.
RF Exposure
The following statement must be included as a CAUTION statement in OEM product
manuals.
CAUTION: This equipment is approved for mobile and base station
transmitting devices only. Antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other
antenna or transmitter.
IC (Industry Canada) Certification
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
IC Labeling Requirements
Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible
label on the outside of the final product enclosure must display the following text.
XLR PRO Radio Frequency Module User Guide 13
IC-Required Text
PRELIMINARY DRAFT
Contains IC:1846A-XLRP
The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. BUnintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada
accepts FCC test report or CISPR 22 test report for compliance with ICES-003.
Transmitters with Detachable Antennas
This radio transmitter (IC: 1846A-XLRP) has been approved by Industry Canada to operate
with the antenna types listed in XLR PRO Approved Antennas on page 15 with the
maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 1846A-XLRP) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci?dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non
inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Detachable Antenna
Under Industry Canada regulations, this radio transmitter may operate using only an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio
peutfonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvépour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillageradioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne
etson gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépassepas l'intensité nécessaire àl'établissement d'une communication satisfaisante.
14 XLR PRO Radio Frequency Module User Guide
XLR PRO Approved Antennas
PRELIMINARY DRAFT
Omni-Directional Antennas
Gain
Part Number Type Connector
A09-F0 OMNI RPN 0.0 Fixed 0
A09-F1 OMNI RPN 1.0 Fixed 0
A09-F2 OMNI RPN 2.1 Fixed 0
A09-F3 OMNI RPN 3.1 Fixed 0
A09-F4 OMNI RPN 4.1 Fixed 0
A09-F5 OMNI RPN 5.1 Fixed 0
A09-F6 OMNI RPN 6.1 Fixed 0.1
A09-F7 OMNI RPN 7.1 Fixed 1.1
A09-F8 OMNI RPN 8.1 Fixed 2.1
A09-W7 OMNI RPN 7.1 Fixed 1.1
A09-F0 OMNI RPSMA 0.0 Fixed 0
A09-F1 OMNI RPSMA 1.0 Fixed 0
A09-F2 OMNI RPSMA 2.1 Fixed 0
A09-F3 OMNI RPSMA 3.1 Fixed 0
A09-F4 OMNI RPSMA 4.1 Fixed 0
A09-F5 OMNI RPSMA 5.1 Fixed 0
A09-F6 OMNI RPSMA 6.1 Fixed 0.1
A09-F7 OMNI RPSMA 7.1 Fixed 1.1
A09-F8 OMNI RPSMA 8.1 Fixed 2.1
A09-M7 OMNI RPSMAF 7.2 Fixed 1.2
A09-W7SM OMNI RPSMA 7.1 Fixed 1.1
A09-F0TM OMNI RPTNC 0.0 Fixed 0
A09-F1TM OMNI RPTNC 1.0 Fixed 0
A09-F2TM OMNI RPTNC 2.1 Fixed 0
A09-F3TM OMNI RPTNC 3.1 Fixed 0
(dBi) Application
Minimum Cable Loss or TX
Power Reduction Required
in dB
XLR PRO Radio Frequency Module User Guide 15
Minimum Cable Loss or TX
PRELIMINARY DRAFT
Gain
Part Number Type Connector
A09-F4TM OMNI RPTNC 4.1 Fixed 0
A09-F5TM OMNI RPTNC 5.1 Fixed 0
A09-F6TM OMNI RPTNC 6.1 Fixed 0.1
A09-F7TM OMNI RPTNC 7.1 Fixed 1.1
A09-F8TM OMNI RPTNC 8.1 Fixed 2.1
A09-W7TM OMNI RPTNC 7.1 Fixed 1.1
A09-HSM-7 OMNI RPSMA 3.0 Fixed/Mobile 0
A09-HASM-675 OMNI RPSMA 2.1 Fixed/Mobile 0
A09-HABMM-P61 OMNI MMCX 2.1 Fixed/Mobile 0
A09-HABMM-6-P61 OMNI MMCX 2.1 Fixed/Mobile 0
A09-HBMM-P61 OMNI MMCX 2.1 Fixed/Mobile 0
A09-HRSM OMNI RPSMA 2.1 Fixed 0
A09-HASM-7 OMNI RPSMA 2.1 Fixed 0
A09-HG OMNI RPSMA 2.1 Fixed 0
A09-HATM OMNI RPTNC 2.1 Fixed 0
A09-HATM-10 OMNI RPTNC 2.1 Fixed/Mobile 0
A09-H OMNI RPSMA 2.1 Fixed 0
A09-HBMMP61 OMNI MMCX 2.1 Fixed/Mobile 0
A09-QBMMP61 OMNI MMCX 1.9 Fixed/Mobile 0
A09-QSM-3 OMNI RPSMA 1.9 Fixed/Mobile 0
(dBi) Application
Power Reduction Required
in dB
A09-QSM-3H OMNI RPSMA 1.9 Fixed/Mobile 0
A09-QBMM-P61 OMNI MMCX 1.9 Fixed/Mobile 0
Max Gain 8.1
Yagi Antennas
Minimum Cable Loss or TX
Gain
Part Number Type Connector
A09-Y6 2-Element Yagi RPN 6.1 Fixed/Mobile 0.1
A09-Y7 3-Element Yagi RPN 7.1 Fixed/Mobile 1.1
A09-Y8 4-Element Yagi RPN 8.1 Fixed/Mobile 2.2
A09-Y9 4-Element Yagi RPN 9.1 Fixed/Mobile 3.1
A09-Y10 5-Element Yagi RPN 10.1 Fixed/Mobile 4.1
A09-Y11 6-Element Yagi RPN 11.1 Fixed/Mobile 5.1
16 XLR PRO Radio Frequency Module User Guide
(dBi) Application
Power Reduction Required
in dB
Minimum Cable Loss or TX
PRELIMINARY DRAFT
Gain
Part Number Type Connector
A09-Y12 7-Element Yagi RPN 12.1 Fixed/Mobile 6.1
A09-Y13 9-Element Yagi RPN 13.1 Fixed/Mobile 7.1
A09-Y14 10-Element Yagi RPN 14.1 Fixed/Mobile 8.1
A09-Y14 12-Element Yagi RPN 14.1 Fixed/Mobile 8.1
A09-Y15 13-Element Yagi RPN 15.1 Fixed/Mobile 9.1
A09-Y15 15-Element Yagi RPN 15.1 Fixed/Mobile 9.1
A09-Y6TM 2-Element Yagi RPTNC 6.1 Fixed/Mobile 0.1
A09-Y7TM 3-Element Yagi RPTNC 7.1 Fixed/Mobile 1.1
A09-Y8TM 4-Element Yagi RPTNC 8.1 Fixed/Mobile 2.1
A09-Y9TM 4-Element Yagi RPTNC 9.1 Fixed/Mobile 3.1
A09-Y10TM 5-Element Yagi RPTNC 10.1 Fixed/Mobile 4.1
A09-Y11TM 6-Element Yagi RPTNC 11.1 Fixed/Mobile 5.1
A09-Y12TM 7-Element Yagi RPTNC 12.1 Fixed/Mobile 6.1
A09-Y13TM 9-Element Yagi RPTNC 13.1 Fixed/Mobile 7.1
A09-Y14TM 10-Element Yagi RPTNC 14.1 Fixed/Mobile 8.1
A09-Y14TM 12-Element Yagi RPTNC 14.1 Fixed/Mobile 8.1
A09-Y15TM 13-Element Yagi RPTNC 15.1 Fixed/Mobile 9.1
A09-Y15TM 15-Element Yagi RPTNC 15.1 Fixed/Mobile 9.1
Max Gain 15.1
(dBi) Application
Power Reduction Required
in dB
Yagi Antennas
XLR PRO Radio Frequency Module User Guide 17
18 XLR PRO Radio Frequency Module User Guide
PRELIMINARY DRAFT
XLR PRO Radio Frequency Module User Guide 19
PRELIMINARY DRAFT
© Digi International. All rights reserved Part Number 90001407 A
PRELIMINARY DRAFT
Loading...
