Welcome Digi WR54 features and specifications

Digi WR54 features and specifications

The Digi WR54 key features include:

n LTE-CAT 11 cellular with dual SIM for carrier failover/flexibility
n 802.11ac Wi-Fi with support for hotspots and content filtering
n 4 gigabit Ethernet ports for high-speed connectivy

For a detailed list of WR54 hardware specifications, see Digi WR54 specifications.

Digi WR54 accessories

Digi offers the following WR54 accessories and accessory kits:

Digi part number Description

24000140 Power supply: Standard temp AC/DC power for installations up

to +40° C

76002079 Power supply: Extended temp AC/DC power supply for

installations up to +70° C

76002081

Note For installations up to +74° C, use TRACO Power TPP-30-112J, TPP-30-115J, TPP-30-124J, and

TEX120-112.

Accessory kit:

Extended temp AC/DC power supply for
installations up to +70° C
Ethernet cable
Cellular antennas (2)

Digi WR54 Hardware Reference

7

Welcome Digi WR54 front view

Digi WR54 front view

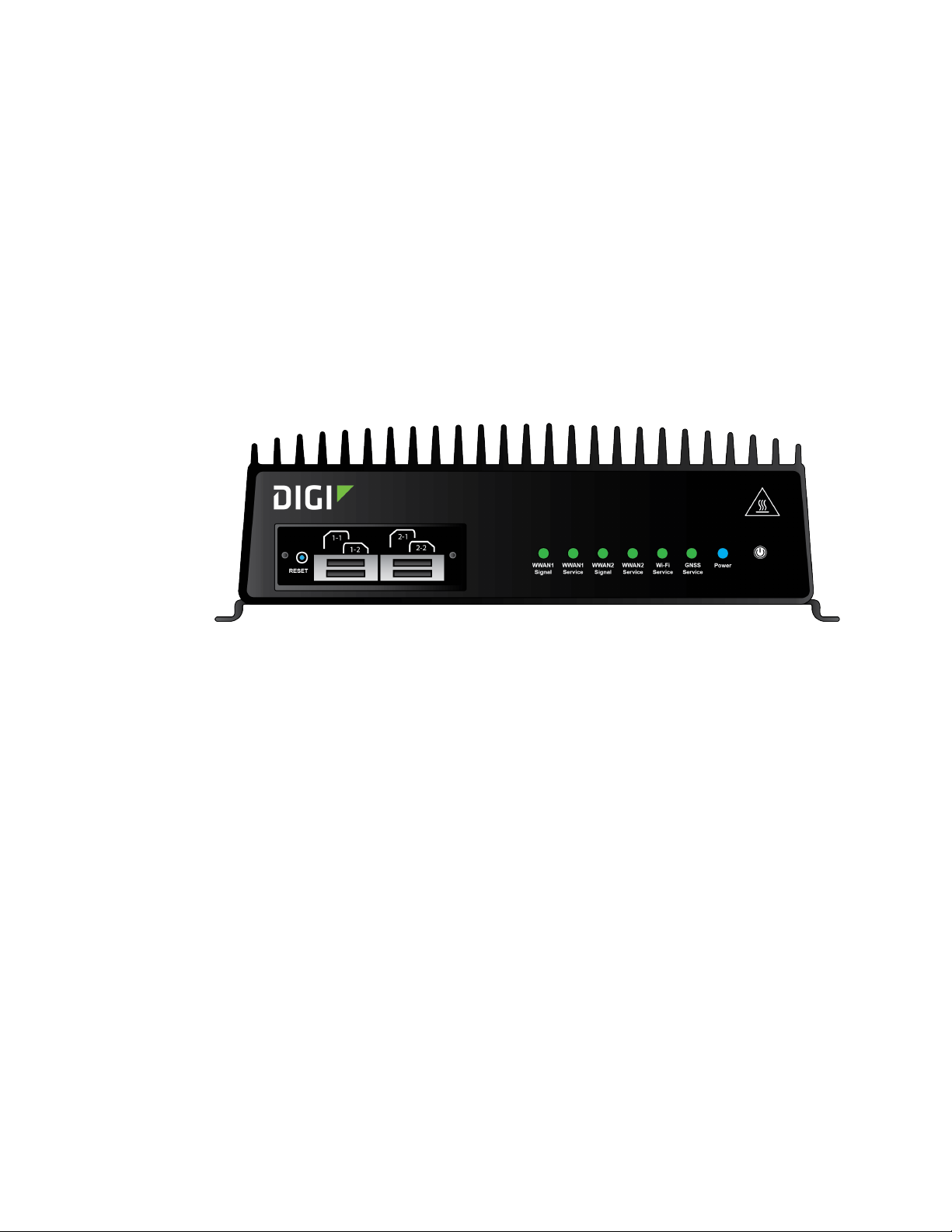

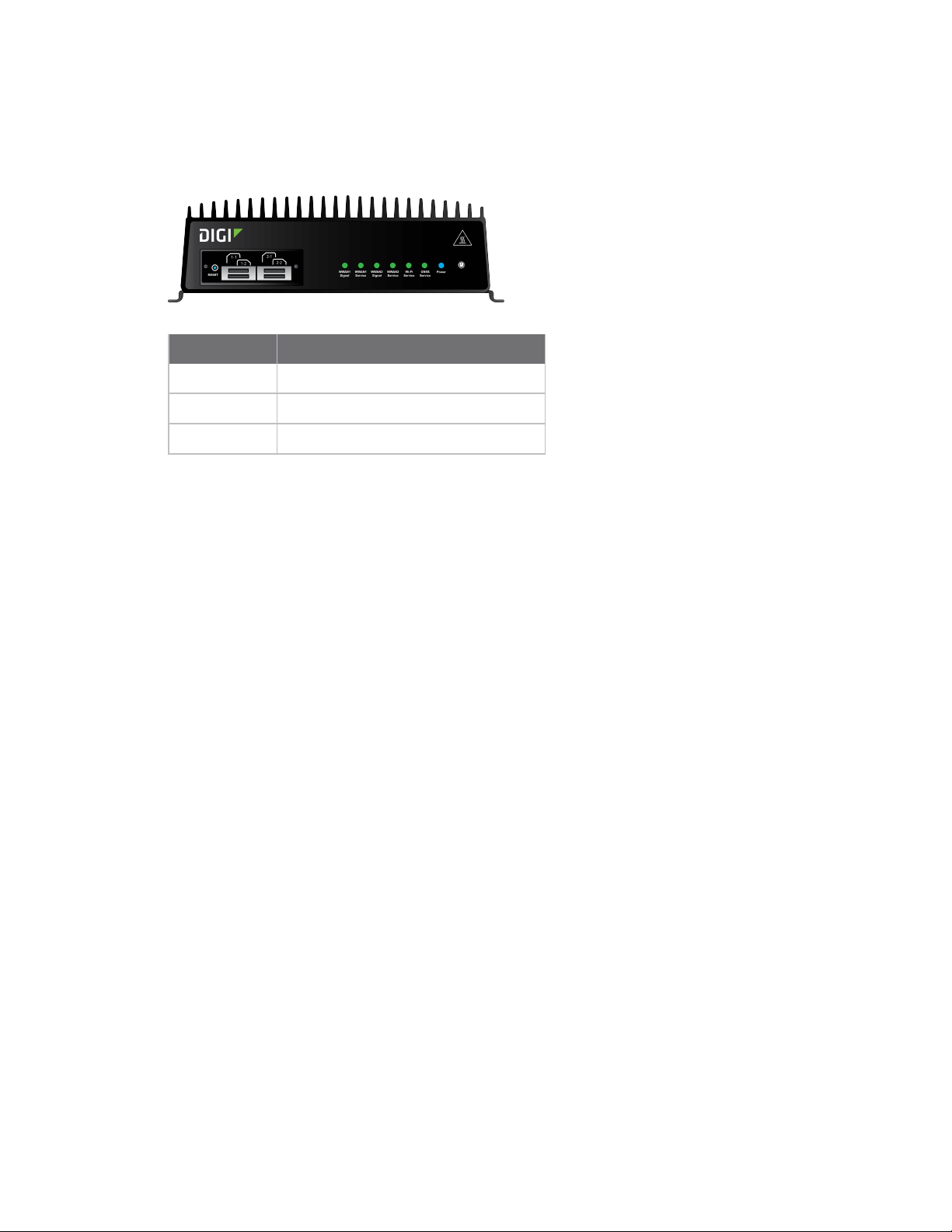

The following figure shows the front view of the WR54 dual cellular model. Other models will look
slightly different.

Item Decription

SIM gasket See Install SIM cards

LEDs

Power button See Power sensor and button behavior

Digi WR54 LEDs

See

Digi WR54 Hardware Reference

8

Welcome Digi WR54 LEDs

Digi WR54 LEDs

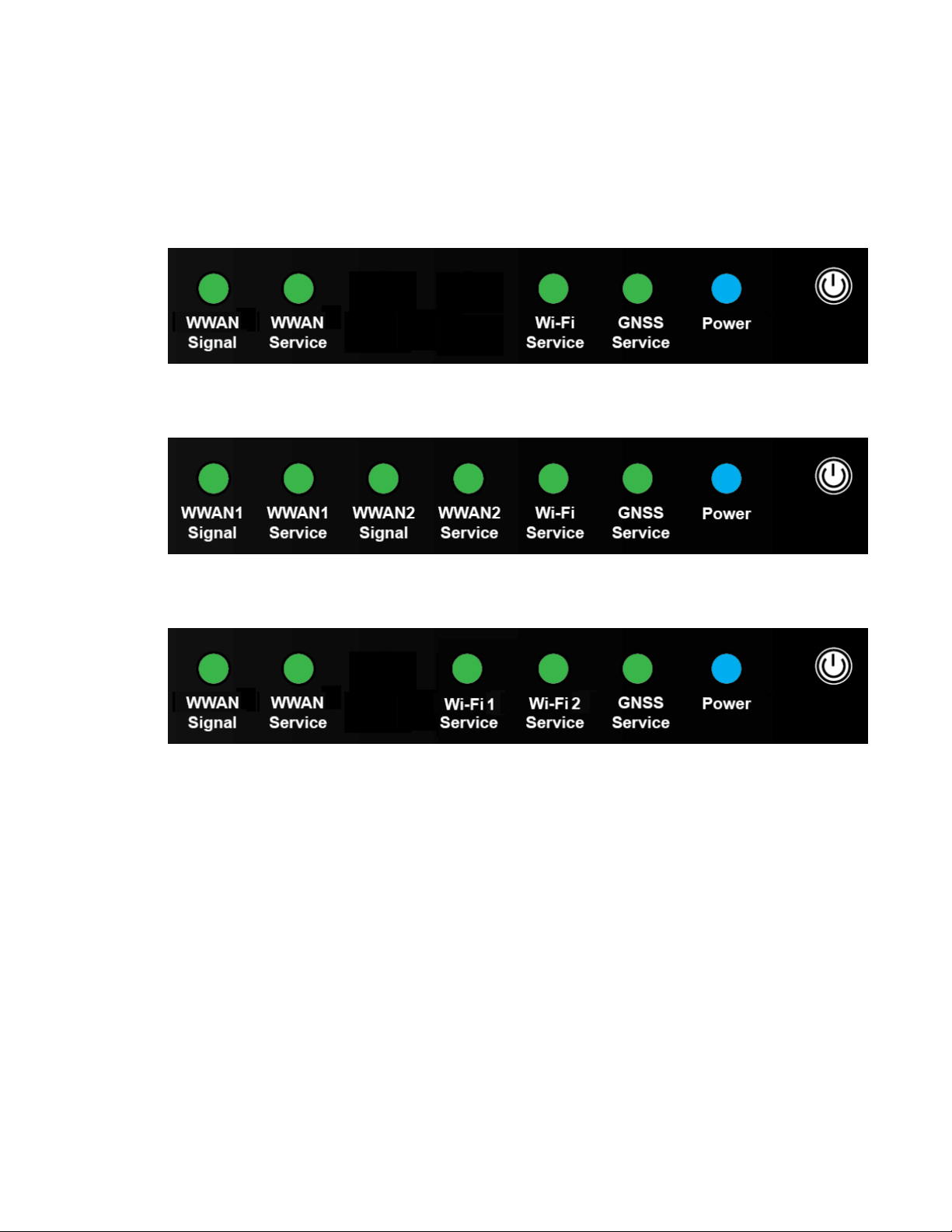

The WR54 LEDs are located on the top front panel. The number of LEDs varies by model. During
bootup, the front-panel LEDs light up in sequence to indicate boot progress.

Single cellular models

Dual cellular models

Dual Wi-Fi models

Power

n Off: No power.
n Blinking Blue: Unit is powering on.
n Blue: Unit has power.

GNSS Service

n Solid Green: GNSS is enabled and has a valid fix.
n Blinking Green: GNSS is enabled but does not have a valid fix.
n Off: GNSS is not enabled.

Digi WR54 Hardware Reference

9

Welcome Digi WR54 LEDs

Wi-Fi Service

n Solid Green: Wi-Fi interface is enabled.
n Off: Wi-Fi interface is disabled.

WWAN Signal

Indicates strength of cellular signal.

n Off: No service.
n Yellow: Poor / Fair signal.
n Green: Good / Excellent signal.

WWAN Service

Indicates the presence and level of cellular service running on the device.

n Off: No service.
n Blinking Green: 2G/3G/4G connection is coming up.
n Solid Yellow: 2G or 3G connection is up.
n Solid Green: 4G connection is up.

Ethernet 1-4 Link and Activity (on rear panel)

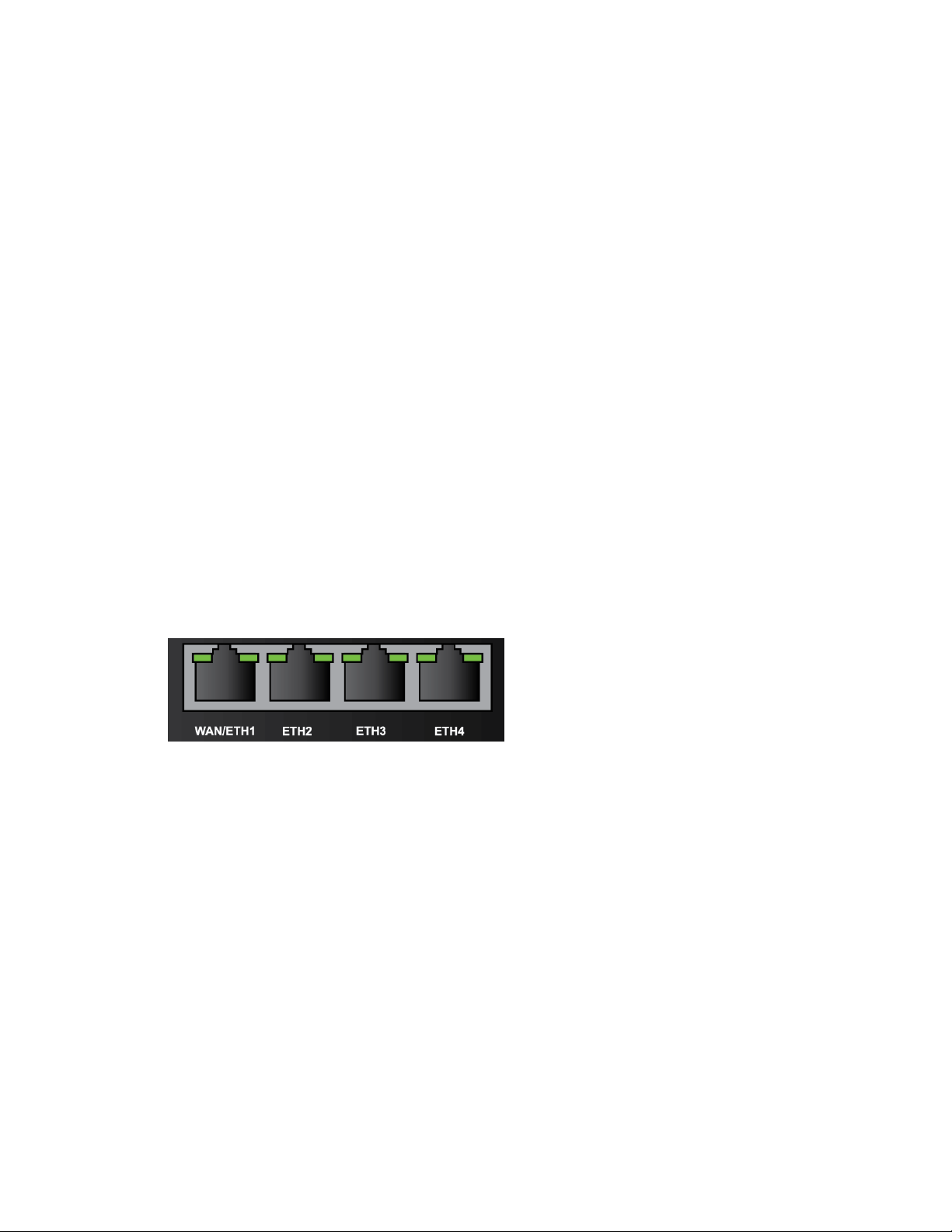

The LEDs on the WAN/ETH1, ETH2, ETH3, and ETH4 ports indicate that the Ethernet network interface
is up and there is activity on the network interface.

Left LED (on top of port connector)

n Off: No Ethernet link detected.
n Blinking amber: Indicates Ethernet traffic.

Right LED (on top of port connector)

n Off: No Ethernet link detected.
n Solid green: 10/100 Mbps link detected.
n Solid amber: 1000 Mbps link detected.

Digi WR54 Hardware Reference

10

Welcome Power sensor and button behavior

Power sensor and button behavior

The WR54 has an ignition sensor that can automatically power on the device when the ignition line is
on.

You can also power on the WR54 using the Power button.

Digi WR54 back view

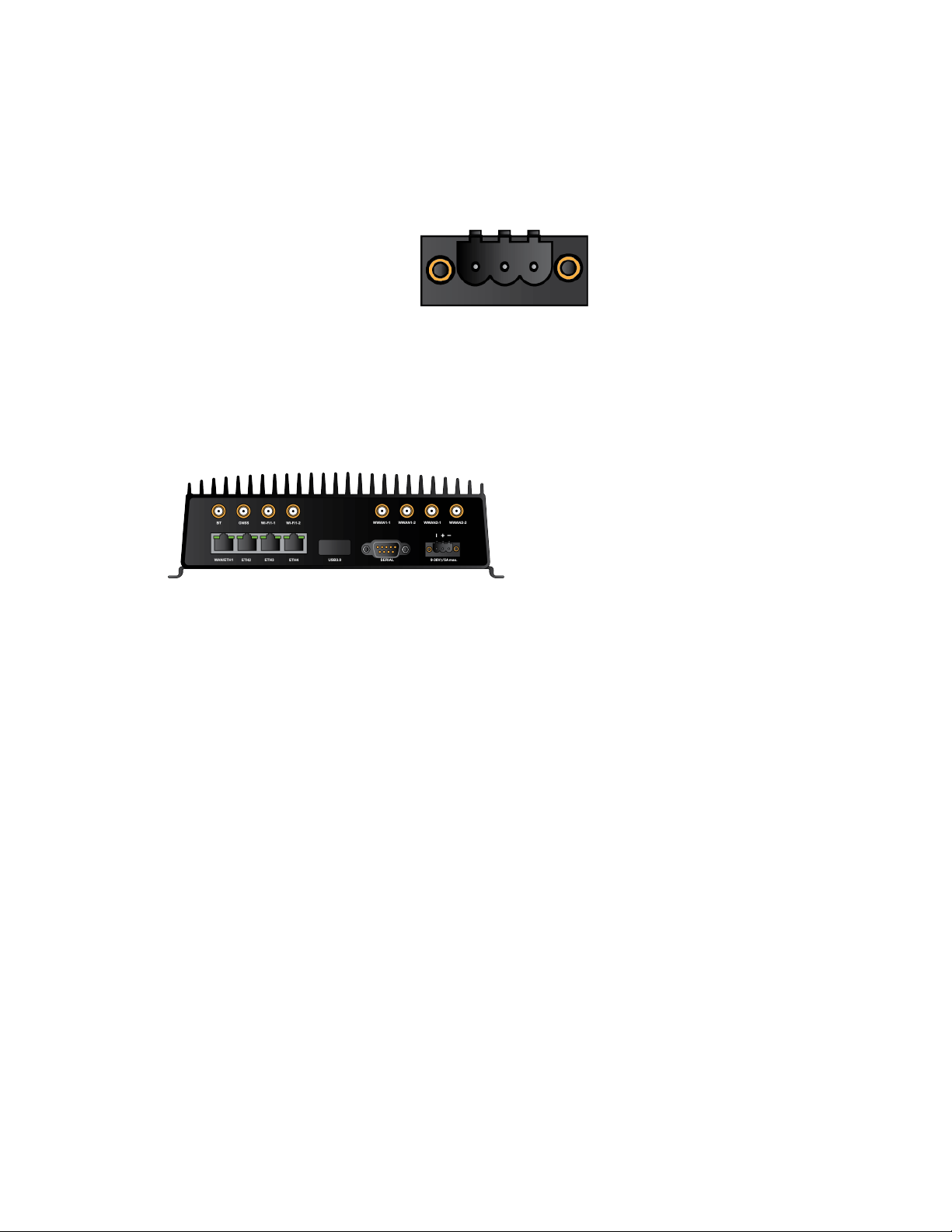

The following figure shows the back view of the WR54 dual cellular model. Other models will look
slightly different.

n Antenna connectors
n WAN/ETH1
n ETH2/ETH3/ETH4
n USB 3.0
n Serial
n Power

Digi WR54 Hardware Reference

11

Welcome Digi WR54 serial connector pinout

Digi WR54 serial connector pinout

The WR54 is a DTE device. The pinout for the DB9 serial connector is as follows:

DTE signal

Signal name RS232 signal

Transmit Data TxD In 3

Receive Data RxD Out 2

Ready To Send RTS In 7

Clear to Send CTS Out 8

Data Set Ready DSR Out 6

Ground GND N/A 5

Data Carrier Detect DCD Out 1

Data Terminal Ready DTR In 4

direction DB9 pin number

Ring Indicate

RI Out 9

Digi WR54 Hardware Reference

12

Welcome Reset the device to factory defaults

Reset the device to factory defaults

Resetting the device to factory defaults performs the following actions:

n Clears all configuration settings. When the device boots up again, it uses the configuration in

file config.fac. If the config.fac file has been deleted, the device will regenerate it with the
default Digi configuration.

n Deletes all user files including Python scripts.
n Regenerates SSH keys.
n Clears event and system log files.
n Creates a new event in the event log indicating a factory reset.

To reset the device to factory defaults:

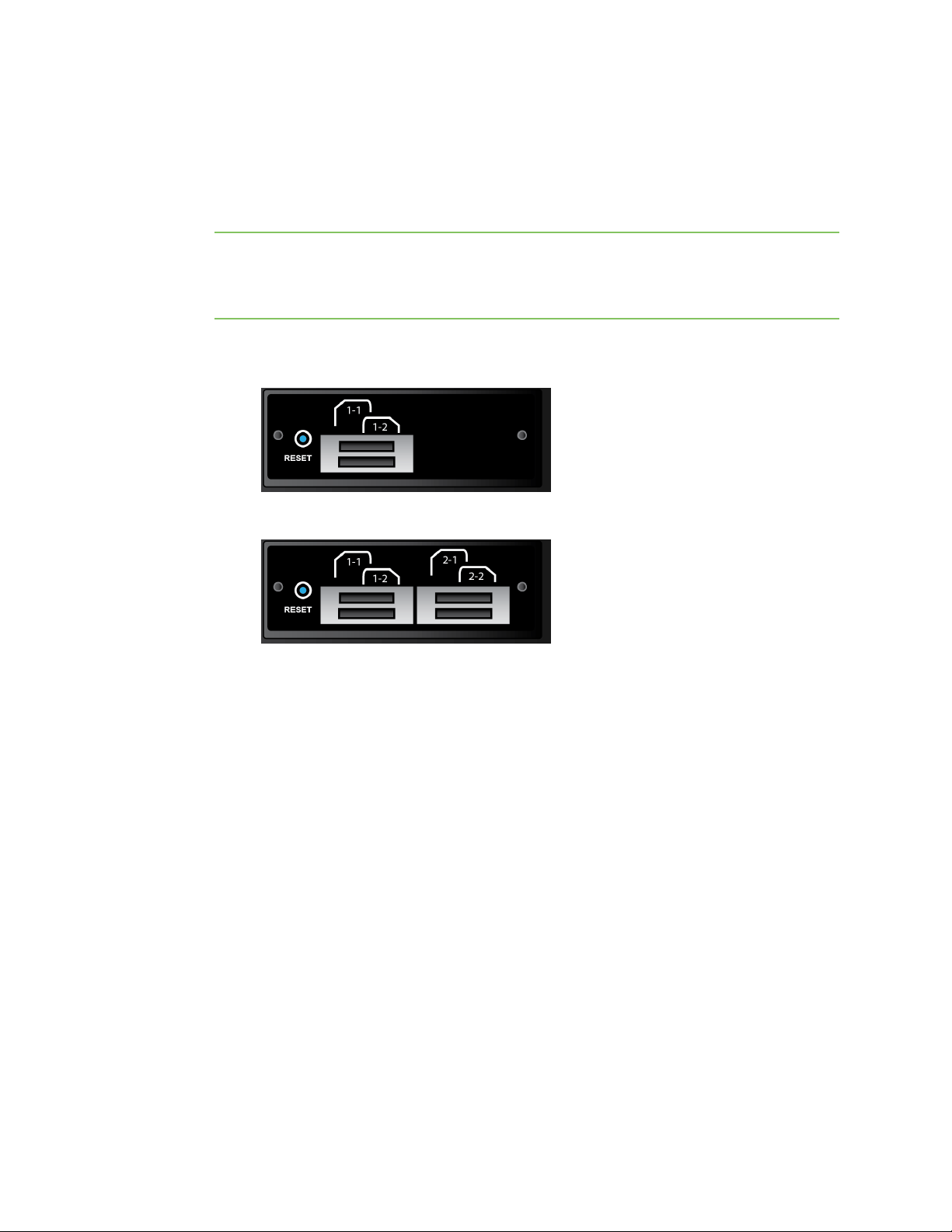

1. Locate the reset button on your device. For the WR54, the Reset button is located on top of the

SIM card slots on the front panel. Remove the SIM cover to access the Reset button.

2. Press and hold the Reset button for 15 seconds. The device reboots automatically.

The device resets to factory defaults. Follow the instructions in Quick start to reconfigure the
device.

Digi WR54 Hardware Reference

13

Welcome Tips for improving cellular signal strength

Tips for improving cellular signal strength

If the signal strength LEDs or the signal quality for your device indicate Poor or No service, try the
following things to improve signal strength:

n Move the device to another location.
n Try connecting a different set of antennas, if available.
n Purchase a Digi Antenna Extender Kit:

l Antenna Extender Kit, 1m
l Antenna Extender Kit, 3m

Digi WR54 Hardware Reference

14

Quick start

Congratulations on your Digi WR54 purchase. The following steps guide you through the setup.

Step 1: What's in the box

When you open the WR54 package, look for the following:

n Welcome Card

n The WR54 device

n The WR54 label

Step 2: Gather accessories

Note Digi offers several WR54 accessory kits so you to purchase exactly what you need to support

your WR54. See WR54 support.

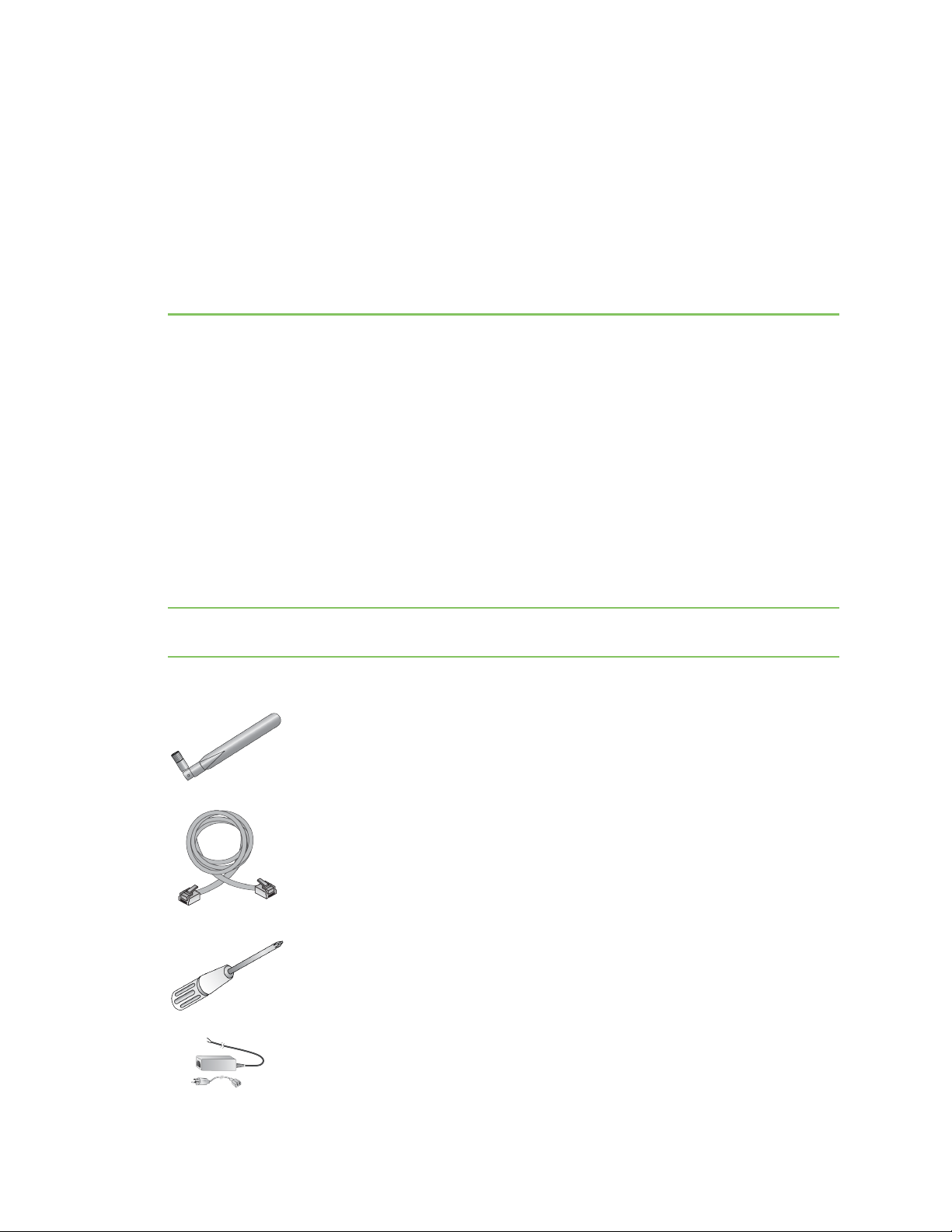

Here's the list of accessories used in this Quick start:

Antennas

Use antennas provided by a Digi accessory kit or use alternate antennas that
complies with the WR54 antenna requirements.

Ethernet cable

Use an Ethernet cable to connect the WR54 ETH2, ETH3, or ETH4 port to a laptop
or PC to access the local web interface via a browser or connect to a WAN.

Phillips-head screwdriver

Use a # 1 Phillips-head screwdriver to remove and replace the SIM gasket cover
when installing SIM cards.

Power supply

Use a power supply provided by a Digi accessory kit or use an alternate power
supply that complies with the power supply requirements.

Digi WR54 Hardware Reference

15

Quick start Step 3: Connect hardware and power up

Smart phone or tablet

Use a smart phone or table to to automatically register your WR54 in your Digi
Remote Manager account and connect to your cellular network.

Laptop or personal computer

If you intend to access the WR54 local web interface via a browser, use an
Ethernet cable to connect your WR54 to a laptop or PC.

SIM card(s)

Acquire SIM cards as needed. Note the carrier, network APN (Access Point
Name), and SIM pin (if any) for each card.

Step 3: Connect hardware and power up

a. Install SIM card(s). See Install SIM cards.
b. Attach antenna(s).

c. Connect DC power. See WR54 power connector for details.
d. Power on the WR54 by pressing the Power button on the front panel.
e. Indicator LEDs blink to show status during startup.

f. Wait for the power LED to stop blinking. The device is ready.

Step 4: Access the WR54 local web interface

a. Use an Ethernet cable to connect the WR54 ETH2, ETH3, or ETH4 port to your PC.

b. Open a browser and go to 192.168.1.1.

c. Log into the WR54:

User name: Use the default user name: admin
Password: Use the unique password printed on the bottom label of the device (or the

printed label included in the package)

The WR54 Getting Started Wizard appears.

Next steps

Congratulations! You have completed the Quick start.

To manage and configure your WR54 remotely



using Digi Remote Manager, see Digi Remote

Manager User Guide.

Digi WR54 Hardware Reference

16

Quick start Quick start using the Digi Remote Manager mobile app

To manage and configure your WR54 locally using



the local web interface, see Digi WR Routers User

Guide.

Quick start using the Digi Remote Manager mobile app

After connecting your hardware and powering up, you can use the Digi Remote Manager mobile app to
quickly register your WR54 into your Digi Remote Manager account.

Here's how:

If you already have a Digi Remote Manager account:

a. Download the Digi Remote Manager mobile app from the App Store (iPhone) or Google Play

(Android).

b. Click Log in or Sign Up and log in to your account.

c. From the menu, select Install a device with a QR or bar code and scan the installation QR

code on the label.

d. Follow the prompts to complete your WR54 registration.

If you need to sign up for a Digi Remote Manager account:

a. Click here to create a new account. You'll receive an email with login instructions.
b. On your smartphone or tablet, download the Digi Remote Manager mobile app from the App

Store (iPhone) or Google Play (Android).

c. Open the Digi Remote Manager mobile app, click Log in and log into your new account.
d. From the menu, select Install a device with a QR or bar code and scan the installation QR

code on the label.

e. Follow the prompts to complete your WR54 registration.

Digi WR54 Hardware Reference

17

Hardware setup

Install SIM cards 19
Connect data cables 19
Connect antennas 19
Connect power 20

Digi WR54 Hardware Reference

18

Hardware setup Install SIM cards

Install SIM cards

To install SIM cards:

1. On the WR54 front panel, use a Philips screwdriver to remove the SIM slot cover.

2. For high-vibration environments, apply a thin layer of dielectric grease to the SIM contacts.

Note If the WR54 device is used in an environment with high vibration levels, SIM card contact

fretting may cause unexpected SIM card failures. To protect the SIM cards, Digi strongly
recommends that you apply a thin layer of dielectric grease to the SIM contacts prior to
installing the SIM cards.

3. Insert the SIM card(s) into the SIM sockets in the positions shown on the SIM gasket:

n Single cellular models:

n Dual cellular models:

4. After all SIM cards are in place, replace the SIM slot cover.

Connect data cables

The WR54 provides three types of data ports:

n Ethernet (RJ-45): Use a Cat 5e or Cat 6 Ethernet cable.
n USB: Use a Micro-AB cable.
n Serial (9-pin RS-232): Use a serial cable with a 9-pin RS-232 connector.

Connect antennas

Connect antennas to the appropriate antenna connector:

n GNSS
n Wi-Fi

l Single Wi-Fi models: Wi-Fi-1/Wi-Fi-2
l Dual Wi-Fi models: Wi-Fi1-1/Wi-Fi1-2 and Wi-Fi2-1/Wi-Fi2-2

Digi WR54 Hardware Reference

19

Hardware setup Connect power

n WWAN:

l Single cellular models: WWAN-1/WWAN-2
l Dual cellular models: WWAN1-1/WWAN1-2 and WWAN2-1/WWAN2-2

Connect power

Connect the WR54 power cable to a power source.

Vehicle installation

The WR54 shall be powered from a 5 A fused circuit or shall be installed with an in-line Slow Blow fuse
rated at 5 A.

Maximum ambient operating temperature is limited to 74°C.

Note Always follow the vehicle manufacturer recommendations for electrical accessories connections.

All components used in the electrical connection to the vehicle should be UL listed. See also Mount and

ground chassis.

Alternate installations

The WR54 shall be powered by a Certified ITE LPS power supply or a Direct Plugin Class 2 output
transformer rated at either 12 VDC/2.5 A or 24 VDC/1.25 A minimum. Supplies shall be suitable for the
ambient for which they are installed.

Maximum ambient operating temperature is limited to the lower of the maximum ambient operating
temperature of the power supply or 74° C.

Digi recommends the power supplies in the following accessory kits:

n Installations up to +40° C: Digi part number 24000140
n Installations up to +70° C: Digi part number 76002079 or 76002081
n Installations up to +74° C: TRACO Power TPP-30-112J, TPP-30-115J, TPP-30-124J, and TEX120-

112

Mount and ground chassis

If you intend to install the WR54 in a vehicle, follow these directions for mounting and grounding the
device.

Note Always follow the vehicle manufacturer recommendations for electrical accessories connections.

Mount the device following these general guidelines:

n Device position allows easy access to all ports located on the back of the device.
n Device position allows you to easily view the LEDs located on the front of the device.
n Device location is away from direct exposure to the elements, such as sun, rain, dust, and so

on.

n Device and cables should not be near high amperage or exposed to extreme temperatures.
n Device and cables should be installed in an area with adequate airflow.

The WR54 has two mounting brackets located on the left and right sides of the device.

Digi WR54 Hardware Reference

20

Hardware setup Connect power

For DC installations (with a fixed system ground reference), ground the WR54 chassis to the system
ground reference.

For proper grounding reference:

n Attach the device to a grounded metal surface.
n Connect one end of a short AWG or larger gauge wire to the upper-right grounding hole and

connect the other end to the vehicle chassis.

Special considerations

n Separate Ethernet and power cables from other wiring in the vehicle and route the cables

away from sharp edges.

n Use cable strain relief for installations in high-vibration environments.

WR54 electrical rating

WR54 devices require connection to a conditioned power system that meets these requirements:

n Tolerance within maximum operating voltage range 9 VDC to 36 VDC.
n WR54 power connector on the back of the device requires wiring terminals with the following

specifications:

Wire size: 30-12 AWG
Wire type: copper wire only
Terminal blocks torque: 5-7 pounds per inch

For supply connections, use wires suitable for at least 85° C.

n Power installation must be performed by a qualified electrician, following the National

Electrical Code, ANSI/NFPA 70 and Canadian Electrical Code, Part I, CSA C22.1.

n There must be a disconnect device in front of WR54 devices to protect maintenance workers.

Use a 20 A circuit-breaker as the disconnect device.

n Before doing any maintenance, the maintenance worker must use caution and close the

general power supply.

WR54 power connector

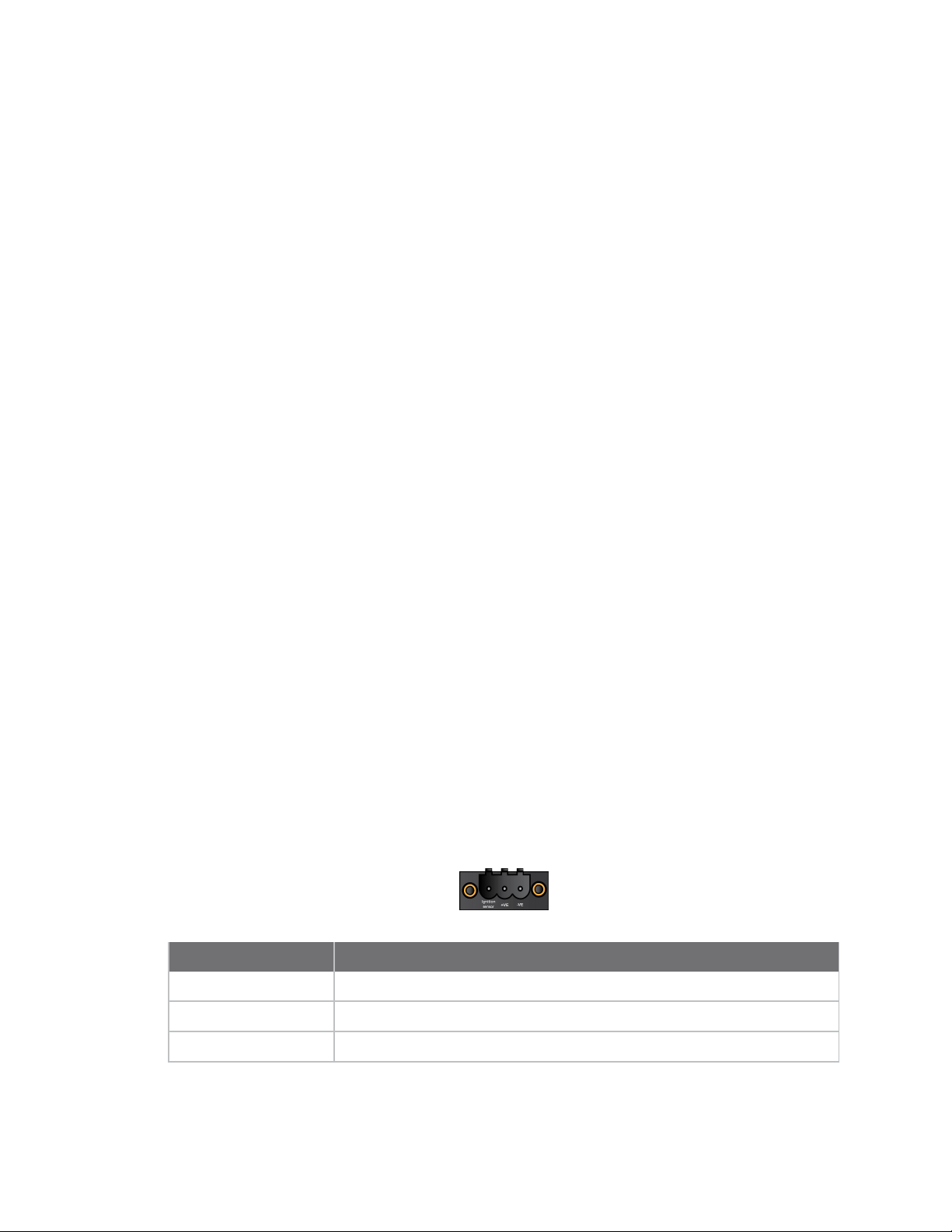

The WR54 has a power connector located on the back of the device:

Pin Connection

1 Ignition sensor

2 Positive

3 Negative

See WR54 electrical rating for information on connecting power to the device.

Digi WR54 Hardware Reference

21

Hardware setup Connect power

Battery power management

The WR54 power input range is 9-36 VDC. In addition, the WR54 includes a battery saver function. The
WR54 Power Management Unit (PMU) continuously monitors the power input (Vin) and applies the
predefined 10.5 V "turn-off” and 11.5 V "turn-on" supply voltage levels. Once low supply voltage is
detected during operation, the PMU applies the following timeout values before powering off the
WR54:

n If 9 V < Vin < 10.5 V "turn-off" voltage, the unit powers off after 360 seconds.
n If 6 V < Vin < 9 V, the unit powers off after 30 seconds.
n If Vin < 6 V, the unit powers off after 3 seconds.

Once the WR54 is powered off, it will power on again only if Vin > 11.5 V "turn-on” voltage.

Digi WR54 Hardware Reference

22

Digi Remote Manager

Log into Digi Remote Manager 24
Configure remote management 24
View and manage a WR54 24
Configure multiple devices 24
Learn more 25

Digi WR54 Hardware Reference

23

Digi Remote Manager Log into Digi Remote Manager

Log into Digi Remote Manager

To start Digi Remote Manager

1. If you have not already done so, click here to sign up for a Digi Remote Manager account.

2. Check your email for Digi Remote Manager login instructions.

3. Go to remotemanager.digi.com.

4. Log into your Digi Remote Manager account.

Configure remote management

Digi Remote Manager is enabled by default. Once the WR54 device has a WAN connection, it
automatically connects to Digi Remote Manager.

Register device in Digi Remote Manager

n If you registered your device with Digi Remote Manager when you went through the Getting

Started Wizard:

1. Enter your credentials to log in to your Remote Manager account and click Log In.

2. A message appears showing the group into which your device has been registered in
the Remote Manager Status section of the Digi Remote Manager page.

n If you skipped the registration step in the Getting Started Wizard:

1. On the menu, click System > Administration > Remote Manager.

2. Enter your credentials to log in to your Digi Remote Manager account and click Log In.

3. Select a group for you device in your Digi Remote Manager account, then click Register
Device.

4. If the registration succeeds, a message appears indicating that your device has been
registered in your Digi Remote Manager account; for example:

This device is registered in your Digi Remote Manager account
Group location: Group C

View and manage a WR54

To view and manage your device:

1. If you have not already done so, connect to your Digi Remote Manager account.

2. Click Device Management to display a list of your devices.

3. User the Search bar to locate and select the WR54 you want to manage.

4. Click Properties to view general information for your WR54.

5. Click the More menu to perform a task.

Configure multiple devices

Digi recommends you take advantage of Digi Remote Manager profiles to manage multiple WR54
routers. Typically, if you want to provision multiple WR54 routers:

Digi WR54 Hardware Reference

24

Digi Remote Manager Learn more

1. Using the WR54 local web UI, configure one WR54 router to use as the model configuration for
all subsequent WR54s you need to manage.

2. Register the configured WR54 in your Digi Remote Manager account.

3. In Digi Remote Manager, create a profile based on the configured WR54.

4. Apply the profile to the WR54 routers you need to configure.

Digi Remote Manager provides multiple methods for applying profiles to registered devices. You can
also include site-specific settings with a profile to override settings on a device-by-device basis.

Learn more

n For information on using Digi Remote Manager to configure and manage WR54 routers, see the

Digi Remote Manager User Guide.

n For information on using Digi Remote Manager APIs to develop custom applications, see the

Digi Remote Manager Programmer Guide

Digi WR54 Hardware Reference

25

Digi WR54 regulatory and safety statements

RF exposure statement

In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance
between the antenna or antennas and the user should not be less than 20 cm.

Federal Communication (FCC) Part 15 Class B

Radio Frequency Interference (RFI) (FCC 15.105)

The WR54 has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to
correct the interference by one or more of the following measures:

n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and the receiver.
n Connect the equipment into an outlet that is on a circuit different from the receiver.
n Consult the dealer or an experienced radio/TV technician for help.

Labeling Requirements (FCC 15.19)

The WR54 complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

If the FCC ID is not visible when installed inside another device, then the outside of the device into
which the module is installed must also display a label referring to the enclosed module FCC ID.

Modifications (FCC 15.21)

Changes or modifications to this equipment not expressly approved by Digi may void the user’s
authority to operate this equipment.

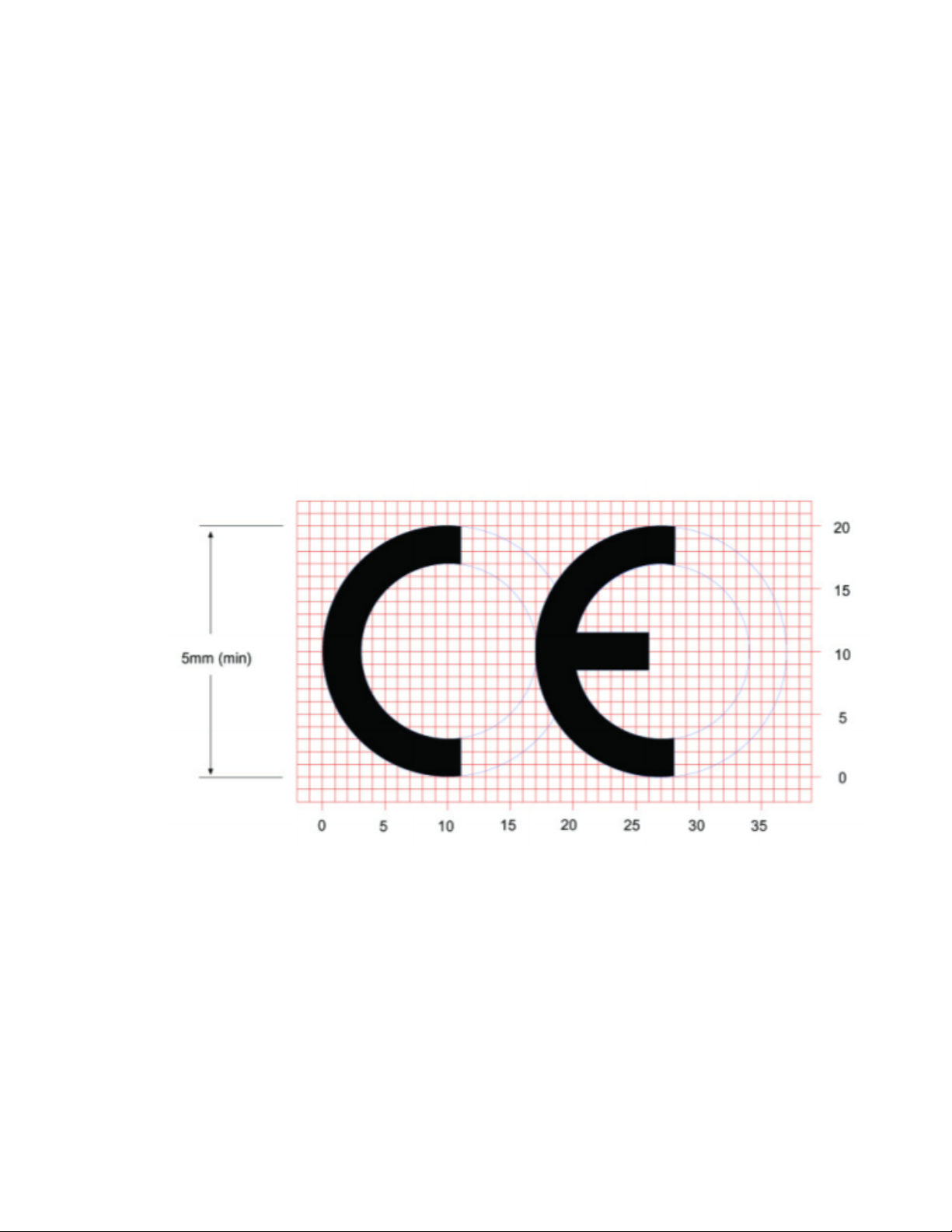

European Community - CE Mark Declaration of Conformity (DoC)

Digi has issued Declarations of Conformity for the Digi WR54 concerning emissions, EMC, and safety.
For more information, see www.digi.com/resources/certifications.

Important note

Digi WR54 Hardware Reference

26

Digi WR54 regulatory and safety statements European Community - CE Mark Declaration of Conformity (DoC)

Digi customers assume full responsibility for learning and meeting the required guidelines for each
country in their distribution market. Refer to the radio regulatory agency in the desired countries of
operation for more information.

CE mark (Europe)

The Digi WR54 is certified for use in several European countries. For information, visit

www.digi.com/resources/certifications.

If the Digi WR54 is incorporated into a product, the manufacturer must ensure compliance of the final
product with articles 3.1a and 3.1b of the RE Directive (Radio Equipment Directive). A Declaration of
Conformity must be issued for each of these standards and kept on file as described in the RE
Directive (Radio Equipment Directive). Furthermore, the manufacturer must maintain a copy of the
(product name) user manual documentation and ensure the final product does not exceed the
specified power ratings, antenna specifications, and/or installation requirements as specified in the
user manual.

OEM labeling requirements

The 'CE' marking must be affixed to a visible location on the OEM product.

CE labeling requirements

The CE mark shall consist of the initials “CE” taking the following form:

n If the CE marking is reduced or enlarged, the proportions given in the above graduated

drawing must be respected.

n The CE marking must have a height of at least 5mm except where this is not possible on

account of the nature of the apparatus.

n The CE marking must be affixed visibly, legibly, and indelibly.

Digi WR54 Hardware Reference

27

Digi WR54 regulatory and safety statements ANATEL (Brazil)

ANATEL (Brazil)

Modelo: WR54-A106/WR54-A206

04208-19-01209
Para maiores informações, consulte o site da ANATEL www.anatel.gov.br
Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar

interferência em sistemas devidamente autorizados.

Digi WR54 Hardware Reference

28

Digi WR54 regulatory and safety statements Maximum transmit power for radio frequencies

Maximum transmit power for radio frequencies

The following tables show the maximum transmit power for frequency bands.

Cellular frequency bands

Frequency bands Maximum transmit power

Cellular LTE 700 MHz
Cellular LTE 800 MHz
Cellular LTE 850 MHz
Cellular LTE 900 MHz
Cellular LTE 1700 MHz
Cellular LTE 1800 MHz
Cellular LTE 1900 MHz
Cellular LTE 2100 MHz

Cellular LTE 2600 MHz
Cellular LTE 2300 MHz
Cellular LTE 2500 MHz

200 mW

158.49 mW

Wi-Fi frequency bands

Frequency bands

The WR54 device supports 11 overlapping channels (channels 1-11) at 22 MHz or
40 MHz wide spaced at 5 MHz.
Centered at 2.412 MHz to 2.462 MHz.

The WR54 device supports 4 overlapping channels (channels 36, 40, 44, and 48) at
22 MHz or 40 MHz or 80 MHz wide spaced at 5 MHz.
Centered at 5180 MHz to 5240 MHz

Maximum
transmit power

651.784 mW

351.295 mW

Innovation, Science, and Economic Development Canada (IC) certifications

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Le present appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables
aux appareils numeriques de la class B prescrites dans le Reglement sur le brouillage radioelectrique
edicte par le ministere des Communications du Canada.

Digi WR54 Hardware Reference

29

Digi WR54 regulatory and safety statements RoHS compliance statement

RoHS compliance statement

All Digi International Inc. products that are compliant with the RoHS Directive (EU Directive
2002/95/EC and subsequent amendments) are marked as RoHS COMPLIANT. RoHS COMPLIANT
means that the substances restricted by the EU Directive 2002/95/EC and subsequent amendments
of the European Parliament are not contained in a finished product above threshold limits mandated
by EU Directive 2002/95/EC and subsequent amendments, unless the restrictive substance is subject
of an exemption contained in the RoHS Directive. Digi International Inc., cannot guarantee that
inventory held by distributors or other third parties is RoHS compliant.

Safety notices

n Read all instructions before installing and powering the router. You should keep these

instructions in a safe place for future reference.

n If the power supply shows signs of damage or malfunction, stop using it immediately, turn off

the power and disconnect the power supply before contacting your supplier for a repair or
replacement.

n Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment. Use only the accessories, attachments,
and power supplies provided by the manufacturer-connecting non-approved antennas or
power supplies may damage the router, cause interference or create an electric shock hazard,
and will void the warranty.

n Do not attempt to repair the product. The router contains no electronic components that can

be serviced or replaced by the user. Any attempt to service or repair the router by the user will
void the product warranty.

n Ports that are capable of connecting to other apparatus are defined as SELV ports. To ensure

conformity with IEC60950 ensure that these ports are only connected to ports of the same
type on other apparatus.

Safety statements

WARNING! RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT BATTERY TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ATTENTION! IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE
BATTERIE DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS

WARNING! For ambient temperatures above 60° C, this equipment must be installed in a
Restricted Access Location only.

Digi WR54 Hardware Reference

30

Digi WR54 regulatory and safety statements Special safety notes for wireless routers

AVERTISSEMENT! Cet équipement est destiné à être installé dans un lieu d'accès restreint
uniquement.

WARNING! Hot parts!
To avoid burns when handling device parts, wait at least one half hour after switching off
the device before handling parts.

CAUTION! Hot parts!
To avoid burns when handling device parts, wait at least one half hour after switching off
the device before handling parts.

PRUDENCE! Pièces chaudes!
Doigts brûlés lors de la manipulation des pièces. Attendez une demi-heure après la mise
hors tension avant de manipuler les pièces

Special safety notes for wireless routers

Digi International products are designed to the highest standards of safety and international
standards compliance for the markets in which they are sold. However, cellular-based
products contain radio devices which require specific consideration. Take the time to read
and understand the following guidance. Digi International assumes no liability for an end
user’s failure to comply with these precautions.

Wireless routers incorporate a wireless radio module. Users should ensure that
the antenna(s) is (are) positioned at least 1 meter away from themselves and
other persons in normal operation.
When in a hospital or other health care facility, observe the restrictions on the
use of mobile phones. Do not use the router in areas where guidelines posted in
sensitive areas instruct users to switch off mobile phones. Medical equipment
may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and
hearing aids can be affected by interference from cellular terminals such as the
wireless routers when places close to the device. If in doubt about potential
danger, contact the physician or the manufacturer of the device to verify that
the equipment is properly shielded. Pacemaker patients are advised to keep
the wireless router away from the pacemaker while it is on.

Wireless routers must NOT be operated on aircraft. The operation of wireless
appliances in an aircraft is forbidden to prevent interference with
communications systems. Failure to observe these instructions may lead to the
suspension or denial of cellular services to the offender, legal action, or both.

As with any electrical equipment, do not operate the router in the presence of
flammable gases, fumes or potentially explosive atmospheres. Do not use radio
devices anywhere that blasting operations occur.

Digi WR54 Hardware Reference

31

Digi WR54 regulatory and safety statements Product disposal instructions

Wireless routers receive and transmit radio frequency energy when power is on.
Interference can occur when using the router close to TV sets, radios,
computers or inadequately shielded equipment. Follow any special regulations
and always power off your router wherever forbidden or when it may cause
interference or danger.

SOS IMPORTANT! Wireless routers operate using radio signals and cellular
networks cannot be guaranteed to connect in all possible conditions. Therefore,
never rely solely upon any wireless device for life critical communications.

Product disposal instructions

The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to
ensure that electrical/ electronic products are recycled using the best available recovery techniques
to minimize the impact on the environment.

This product contains high quality materials and components which can be
recycled. At the end of its life this product MUST NOT be mixed with other
commercial waste for disposal. Check with the terms and conditions of your
supplier for disposal information.

Digi International Ltd WEEE Registration number: WEE/HF1515VU

Digi WR54 Hardware Reference

32

Certifications

International EMC (Electromagnetic Compatibility) and safety standards

This product complies with the requirements of the following Electromagnetic Compatibility
standards.

There are no user-serviceable parts inside the product. Contact your Digi representative for repair
information.

Certification category Standards

Electromagnetic Compatibility (EMC) compliance
standards

Safety compliance standards EN 62368

E-UTRA CA, E-UTRA FDD, E-UTRA TDD, UMTS FDD PTCRB

Cellular carriers

n EN 300 328 v1.8.1
n EN 301 893 v1.7.2
n EN 301 489
n FCC Part 15 Subpart B Class B
n FCC Part 15 Subpart C certification

(Integrated Wi-Fi + Cellular Modules)

See the current list of carriers on the WR54
datasheet, available on the Digi WR54

Specifications page.

Digi WR54 Hardware Reference

33
