Digi WR11 XT User Manual
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional

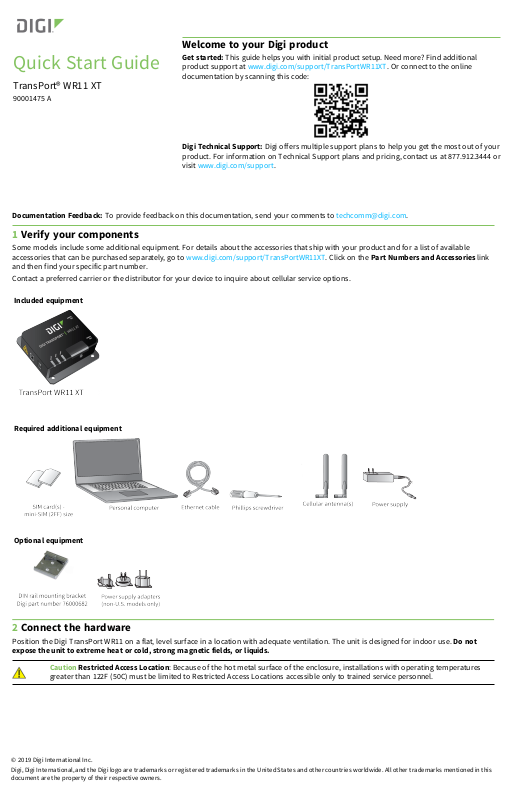

Quick Start Guide
TransPort® WR11 XT
90001475 A
Documentation Feedback: To provide feedback on this documentation, send your comments to techcomm@digi.com.
product support at www.digi.com/support/TransPortWR11XT. Or connect to the online
documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
1 Verify your components
Some models include some additional equipment. For details about the accessories that ship with your product and for a list of available
accessories that can be purchased separately, go to www.digi.com/support/TransPortWR11XT. Click on the Part Numbers and Accessories link
and then find your specific part number.
Contact a preferred carrier or the distributor for your device to inquire about cellular service options.
Included equipment
Required additional equipment
Optional equipment
2 Connect the hardware
Position the Digi TransPort WR11 on a flat, level surface in a location with adequate ventilation. The unit is designed for indoor use. Do not
expose the unit to extreme heat or cold, strong magnetic fields, or liquids.
Caution Restricted Access Location: Because of the hot metal surface of the enclosure, installations with operating temperatures
greater than 122F (50C) must be limited to Restricted Access Locations accessible only to trained service personnel.
© 2019 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
a. Using a screwdriver, remove the SIM slot cover.
b. Insert the SIM card(s) as shown, with the notch facing the bottom-right corner of the device. If you are using only one SIM card, insert it in
the SIM 1 slot.
c. Replace the SIM slot cover.
d. Connect the cellular antenna to the WWAN PRIconnector on the unit. If the unit is equipped with a secondary cellular antenna connector,
connect it to the WWAN SEC connector.
e. Connect the plug end of the 5-volt power supply to the power connector on the unit, and plug the other end into a wall outlet.
Alternatively, you can remove the wall plug cover and use the IEC 60320-C6 connector with an AC cord of the same connector type.
f. Connect one end of the Ethernet cable to the Ethernet port on the unit and the other end to an Ethernet port on a PC.
