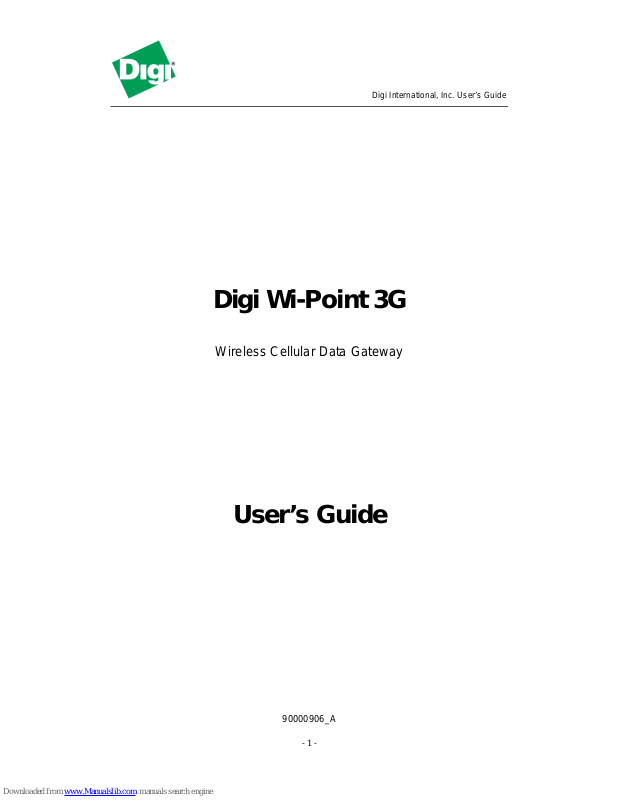

Digi International, Inc. User’s Guide
- 1 -
Digi Wi-Point 3G
Wireless Cellular Data Gateway
User’s Guide
90000906_A
Digi International, Inc. User’s Guide
- 2 -
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates，uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Digi International, Inc. declares that Digi Wi-Point 3G (FCC ID:SUMMB8600D) is
limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A.
Digi International, Inc. User’s Guide
- 3 -
Table of Contents
1 ABOUT THIS GUIDE....................................................................................................................4
1 INTRODUCTION........................................................................................................................... 5
2 INSTALLING THE DIGI WI-POINT 3G......................................................................................6
2.1 VERIFY KIT CONTENTS.............................................................................................................7
2.2 WRITE PRODUCT IDENTIFICATION ............................................................................................8
2.3 POWER UP THE DIGI WI-POINT 3G............................................................................................8
2.4 LED INDICATORS ...................................................................................................................10
2.5 INITIALIZE THE DIGI WI-POINT 3G UNIT................................................................................11
3 USER INTERFACE OVERVIEW ..............................................................................................13
3.1 MENU COMPONENTS ..............................................................................................................15
3.1.1 Configuration...............................................................................................................15
3.1.2 Management..............................................................................................................27
3.1.3 Administration..............................................................................................................29
4 TROUBLESHOOTING...............................................................................................................33
4.1 OVERVIEW..............................................................................................................................33
4.2 INTRODUCTION.......................................................................................................................33
4.3 RESET TO FACTORY DEFAULT PROCEDURE .............................................................................33
4.4 FORCED RELOAD PROCEDURE................................................................................................34
4.5 FREQUENTLY ASKED QUESTIONS............................................................................................35
5 DEFAULT DIGI WI-POINT 3G SETTINGS .............................................................................39
Digi International, Inc. User’s Guide
- 4 -
1 About This Guide
This section describes the objectives, audience and conventions of the Digi Wi-Point 3G
User’s Guide.
Objectives
This document explains the steps for initial setup and basic configuration of the Digi
Wi-Point 3G. This document also provides troubleshooting information and detailed
specifications.
Audience
This document is for the person installing and configuring the Digi Wi-Point 3G for the first
time. The installer should be familiar with network structures, terms and concepts.
Conventions
This document uses the following conventions to convey instructions and information:
Note
Means reader take note. Notes contain helpful suggestions or references to
materials not contained in this manual.
Warning
The warning symbol means danger. You are in a situation that could
cause bodily injury. Before you work on any equipment, be aware of the
hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents.
Obtaining Documentation
You can access the latest Digi International, Inc. documentation on the World Wide Web
at the following URL: http://www.digi.com/products/literature/
Special comment
This device is a general wireless router, and can act as a Wi-Fi router only after inserting a
Wi-Fi pc card.
Digi International, Inc. User’s Guide
- 5 -
1 Introduction
The Digi Wi-Point 3G is the industry’s first and the most integrated Wi-Fi and 3rd
generation cellular (3G) solution for home, small office and home office. The products are
simple to use and easily scalable. Digi Wi-Point 3G is a 3G router for consumer market,
based on our MobileBridge™ platform technology.
The Digi Wi-Point 3G combines the best of Wi-Fi and 3G mobile communications
technologies including CDMA 1x, EV-DO, EDGE, UMTS and supports EV-DO Release A
and HSDPA.
The Digi Wi-Point 3G bridges wireless networks of 802.11b/g standards and wired
networks, allowing them to communicate with each other. The Digi Wi-Point 3G allows
authorized users to share the Internet access.
Use the instructions in this guide to help you connect, set up, and configure the Digi
Wi-Point 3G.
Digi International, Inc. User’s Guide
- 6 -
2 Installing the Digi Wi-Point 3G
Installing the Digi Wi-Point 3G is easy. Follow the quick steps below to power up your
wireless network:
1. Verify kit content
2. Write down product ID
3. Power up the Digi Wi-Point 3G
4. Verify that LED Indicators are on
5. Initialize the Digi Wi-Point 3G unit
Digi International, Inc. User’s Guide
- 7 -
2.1 Verify Kit Contents
Digi Wi-Point 3G kit includes the following components, similar to those depicted below:
1. Digi Wi-Point 3G router (Top View）
2. Power Adaptor
3. Ethernet cable
4. CD
5. Quick Start Guide
Digi International, Inc. User’s Guide
- 8 -
2.2 Write Product Identification
Before you proceed with your Digi Wi-Point 3G installation, please write down and keep
the following Digi Wi-Point 3G information on the Digi Wi-Point 3G label:
Serial Number
MAC address
2.3 Power up the Digi Wi-Point 3G
Connect the Digi Wi-Point 3G power supply and press the power switch down.
Digi International, Inc. User’s Guide
- 9 -
1. PC Card Slot
2. Ethernet interface (RJ45)
3. Console Port (RS232)
4. Power jack
5. Reset Button
6. Reload Button
The Digi Wi-Point 3G power supply accepts any input AC voltage in the range of 100-240
VAC.
Digi International, Inc. User’s Guide
- 10 -
2.4 LED Indicators
Digi Wi-Point 3G has four two-color LEDs to indicate the working status. The following
table shows the status when the Digi Wi-Point 3G is configured successfully and running
properly.
LED Indicator Color Index
Ethernet Cellular Wi-Fi Power
Off No cable Card inserted;
No Internet
connection
Disabled Power off
Green 100Mbps mode Card inserted;
Internet connection
Enabled Power on and
normal
Green
Blink
100Mbps mode, and
data transmission
Card inserted;
Internet connecting
Enabled and data
transmission
N/A
Red 10Mbps mode No card N/A N/A
Red
Blink
10Mbps mode, and
data transmission
Probing Card; N/A N/A
Amber N/A N/A N/A System boot and
error
Amber
Blink
N/A N/A Enabled and data
transmission error
Upgrading firmware
Digi International, Inc. User’s Guide
- 11 -
2.5 Initialize the Digi W i -Point 3G Unit
1. Connect Digi Wi-Point 3G to your computer using one of the two specified methods:
I. Connect your computer to Digi Wi-Point 3G using the included Ethernet
cable or a hub and your computer set to “Automatic IP” configuration.
II. Alternatively, you can connect your computer to Digi Wi-Point 3G with
wireless Ethernet.
a) Enable the Wi-Fi interface in your laptop or PC. Make sure it works.
b) Configure the Wireless Ethernet card to match the network name and
encryption key of Wireless Ethernet card installed in the Digi Wi-Point
3G. The default network name is the SN of this device, and “Automatic
IP” configuration is also needed.
2. Open your web browser to http://192.168.1.1
. The Digi Wi-Point 3G login screen
will appear. Enter the username/password (default is root/dbps), and click OK. The home
web page should appear
Digi International, Inc. User’s Guide
- 12 -
If you want to do a quick installation, you can continue to read the content in this chapter.
3. Click Wizard on the home page and click Enter.
4. The default IP and Subnet Mask will appear. Change Card Status to Enable. (If you are
using a GPRS/UMTS/EDGE network, you will need to input “CID”, “APN”), then click Next.
6. Check the settings and click Submit, The Digi Wi-Point 3G will need to be rebooted for
changes to take effect.
Digi International, Inc. User’s Guide
- 13 -
3 User Interface Overview
The Digi Wi- Point 3G embeds a web server for web-based management. This section
will show you how to visit Digi Wi-Point 3G’s web site.
1. Open your browser and enter the Digi Wi-Point 3G’s IP address in the address
field. (192.168.1.1.)
2. Press Enter. The Digi Wi-Point 3G login dialog box appears.
Note:
Default user name: root
Default password: dbps
3. After you input the right username and password, the home page of the Digi
Wi-Point 3G web site will appear:
Digi International, Inc. User’s Guide
- 14 -
There are three main categories on Digi Wi-Point 3G’s web site:
• Configuration
• Management
• Administration
The following sections will explain each of them in detail.
Digi International, Inc. User’s Guide
- 15 -
3.1 Menu Components
3.1.1 Configuration
This section will explain in detail the components under the Configuration section of the
home page.
3.1.1.1 Network
This is where you configure the network settings for the Digi Wi-Point 3G including IP
address, LAN settings, Wi-Fi security, DHCP Server settings, Network Services, Dynamic
DNS update and VPN.
Ethernet and Wi-Fi IP Settings
• IP Address: The IP Address of the Ethernet & WLAN. The default IP
address is 192.161.1.1.
• Subnet Mask: The subnet mask of the Ethernet & WLAN. The default
subnet mask is 255.255.255.0.
Once you have configured these parameters, click Apply.
Wi-Fi LAN Settings
• Network name (SSID): The name used to identify the particular network to which
a user wants to attach. The SSID must be identical for all the access points in the
wireless network.
• Enable Broadcast SSID: When wireless clients survey the local area for wireless
networks, they will detect the SSID broadcast by the Router. To broadcast Digi
Wi-Point 3G's SSID, keep the default setting checked. If you do not want to
broadcast Digi Wi-Point 3G's SSID, leave box unchecked.
Digi International, Inc. User’s Guide
- 16 -
• Wireless Channel: Select the appropriate channel from the list provided to
correspond with your network settings. All client devices in your wireless network
must be broadcast on the same channel in order to function correctly.
• Network Mode: From this drop-down menu, you can select the wireless
standards running on your network. If you have both Wireless-g and Wireless-b
devices in your network, you can keep the default setting as Mixed.(See XXX for
more information on this setting.)
• Enable stations isolation: If you don’t want different client stations connected to
the device to communicate with each other, Enable this option.
Max associations: The max client station number allowed to be connected to the Digi
Wi-Point 3G. Once you have configured these parameters, click Apply.
Wi-Fi Security Settings: This configuration page is used to set wireless Ethernet security
parameters. The Digi Wi-Point 3G supports two different types of security settings for your
wireless Ethernet network: Wi-Fi Protected Access (WPA) Pre-Shared Key (PSK) and
Wire Equivalence Protection (WEP).
Network Authentication
• WPA Pre-Shared Key - There are two encryption options for WPA Pre-Shared
Key, TKIP and AES. TKIP stands for Temporal Key Integrity Protocol. TKIP
utilizes a stronger encryption method and incorporates Message Integrity Code
(MIC) to provide protection against hackers. AES stands for Advanced Encryption
System, which utilizes a symmetric 128-bit block data encryption. To use WPA
Pre-Shared Key, enter a password in the PSK (Only for WPA-PSK) field between
8 and 63 characters in length.
• Shared: Select from the dropdown menu of Network Authentication, which will
enable the WEP sections.
Digi International, Inc. User’s Guide
- 17 -
WEP: There are two levels of WEP encryption security, 64-bit and 128-bit. The bigger
encryption bit number, the more secure your wireless network. However, the transmission
speed is sacrificed for the higher bit level’s WEP security.
Transmit Key: Select WEP key (1-4) to decide which key will be used during the data
transmission.
Enter the WEP Key into the appropriate Key field. All access points in your wireless
network must use the same WEP key to utilize WEP encryption.
You can also configure the Digi Wi-Point 3G security modes to be compatible for other
station security settings. Such as:
Mode 1: no security, no authentication
• Network Authentication: OPEN
• Data Encryption: Disabled
Mode 2: enable security, no authentication
• Network Authentication: OPEN
• Data Encryption: WEP
Mode 3: no security, enable authentication
• Network Authentication: Shared
• Data Encryption: Disabled
WPA-PSK:
A Network SSID is required before a password can be entered for WPA-PSK
authentication.
Note: Enter the Network name (SSID) on the Wi-Fi LAN Settings tab.
Digi International, Inc. User’s Guide
- 18 -
Access Control Mode: Allowing or denying some special stations connection in the Wi-Fi
network is also an option to guarantee the security of the wireless network. The following
components can be configured to set the station connection control and assure wireless
network security. The Digi Wi-Point 3G supports 3 types of access control modes:
•
Disabled: Indicates no access control function, allow all of the stations connect to
the Digi Wi-Point 3G.
•
Allow: Indicates only allow the stations which have the MAC addresses listed in
the table to access the Digi Wi-Point 3G.
•
Deny: Indicate only deny the stations which have the MAC addresses listed in the
table to access the Digi Wi-Point 3G.
Access Control List: The MAC addresses of stations which have been allowed or denied
to connect to the Digi Wi-Point 3G are saved in this list box.
There are 2 methods to input the MAC address: one is to select the station item in the
Station Connected list, then click Add; the other is to input the station MAC address
through MAC address edit box on the page (below the ACL), the input MAC address
format must be XX:XX:XX:XX:XX:XX.
St ations connected: In order to add the ACL conveniently, the MAC addresses of stations
which have been already connected to the Digi Wi-Point 3G appear in this domain. Click
Refresh, this list will be updated. Once you have configured these parameters, click Apply.
Digi International, Inc. User’s Guide
- 19 -
DHCP Configuration
This setting is used to configure the Digi Wi-Point 3G’s Dynamic Host Configuration
Protocol (DHCP) server function. The Digi Wi-Point 3G can be used as a DHCP server for
the internal Ethernet network. The DHCP server automatically assigns an IP address to
each computer in the Ethernet network. If you choose to enable the Digi Wi-Point 3G’s
DHCP server option, you must configure all of PCs in the Ethernet network to connect to
this DHCP server (Digi Wi-Point 3G), and make sure there is no other DHCP server on
your network.
DHCP is enabled by factory default. If there is already a DHCP server in the Ethernet
network or a DHCP server is not necessary for the Ethernet network, the Enable DHCP
Server on LAN Interface can be un-checked. (Other DHCP features will be disabled).
• Range: Enter the values for start IP address and end IP address. The
default start IP address is 192.161.1.1 and the default end IP address is
192.168.1.131.
Digi International, Inc. User’s Guide
- 20 -
• Lease Duration: The amount of time in second a network user will be
allowed to connect to Digi Wi-Point 3G with their current dynamic IP
address got from the DHCP server. When the time is up, the user will be
automatically assigned a new dynamic IP address. The default lease
duration is one day.
Note:
When the DHCP server’s IP address range is set, it must be assured that there
is no other device in the network to use the IP address located in this address
range, such as printer server, file server, etc. Otherwise there is a risk for
address conflict.
Static Lease Reservations:
You can specify the static IP address for the known DHCP clients. The router will
assign the IP address you configured on the list to these clients.
1. Click Add to add a new entry for the static IP assignment.
In order to avoid conflicting IP addresses, you should NOT assign Static IP addresses
within the DHCP Pool.
2. Click Remove to delete an existing entry.
Digi International, Inc. User’s Guide
- 21 -
3. Save the configuration and reboot for changes to take effect.
DNS:
The Digi Wi-Point 3G supports dynamic DNS (DDNS). The default status for DDNS is
disabled. The Digi Wi-Point 3G only supports DNS provided by www.dyndns.org. To use
this feature, you should obtain your own domain name from the provider Every time the
Wi-Fi’s IP changes, the router will register the new public IP address obtained from the
PPP negotiation to the provider.
VPN
Virtual Private Networks (VPNs) are used to securely connect two private networks so that
devices may connect from one network to the other network using secure channels. VPN
uses IP Security (IPSec) technology to protect the transferring of data over the Internet
Protocol (IP).
The Digi device is responsible for handling the routing between networks. Devices within
the private network served by the Digi device can connect directly to devices on the other
private network to which the VPN tunnel is established to. The VPN tunnels are configured
using various security settings and methods to ensure the networks are secured.
Advanced Network Settings
The Advanced Network Settings are used to fine tune the network connection and
network interfaces. The default settings will typically work in most situations
• Host name: The Host name to be placed in the DHCP Option 12 field. This is an
optional setting which is only used when DHCP is enabled.
3.1.1.2 Mobile
This is where you configure Service Settings, PPP and Mobile Connection Settings,
including SureLink™ settings.
SureLink™: Provides an "always-on" mobile network connection to ensure rapid
on-demand communication. The configuration settings allow you to customize how
SureLink detects when a connection has been lost, in order to re-establish the link.
Digi International, Inc. User’s Guide
- 22 -
3.1.1.3 Serial Ports
This is where you configure the serial ports for the device. This feature has limited
functionality in this device and is used mostly for console management.
• Serial Baud Rate: When you need a backup link (for example, the v.90 modem)
for Digi Wi-Point 3G, you might need to configure the serial speed for the modem.
There are 6 options for the serial speed (bps): 115200, 57600, 38400, 19200,
9600, and 4800. You may need to reference to the user guide of the modem to
configure the right speed.
3.1.1.4 System
This is where you configure the Device Identity, SNMP and Log settings.
Device Identity Settings:
Simple Network Management Protocol (SNMP) Settings
Digi International, Inc. User’s Guide
- 23 -
• Enable SNMP: This allows the administrator to manage the Digi Wi-Point 3G
through the SNMP protocol. In order to do so, you must specify the Public
community name and Private community name, which enables the SNMP
Manager to access the Digi Wi-Point 3G. The Digi Wi-Point 3G supports SNMP
traps. To enable this function, you must specify the IP address of Trap destination
and Trap interval, which indicates the frequency that the device sends trap
information.
Log Settings: You can configure the Log method here. The Digi Wi-Point 3G can
display the Syslog entries in the Web GUI; it can also send the Syslog entries to a
remote syslog server. To send the Syslog to the syslog server, you need to check
the “Enable syslogging to remote syslog server” checkbox and assign the IP
address of remote syslog server in the bottom box.
3.1.1.5 Remote Management
This is where you configure the device for Web UI or Client-Initiated remote management
• Web GUI Management Connection
• Client-Initiated Management Connection
3.1.1.6 Security
This is where you configure security settings for the Digi Wi-Point 3G including username,
password Anti-Attack and filter settings.
• Username: Username for the Digi Wi-Point 3G’s web administration. The default
username is: root.
• Password: Password for the Digi Wi-Point 3G’s web administration. The default
password is: dbps.
MAC Filter Settings (See configuration settings for the Access Control List in section
3.1.1.1)
Digi International, Inc. User’s Guide
- 24 -
IP Forwarding: This feature allows you to forward incoming traffic on certain ports in
order to access services behind the NAT. This feature can let you setup a web server,
mail server, etc. that can be accessed from the Internet.
The IP Forwarding table in the Digi Wi-Point 3G consists of many port forwarding items.
o Enable Checkbox：Y ou can enable or disable an IP forwarding item by checking
or unchecking this checkbox.
o Apply: Click Apply to validate the change immediately. No reboot is needed here.
o Add: Click Add. An IP forwarding item will appear in the list above.
Digi International, Inc. User’s Guide
- 25 -
Each item consists of the following parameters:
o Protocol: This parameter indicates which protocol will implement this port
forwarding rule. Possible protocols are: TCP, UDP, TCP/UDP.
o External Port: This parameter indicates the port for public access.
o Forward to Internal IP Address: This parameter indicates the IP address of the
internal host which wants to provide service for the outside.
o Forward to Internal Port: This parameter indicates the port of internal service.
DMZ: When DMZ is enabled, you should assign a client’s IP address to the Digi Wi-Point
3G. Then, the Digi Wi-Point 3G will forwards the all incoming traffic from WI-FI to this client
host. It will be useful when you would access a client host of Ethernet from Internet.
• LAN Host: Client’s IP address.
Anti-Attack: Anti-Attack function can block an attack via the Stateful Packet Inspect (SPI).
The Digi Wi-Point 3G can block the following attacks:
Denial of Service (DoS): Ping of Death, Land, Smurf, SYN Flood, Fraggle and
IP Spoofing.
• Enable Anti-Attack: Check this checkbox to enable the Anti-Attack function.
Select the attack you want to block after you enabled the Anti-Attack function.
• Content Filter: Content Filter is an advanced security feature designed to filter
the HTTP sessions according to the contents.
Content Filter includes URL filter list and WEB features restriction. The default
configuration of content filter is off. You can enable it by checking Apply filter and Restrict
Web Features on: LAN, then click Apply.
• Enable Allowed/Forbidden Domains: Indicates whether or not the URL Filter is
enabled.
• Disable All web traffic except Allowed Domains: Indicates URL Filter mode.
URL Filter has two modes: Allow means to permit traffic to the specified domains
Digi International, Inc. User’s Guide
- 26 -
only; Forbidden means to prohibit traffic to the non-trusted sites only. Checking
the box means the Content Filter is enabled.
Restrict WEB Features
3.1.1.7 GPS
This is where you configure the GPS settings for the device
3.1.1.8 Time
This is where you set the time zone for the device and enable daylight savings time
settings.
• NTP Server: You can enable Automatically synchronize with Internet time server
by checking the box. The default value of the NTP server’s IP address is
207.46.130.100. This value is configurable.
• Time zone: Current country time zone. Check Enable Daylight Saving Time if it
is DST (Daylight Savings Time) in your country.
Digi International, Inc. User’s Guide
- 27 -
3.1.2 Management
3.1.2.1 Connections
This section of the UI contains information about VPN and Mobile Connections as seen
above.
Digi International, Inc. User’s Guide
- 28 -
3.1.2.2 Event Logging
The Event Logging display shows a list of the most recent activities that have taken place
on the Digi Wi-Point 3G. To change the settings of the Event Logging display: under
Configuration, click System>Log Settings. (See below)
Digi International, Inc. User’s Guide
- 29 -
You can configure the Log method here. The Digi Wi-Point 3G can display the syslog
entries in the Web UI and can send the Syslog entries to a remote syslog server. To send
the syslog to the syslog server, you need to check the Enable syslogging to remote syslog
server checkbox and assign the IP address of remote syslog server in the bottom box.
3.1.3 Administration
3.1.3.1 Backup/Restore
Download Configurations: User can save current device configurations to a PC for later
use.
Upload Configurations: User can upload saved device configurations to restore the
device to its previous configuration status.
Note: After uploading the configuration file, the device must be rebooted to
enable changes.
3.1.3.2 Update Firmware
The Digi Wi-Point 3G's firmware is upgraded through this tab. Follow these instructions:
1. Download the firmware from Digi’s website http://www.digi.com/support/
to your
host PC.
2. Browse to the firmware image. Click Upload firmware. A pop-up window
comparing the current version of firmware and the new version of the firmware to
be upgraded will appear. Click OK to confirm the upgrade.
Note: During the upgrade process, the Power LED will blink an amber color.
The device will reboot after the firmware upgrade is complete.
Digi International, Inc. User’s Guide
- 30 -
3.1.3.3 Factory Default Settings
Click Restore to reset all configurations to their factory default values.
3.1.3.4 System Information
Signal strength: Indicate current Wi-Fi signal strength. Signal strength ranges from
0-31 with 0 being the lowest signal strength and 31 being the highest signal strength.
If this value is 0, you do not have a signal, please check the Wi-Fi card carefully to
make sure it is inserted correctly. You may need to call your mobile operator to make
sure your area is covered within their network;
3.1.3.5 AT Command
AT Command: This function is provided to the advanced users to diagnostic the Wi-Fi
card or the V.90 modem connected by the serial cable. Select a target device from the
drop-down menu in the Port field. Input the AT commands in the Command field. Click
Execute to send the AT commands to the target and then the result will be seen in the
Output filed.
Note：The AT commands CANNOT be sent to the target device before you
Digi International, Inc. User’s Guide
- 31 -
disconnect the device from the Internet.
3.1.3.6 PIN Utility
This configuration page is set to Enable/Disable the function of PIN protection. The PIN
Code can prevent the unauthorized user from connecting to the internet.
There are three main tabs in this setting:
• Enable/Disable
• Change PIN
• Renew PIN
Note:
Before you setup PIN, please make sure the Wi-Fi is disabled, or you may
cause input errors. Be aware that every time you change the configuration of
PIN, you must reboot the devices to make it become effective.
• Enable PIN: Put the PIN Code in and click Enable to complete this function. The
PIN Code must be at least 4 characters long.
• Change PIN: Put in the former PIN Code and new one twice, then click the
Change button. Putting in the wrong PIN Code three times (consecutively) will
lock the SIM.
• Renew PIN: Enter Personal Unblocking Key (PUK) code and your new PIN. Click
Renew to enable.
Note:
Only after you pass the PIN authentication can you login the Internet access page or
the PIN management pages.
Digi International, Inc. User’s Guide
- 32 -
3.1.3.7 Reboot
After you have configured your device, save and reboot the Digi Wi-Point 3G. The new
configurations will then take effect. During the reboot process, the power LED will blink an
amber color.
Digi International, Inc. User’s Guide
- 33 -
4 Troubleshooting
4.1 Overview
• Introduction
• Reset to Factory Default procedure
• Force Reload Procedure
• Frequently Asked Questions
• LED Indication status
4.2 Introduction
This section helps you to locate problems related to the Digi Wi-Point 3G’s setup. The
most common installation problems are related to the IP address. For example, without
the TFTP server IP address, you will not be able to download firmware to the Digi Wi-Point
3G.
IP address management is critical and we suggest you to create a chart to document and
validate the IP addresses of your system.
If the password is lost or forgotten, you will need to reset the Digi Wi-Point 3G to default
values. The Reset to Factory Default procedure resets the Digi Wi-Point 3G configuration
settings, but does not change the current firmware. The Forced Reload procedure will
erase the current firmware and configurations, please use it with caution when you need
to download new software.
4.3 Reset to Factory Default Procedure
Use this procedure to reset the network configuration values, including the Digi
Wi-Point 3G IP Address, Subnet Mask, and so on. The current Digi Wi-Point 3G
Digi International, Inc. User’s Guide
- 34 -
Software will not be erased. This procedure may be required if the password or the
configurations are forgotten.
When the Digi Wi-Point 3G is working in normal status, press and hold the RELOAD
button until all the indicator lights change to amber. Release RELOAD button, and
press RESET button to reboot the Digi Wi-Point 3G. This will restore factory default
network values.
Warning:
If you press and hold the RELOAD button for more than 10 seconds
immediately after the Digi Wi-Point 3G is powered on or reset, the Digi
Wi-Point 3G will enter Force Reload Procedure. This will erase the firmware
image. You must have a TFTP server to upload a new firmware binary.
4.4 Forced Reload Procedure
Use this procedure to force the Digi Wi-Point 3G back to default network configuration
values and download new Digi Wi-Point 3G software. This procedure may be required
when the current Digi Wi-Point 3G software is missing, corrupted or needs to be upgraded.
A TFTP server is needed to complete this action.
Download procedure
1. A free TFTP server can be downloaded from www.solarwinds.net
.
2. To upload a firmware image, the Digi Wi-Point 3G must be on the same network
as your TFTP server. This can be any server on the network or via an
Ethernet-crossover cable.
The force reload will resent the Digi Wi-Point 3G's IP to 192.161.1.1. The Digi
Wi-Point 3G will need a TFTP server with IP address “192.161.1.2” in order to
download the file firmware.bin. Change the IP address of TFTP server to
Digi International, Inc. User’s Guide
- 35 -
192.161.1.2, and make sure the firmware image named firmware.bin is accessible
in the root directory of your TFTP server. Power on the Digi Wi-Point 3G.
3. Press the RESET button.
4. Press and hold the RELOAD button for about 10 seconds immediately after you
press and release the RESET button until the Power LED turns amber and the
WI-FI LED turns off. The Digi Wi-Point 3G will delete the current firmware and
configuration files. Then the Digi Wi-Point 3G will download the firmware from
step 2.
5. After finishing this procedure, the Digi Wi-Point 3G will reboot automatically and
the POWER LEDs will blink amber.
After completion the Digi Wi-Point 3G will have factory default configuration. Please
refer to chapter 5 for the factory default values.
4.5 Frequently Asked Questions
What is the maximum number of IP addresses that the Digi Wi-Point 3G will
support?
The Digi Wi-Point 3G will support up to 253 IP addresses.
Is IPSec Pass-Through mode supported by Digi Wi-Point 3G?
Yes, it is a built-in feature that the Digi Wi-Point 3G automatically enables.
Does Digi Wi-Point 3G support IPX or AppleTalk?
No. TCP/IP is the only protocol supported.
What is Network Address Translation and what is it used for?
Digi International, Inc. User’s Guide
- 36 -
Network Address Translation (NAT) translates multiple IP addresses on the private
network to one public Internet address. This adds a level of security since the address of a
PC connected to the private network is never transmitted on the Internet
Does the Digi Wi-Point 3G support any operating system other than Windows 98,
Windows Millennium, Windows 2000, or Windows XP?
The Digi Wi-Point 3G supports any 802.11 b/g client.
Which browsers does the Digi Wi-Point 3G support?
The Digi Wi-Point 3G supports Internet Explorer, Netscape, Mozilla and Safari.
I am not able to get the web configuration screen for the Digi Wi-Point 3G. What can
I do?
You may have to remove the proxy settings on your Internet browser, or remove the
dial-up settings on your browser. Check with your browser documentation, and make sure
that your browser is set to connect directly and that any dial-up is disabled.
Does the Digi Wi-Point 3G pass PPTP packets or actively route PPTP sessions?
The Digi Wi-Point 3G allows PPTP packets to pass through.
Is the Digi Wi-Point 3G cross-platform compatible?
Any platform that supports Ethernet and TCP/IP is compatible with the Digi Wi-Point 3G.
Can the Digi Wi-Point 3G act as my DHCP server?
Yes. The Digi Wi-Point 3G has a DHCP server built-in.
Digi International, Inc. User’s Guide
- 37 -
Can my personal information be intercepted during transmission through the air?
Wi-Fi features two-fold protection in security. The Digi Wi-Point 3G deploys Direct
Sequence Spread Spectrum technology utilizing the inherent security feature of
scrambling. Additionally, the Wi-Fi feature offers encryption (WEP) and authentication
(WPA Enterprise) to restrict access and enhance security.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit
shared-key algorithm, as described in the IEEE 802.11 standard.
What is WPA-PSK?
WPA-PSK means Wi-Fi Protected Access - Pre-Shared Key. It is an enhanced wireless
encryption standards defined by the Wi-Fi Alliance.
What is a MAC Address?
The Media Access Control (MAC) address is a unique number assigned by the
manufacturer to any Ethernet networking device that allows the network to identify it at the
hardware level. For all practical purposes, this number is usually permanent. Unlike IP
addresses, which can change every time a computer logs onto the network, the MAC
address of a device stays the same, making it a valuable identifier for the network.
Digi International, Inc. User’s Guide
- 38 -
How do I resolve issues with signal loss?
Connectivity can change depending on the environment the device is located in. Such
materials as lead glass, metal, concrete floors, water and walls can inhibit the signal and
reduce range. You may try using a channel with less traffic in order to eliminate
interference.
Digi International, Inc. User’s Guide
- 39 -
5 Default Digi Wi-Point 3G Settings
The following table lists the settings defined at the factory for all Digi Wi-Point 3G units,
and provides a place to enter the values for your system if you have changed them.
Default Setting
Item Default Value My System Value
Local IP Address 192.161.1.1
Local IP Mask 255.255.255.0
Network Name(SSID) DIGIWIPOINT3G
Frequency Channel 6
DHCP Server Status Enabled
DHCP Lease Range 192.16 8.1.2-192.168.1.1
00
TFTP Server IP Address 192.161.1.2
TFTP File Name firmware.bin
Http Username root
Http Password dbps
Loading...
