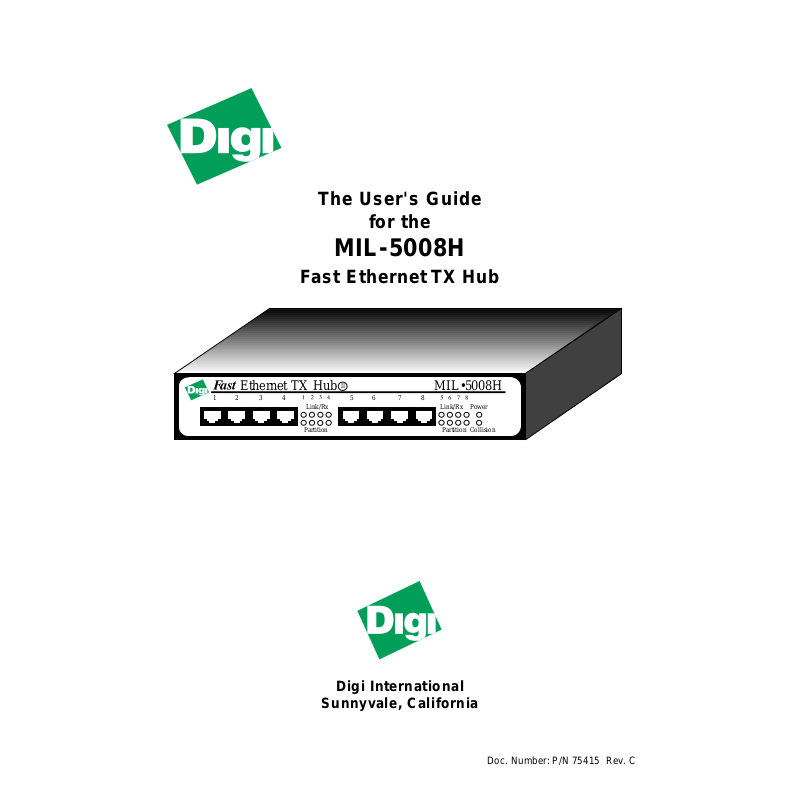

Digi MIL-5008H User Manual

The User's Guide

for the

MIL-5008H

Fast Ethernet TX Hub

Ethernet TX Hub

12 43

Link/Rx

open 2.34 x .535

Partition Partition Collision

II

56 87

MIL•5008H

Link/Rx

Power

Digi International

Sunnyvale, California

Doc. Number: P/N 75415 Rev. C

Install Guide

able of Contents

T

1. Introduction ................................................................................3

1.1 About This Guide......................................................................3

1.2 Package Contents......................................................................3

1.3 Digi Fast Ethernet Products.....................................................4

1.4 Features.......................................................................................4

1.5 Hardware Description..............................................................4

2. Theory of Operation..................................................................5

3. Hardware Installation...............................................................7

3.1 Rack Mount Ear Installation....................................................7

3.2 Network Configuration............................................................8

4. Specifications..............................................................................9

Model: MIL-5008H Fast Ethernet TX Hub 2

Install Guide

Introduction

This guide describes the installation of the MIL-5008H hub and its integration into
a network. It covers unpacking the product, connection of power, cabling
requirements and connection to the RJ-45 ports, and installing the optional feet
and rack mount ears. In addition, this guide describes the meaning of the LEDs,
provides trouble shooting suggestions, and a theory of operation of the MIL­5008H.

The MIL-5008H complies with the IEEE 802.3u standard for 100BASE-TX class II
hubs supporting half duplex, 100Mbps bandwidth. Each port supports auto
partitioning with reconnection after fault correction.

The LEDs easily update the user on the status of the hub. This includes collision
and power status, link integrity, data reception, and port partitioning.

About This Guide

This guide describes the installation of the Digi MIL-5008H Fast Ethernet
100BASE-TX hub. The guide covers the following topics:

• Description of hardware and features

• Theory of Operation

• Hardware installation procedures

• Warranty and Technical Support

Package Contents

Carefully unpack the contents of the package and check them against the
following list:

• MIL-5008H Hub

• Power Supply

• Four rubber feet and rack mount ears

• Warranty registration card
Contact your dealer if any of the above is missing or damaged. Retain the original

shipping carton and material in the event the unit needs to be returned or
repaired.

Remember to read the enclosed warranty and return the registration card within
10 days of purchase to validate the warranty. This also entitles you to technical
support.

Model: MIL-5008H Fast Ethernet TX Hub 3
