MiniCore RCM5600W

C-Programmable Wi-Fi Co re Modul e

User’s Manual

019–0174 • 090128–B

MiniCore RCM5600W User’s Manual

Part Number 019-0174 • 090128–B • Printed in U.S.A.

No part of the contents of this manual may be reproduced or transmitted in any form or by any means without the express written permission of Digi International.

Permission is granted to make one or more copies as long as the copyright page contained therein is included. These copies of the manuals may not be let or sold for any reason without the express written permission of Digi International.

Digi International reserves the right to make changes and

improvements to its products without providing n otice.

T r ade mark s

Rabbit, MiniCore, and Dynamic C are registered trademarks of Digi International Inc.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Rabbit 5000 and MiniCore are trademarks of Digi International Inc.

The latest revision of this manual is available on the Rabbit Web s ite, www.rabb it.com, for free, unregistered download.

Digi International Inc.

www.rabbit.com

MiniCore RCM5600W

Chapter 1. Introduction 1

1.1 RCM5600W Features...........................................................................................................................2

1.2 Advantages of the RCM5600W............................................................................................................3

1.3 Development and Evaluation Tools......................................................................................................4

1.3.1 RCM5600W Standard Development Kit......................................................................................4

1.3.2 RCM5600W Deluxe Development Kit.........................................................................................4

1.3.3 Optional Add-Ons.........................................................................................................................5

1.3.4 Software........................................................................................................................................5

1.3.5 Online Documentation..................................................................................................................5

1.4 Certifications.........................................................................................................................................6

1.4.1 FCC Part 15 Class B.....................................................................................................................6

1.4.2 Industry Canada Labeling.............................................................................................................7

1.4.3 Europe...........................................................................................................................................8

Chapter 2. Getting Started 9

2.1 Install Dynamic C.................................................................................................................................9

2.2 Hardware Connections........................................................................................................................10

2.2.1 Step 1 — Prepare the Interface Board for Development............................................................10

2.2.2 Step 2 — Install Module on Interface Board..............................................................................11

2.2.3 Step 3 — Connect Antenna.........................................................................................................12

2.2.4 Step 4 — Connect USB Cable....................................................................................................12

2.3 Run a Sample Program.......................................................................................................................14

2.3.1 Troubleshooting..........................................................................................................................15

2.4 Where Do I Go From Here? ...............................................................................................................16

2.4.1 Technical Support.......................................................................................................................16

Chapter 3. Running Sample Programs 17

3.1 Introduction.........................................................................................................................................17

3.2 Sample Programs................................................................................................................................18

Chapter 4. Hardware Reference 21

4.1 RCM5600W Digital Inputs and Outputs ............................................................................................22

4.1.1 Memory I/O Interface.................................................................................................................28

4.1.2 Other Inputs and Outputs............................................................................................................28

4.2 Serial Communication ........................................................................................................................29

4.2.1 Serial Ports..................................................................................................................................29

4.2.2 Programming Port.......................................................................................................................30

4.3 Wi-Fi...................................................................................................................................................31

4.3.1 Antenna Grounding Requirements..............................................................................................33

4.4 Programming Modes...........................................................................................................................34

4.4.1 Standalone Operation of the RCM5600W..................................................................................35

4.5 Other Hardware...................................................................................................................................36

4.5.1 Clock Doubler.............................................................................................................................36

4.5.2 Spectrum Spreader......................................................................................................................36

User’s Manual

4.6 Memory..............................................................................................................................................37

4.6.1 SRAM.........................................................................................................................................37

4.6.2 Flash Memory.............................................................................................................................37

4.6.3 Encryption RAM Memory .........................................................................................................37

Chapter 5. Software Reference 39

5.1 More About Dynamic C .....................................................................................................................39

5.2 Dynamic C Function Calls................................................................................................................41

5.2.1 Digital I/O...................................................................................................................................41

5.2.2 Serial Communication Drivers...................................................................................................41

5.2.3 Serial Flash Memory Use...........................................................................................................42

5.2.4 User and ID Blocks ....................................................................................................................44

5.2.5 Wi-Fi Drivers..............................................................................................................................44

5.2.6 Interface Board Function Calls...................................................................................................45

5.2.6.1 Board Initialization............................................................................................................ 45

5.3 Upgrading Dynamic C .......................................................................................................................46

5.3.1 Add-On Modules........................................................................................................................46

Chapter 6. Using the Wi-Fi Features 47

6.1 Introduction to Wi-Fi .........................................................................................................................47

6.1.1 Infrastructure Mode....................................................................................................................47

6.1.2 Ad-Hoc Mode.............................................................................................................................48

6.1.3 Additional Information...............................................................................................................48

6.2 Running Wi-Fi Sample Programs......................................................................................................49

6.2.1 Wi-Fi Setup ................................................................................................................................50

6.2.2 What Else You Will Need..........................................................................................................51

6.2.3 Configuration Information..........................................................................................................52

6.2.3.1 Network/Wi-Fi Configuration........................................................................................... 52

6.2.3.2 PC/Laptop/PDA Configuration......................................................................................... 53

6.2.4 Wi-Fi Sample Programs.............................................................................................................55

6.2.4.1 Wi-Fi Operating Region Configuration............................................................................. 55

6.2.4.2 Wi-Fi Operation................................................................................................................. 57

6.2.5 RCM5600W Sample Programs..................................................................................................60

6.3 Dynamic C Wi-Fi Configurations......................................................................................................67

6.3.1 Configuring TCP/IP at Compile Time .......................................................................................67

6.3.2 Configuring TCP/IP at Run Time...............................................................................................71

6.3.3 Other Key Function Calls...........................................................................................................71

6.4 Where Do I Go From Here?...............................................................................................................72

Appendix A. RCM5600W Specifications 73

A.1 Electrical and Mechanical Characteristics ........................................................................................74

A.1.1 mini PCI Express Connector Design Recommendations..........................................................78

A.2 Rabbit 5000 Microprocessor Characteristics ....................................................................................79

Appendix B. Interface Board 81

B.1 Introduction .......................................................................................................................................82

B.1.1 Interface Board Features............................................................................................................83

B.2 Mechanical Dimensions and Layout.................................................................................................84

B.2.1 Headers ......................................................................................................................................85

B.3 Power Supply.....................................................................................................................................86

B.4 Using the Interface Board..................................................................................................................87

B.4.1 Add Additional Boards..............................................................................................................88

B.5 Interface Board Jumper Configurations............................................................................................89

MiniCore RCM5600W

Appendix C. Prototyping Board 91

C.1 Introduction........................................................................................................................................92

C.1.1 Prototyping Board Features........................................................................................................92

C.2 Mechanical Dimensions and Layout..................................................................................................93

C.2.1 Headers.......................................................................................................................................95

C.3 Using the Prototyping Board..............................................................................................................96

C.3.1 Add Additional Boards...............................................................................................................97

Appendix D. Digital I/O Accessory Board 99

D.1 Introduction......................................................................................................................................100

D.1.1 Digital I/O Accessory Board Features.....................................................................................100

D.2 Mechanical Dimensions and Layout................................................................................................101

D.2.1 Headers.....................................................................................................................................102

D.3 Using the Digital I/O Accessory Board...........................................................................................103

D.3.1 Configuration...........................................................................................................................104

D.3.2 Add Additional Boards ............................................................................................................106

Appendix E. Serial Communication Accessory Board 107

E.1 Introduction......................................................................................................................................108

E.1.1 Serial Communication Accessory Board Features...................................................................108

E.2 Mechanical Dimensions and Layout................................................................................................109

E.2.1 Headers............................................................ ...... ...... ................................. ...... ......................110

E.3 Using the Serial Communication Accessory Board.........................................................................111

E.3.1 Configuration......................................................... ...... ................................. ...... ..... .................112

E.3.2 Add Additional Boards.............................................................................................................114

Appendix F. Power Supply 115

F.1 Power Supplies.................................................................................................................................115

F.1.1 Battery Backup .........................................................................................................................116

F.1.2 Battery-Backup Circuit.............................................................................................................117

F.1.3 Reset Generator.........................................................................................................................117

Index 119

Schematics 123

User’s Manual

MiniCore RCM5600W

1. INTRODUCTION

A Development Kit is available with the essentials that you need to design your own microprocessor-based system, and includes a complete Dynamic C software development system. The Development Kit also contains an Interface Board with a USB connection that will allow you to evaluate the RCM 5600W, and a Prototyping Board to help you to develop your own applications. You will also be able to write and test software for the RCM5600W modules, including Wi-Fi applications.

The RCM5600W has a Rabbit 5000 microprocessor operating at up to 73.73 MHz, flash memory, two clocks (main oscillator and real-time clock), and the circuitry necessary to reset and manage the Rabbit 5000. An edge connector brings out the RCM5600W user interface to a 52-pin mini PCI Express socket on the motherboard the RCM5600W is mounted on.

The RCM5600W receives its +3.3 V power from the motherboard on which it is mounted. The RCM5600W can interface with other CMOS-compatible digital devices through the motherboard.

User’s Manual 1

1.1 RCM5600W Features

• Small size: 1.20" × 2.00" × 0.40" (30 mm × 51 mm × 10 mm)

• Microprocessor: Rabbit 5000 running

at 73.73 MHz

• Up to 35 general-purpose I/O lines each configurable with up to four alternate functions

• 3.3 V I/O lines

Six CMOS-compatible serial ports — f

•

our ports are configurable as a clocked serial port

(SPI), and two ports are configurable as SDLC/HDLC serial ports.

• Airoha single-chip 802.11b/g transceiver

• External I/O bus can be configured for 8 data lines, 8 address lines (shared with parallel

I/O lines), and I/O read/write

• 1MB SRAM and 1MB serial flash memory

• Battery-backable real-time clock

• Watchdog supervisor

Currently there is one RCM5600W production model. Table 1 summarizes its main features.

Table 1. RCM5600W Features

Feature RCM5600W

Microprocessor

Rabbit

5000 at 73.73 MHz SRAM 1MB Serial Flash Memory

(program)

6 shared high-speed, CMOS-compatible ports:

6 are configurable as asynchronous serial ports;

Serial Ports

Wi-Fi 802.11b/g standard, ISM 2.4 GHz

4 are configurable as clocked serial ports (SPI); 2 are configurable as SDLC/HDLC serial ports; 1 asynchronous serial port is used during programming

1MB

The RCM5600W is programmed through a USB connector on the motherboard using a USB cable supplied with th e De vel o pm e n t Ki t.

NOTE: The RabbitLink cannot be used to program the RCM5600W.

Appendix A provides detailed specifications for the RCM5600W.

2 MiniCore RCM5600W

1.2 Advantages of the RCM5600W

• Fast time to market using a fully engineered, “ready-to-run/ready-to-program” microprocessor core.

• Competitive pricing when c ompar ed with the alternative of purchasing and assembling individual components.

• Easy C-language program development and debugging

• Rabbit Field Utility to download compiled Dynamic C .bin files.

• Generous memory size allows large programs with tens of thousands of lines of code,

and substantial data storage.

User’s Manual 3

1.3 Development and Evaluation Tools

1.3.1 RCM5600W Standard Development Kit

The RCM5600W Standard Development Kit contains the hardware essentials you will need to use your RCM5600W module. These items are supplied in the standard version of the Development Kit.

• RCM5600W module.

• 2.4 GHz dipole antenna with mounting bracket and U.FL to RP-SMA connector cable.

• Interface Board with standoffs/connectors.

• Prototyping Board with standoffs/connectors.

• USB cable to program RCM5600W via Interface Board.

• Dynamic C CD-ROM, including product documentation on disk.

• Getting Started instructions.

• Registration card.

USB Cable

Antenna

CAUTION: Provide ESD protection such as smocks and grounding straps on your footwear

while assembling the RCM5600W module, installing it on another board, and while making or removing any connections.

MiniCore RCM5600W

The RCM5600W MiniCore module provides a compact module in a mini PCI Express form factor with integrated Wi-Fi/802.11b/g functionality to allow you to create a low-cost, low-power, Wi-Fi based control and communications solution for your embedded system. These Getting Started instructions included with the Development Kit will help you get your RCM5600W up and running so that you can run the sample programs to explore its capabilities and develop your own applications.

Development Kit Contents

The RCM5600W Standard Development Kit contains the following items

• RCM5600W m odule.

• 2.4 GHz dipole antenna with mounting bracket and RP-SMA connector cable.

• Interface Board with standoffs/connectors.

• Prototyping Board with standoffs/connectors.

• USB cable to program RCM5600W via Interface Board.

• Dynamic C

CD-ROM, with complete product documentation on disk.

• G etting Started instructions.

• R egistration card. Visit our online Rabbit store at www.rabbit.com/store/ for the latest information on peripherals and accessories that are available for the RCM5600W MiniCore modules.

Step 1 — Install Dynamic C

Before doing any development, you must install Dynamic C. Insert the CD from the Development Kit in your PC’s CD-ROM drive. If the installation does not auto-start, run the setup.exe program in the root directory of the Dynamic C CD. Install any Dynamic C modules after you install Dynamic C

Rabbit, Dynamic C, and Digi are registered trademarks of Digi International Inc.

Getting Started

Instructions

RP-SMA Connector

Cable

IDC Header

Strip

Antenna

Bracket

Prototyping Board

Standoffs

Interface Board

Figure 1. RCM5600W Standard Development Kit

1.3.2 RCM5600W Deluxe Development Kit

In addition to the items included in the standard Development Kit, the Deluxe Development Kit contains the following items.

• Universal AC adapter, 5 V DC, 2 A (includes Canada/Japan/U.S., Australia/N.Z., U.K., and European style plugs). Development Kits sold in North America may contain an AC adapter with only a North American style plug.

• Digital I/O and Serial Communication accessory boards for use with certain sample programs.

• DB9 to 10-pin header serial cable.

• Rabbit 5000 Processor Easy Reference poster.

4 MiniCore RCM5600W

1.3.3 Optional Add-Ons

Rabbit has a power supply and an Antenna Add-On Kit available for the RCM5600W.

• Separate power supply (Part No. 101-1273) The universal AC adapter is available for customers who purchased the Standard

Development Kit. This universal AC adapter may be used if your RCM5600W does not work when you power it through the USB cable, and you do not have your own +5 V DC power supply.

• Antenna Add-On Kit (Part No. 101-1295)

X 2.4 GHz dipole antenna X U.FL to RP-SMA connector cable

RCM5600W modules purchased individually or in production quantities do not come with an antenna or a connector cable. The Antenna Add-On Kit provides a convenient source of these items.

Visit our Web site at www.rabbit.com or contact your Rabbit sales representative or authorized distributor for further information.

1.3.4 Software

The RCM5600W is programmed using version 10.50 or later of Dynamic C. A compatible version is included on the Development Kit CD-ROM. This version of Dynamic C includes the popular µC/OS-II real-time operating system, point-to-point protocol (PPP), FAT file system, RabbitWeb, and other select libraries.

Rabbit also offers for purchase the Rabbit Embedded Security Pack featuring the Secure Sockets Layer (SSL) and a specific Advanced Encryption Standard (AES) library. In addition to the Web-based technical support included at no extra charge, a one-year telephonebased technical support subscription is also available for purchase. Visit our Web site at

www.rabbit.com for further information and complete documentation, or contact your

Rabbit sales representative or authorized distributor

1.3.5 Online Documentation

The online documentation is installed along with Dynamic C, and an icon for the documentation menu can be placed on the workstation’s desktop. Double-click this icon to reach the menu. If the icon is missing, use your browser to find and load

default.htm in

the docs folder, found in the Dynamic C installation folder. The latest versions of all documents are always available for free, unregistered download

from our Web sites as well.

User’s Manual 5

1.4 Certifications

The systems integrator and the end-user are ultimately responsible for the channel range and power limits complying with the regulator y requirements of the co untry where the end device will be used. Dynamic C function calls and sample programs illustrate how this is achieved by selecting the country or region, which sets the channel range and power limits automatically. See Section 6.2.4.1 for additional information and sample programs demonstrating how to configure an end device to meet the regulatory channel range and power limit requirements.

Only RCM5600W modules bearing the FCC certification are certified for use in Wi-Fi enabled end devices, and any applications must have been compiled using Dynamic C v. 10.50 or later. The certification is valid only for RCM5600W modules equipped with the dipole antenna that is included with the modules, or a detachable antenna with a 60 cm coaxial cable (Digi International part number 29000105). Follow the antenna grounding recommendations provided in Section 4.3.1. Changes or modifications to this equipment not expressly approved by Digi International may void the user's authority to operate this equipment.

In the event that these conditions cannot be met, then the FCC certification is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the systems integrator or end-user will be responsible for re-evaluating the end device (including the transmitter) and obtaining a separate FCC certification.

NOTE: Any regulatory certification is voided if the RF shield on the RCM5600W

module is removed.

1.4.1 FCC Part 15 Class B

The RCM5600W MiniCore module has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

6 MiniCore RCM5600W

Labeling Requirements (FCC 15.19)

FCC ID: MCQ-MCWIFI

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

If the FCC identification number is not visible when the module is i nstalled inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module or the device must be capable of displaying the FCC identification number electronically. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: MCQ-MCWIFI” or “Contains FCC ID: MCQ-MCWIFI.” Any similar wording that expresses the same meaning may be used.

The following caption must be included with documentation for any device incorporating the RCM5600W MiniCore module.

Caution — Exposure to Radio-Frequency Radiation.

To comply with FCC RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.

This device must not be co-located or operating in conjunction with any other antenna or transmitter.

1.4.2 Industry Canada Labeling

IC: 1846A-MCWIFI RCM5600W DIGI INTL

This Class B digital apparatus complies with Canadian standard ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

User’s Manual 7

1.4.3 Europe

The marking shall include as a minimum:

• the name of the manufacturer or his trademark;

• the type designation;

• equipment classification, (see below).

Receiver

Class

Highly reliable SRD communication media, e.g., serving human life inherent systems (may result in a physical risk to a person).

Medium reliable SRD communication media, e.g., causing inconvenience to persons that cannot be overcome by other means.

Standard reliable SRD communication media,e.g., inconvenience to persons that can simply be overcome by other means.

Risk Assessment of Receiver Performance

NOTE: Manufacturers are recommended to declare the classification of their devices in

accordance with Table 2 and EN 300 440-2 [5] clause 4.2, as relevant. In particular, where an SRD that may have inherent safe ty of human life implications, manufacturers and users should pay particular attention to the potential for interference from other systems operating in the same or adjacent bands.

Regulatory Mark ing

The equipment shall be marked, where applicable, in accordance with CEPT/ERC Recommendation 70-03 or Directive 1999/5/EC, whichever is applicable. Where this is not applicable, the equipment shall be marked in accordance with the National Regulatory requirements.

8 MiniCore RCM5600W

2. GETTING S TARTED

This chapter describes the RC M560 0W hardw are i n m ore detai l, a nd explains how to set up and use the accompanying Interface Board.

NOTE: This chapter (and this manual) assume that you have the RCM5600W Develop-

ment Kit. If you purchased an RCM5600W module by it self , you will hav e to adapt the information in this chapter and elsewhere to your test and development setup.

2.1 Install Dynamic C

To develop and de bu g pro gr am s for the RC M560 0W mod ul es (and for al l oth e r Rabb i t hardware), you must install and use Dynamic C.

If you have not yet installed Dynamic C version 10.50 (or a later version), do so now by inserting the Dynamic C CD from the Development Kit in your PC’s CD-ROM drive. If autorun is enabled, the CD installation will begin automatically.

If autorun is disabled or the installation does not start, use the Windows Start | Run menu or Windows Disk Explorer to launch setup.exe from the root folder of the CD-ROM.

The installation program will guide you through the installation process. Most steps of the process are self-explanatory.

Once your installation is complete, you will have up to three new icons on your PC desktop. One icon is for Dynamic C, another opens the documentation menu, and the third is for the Rabbit Field Utility, a tool used to download precompiled software to a target system.

If you have purchased any of the optional Dynamic C modules, install them after installing Dynamic C. The modules may be installed in any order. You must install the modules in the same folder where Dynamic C was installed.

User’s Manual 9

2.2 Hardware Connections

There are four4 steps to connecting the Interface Board for use with Dynamic C and the sample programs:

1. Insert standoffs/connectors on the Interface Board.

2. Install the RCM5600W module on the Interface Board.

3. Connect antenna.

4. Connect the USB cable between the Interface Board and the workstation PC.

CAUTION: Provide ESD protection such as smocks and grounding straps on your

footwear.while assembling the RCM5600W module, installing it on another board, and while making or removing any connections.

Remember to use ESD protection re gardl ess of whet her you are working wit h the RCM5600W module on the Interface Board or in your own OEM application.

2.2.1 Step 1 — Prepare the Interface Board for Development

Insert a short plastic standoff supplied from the Development Kit in one of the corner holes from the bottom of the Interface Board, then secure it with a long plastic standoff from above as shown in Figure 2. Repeat this step so that plastic standoffs/connectors are in place at three positions and the antenna bracket is at the fourth position.

Figure 2. Insert Standoffs/Connectors

10 MiniCore RCM5600W

2.2.2 Step 2 — Install Module on Interface Board

Position the RCM5600W module with the edge connectors facing the mini PCI Express

socket J1A at an angle as shown in Figure 3 below. Insert the edge connectors into the mini PCI Express socket J1A, then press down on the opposite edge of the RCM5600W module to snap it into place in holder J1B.

RCM5600W

J1A

J1B

Interface

Board

Figure 3. Install the RCM5600W Module on the Interface Board

Should you need to remove the RCM5600W module, use two fingernails to hold back the spring clip at J1B from the two RCM5600W corners, lift up the edge of the RCM5600W above J1B, then pull the RCM5600W away to remove the edge connectors from the mini PCI Express socket.

J1B

J1A

J1B

CAUTION: Remove power before at tempti ng to i nsert or re move the RCM5600W

in the mini PCI Express socket.

User’s Manual 11

2.2.3 Step 3 — Connect Antenna

Install the antenna U.FL to RP-SMA connector cable in the bracket using two lockwashers and the nut as shown in the insert in Figure 4. Connect the wire to connector P1 on the RCM5600W, then attach the antenna to the antenna RP-SMA connector.

RESET

Connect

wire to P1

JP1

Power LED

JP2

Figure 4. Connect Antenna and USB Cable

Alternate Antenna Connector Cable Installation

If you prefer, you may solder the RP-SMA antenna connector directly to the Interface Board at P1 as shown in the diagram at right. Before doing so, make sure that you use a long plastic standoff instead of the antenna bracket. Then connect the wire to connector P1 on the RCM5600W , and attach the antenna to the ant enna RP-SMA connector.

CAUTION: Do not remove the RF shield

since any attempt to remove the shield will damage the RF circuits underneath it.

Any regulatory certification is voided if the RF shield on the RCM5600W module is removed.

nut

lockwashers

PC USB port

2.2.4 Step 4 — Connect USB Cable

The USB cable connects the RCM5600W to the PC running Dynamic C to download programs and to monitor the RCM5600W module during debugging. It also supplies power to the Interface Board and the RCM5600W via the USB interface.

Connect the USB cable between USB connector J5 on the Interface Board and your PC as shown in Figure 4. Note that the USB cable connectors are different at either end, so there is only one way to connect them between the PC and the Interface Board.

12 MiniCore RCM5600W

Your PC should recognize the new USB hardware, and the LEDs next to the USB connector on the Interface Board will flash — if you get an error message, you will have to install USB driver s. Drivers for Windows XP are available in the Dynamic C

USB Programming Cable\WinXP_2K

folder — double-click DPInst.exe to install

Drivers\Rabbit

the USB drivers. Drivers for other operating systems are available online at

www.ftdichip.com/Drivers/VCP.htm.

The green power LED on the Interface Board should light up when you connect the USB cable. The RCM5600W and the Interface Board are now ready to be used.

NOTE: A RESET button is provided on the Interface Board above the Ethernet jack to

allow a hardware reset without disconnecting power.

NOTE: Pins 1–2 on header JP1 on the Interface Board must be jumpered to download

and debug application s and sample programs wi th Dynamic C r unning. Pin s 1–2 shoul d be left unjumpered to run an program already loaded in flash memory.

CAUTION: Do not jumper pins 1–3 on header JP1 on the Interface Board.

Alternate Power Supply Connections — Deluxe Development Kit

The deluxe Development Kit contains a separate AC adapter that may be used to supply power to the Interface Board and the RCM5600W when the USB cable is not connected or when more power is needed than the USB cable is able to supply. The AC adapter may also be used to supply power when the USB cable is connected, in which case the power supply through the USB cable will be disconnected automatically.

Remove slot cover,

insert tab into slot

Assemble

AC Adapter

Snap plug into place

RESET

AC Adapter

Figure 5. Alternate Power Supply Connections—Deluxe Development Kit

User’s Manual 13

First, prepare the AC adapter for the country where it will be used by selecting the plug. The deluxe Development Kit presently includes Canada/Japan/U.S., Australia/N.Z., U.K., and European style plugs. Snap in the top of the plug assembly into the slot at the top of the AC adapter as shown in Figure 5, then press down on the spring-loaded clip below the plug assembly to allow the plug assembly to click into plac e. Release the c lip to secure the plug assembly in the AC adapter.

Connect the AC adapter to DC input jack J6 on the Interface Board as shown in Figure 5. Plug in the AC adapter. The green power LED on the Interface Board should light up. The RCM5600W and the Interface Board are now ready to be used.

Note that the center pin of J6 is positive.

2.3 Run a Sample Program

If you already have Dynamic C installed, you are now ready to test your programming connections by running a sample program. Start Dynamic C by double-clicking on the Dynamic C icon on your desktop or in your in the Dynamic C

Converter

is selected to support the USB cable. Choose Store Program in RAM on the

Options > Project Options menu and verify that Use USB to Serial

“Compiler” tab for faster compiling when running sample programs. Click You may have to select the COM port assigned to the USB USB cable on your PC. In

Dynamic C, select munications” tab, then click

Options > Project Options, then select this COM port on the “Com-

OK. You may type the COM port number followed by Enter

on your computer keyboard if the COM port number is outside the range on the dropdown menu.

Start menu. Select the “Communications” tab

OK.

Now find the WIFISCAN.C sample program in the Dynamic C Samples\WiFi folder, open it with the File menu, then compile and run the sample program by pressing F9.

The Dynamic C STDIO window will display Starting scan...., and will display a list

of access points/ad-hoc hosts similar to the one shown here.

The following fields are shown in the Dynamic C

STDIO window.

• Channel—the channel the access point is on (1–11).

• Signal—the signal strength of the access point.

• MAC—the hardware (MAC) address of access point.

• Access Point SSID—the SSID the access point is using.

14 MiniCore RCM5600W

2.3.1 Troubleshooting

It may be possible that your PC or laptop is unable to deliver enough current through the USB connection if you are not using a separate power supply. The RCM5600W will not operate in this case, and the solution is to use a separate 5 V power supply as described in the Alternate Power Supply Connections section. Contact Technical Support (see Section 2.4.1) or visit our Web site if you would like to get the universal AC adapter from the Deluxe Development Kit.

If you receive the message

Could Not Open Serial Port, check that the COM port

assigned to the USB cable was identified and set up in Dynamic C as described above. This same error occurs when Windows has already allocated the COM port to another process.

If you receive the message No Rabbit Processor Detected, the USB cable may be connected to the wrong COM port, or the connection may be faulty. First, check both ends of the USB cable to ensure that it is firmly plugged into the PC and the USB connector in the Interface Board. Ensure that the module is firmly and correctly installed in its connector on the Interface Board.

If Dynamic C appears to compile the BIOS successfully, but you then receive a communication error message when you compile and load a sample program, it is possible that your PC cannot handle the higher program-loading baud rate. Try changing the maximum download rate to a slower baud rate as follows.

• Locate the

Options > Project Opti ons menu. Select a slower Max download baud rate. Click OK

Serial Options dialog on the “Communications” tab in the Dynamic C

to save.

If a program compiles and loads, but then loses target communication before you can begin debugging, it is possible that your PC cannot handle the default debugging baud rate. Try lowering the debugging baud rate as follows.

• Locate the Serial Options dialog on the “Communications” tab in the Dynamic C

Options > Project Options menu. Choose a lower debug baud rate. Click OK to save.

Press <Ctrl-Y> to force Dyn a m i c C to recom p il e t h e BIOS. You should receive a BIOS

successfully compiled

User’s Manual 15

message once this step is completed successfully.

2.4 Where Do I Go From Here?

If the sample program ran fine, you are now ready to go on to other sample programs and to develop your own applications. The sour ce code for the sample programs

you to modify them for your own use. The RCM5600W User’s Manual also provi

complete hardware reference information for the RCM5600W, the Interface Board, the Prototyping Board, and the accessory boards in the Deluxe Development Kit.

For advanced development topics, refer to the Dynamic C User’s Manual, also in the online documentation set.

2.4.1 Technical Support

NOTE: If you purchased your RCM5600W through a distributor or through a Rabbi t p art -

ner, cont act the distributor or partner firs t for technical support.

If there are any problems at this point:

is provided to allow

des

• Use the Dynamic C

Help menu to get further assistance with Dynamic C.

• Check the Rabbit Technical Bulletin Board and forums at www.rabbit.com/support/bb/ and at www.rabbit.com/forums/.

• Use the Technical Support e-mail form at www.rabbit.com/support/.

16 MiniCore RCM5600W

3. RUNNING SAMPLE PROGRAMS

To develop and debug programs for the RCM5600W (and for all other Rabbit hardware), you must install and use Dynamic C. This chapter provides a tour of its m ajor feat ures w ith res pect to the RCM5600W.

3.1 Introduction

To help familiarize you with the RCM5600W modules, Dynamic C includes several sample programs. Loading, executing and studying these programs will give you a solid hands-on overview of the RCM5600W’s capabilities, as well as a quick start with Dynamic C as an application development tool.

NOTE: The sample programs assume t hat you hav e at least an elementary grasp of ANSI

C. If you do not, see the introduct ory page s of the Dynamic C User’s Manual for a sug- gested reading list.

In order to run the sample programs discussed in this chapter and elsewhere in this manual,

1. Your RCM5600W must be installed on the Interface Board as described in Chapter 2, “Getting Started.”

2. Dynamic C must be installed and running on your PC.

3. The USB cable must connect the Interface Board to your PC.

4. Power must be applied to the RCM5600W through the Interface Board.

Refer to Chapter 2, “Getting Started,” if you need further information on these steps. To run a sample program, open it with the

and run it by selecting Run in the Run menu (or press F9). The RCM5600W must be in Program Mode (see Figure 11) and must be connected to a PC using the USB cable.

Complete information on Dynamic C is provided in the Dynamic C User’s Manual.

File menu (if it is not still open), then compile

User’s Manual 17

3.2 Sample Programs

Of the many sample programs included with Dynamic C, several are specific to the RCM5600W. These programs will be found in the SAMPLES\RCM5600W folder. Sample programs in the SAMPLES folder one level up are generic samples that can be run on any Rabbit-based product.

Before you compile and run the following sample programs, make sure that pins 1–2, 5–6, and 7–8 on header JP1 of the Interface Board are jumpered. The pins on header JP2 must also be jumpered. Each sample program has comments that describe the purpose and function of the program. Follow the instructions at the beginning of the sample program.

CAUTION: Do not jumper pins

1–3 on header JP1 on the Interface Board.

JP1

JP2

•

FLASHLED.C—demonstrates the use of costatements to flash LED DS1 on the Inter-

face Board. PD0 on the RCM5600W is used to drive the LED.

•

TOGGLESWITCH.C—monitors switch S1 and LED DS1 on the Interface Board. LED

DS1 on the Interface Board is turned on and off when you press switch S1. PD0 on the RCM5600W is used to drive the LED, and PD1 detects the activity on switch S1.

18 MiniCore RCM5600W

The Digital I/O accessory board may also be used to run the TOGGLESWITCH.C and the

SERIALTOSERIAL.C sample programs. This accessory board is included only with the

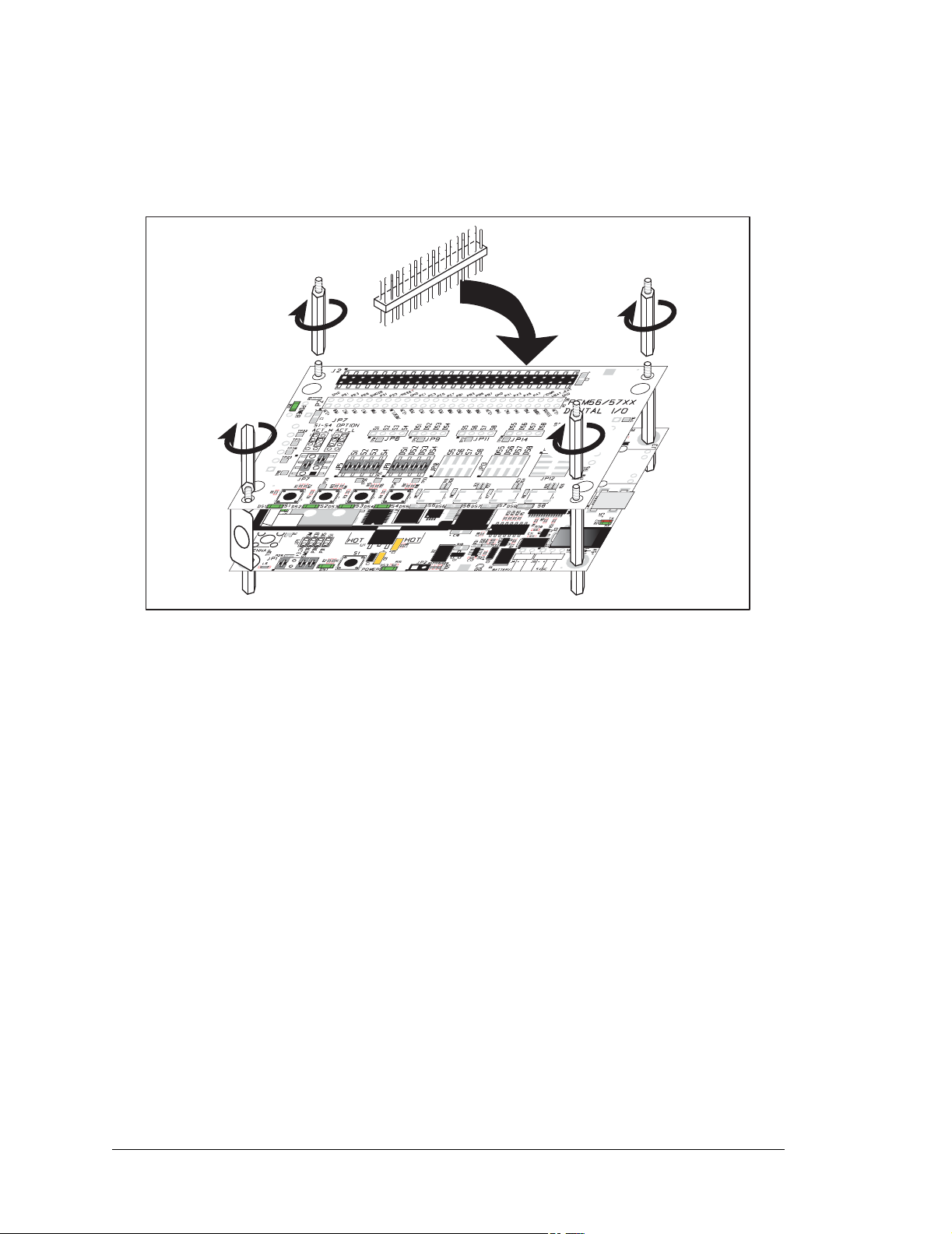

Deluxe Development Kit. To install the Digital I/O accessory board, insert the strip of header pins included with the

accessory board into the socket at J12 on the bottom side of the Digital I/O accessory board. Then line up the Digital I/O accessory board with the Interface Board standoffs/ connectors and install the Digital I/O accessory board pins into socket J2 on the Interface Board. Secure the Digital I/O accessory board with the long plastic standoffs/connectors from above as shown in Figure 6—note that one plastic standoff/connector needs to be inserted “upside down” to secure the Digital I/O accessory board to the antenna bracket.

Install header connector strip in bottom socket

JP5

JP7

JP8

5 7

Figure 6. Install Digital I/O Accessory Board

Pins 1–2, 3–4, 5–6, and 7–8 on headers JP5 and JP8 on the Digital I/O accessory board must be jumpered. Pins 2–4 and 3–5 on header JP7 on the Digital I/O accessory board must also be jumpered.

Uncomment the following line in the sample programs when you are using the Digital I/O accessory board.

#define DIGITAL_IO_ACCESSORY

• TOGGLESWITCH.C—monitors switches S1, S2, S3, and S4 on the Digital I/O acces-

User’s Manual 19

The SERIALTOSERIAL.C sample program is in the SAMPLES\RCM5600W\SERIAL folder.

•

SERIALTOSERIAL.C—monitors switches S1, S2, S3, and S4 on the Digital I/O acces-

sory board and lights LEDs DS1–DS4 when the corresponding pushbutton switch is pressed. LEDs DS1–DS2 on the Digital I/O accessory bo ard are controlled by PA4–P A 7, and switches S1–S4 are controlled by PB4–PB7 respectively . The sample program sends messages from Serial Port B to Serial Port C to indicate that a switch was pressed. Messages received by Serial Port C are displayed in Dynamic C’s

STDIO window.

Before you compile and run this sample program, you will need to

connect J2 pin 19 (PC0/TxD) to J2 pin 22 (PC3/RxC) or the correspond-

ing holes on P2. If you are using the Serial Communi-

cation accessory board, you should connect pin 3 (TXD) on header J3 to pin 5 (RXC) on header J4 instead.

20 MiniCore RCM5600W

4. HARDWARE REFERENCE

Chapter 4 describes the hardware components and principal hardware subsystems of the RCM5600W. Appendix A, “RCM5600W Specifications,” provides complete physical and electrical specifications.

Figure 7 shows the Rabbit-based subsystems designed into the RCM5600W.

Wi-Fi

Serial

Flash

Real-Time

Clock

RABBIT

5000

SRAM

RCM5600W

MiniCore Module

Figure 7. RCM5600W Subsystems

Main

Clock

+3.3 V

CMOS-level

signals

Customer-specific

applications

User’s Manual 21

4.1 RCM5600W Digital Inputs and Outputs

Figure 8 shows the RCM5600W pinouts for the edge connector.

Bottom

+3.3 V n.c. n.c. ACT PE1 PE3 PE6 /RESET_IN

PD1 PD3 PC1 PC3 PC5/RxB /RESET PB3 PB5 PB7 PA1 PA3 PA5 PA7 VBAT_EXT PB1/CLKA PC6/TxA PC7/RxA +3.3 V

Top

GND

n.c.

n.c. LNK PE0 PE2 PE5 PE7

PD0 PD2 PC0 PC2

PC4/TxB

PB0/SCLK

PB2 PB4 PB6

PA0 PA2 PA4 PA6

/IORD

/IOWR

STATUS

SMODE

GND

n.c. = not connected

Figure 8. RCM5600W Pinouts

The edge connectors are designed to interface with a 52-pin mini PCI Express socket.

22 MiniCore RCM5600W

Figure 9 shows the use of the Rabbit 5000 microprocessor ports in the RCM5600W modules.

PC0, PC2, PC4

PC1, PC3, PC5

PA0PA7

Port A

Port C

(Serial Ports B, C & D)

PB0PB7

Port B

ABBIT

PD0PD3

Port D

Port E

PE0PE3 PE5PE7

5000

PB1, PC6, STATUS

PC7, /RESET_IN,

SMODE0, SMODE1

Serial Ports E & F

Programming

Port

(Serial Port A)

Wi-Fi

RAM

Real-Time Clock

Watchdog

11 Timers

Slave Port

Clock Doubler

Backup Battery

Support

Figure 9. Use of Rabbit 5000 Ports

Misc. I/O

Memory & I/O

Interface

/RESET_IN

/RESET /IORD /IOWR

The ports on the Rabbit 5000 microprocessor used in the RCM5600W are configurable, and so the factory defaults can be reconfigured. Table 2 lists the Rabbit 5000 factory defaults and the alternate configurations.

User’s Manual 23

Table 2. RCM5600W Pinout Configurations

Pin Pin Name Default Use Alternate Use Notes

1GND 2 +3.3 V

3–6

n.c.

7LNK 8ACT

9 PE0 Input/Output

10 PE1 Input/Output

11 PE2 Input/Output

I/O Strobe I0 A20 Timer C0 TCLKF INT0 QRD1B

I/O Strobe I1 A21 Timer C1 RXD/RCLKF INT1 QRD1A Input Capture

I/O Strobe I2 A22 Timer C2 TXF DREQ0 QRD2B

I/O Strobe I3 A23 Timer C3

12 PE3 Input/Output

RXC/RXF/SCLKD DREQ1 QRD2A Input Capture

I/O Strobe I5 INT1

13 PE5 Input/Output

PWM1 RXB/RCLKE Input Capture

24 MiniCore RCM5600W

Table 2. RCM5600W Pinout Configurations (continued)

Pin Pin Name Default Use Alternate Use Notes

I/O Strobe I6

14 PE6 Input/Output

15 PE7 Input/Output

16 /RESET_IN Input Input to Reset Generator

17 PD0 Input/Output

18 PD1 Input/Output

PWM2 TXE DREQ0

I/O Strobe I7 PWM3 RXA/RXE/SCLKC DREQ1 Input Capture

I/O Strobe I0 Timer C0 D8 INT0 SCLKD/TCLKF QRD1B

IA6 I/O Strobe I1 Timer C1 D9 INT1 RXD/RCLKF QRD1A Input Capture

Serial Port E

I/O Strobe I2 Timer C2

19 PD2 Input/Output

D10 DREQ0 TXF/SCLKC QRD2B

IA7

Serial Port F

I/O Strobe I3 Timer C3

20 PD3 Input/Output

D11 DREQ1 RXC/RXF QRD2A Input Capture

User’s Manual 25

Table 2. RCM5600W Pinout Configurations (continued)

Pin Pin Name Default Use Alternate Use Notes

TXD

21 PC0 Input/Output

22 PC1 Input/Output

23 PC2 Input/Output

24 PC3 Input/Output

25 PC4 Input/Output

26 PC5 Input/Output

27 PB0 Input/Output

28 /RESET Reset output Reset input

I/O Strobe I0 Timer C0 TCLKF

RXD/TXD I/O Strobe I1 Timer C1 RCLKF Input Capture

TXC/TXF I/O Strobe I2 Timer C2 RXC/TXC/RXF I/O Strobe I3 Timer C3 TXB I/O Strobe I4 PWM0 RXB/TXB I/O Strobe I5 PWM1 SCLKB External I/O Address

IA6

Serial Port D

Serial Port C

Serial Port B

SCLKB (used by serial flash)

Reset output from Reset Generator or external reset input

/SWR

29 PB2 Input/Output

External I/O Address IA0

/SRD

30 PB3 Input/Output

External I/O Address IA1

SA0

31 PB4 Input/Output

External I/O Address IA2

SA1

32 PB5 Input/Output

External I/O Address IA3

/SCS

33 PB6 Input/Output

External I/O Address IA4

26 MiniCore RCM5600W

Table 2. RCM5600W Pinout Configurations (continued)

Pin Pin Name Default Use Alternate Use Notes

/SLAVATN

34 PB7 Input/Output

35–42 PA[0:7] Input/Output

43 /IORD Output External I/O read strobe 44 VBAT_EXT Battery input 45 /IOWR Output External I/O write strobe

External I/O Address IA5

Slave port data bus

(SD0–SD7)

External I/O data bus

(ID0–ID7)

46 PB1 Input/Output

SCLKA External I/O Address

IA7

Programming port SCLKA

47 STATUS Output Programming port

TXA/TXE

48 PC6 Input/Output

I/O Strobe I6 PWM2

49 SMODE Input

RXA/TXA/RXE

Programming port

I/O Strobe I7

50 PC7 Input/Output

PWM3 SCLKC

Input Capture 51 GND 52 +3.3 V

* n.c. = Not Connected.

User’s Manual 27

4.1.1 Memory I/O Interface

The Rabbit 5000 address lines (A0–A19) and data lines (D0–D7) are routed internally to the onboard SRAM. I/0 write (/IOWR) and I/0 read (/IORD) are available for interfacing to external devices.

Parallel Port A can also be used as an external I/O data bus to isolate external I/O from the main data bus. Parallel Port B pins PB2–PB7 can also be used as an external address bus.

When using the external I/O bus for any other reason, you must add the following line at the beginning of your program.

#define PORTA_AUX_IO // required to enable external I/O bus

Selected pins on Parallel Ports D and E as specified in Table 2 may be used for input capture, quadrature decoder, DMA, and pulse-width modulator purposes.

4.1.2 Other Inputs and Outputs

The status, /RESET_IN, and SMODE I/O are normally associated with the programming port. Since the status pin is not used by the system once a program has been downloaded and is running, the status pin can then be used as a general-purpose CMOS output. The programming port is described in more detail in Section 4.2.2.

/RESET_IN is an external input used to reset the Rabbit 5000 microprocessor and the RCM5600W memory. /RESET is an output from the reset circuitry that can be used to reset other peripheral devices.

The two SMODE pins, SMODE0 and SMODE1, are tied together to +3.3 V via a pullup resistor, and may be used as a special input when the RCM5600W is operating in the Run Mode. The logic state of these two pins determines the startup procedure after a reset.

28 MiniCore RCM5600W

4.2 Serial Communication

The RCM5600W board does not have any serial level converters directly on the board. However, an Ethernet or other serial interface may be incorporated on the board the RCM5600W is mounted on. For example, the Serial Communication accessory board in the Deluxe Development Kit has an RS-232 transceiver, and the Interface Board has Ethernet and USB connections.

4.2.1 Serial Ports

There are six serial ports designated as Serial Ports A, B, C, D, E, and F. All six serial ports can operate in an asynchronous mode up to the baud rate of the system clock divided by 8. An asynchronous port can handle 7 or 8 data bits. A 9th bit address scheme, where an additional bit is sent to mark the first byte of a message, is also supported.

Serial Port A is normally used as a programming port, but may be used either as an asynchronous or as a clocked serial port once application development has been completed and the RCM5600W is operating in the Run Mode.

Serial Port B, shared by the RCM5600W module’s serial flash and by the A/D converter in the Wi-Fi circuit, is set up as a clocked serial port. Since this serial port is set up for synchronous serial communication, you will lose the peripheral functionality if you try to use the serial port in the asynchronous mode.

NOTE: Since Serial Port B is shared, exe rcise care if you attempt to us e Serial Port B for

other serial communication. Your application will have to manage the sharing negotiations to avoid conflicts when reading or writi ng to the devices already using Serial Port B. Any conflict with Serial Port B while the RCM5600W is powering up may prevent an application from loading from the serial flash when the RCM5600W powers up or resets. Do not drive or load the Serial Port B or SCLKB (PC4, PC5, and PB0) pins while the RCM5600W is powering up.

Serial Ports C and D can also be operated in the clocked serial mode. In this mode, a clock line synchronously clocks the data in or out. Either of the two communicating devices can supply the clock.

Serial Ports E and F can also be configured as SDLC/HDLC serial ports. The IrDA protocol is also supported in SDLC format by these two ports. Serial Ports E and F must be configured before they can be used. The following macros show one way to do this.

#define SERE_TXPORT PEDR #define SERE_RXPORT PEDR

#define SERF_TXPORT PFDR #define SERF_RXPORT PFDR

User’s Manual 29

Table 3 summarizes the possible parallel port pins for the serial ports and their clocks.

Table 3. Rabbit 5000 Serial Port and Clock Pins

Serial Port A

Serial Port B

Serial Port C

Serial Port D

TXA PC6, PC7 RXA PC7,PE7 RXE PE7, PC7

SCLKA PB1 RCLKE PE5, PC5

TXB PC4, PC5 TCLKE PE4, PC4 RXB PC5, PE5

SCLKB PB0 RXF PD3, PE3, PC3

TXC PC2, PC3 RCLKF PD1, PE1, PC1 RXC PC3, PD3, PE3 TCLKF PD0, PE0, PC0

SCLKC PD2, PE2, PE7, PC7

TXD PC0, PC1 RXD PC1, PD1, PE1

SCLKD

PD0, PD3, PE0, PE3, PC3

Serial Port E

Serial Port F

RCLKE/TCLKE and RCLKF/TCLKF must be selected to be on the same parallel port as RXE/TXE and RXF/TXF respectively.

TXE PE6, PC6

TXF PD2, PE2, PC2

4.2.2 Programming Port

The RCM5600W programming port is accessed via the USB connector (J5) on the Interface Board. The programming port uses the Rabbit 5000’s Serial Port A for communication. Dynamic C uses the programming port to download and debug programs.

The programming port is also used to cold-boot the Rabbit 5000 on the RCM5600W after a reset.

30 MiniCore RCM5600W

4.3 Wi-Fi

Figure 10 shows a functional block diagram for the Wi-Fi circuits.

Serial Flash

U10

Baseband

Rx Path

AL2236

XCVR

Tx Path

U15

Antenna

Switch

SRAM

3-wire serial bus

Figure 10. RCM5600W Wi-Fi Block Diagram

The Wi-Fi transmission is controlled by the Rabbit 5000 chip, which contains the Wi-Fi Media Access Control (MAC). The Rabbit 5000 implements the 802.11b/g baseband MAC functionality, and controls the 802.11b/g integrated Airoha AL2236 transceiver.

Program code is stored in the serial flash and is loaded into an SRAM for execution when power is applied to the RCM5600W modules. The data interface between the processor MAC and the AL2236 transceiver consists of a D/A converter and an A/D converter . Bot h converters convert “I” and “Q” data samples at a rate of 40 MHz.

The AL2236 is a single-chip transceiver with integrated power amplifier for the 2.4 GHz Industrial, Scientific, and Medical (ISM) band. It is configured and controlled by the Rabbit 5000 via a 3-wire serial data bus. The AL2236 contains the entire receiver, transmitter, VCO, PLL, and power amplifier necessary to implement an 802.11b/g radio.

The AL2236 can transmit and receive data at up to 11Mbits/s in the 802.11b mode and at up to 54 Mbits/s in the 802.1 1g mode. It supports 802.11b/g channels 1–13 (2.401 GHz to

2.472 GHz). Channel 14 is not used. The data modulate the channel carrier in such a way so as to produce a spread spectrum signal within the 22 MHz channel bandwidth of the selected channel. The channel numbers and associated frequencies are listed below in Table 4.

The Wi-Fi channels have a certain amount of overlap with each other. The further apart two channel numbers are, the less the likelihood of interference. If you encounter interference with a neighboring WLAN, change to a different channel. For example, use channels 1, 6, and 11 to minimize any overlap.

User’s Manual 31

Table 4. Wi-Fi Channel Allocations

Channel

1 2.412 2.401–2.423 2 2.417 2.406–2.428 3 2.422 2.411–2.433 4 2.427 2.416–2.438 5 2.432 2.421–2.443 6 2.437 2.426–2.448 7 2.442 2.431–2.453 8 2.447 2.436–2.458

9 2.452 2.441–2.463 10 2.457 2.446–2.468 11 2.462 2.451–2.473

(not used)

Center Frequency

(GHz)

2.467 2.456–2.478

2.472 2.461–2.483

2.484 2.473–2.495

Frequency Spread

(GHz)

* These channels are disabled for units delivered for sale in the United

States and Canada.

Many countries specify the channel range and power limits for Wi-Fi devices operated within their borders, and these limits are set automatically in the RCM5600W in firmware according to the country or region. For example, only channels 1–11 are authorized for use in the United States or Canada, and so channels 12 and 13 are disabled. See Section 6.2.4.1 for additional information and sample programs demonstrating how to configure an end device to meet the regulatory channel range and power limit requirements. Table 5 provides additional information on which channels are allowed in selected countries. Any

attempt to operate a device outside the allowed channel range or power limits will void your regulatory approval to operate the device in that country.

32 MiniCore RCM5600W

The following regions have macros and region numbers defined for convenience.

Table 5. Worldwide Wi-Fi Macros and Region Numbers

Region Macro

Americas

Mexico

Canada Europe, Middle East,

Africa, except France France Israel China

Japan Australia

* Channel 14 is not available for the RCM5600W.

IFPARAM_WIFI_REGION_AMERICAS

IFPARAM_WIFI_REGION__MEXICO_ INDOORS

IFPARAM_WIFI_REGION_MEXICO_ OUTDOORS

IFPARAM_WIFI_REGION_CANADA

IFPARAM_WIFI_REGION_EMEA

IFPARAM_WIFI_REGION_FRANCE

IFPARAM_WIFI_REGION_ISRAEL

IFPARAM_WIFI_REGION_CHINA

IFPARAM_WIFI_REGION_JAPAN

IFPARAM_WIFI_REGION_AUSTRALIA

Region

Number

01–11

1 1–11 (indoors)

2 9–11 (outdoors)

31–11

4 1–13

5 10–13 63–11 71–11

8 91–11

Channel Range

1–14

The same omnidirectional antenna is used to transmit and receive the 802.11b/g RF signal. An antenna switch isolates the high-power RF Tx signal path from the RF Rx signal path. The antenna switch at U15 works by alternately connecting the antennas to either the AL2236 Tx output or to the AL2236 Rx input. In order to support this antenna-sharing scheme, the RCM5600W module operates the radio in a half-duplex mode so that receive and transmit operations never occur at the same time

The RF connector on the Interface Board is an RP-SMA connector with its outer casing attached to the RCM5600W ground.

There are two LEDs clos e to the RF s hield, a green LED at D S1 (

LINK) to indicate associa-

tion with the Wi-Fi access point, and a yellow LED at DS2 (ACT) to indicate activity.

4.3.1 Antenna Grounding Requirements

When deploying the RCM5600W in a production environment, take care to ensure that the antenna is properly grounded via the RP-SMA connector and the U.FL to RP-SMA connector cable. The RP-SMA connector must be firmly attached to a bracket or soldered to a grounded location. If you are using a bracket, it must make firm contact with a ground such as the plated, grounded mounting hole provided on the Interface Board.

User’s Manual 33

4.4 Programming Modes

The USB cable is used to connect the programming port of the RCM5600W to a PC USB port via the Interface Board.

Whenever the RCM5600W is reset, the operating mode is determined by the state of the SMODE pins. The RCM5600W is automatically in Program Mode when the SMODE pins, which are tied together, are pulled up to +3.3 V. This happens when the RCM5600W is installed on the Interface Board, and pins 1–2 on header JP1 on the Interface Board are jumpered. When the SMODE pins are pulled low by removing the jumpers from pins 1–2 on header JP1 on the Interface Board, the Rabbit 5000 will operate in the Run Mode once the RCM5600W is reset. The USB cable may be used for a serial connection to the programming port when the RCM5600W is operating in the Run Mode.

RESET

JP1

RESET RCM5600W when changing mode:

Short out /RESET_IN to GND,

Press RESET button (if using Interface Board), OR Cycle power off/on

after removing or attaching jumper on pins 12.

Figure 11. Switching Between Program Mode and Run Mode

A program “runs” in either mode, but can only be downloaded and debugged when the RCM5600W is in the Program Mode.

Refer to the

Rabbit 5000 Microprocessor User’s Manual for more information on the pro-

gramming port.

34 MiniCore RCM5600W

4.4.1 Standalone Operation of the RCM5600W

The RCM5600W must be programmed via the Interface Board or via a similar arrangement on a customer-supplied board. Once the RCM5600W has been programmed successfully, reset the RCM5600W. The RCM5600W may be reset by cycling power off/on or by pressing the RESET button on the Interface Board. The jumper across pins 1–2 on header JP1 on the Interface Board must be removed in order for the RCM5600W to operate in the Run Mode after it is reset. The RCM5600W module may now be removed from the Interface Board for end-use installation.

CAUTION: Power to the Interface Board or other boards should be disconnected when

removing or installing your RCM5600W module to protect against inadvertent shorts across the pins or damage to the RCM5600W if the pins are not plugged in correctly. Do not reapply power until you have verified that the RCM5600W module is plugged in correctly.

User’s Manual 35

4.5 Other Hardware

4.5.1 Clock Doubler

The RCM5600W takes adva ntag e of th e Rabbi t 500 0 mic rop ro cesso r’s internal clock do ubler. A built-in clock doubler allows half-frequency crystals to be used to reduce radiated emissions. The 73.73 MHz frequency specified for the RCM5600W model is generated using a 36.864 MHz crystal.

The clock doubler should not be disabled since Wi-Fi operations depend highly on CPU resources.

4.5.2 Spectrum Spreader

The Rabbit 5000 features a spectrum spreader, which helps to mitigate EMI problems. The spectrum spreader is on by default, but it may also be turned off or set to a stronger setting. The means for doing so is through a simple configuration macro as shown below.

1. Select the “Defines” tab from the Dynamic C Options > Project Options menu.

2. Normal spreading is the default, and usually no entry is needed. If you need to specify normal spreading, add the line

ENABLE_SPREADER=1

For strong spreading, add the line

ENABLE_SPREADER=2

To disable the spectrum spreader, add the line

ENABLE_SPREADER=0

NOTE: The strong spectrum-spreading setting is not recommended since it may limit

the maximum clock speed or the maximum baud rate. It is unlikely that the strong setting will be used in a real application.

3. Click OK to save the macro. The spectrum spreader will be set according to the macro value whenever a program is compiled using this project file.

NOTE: Refer to the Rabbit 5000 Microprocessor User’s Manual for more infor mat ion

on the spectrum-spreading setting and the maximum clock speed.

36 MiniCore RCM5600W

4.6 Memory

4.6.1 SRAM

RCM5600W boards have 1MB of SRAM installed at U10.

4.6.2 Flash M emory

RCM5600W boards have 1MB of serial flash memory installed at U4. A “user block” area is defined to store persistent data. The function calls

Block()

processor Designer’s Handbook

and readUserBlock() are provided for this. Refer to the Rabbit 5000 Micro-

for additional information.

writeUser-

4.6.3 Encryption RAM Memory

The tamper detection feature of the Rabbit 5000 microprocessor can be used to detect any attempt to enter the bootstrap mode. When such an attempt is detected, the VBAT RAM memory in the Rabbit 5000 chip is erased.

User’s Manual 37

38 MiniCore RCM5600W

5. SOFTWARE REFERENCE

Dynamic C is an integrated development system for writing embedded software. It runs on a Windows-based PC and is designed for use with sing le-board computers and other devices based on the Rabbit microprocessor. Chapter 5 describes the libraries and function calls related to the RCM5600W.

5.1 More About Dynamic C

Dynamic C has been in use worldwide since 1989. It is specially designed for programming embedded systems, and features quick compile and interactive debugging. A complete reference guide to Dynamic C is contained in the Dynamic C User’s Manual.

Since the RCM5600W has a serial flash memory, all software development must be done in the static SRAM. The flash memory and SRAM o ptions are selected with the

Program Op tions > Compiler

NOTE: An application should be compiled directly to the SRAM on the RCM5600W

module using the Store Program in RAM faster upload times and to save wear on the flash, but should be recompiled to Store Program in Flash after the USB cable is disconnected. Your final code must always be stored in flash memory for reliable operation.

menu.

compiler option while debugging for

Options >

Developing software with Dynamic C is simple. Users can write, compile, and test C and assembly code without leaving the Dynamic C development environment. Debugging occurs while the application runs on the target. Alternatively, users can compile a program to an image file for later loading. Dynamic C runs on PCs under Windows NT and later—

see Rabbit’s Technical Note TN257, Running Dynamic C additional information if you are using a Dynamic C under Windows Vista. Programs can be downloaded at baud rates of up to 460,800 bps after the program compiles.

OEM User’s Manual 39

With Windows Vista®, for

Dynamic C has a number of standard features.

• Full-feature source and/or assembly-level debugger, no in-circuit emulator required.

• Royalty-free TCP/IP stack with source code and most common protocols.

• Hundreds of functions in source-code libraries and sample programs:

X Exceptionally fast support for floating-point arithmetic and transcendental functions. X RS-232 and RS-485 serial communication. X Analog and digital I/O drivers.

X I

C, SPI, GPS, file system.

X LCD display and keypad drivers.

• Powerful language extensions for cooperative or preemptive multitasking

• Loader utility program to load binary images into Rabbit targets in the absence of

Dynamic C.

• Provision for customers to create their own source code libraries and augment on-line help by creating “function description” block comments using a special format for library functions.

• Standard debugging features:

X Breakpoints—Set breakpoints that can disable interrupts. X Single-stepping—Step into or over functions at a source or machine code level, µC/OS-II aware. X Code disassembly—The disassembly window displays addresses, opcodes, mnemonics, and

machine cycle times. Switch between debugging at machine-code level and source-code level by simply opening or closing the disassembly window.

X Watch expressions—Watch expressions are compiled when defined, so complex expressions

including function calls may be placed into watch expressions. Watch expressions can be updated with or without stopping program execution.

X Register window—All processor reg isters and f lags are disp layed. The con tents of gener al regist ers

may be modified in the window by the user.

X Stack window—shows the contents of the top of the stack. X Hex memory dump—displays the contents of memory at any address. X STDIO window—

detected for debugging purposes.

printf outputs to this window and keyboard input on the host PC can be

printf output may also be sent to a serial port or file.

40 MiniCore RCM5600W

5.2 Dynamic C Function Calls

5.2.1 Digital I/O

The RCM5600W was designed to interface with other systems, and so there are no drivers written specifically for the Rabbit 5000 I/O. The general Dynamic C read and write functions allow you to customize the parallel I/O to meet your specific needs. For example, use

WrPortI(PEDDR, &PEDDRShadow, 0x00);

to set all the Port E bits as inputs, or use

WrPortI(PEDDR, &PEDDRShadow, 0xFF);

to set all the Port E bits as outputs. When using the external I/O bus on the Rabbit 5000 chip, add the line

#define PORTA_AUX_IO // required to enable external I/O bus

to the beginning of any programs using the auxiliary I/O bus. The sample programs in the Dynamic C

SAMPLES/RCM5600W

folder provide further

examples.

5.2.2 Serial Co mmunication Drive rs

Library files included with Dynamic C provide a full range of serial communications support. The

PACKET.LIB

RS232.LIB

library provides packet-based serial functions where packets can be delimited

library provides a set of circular-buffer-based serial functions. The

by the 9th bit, by transmission gaps, or with user-defined special characters. Both libraries provide blocking functions, which do not return until they are finished transmitting or receiving, and nonblocking functions, which must be called repeatedly until they are finished, allowing other functions to be performed between calls. For more information, see the Dynamic C Fu nction Referen ce Manual and Rabbit Semiconductor’ s Technical Note TN213, Rabbit Serial Port Software, both included with the online documentation.

OEM User’s Manual 41

5.2.3 Serial Flash Memory Use

The RCM5600W module has a serial flash memory that contains the user block and stores the application program. Two function calls are provided to work with the serial boot flash. These function calls are in the Dynamic C

BOOTDEV_SFLASH.LIB

library.

LIB\Rabbit4000\BIOSLIB\

sbfRead

int sbfRead(void *dest, unsigned long offset, unsigned nbytes);

DESCRIPTION

Reads up to 64K from anywhere on the serial boot flash. This function call supports both the blocking mode for use w ith µC/OS-II and a mutex for pr eemptive multitasking, and the nonblocking mode for cooperative multitasking. See the description for

sbfWriteFlash()

serial flash driver.

for more inform ation on u sing a µC/OS-II a nd a mutex with the

PARAMETERS

dest near pointer to the destination buffer offset the physical offset into the serial flash nbytes the number of bytes to read

RETURN VALUE

0 if successful. The return values below apply on ly if

positive N to indicate that the SPI port is being used by device n if more than

available, one of the following two runtime errors will occur: (when using µC/OS-II) or

_SPI_MAXTIME

-ETIME

_SPI_USE_UCOS_MUTEX

milliseconds elapse while waiting for the SPI port to become

(if not using µC/OS-II).

is not

#defined

ERR_SPI_MUTEX_ERROR

42 MiniCore RCM5600W

sbfWriteFlash

int sbfWriteFlash(unsigned long flashDst, void* Src,

unsigned len);

DESCRIPTION

Writes Keep calling

itive return va lue indicat es that the s erial flas h SPI port is b eing used b y another devi ce. If you are using µC/OS-II and call

sbfWriteFlash()

elapse while waiting fo r the SPI port to bec ome available, on e of the following two runtime errors will occur: (if not using µC/OS-II).

NOTE: This functi on call is not power-fail safe. The

call provides a safer way to store critical data using redundant copies.

PARAMETERS

flashDst the physical address of the flash destination Src near pointer to the source data len the number of bytes to write

RETURN VALUE

0 if successful.

len

bytes (up to 64K) to physical address

sbfWriteFlash()

until it returns zero or a negative error code. A pos-

_SPI_USE_UCOS_MUTEX

just once. If more than

ERR_SPI_MUTEX_ERROR

flashDst

_SPI_MAXTIME

from

#defined

Src

milliseconds

(when using µC/OS-II) or

writeUserBlock()

, you may

-ETIME

function

-1 if an attempt was made to write to the user/ID block or program area. The return values below apply on ly if

-EBUSY

positive if more than

available, one of the following two runtime errors will occur: (when using µC/OS-II) or

OEM User’s Manual 43

to indicate a busy writing to the serial flash

to indicate that the SPI port is being used by device n

_SPI_MAXTIME

-ETIME

_SPI_USE_UCOS_MUTEX

milliseconds elapse while waiting for the SPI port to become

(if not using µC/OS-II).

is not

#defined

ERR_SPI_MUTEX_ERROR

5.2.4 User and ID Blocks

The sample program USERBLOCK_INFO.C in the Dynamic C SAMPLES\USERBLOCK folder can be used to determine the version of the ID block, the size of the ID and user blocks, whether or not the ID/user blocks are mirrored, the total amount of flash memory used by the ID and user blocks, and the area of the user block available for your application.

The

USERBLOCK_CLEAR.C sample program shows you how to clear and write the con-

tents of the user block that you are using in your application (the calibration constants in the reserved area and the ID block are protected).

NOTE: Since RCM5600W MiniCore modules have a serial boot flash that shares the

serial flash SPI lines with other devices, exercise care when accessing the user block. Pay attention to the instructions associated with the user block function calls in the Dynamic C

LIB\Rabbit4000\BIOSLIB\IDBLOCK.LIB

library.

5.2.5 Wi-Fi Drivers

Complete information on the Wi-Fi libraries and function calls is provided in Chapter 6. Additional information on TCP/IP is provided in the Dynamic C TCP/IP User’s Manual.

44 MiniCore RCM5600W

5.2.6 Interface Board Function Calls

The function calls described in this section are for use with the Interface Board features. The source code is in the Dynamic C

LIB\Rabbit4000\RCM5xxx\RCM56xxW.LIB

library if you need to modify it for your own board design. The sample programs in the Dynamic C

SAMPLES\RCM5600W

folder illustrate the use of

the function calls. Other generic functions applicable to all devices based on Rabbit microprocessors are

described in the Dynamic C Function Reference Manual.

5.2.6.1 Board Initialization

brdInit

void brdInit(void);

DESCRIPTION

Call this function at the beginning of your program. This function initializes Parallel Ports A through E for use with the Int erface Board. This function call is intended for demonstration purposes only, and can be modified for your applications.

Summary of Initialization

1. I/O port pins are configured for Interface Board operation.

2. Unused configurable I/O are set as outputs.

4. LEDs are off.

5. The slave port is disabled. Pins PB0, PB1, PC6, PC7, PD4, PD7, and PE4 are configured separately by the BIOS and associ-

ated libraries. Parallel port H is configured automatically as part of the 16-bit memory setup, and cannot be used as a general purpose I/O port.

RETURN VALUE

None.

OEM User’s Manual 45

5.3 Upgrading Dynamic C

Dynamic C patches that focus on bug fixes are available from time to time. C heck the Web site www.rabbit.com/support/ for the latest patches, workarounds, and bug fixes.

5.3.1 Add-On Modules

Starting with Dynamic C version 10.40, Dynamic C includes the popular µC/OS-II realtime operating system, point-to-point protocol (PPP), FAT file system, RabbitWeb, and other select libraries. Rabbit also offers for purchase the Rabbit Embedded Security Pack featuring the Secure Sockets Layer (SSL) and a specific Advanced Encryption Standard (AES) library.

In addition to the Web-based technical support included at no extra charge, a one-year telephone-based technical support subscription is also available for purchase.

V isit o ur Web site at www.rabbit.com for further information and complete documentation.

46 MiniCore RCM5600W

6. USING THE WI-FI FEATURES

6.1 Introduction to Wi-Fi

Wi-Fi, a popular name for 802.1 1b/g, refers to the underlying technology for wireless local area networks (WLAN) based on the IEEE 802.11 suite of specifications conforming to standards defined by IEE E. IEEE 802.1 1b desc ribes the med ia access and link lay er control for a 2.4 GHz implementation, which can communicate at a top bit-rate of 11 Mbits/s. Other standards describe a faster implementation (54 Mbits/s) in the 2.4 GHz band (802.11g). The adoption of 802.11 has been fast because it's easy to use and the performance is comparable to wire-based LANs. Things look pretty much like a wireless LAN.

Wi-Fi (802.11b/g) is the most common and cost-effective implementation currently available. This is the implementation that is used with the RCM5600W MiniCore module. A variety of Wi-Fi hardware exists, from wireless access points (WAPs), various Wi-Fi access devices with PCI, PCMCIA, CompactFlash, USB and SD/MMC interfaces, and Wi-Fi devices such as Web-based cameras and print servers.

802.11b/g can operate in one of two modes—in a managed-access mode (BSS), called an infrastructure mode, or an unmanaged mode (IBSS), called the ad-hoc mode. The 802.11 standard describes the details of how devices access each other in either of these modes.

6.1.1 Infrastructure Mode

The infrastructure mode requires an access point to manage devices that want to communicate with each other. An access point is identified with a channel and service set identifier (SSID) that it uses to communicate. Typically, an access point also acts as a gateway to a wired network, either an Ethernet or WAN (DSL/cable modem). Most access points can also act as a DHCP server, and provide IP, DNS, and gateway functions.

When a device wants to join an access point, it will typically scan each channel and look for a desired SSID for the access point. An empty-string SSID (" ") will associate the device with the first SSID that matches its capabilities.

Once the access point is discovered, the device will logically join the access point and announce itself. Once joined, the device can transmit and receive data packets much like an Ethernet-based MAC. Being in a joined state is akin to having link status in a 10/100Base-T network.

802.11b/g interface cards implement all of the 802.11b/g low-level configurations in firmware. In fact, the 802.11b/g default configuration is often sufficient for a device to join an

User’s Manual 47

access point automatically, which it can do once enabled. Comma nds issued to t he chip se t in the interface allow a host program to override the default configurations and execute functions implemented on the interface cards, for example, scanning for hosts and access points.

6.1.2 Ad-Hoc Mode

In the ad-hoc mode, each device can set a channel number and an SSID to communicate with. If devices are operating on the same channel and SSID, they can talk with each other, much like they would on a wired LAN such as an Ethernet. This works fine for a few devices that are statically configured to talk to each other, and no access point is needed.

6.1.3 Additional Information

802.11 Wireless Networking; published by O'Reilly Media, provides further information about

802.11b wireless networks.

48 MiniCore RCM5600W

6.2 Running Wi-Fi Sample Programs

In order to run the sample programs discussed in this chapter and elsewhere in this manual,

1. Your module must be plugged in to the Interface Board as described in Chapter 2, “Getting Started.”

2. Dynamic C must be installed and running on your PC.

3. The USB cable must connect the USB connector on the Interface Board to your PC.

4. Power must be applied to the module through the Interface Board.

Refer to Chapter 2, “Getting Started,” if you need further information on these steps. T o run a sample program, open it with the File menu, then compile and run it by pressing F9. Each sample program has comments that describe the purpose and function of the pro-

gram. Follow the instructions at the beginning of the sample program. Complete information on Dynamic C is provided in the Dynamic C User’s Manual.

User’s Manual 49

6.2.1 Wi-Fi Setup

Figure 12 shows how your development setup might look once you’re ready to proceed.

USB Cable

to PC USB port

Infrastructure Mode (via Ethernet connection)

Ethernet

Hub

Infrastructure Mode (via wireless connection)

Ad-Hoc Mode

Figure 12. Wi-Fi Host Setup

50 MiniCore RCM5600W

6.2.2 What Else You Will Need

Besides what is suppl ied with the RCM560 0W Development Ki ts, you will need a PC with an available USB port to program the RCM5600W module. You will need either an access point for an existing Wi-Fi network that you are allowed to access and have a PC or notebook connected to that network (infrastructure mode), or you will need at least a PDA or PC with Wi-Fi to use the ad-hoc mode.

User’s Manual 51

6.2.3 Configuration Information

6.2.3.1 Network/Wi-Fi Configuration

Any device placed on an Ethernet-based Internet Protocol (IP) network must have its own IP address. IP addresses are 32-bit numbers that uniquely identify a device. Besides the IP address, we also need a netmask, which is a 32-bit number that tells the TCP /IP stack wha t part of the IP address identifies the local network the device lives on.

The sample programs configure the RCM5600W modules with a default

TCPCONFIG

macro from the LIB\Rabbit4000\TCPIP\TCP_CONFIG.LIB library. This macro allows specific IP address, netmask, gateway, and Wi-Fi parameters to be set at compile time. Change the network settings to configure your RCM5600W module with your own Ethernet settings only if that is necessary to run the sample programs; you will likely need to change some of the Wi-Fi settings.

• Network Parameters These lines contain the IP address, netmask, nameserver, and gateway parameters.

#define _PRIMARY_STATIC_IP "10.10.6.100" #define _PRIMARY_NETMASK "255.255.255.0" #define MY_NAMESERVER "10.10.6.1" #define MY_GATEWAY "10.10.6.1"

There are similar macros defined for the various Wi-Fi settings as explained in Section 6.3.1. The Wi-Fi configurations are contained within TCPCONFIG 1 (no DHCP) and TCPCON-

FIG 5 TCPCONFIG 1

(with DHCP, used primarily with infrastructure mode). You will need to #define

or #define TCPCONFIG 5 at the beginning of your program.

NOTE: TCPCONFIG 0 is not supported for Wi-Fi applications.

There are some other “standard” configurations for TCPCONFIG. Their values are docu- mented in the LIB\Rabbit4000\TCPIP\TCP_CONFIG.LIB library. More information is available in the Dynamic C TCP/IP User’s Manual.

52 MiniCore RCM5600W

6.2.3.2 PC/Laptop/PDA Configuration

This section shows how to configure your PC or notebook to run the sample programs. Here we’re mainly interested in the PC or noteb ook that will be com municating wirelessly, which is not necessarily the PC that is being used to compile and run the sample program on the RCM5600W module.

This section provides configuration information for the three possible Wi-Fi setups shown in Figure 12. Start by going to the control panel (Start >

Settings > Control Panel Network Connections. The screen

) and click on

shots shown here are from Windows 2000, and the interface is similar for other versions of Windows.

Check with your administrator if you are unable to change the settings as described here since you may need administrator privileges.

When you are using an access point with your setup in the infrastructure mode, you will also have to set the IP address and netmask (e.g., 10.10.6.99 and 255.255.255.0) for the access point. Check the documentation for the access point for information on how to do this.

Infrastructure Mode (via Ethernet connection)

1. Go to the Local Ar ea Connection to select the network interface card used you intend to use (e.g.,

Card Network Adapter

TCP/IP Xircom Credit

) and click on the “Properties” button. Depending on which version of Windows your PC is running, you may have to select the “Local Area Connection” first, and then click on the “Properties” button to bring up the Ethernet interface dialog. Then “configure” your interface card for an “Auto-Negotiation” or “10Base-T Half-Duplex” connection on the “Advanced” tab.

NOTE: Your network interface card will

likely have a different name.

User’s Manual 53

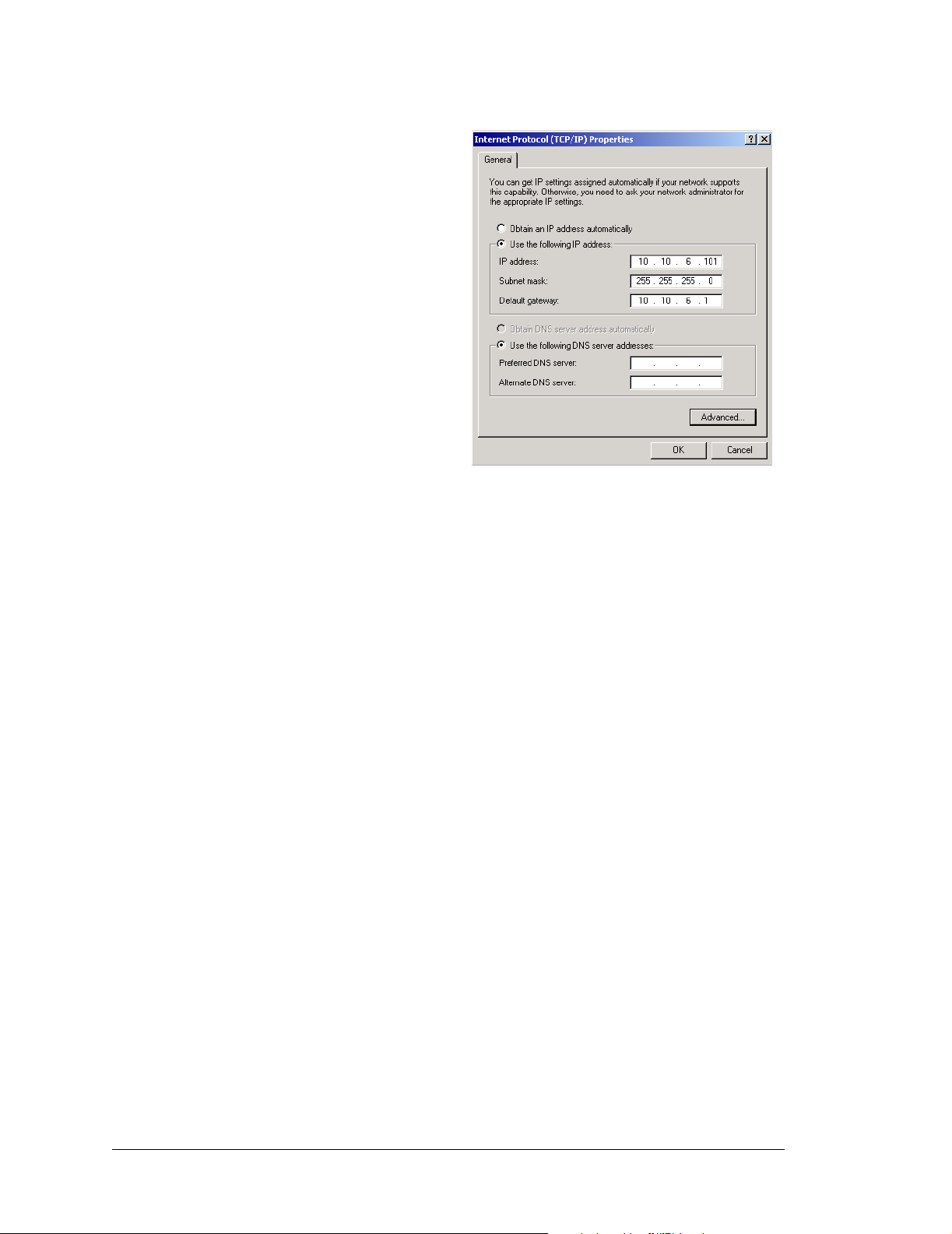

2. Now select the IP Address tab, and check

Specify an IP Address

, or select TCP/IP and click on “Properties” to fill in the following fields:

IP Address : 10.10.6.101 Netmask : 255.255.255.0 Default gateway : 10.10.6.1

TIP: If you are using a PC that is alread y on

a network, you will disconnect the PC from that network to run these sample programs. Write down the existing settings before changing them so that you can restore them easily when you are finished with the sample programs.

The IP address and netmask need to be set regardless of whether you will be using the ad-hoc mode or the infrastructure mode.

3. Click <OK> or <Close> to exit the various dialog boxes.

Infrastructure Mode (via wireless connection)

Set the IP address and netmask for your wireless-enabled PC or notebook as described in Step 2 for Infrastructure Mode (via Ethernet connection) by clicking on Network

Connec t ions Connection

, then on Local Area Connection. Now click on Wireless Network

to select the wireless network you will be connecting to. Once a sample program is running, you will be able to select the network from a list of available network s. You will have to set your wireless network name with the access point SSID macro for the infrastructure mode as explained in Section 6.3, “Dynamic C Wi-Fi Configurations.”

Ad-Hoc Mode

Set the IP address and netmask for your wireless-enabled PC or notebook as described in Step 2 for

Connec t ions Connection

Infrastructure Mode (via Ethernet connection) by clicking on Network

, then on Local Area Connection. Now click on Wireless Network

to select the wireless network you will be connecting to. Once a sample program is running, you will be able to select the netwo rk f rom a list of av ailab le net work s. You will have set your wireless network name with the Wi-Fi channel macros for the adhoc mode as explained in Section 6.3, “Dynamic C Wi-Fi Configurations.”

54 MiniCore RCM5600W

Once the PC or notebook is set up, we're ready to communicate. You can use Telnet or a Web browser such as Internet Explorer, which come with most Windows installations, to use the network interface, and you can use HyperTerminal to view the serial port when these are called for in some of the later sample programs.

Now we’re ready to run the sample programs in the Dynamic C

Samples\TCPIP\WiFi

folder. The sample programs should run as is in most cases.

6.2.4 Wi-Fi Sample Programs

The sample programs in Section 6.2.4.1 show how to set up the country- or region-specific attributes, but do not show the basic setup of a wireless network. The sample programs in Section 6.2.4.2 show the setup and operation of a wireless network — the

WIFISCAN.C

sample program is ideal t o demonstrate that the RCM 5600W has been hooked up correctly and that the Wi-Fi setup is correct so that an access point can be found.

6.2.4.1 Wi-Fi Operating Region Configuration

The country or region you select will automatically set the power and channel requirements to operate the RCM5600W module. The following three options are available.

1. Country or region is set at compile time. This option is ideal when the end device is intended to be sold and used only in a single region. If the end device is to be deployed across multiple regions, this method would require an application image to be created for each region. This option is the only approved option for RCM5600W modules in Japan.

2. Country or region is set via the 802.11d feature of the access point. This option uses beacons from an access point to configure the RCM5600W country or region automatically. The end user is responsible for enabling 802.11d on the access point and then selecting the correct country to be broadcast in the beacon packets.

NOTE: This option sets the power limi t for RCM5600W to the maximum level per mitted

in the region or the capability of the RCM5600W, whichever is less. Since the beacons are being sent continuousl y, the ifconfig IFS_WIFI_TX_POWER function cannot be used with this option.

3. Country or region is set at run time. This is a convenient option when the end devices will be deployed in multiple regions. A serial user interface would allow the RCM5600W module to be configured via a Web page. Systems integrators would still have to make sure the end devices operate within the regulatory requirements of the country or region where the units are being deployed.

These options may be used alone or in any combination. The three sample programs i n the Dynamic C Samples\WiFi\Regulatory folder illustrate the use of these three options.

• REGION_COMPILETIME.C—demonstrates how you can set up your RCM5600Wbased system at compile time to operate in a given country or region to meet power and channel requirements.

The country or region you select will automatically set the power and channel requirements to operate the RCM5600W module. Rabbit recommends that you check the regulations for the country where your system incorporating the RCM5600W will be

User’s Manual 55

deployed for any other requirements. Any attempt to operate a device outside the allowed channel range or power limits will void your regulatory approval to operate the device in that country.

Before you compile and run this sample program, uncomment the

WIFI_REGION

line corresponding to the region where your system will be deployed.

#define IFC_

The Americas region will be used by default if one of these lines is not uncommented. Now compile and run this sample program. The Dynamic C

STDIO window will dis-

play the region you selected. The sample program also allows you to set up the TCP/IP configuration, and set the IP

address and SSID as shown in the sample code below.

#define TCPCONFIG 1 #define _PRIMARY_STATIC_IP "10.10.6.170" #define IFC_WIFI_SSID "rabbitTest"

• REGION_MULTI_DOMAIN.C—demonstrates how the multi-domain options from the

access point can be used to configure your RCM5600W-based system to meet regional regulations. The sample program includes pings to indicate that the RCM5600W-based system has successfully received country information from your access point.

Before you compile and run this sample program, verify that the access point has the

802.11d option enabled and is set for the correct region or country. Check the TCP/IP configuration parameters, the IP address, and the SSID in the macros, which are reproduced below.

#define TCPCONFIG 1

#define WIFI_REGION_VERBOSE

#define _PRIMARY_STATIC_IP "10.10.6.170" #define IFC_WIFI_SSID "rabbitTest"

Now compile and run this sample program. The #define WIFI_REGION_VERBOSE macro will display the channel and power limit settings. The Dynamic C STDIO win dow will then display a menu that allows you to complete the configuration of the user interface.

• REGION_RUNTIME_PING.C—demonstrates how the region or country can be set at run time to configure your RCM5600W-based system to meet regional regulations. The sample program also shows how to save and retrieve the region setting from nonvolatile memory . Once the region/country is set, this sample program sends pings using the limits you set.

The country or region you select will automatically set the power and channel requirements to operate the RCM5600W module. Digi International recommends that you check the regulations for the country where your system incorporating the RCM5600W will be deployed for any other requirements.

56 MiniCore RCM5600W

Before you compile and run this sample program, check the TCP/IP configuration parameters, the IP address, and the SSID in the macros, which are reproduced below.

#define TCPCONFIG 1 // #define WIFI_REGION_VERBOSE #define PING_WHO "10.10.6.1" #define _PRIMARY_STATIC_IP "10.10.6.170" #define IFC_WIFI_SSID "rabbitTest"

Now compile and run this sample program. Uncommen t the #define WIFI_REGION_

VERBOSE

macro to display the channel and power limit settings. The Dynamic C STDIO window will then display a menu that allows you to complete the configuration of the user interface.

6.2.4.2 Wi-Fi Operation

• WIFIDHCPORTSTATIC.C—demonstrates the runtime se lect ion of a static IP configur ation or DHCP. The

SAMPLES\TCPIP\DHCP.C sample program provides further exam-

ples of using DHCP with your application. Before you compile and run this sample program, check the TCP/IP configuration

parameters, the IP address, and the SSID in the macros, which are reproduced below.

#define USE_DHCP #define TCPCONFIG 1 #define _PRIMARY_STATIC_IP "10.10.6.100" #define IFC_WIFI_SSID "rabbitTest"

Modify the values to match your network. You may also need to modify the values for

MY_GATEWAY if you are not pinging from the local subnet.

Now press F9 to compile and run the sample program. When prompted in the Dynamic C

STDIO window, type 's' for static configuration or 'd' for DHCP.

• WIFIMULTIPLEAPS.C—demonstrates changing access points using WEP keys. You will need two access points to run this sample program. The access points should be isolated or on separate networks.

The sample program associates the RabbitCore or MiniCore module with the first access point (

AP_0 defined below) with WEP key KEY0 (defined below). After associating,

the sample program waits for a predefined time period, and then pings the Ethernet address of the access point (AP_ADDRESS_0). The sample program then associates with the second access point and pings its Ethernet address (AP_1, KEY1, AP_

ADDRESS_1

), and then switches back and forth between the two access points.

When changing access points, first bring the IF_WIFI0 interface down by calling

ifdown(IF_WIFI0). Next, change the SSID and key(s) using ifconfig() calls.

Finally , bring the IF_WIFI0 interface back up by calling ifup(IF_WIFI0). Note that the sample program checks for status while waiting for the interface to come up or down.

Before you compile and run this sample program, check the TCP/IP configuration parameters, the IP address, and the SSID in the macros, which are reproduced below.

#define TCPCONFIG 1 #define IFC_WIFI_ENCRYPTION IFPARAM_WIFI_ENCR_WEP

User’s Manual 57

You do not need to configure the SSID of your network since that is done from the access point names.

Now configure the access to the two access points.

// First Access Point #define AP_0 "test1" #define AP_0_LEN strlen(AP_0) #define MY_ADDRESS_0 "10.10.6.250" #define PING_ADDRESS_0 "10.10.6.1" // address on AP 0 to ping #define KEY_0 "0123456789abcdef0123456789"

// Second Access Point #define AP_1 "test2" #define AP_1_LEN strlen(AP_1) #define MY_ADDRESS_1 "10.10.0.99" #define PING_ADDRESS_1 "10.10.0.50"// address on AP 1 to ping #define KEY_1 "0123456789abcdef0123456789"

#define IFC_WIFI_SSID AP_0 #define _PRIMARY_STATIC_IP MY_ADDRESS_0

// use this static IP when connected to AP 0

// use this static IP when connected to AP 1

Modify the access point names and keys to match your access points and network.

• WIFIPINGYOU.C—sends out a series of pings to a RabbitCore or MiniCore module on an ad-hoc Wi-Fi network.

This sample program uses some predefined macros. The first macro specifies the default TCP/IP configuration from the Dynamic C LIB\Rabbit4000\TCPIP\TCP_

CONFIG.LIB

#define TCPCONFIG 1

library.

Use the next macro unchanged as long as you have only one RCM5600W MiniCore module. Otherwise use this macro unchanged for the first RabbitCore or MiniCore module.

#define NODE 1

Then change the macro to #define NODE 2 before you compile and run this sample program on the second RabbitCore or MiniCore module.

The next macros assign an SSID name and a channel number to the Wi-Fi network.

#define IFC_WIFI_SSID "rab-hoc" #define IFC_WIFI_OWNCHANNEL "5"

Finally, IP addresses are assigned to the RabbitCore or MiniCore modules.

#define IPADDR_1 "10.10.8.1" #define IPADDR_2 "10.10.8.2"

As long as you have only one RabbitCore or MiniCore module, the Dynamic C STDIO window will display the pings sent out by the module. You may set up a Wi-Fi enabled laptop with the IP address in

IPADDR_2 to get the pings.

If you have two RabbitCore or MiniCore modules, they will ping each other, and the Dynamic C STDIO window will display the pings.

58 MiniCore RCM5600W

• WIFISCAN.C—initializes the RCM5600W and scans for other Wi-Fi devices that are operating in either the ad-hoc mode or through access points in the infrastructure mode. No network parameter settings are needed since the RCM5600W does not actually join an 802.11 network. This program outputs the results of the scan to the Dynamic C

STDIO window.

• WIFISCANASSOCIATE.C— demostrates how to scan Wi-Fi channels for SSIDs using

ifconfig IFS_WIFI_SCAN. This takes a while to complete, so ifconfig() calls a

callback function when it is done. The callback function is specified using

IFS_WIFI_SCAN

ifconfig

Before you run this sample program, configure the Dynamic C TCP_CONFIG.LIB library and your

1. Use macro definitions in the “Defines” tab in the Dynamic C Options > Project Options menu to modify any parameter settings.

If you are not using DHCP, set the IP parameters to values appropriate to your network.

TCPCONFIG macro.

_PRIMARY_STATIC_IP = "10.10.6.100" _PRIMARY_NETMASK = "255.255.255.0" MY_NAMESERVER = "10.10.6.1" MY_GATEWAY = "10.10.6.1"

Set the macro IFC_WIFI_SSID= to define a C-style string to set the SSID of your access point as, for example,

IFC_WIFI_SSID = "My Access Point"

or use an empty string, "", to associate with the strongest BSS available. Alternatively, you may create your own CUSTOM_CONFIG.LIB library modeled on the

Dynamic C TCP_CONFIG.LIB library. Then use a TCPCONFIG macro greater than or equal to 100, which will invoke your CUSTOM_CONFIG.LIB library to be used. Remember to add the CUSTOM_CONFIG.LIB library to LIB.DIR.

2. If you are using DHCP, change the definition of the TCPCONFIG macro to 5. The def aul t value of 1 indicates Wi-Fi with a static IP address.

Now compile and run the sample program. Follow the menu options displayed in the Dynamic C STDIO window.

Press s to scan available access points Press a to scan access points and associate Press m to print WIFI MAC status

Note that ifconfig IFS_WIFI_SCAN function calls do not return data directly since the scan takes a fair amount of time. Instead, callback functions are used. The callback function is passed to

ifconfig() as the only parameter to IFS_WIFI_SCAN.

ifconfig(IF_WIFI0, IFS_WIFI_SCAN, scan_callback, IFS_END);

User’s Manual 59

The data passed to the callback function are ephemeral since another scan may occur. Thus, the data need to be used (or copied) during the callback function.

While waiting for user input, it is important to keep the network alive by calling

tcp_tick(NULL) regularly.

6.2.5 RCM5600W Sample Programs

The following sample programs are in the Dynamic C SAMPLES\RCM5600W\TCPIP\ folder. The Interface Board must be set up as described in Section 3.2.

PINGLED.C—This program demonstrates ICMP by pinging a remote host. It will pro-

•

duce a long flash of LED DS1 on the Interface Board when a ping is sent, and a short flash when a ping is received.

Before you compile and run this sample program, change PING_WHO and IFC_WIFI_

SSID

to the host and SSID you want to ping. You may modify PING_DELAY to change

the amount of time in milliseconds between the outgoing pings. Uncomment the

VERBOSE define to see the incoming ping replies.

• PINGLED_WPA_PSK.C—This program demonstrates the use of WPA PSK (Wi-Fi

Protected Access with Pre-Shared Key). WPA is a more secure replacement for WEP. The implementation in the sample program supports use of the TKIP (Temporal Key Integrity Protocol) cypher suite.

The sample program uses macros to configure the access point for WPA PSK, specify the TKIP cypher suite, assign the access point SSID, and set the passphrase.

#define WIFI_USE_WPA // Bring in WPA support #define IFC_WIFI_ENCRYPTION IFPARAM_WIFI_ENCR_TKIP // Define cypher suite

#define IFC_WIFI_SSID "rabbitTest"

The next macro specifies a suitable pre-shared key to use instead of the passphrase. The key may be entered either as 64 hexadecimal digits or as an ASCII string of up to 63 characters. Authentication should be set to “open system,” which basically means that knowing the key is sufficient to allow access.

#define IFC_WIFI_WPA_PSK_HEXSTR \ "1010101010101010101010101010101010101010101010101010101010101010"

TIP: There is a good chance of typos since the key is long. First, enter the key in this

sample program macro, then copy and paste it to your access point. This ensures that both the RCM5600W and the access point have the same key.

TIP: For an initia l test , i t may be e asier to use the 64 hex di git f orm o f the k ey rat her tha n

the ASCII passphrase. A passphrase requires considerable computation effort, which delays the startup of the sample program by about 30 seconds.

Change PING_WHO and IFC_WIFI_SSID to the host and SSID you want to ping. You may modify

PING_DELAY to change the amount of time in milliseconds between the

outgoing pings. Uncomment the

60 MiniCore RCM5600W

VERBOSE define to see the incoming ping replies.

Once you have compiled the sample program and it is running, LED DS1 will go on with a brief toggle off when a ping is sent. LED DS1 will go off for a longer duration when a ping is received. LED DS1 is controlled by PD0.

• PINGLED_WPA2_CCMP.C—This sample program demonstrates the use of WPA2 PSK (Wi-Fi Protected Access with Pre-Shared Key).). WPA is a more secure replacement for WEP. The implementation in the sample program uses the Advanced Encryption Standard (AES) based algorithm, also known as the CCMP (Counter Mode with Cipher Block Chaining Message Authentication Code Protocol) cypher suite.

Apart from the configuration of

WPA2_CCMP at the top of the sample program, the rest

of the code is identical to the case without WPA2 PSK. Indeed, most of the TCP/IP sample programs should work with WPA2 CCMP simply by using the same configuration settings.

Configure your access point for WPA2 PSK before you run this sample program. Specify the CCMP cypher suite, and enter a suitable pre-shared key. The key may be entered either as 64 hexadecimal digits or as an ASCII string of up to 63 characters. Authentication should be set to “open system,” which basically means that knowingt the key is sufficient to allow access.

TIP: There is a good chance of typos since the key is long. First, enter the key in this

sample program macro, then copy and paste it to your access point. This ensures that both the RCM5600W and the access point have the same key.

TIP: For an initia l test , i t may be e asier to use the 64 hex di git f orm o f the k ey rat her tha n

the ASCII passphrase. A passphrase requires considerable computation effort, which delays the startup of the sample program by about 30 seconds.

Now change PING_WHO and IFC_WIFI_SSID to the host and SSID you want to ping. You may modify PING_DELAY to change the amount of time in milliseconds between the outgoing pings.

Uncomment the VERBOSE define to see the incoming ping replies. Once you have compiled the sample program and it is running, LED DS1 will go on

with a brief toggle off when a ping is sent. LED DS1 will go off for a longer duration when a ping is received. LED DS1 is controlled by PD0.

User’s Manual 61

• PINGLED_STATS.C—This program is similar to PINGLED.C, but it also displays receiver/transmitter statistics in the Dynamic C STDIO window.

Before you compile and run this sample program, change PING_WHO and IFC_WIFI_

SSID

to the host and SSID you want to ping. You may modify PING_DELAY to change

the amount of time in milliseconds between the outgoing pings. Modify the value in the

MOVING_AVERAGE macro to change the moving average filter-

ing of the statistics. Also review the GATHER_INTERVAL and GRAPHICAL macros, which affect the number of sa mples to gather and create a bar graph display instead of a numeric display.

Uncomment the VERBOSE define to see the incoming ping replies. Once you compile and run this sample program, LED DS1 on the Interface Board will

go on with a brief toggle off when a ping is sent, and the LED will go off for a longer duration when a ping is received.

• SMTP.C—This program demonstrates using the SMTP library to send an e-mail when the S1 switch on the Interface Board is pressed. LED DS1 on the Interface Board will light up when e-mail is being sent. LED DS1 is controlled by PD0.

62 MiniCore RCM5600W

The Digital I/O accessory board may also be used to run the BROWSELED.C, PINGLED.C, and PINGLED_STATS.C sample programs. This accessory board is included only with the Deluxe Development Kit.

To install the Digital I/O accessory board, insert the strip of header pins included with the accessory board into the socket at J12 on the bottom side of the Digital I/O accessory board. Then line up the Digital I/O accessory board with the Interface Board standoffs/

connectors and install the Digital I/O accessory board pins into socket J2 on the Interface Board. Secure the Digital I/O accessory board with the long plastic standoffs/connectors from above as shown in Figure 13—note that one plastic standoff/connector needs to be inserted “upside down” to secure the Digital I/O accessory board to the antenna bracket.

Install header connector strip in bottom socket

JP5

JP7

JP8

5 7

Figure 13. Install Digital I/O Accessory Board

User’s Manual 63

• BROWSELED.C—This program demonstrates a basic controller running a Web page. Four “device LEDs” are created along with four buttons to toggle them. Users can use their Web browser to change the status of the lights. The DS1, DS2, DS3, and DS4 LEDs on the Digital I/O accessory board will match those on the Web page. As long as you have not modified the TCPCONFIG 1 macro in the sample program, enter the following server address in your Web browser to bring up the Web page served by the sample program. Remember to configure the access point to match the default settings of the TCPCONFIG 1 macro.

http://10.10.6.100.

Otherwise use the TCP/ IP settings y ou entered i n the in the “Defines” tab in the Dynamic C

Options > Project Options menu

Once you compile and run this sample program, you can use the buttons in the Web browser to toggle the LEDs on the Digital I/O accessory board on/off.

• PINGLED.C—This program demonstrates ICMP by pinging a remote host. It will flash LED DS2 on the Digital I/O accessory board when a ping is sent and it will flash LED DS3 when a ping is received.

Before you compile and run this sample program, change PING_WHO and IFC_WIFI_

SSID

to the host and SSID you want to ping. You may modify PING_DELAY to change

the amount of time in milliseconds between the outgoing pings. Uncomment the VERBOSE define to see the incoming ping replies.

• PINGLED_STATS.C—This program is similar to PINGLED.C, but it also displays receiver/transmitter statistics in the Dynamic C STDIO window.

Before you compile and run this sample program, change PING_WHO and IFC_WIFI_

SSID

to the host and SSID you want to ping. You may modify PING_DELAY to change

the amount of time in milliseconds between the outgoing pings. Modify the value in the MOVING_AVERAGE macro to change the moving average filter-

ing of the statistics. Also review the GATHER_INTERVAL and GRAPHICAL macros, which affect the number of sa mples to gather and create a bar graph display instead of a numeric display.

Uncomment the

VERBOSE define to see the incoming ping replies.

Once you compile and run this sample program, LED DS2 on the Digital I/O accessory board will flash when a ping is sent, and LED DS3 will flash when a ping is received.

64 MiniCore RCM5600W

The Serial Communication accessory board needs to be installed to run the SERIAL_TO_

WIFI.C

sample program. This accessory board is included only with the Deluxe Develop-

ment Kit. To install the Serial Communication accessory board, insert the strip of header pins

included with the accessory board into the socket at J12 on the bottom side of the Serial Communication accessory with the Interface Board or Digital I/O acces sory board stan dof fs/

board. Then li ne up t h e

Serial Communication

connectors and install the

accessory board

Serial Communication accessory board pins into socket J2 on the Interface Board or the Digital I/O accessory board. Secure the Serial Communication accessory board with the long plastic standoffs/connectors from above as shown in Figure 14—note that one plastic standoff/connector needs to be inserted “upside down” to secure the Serial Communication accessory board above the antenna bracket.

JP5

JP7

Install header connector strip in bottom socket

Figure 14. Install Serial Communication Accessory Board

Pins 1–2, 3–4, 5–6, and 7–8 on header JP5 on the Serial Communication accessory board must be jumpered. Pins 1–2 and 3–4 on header JP7 on the Serial Communication accessory board must also be jumpered.

• SERIAL_TO_WIFI.C—This program demonstrates using TCP over Wi-Fi, which is handled automatically by the libraries. This sample program uses the RabbitWeb HTTP enhancements to configure a simple serial to Wi-Fi converter.

This sample program only supports listening TCP sockets, which means that serial to Wi-Fi devices can only be started by another device initiating the network connection to the Rabbit.

User’s Manual 65

Each serial port can be associated with a specific TCP port. The Rabbit will listen on each of these TCP ports for a connection, which will then be associated with a specific serial port. Data will then be shuttled between the serial and Wi-Fi connections.

Before you compile and run this sample program, define the

IFC_WIFI_SSID in the sample program to match your network settings.

and

_PRIMARY_STATIC_IP

Now compile and run this program. As long as you have not modified the TCPCONFIG 1 macro in the sample program,

enter the following server address in your Web browser to bring up the Web page served by the sample program. Remember to configure the access point to match the default settings of the TCPCONFIG 1 macro.

http://10.10.6.100.

Select the serial port settings in the Web browser. You may leave the TCP port and baud rate settings at their defaults, then set 8 data bits, no parity , and 1 stop bit. Click

Submit

to save the changed settings. Now start a Telnet seession to associate a serial port with a TCP port is with telnet:

Open a cmd window via

Run > cmd and type telnet 10.10.6.100 4567 at the prompt to

associate Serial Port C, for example, where 4567 was the TCP port assigned to Serial Port C in the previous setup performed via the Web browser.

Next, open a serial utility such as Tera Term or Hyperterminal configured to match the settings selected via the Web browser. Finally, use the 10-pin to DB9 serial cable included with the Deluxe Devlopment Kit to connect the PC serial port selected in your serial utility to header J4 (Serial Port C) or header J3 (Serial Port D), depending on the TCP port selected for the Telnet session. As you type characters in the Telnet utility window, you will be able to observe them in the serial utility window, and vice versa.

66 MiniCore RCM5600W

6.3 Dynamic C Wi-Fi Configurations

Rabbit has implemented a packet driver for the RCM5600W that functions much like an Ethernet driver for the Dynamic C implementation of the TCP/IP protocol stack. In addition to functioning like an Ethernet packet driver, this driver impl ements a f unct ion call t o access the functions implemented on the 802.11b/g interface, and to mask channels that are not available in the region where the RCM5600W will be used.

The Wi-Fi interface may be used either at compile time using macro statements or at run time with the

NET.LIB

6.3.1 Configuring TCP/IP at Compile Time

Digi International has made it easy for you to set up the parameter configuration using already-defined

TCP_CONFIG.LIB

#define TCPCONFIG 1

ifconfig() function call from the Dynamic C LIB\Rabbit4000\TCPIP\

library.

TCPCONFIG

macros from the Dynamic C LIB\Rabbit4000\TCPIP\

library at the beginning of your program as in the example below.

There are two RCM5600W module. (

TCPCONFIG

TCPCONFIG 0 is not supported for Wi-Fi applications.)

TCPCONFIG 1

TCPCONFIG 5

macros specifically set up for Wi-Fi applications with the

No DHCP DHCP enabled

These default IP address, netmask, nameserver, and gateway network parameters are set up for the

TCPCONFIG

#define _PRIMARY_STATIC_IP "10.10.6.100" #define _PRIMARY_NETMASK "255.255.255.0" #define MY_NAMESERVER "10.10.6.1" #define MY_GATEWAY "10.10.6.1"

macros.

The use of quotation marks in the examples described in this chapter is important since the absence of quotation marks will be flagged with warning messages when encrypted libraries are used.

Wi-Fi Parameters

• Access Point SSID—

IFC_

the

WIFI_SSID macro to a string for the SSID of the access point in the infra-

IFC_WIFI_SSID

. This is the only mandatory parameter. Define

structure (BSS) mode, or the SSID of the ad-hoc network in the ad-hoc (IBSS) mode. The default is shown below.

#define IFC_WIFI_SSID "rabbitTest"

• Mode—

IFPARAM_WIFI_INFRASTRUCT for the infrastructure mode, or IFPARAM_WIFI_ADHOC

IFC_WIFI_MODE

determines the mode:

for the ad-hoc mode. The default is shown below.

#define IFC_WIFI_MODE IFPARAM_WIFI_INFRASTRUCT

User’s Manual 67

• Your Own Channel—

IFC_WIFI_CHANNEL

determines the channel on which to operate.

The default is shown below.

#define IFC_WIFI_CHANNEL 0

The default 0 means that any valid channel may be used by the requested SSID. This parameter is mandatory when creating an ad-hoc network. While it is optional for the infrastructure mode, it is usually best left at the default

Note that there are restrictions on which channels may be used in certain countries. These are provided in Table 5 for some countries.

• Region/Country—

IFC_WIFI_REGION

sets the channel range and maximum power limit to match the region selected. Table 5 lists the regions that are supported and their corresponding macros.

The region selected must match the region where the RCM5600W MiniCore module will be used.

The default is shown below.

#define

• Disable/enable encryption—

IFC_

WIFI_REGION IFPARAM_WIFI_REGION_AMERICAS

IFC_WIFI_ENCRYPTION

indicates whether or not encryp-

tion is enabled. The default (encryption disabled) is shown below.

#define IFC_WIFI_ENCRYPTION IFPARAM_WIFI_ENCR_NONE

The following encryption options are available.

• IFPARAM_WIFI_ENCR_NONE — no encryption is used.

• IFPARAM_WIFI_ENCR_ANY — any type of encryption is used.

• IFPARAM_WIFI_ENCR_WEP — use WEP encryption. You will need to define at least

one WEP key (see below).

• IFPARAM_WIFI_ENCR_TKIP — use TKIP or WPA encryption. You will need to

define a passphrase or a key for TKIP encryption, as well as define the WIFI_USE_WPA macro (see below).

• IFPARAM_WIFI_ENCR_CCMP — use CCMP or WPA2 encryption. You will need to

define at least one WEP key (see below).

• There are four encryption keys ( 0, 1, 2, 3) associated with the IFC_WIFI_WEP_KEYNUM macro (default 0). One or more of the following additional macros must be defined as well. The default is for the keys to remain undefined.

IFC_WIFI_WEP_KEY0_BIN

IFC_WIFI_WEP_KEY1_BIN

IFC_WIFI_WEP_KEY2_BIN

IFC_WIFI_WEP_KEY3_BIN

68 MiniCore RCM5600W

IFC_WIFI_WEP_KEY0_HEXSTR

IFC_WIFI_WEP_KEY1_HEXSTR

IFC_WIFI_WEP_KEY2_HEXSTR

IFC_WIFI_WEP_KEY3_HEXSTR

These macros specify the WEP keys to use for WEP encryption. These keys can be either 40-bit or 104-bit (i.e., 5 bytes or 13 bytes). They must be defined as a commaseparated list of byte values.

Note that you do not necessarily need to define all four WEP keys. You may typically just define one key, but make sure it matches the key used on all other devices, and set

IFC_WIFI_WEP_KEYNUM to point to the correct key.

If both IFC_WIFI_WEP_KEY#_BIN and IFC_WIFI_WEP_KEY#_HEXSTR are defined for a particular key, the hex version will be used.

• Use WPA encryption. The following macro must also be used to compile WPA functionality into the Wi-Fi

driver. This is necessary to enable TKIP encryption.

#define WIFI_USE_WPA

• Set WP A passphrase—IFC_WIFI_WPA_PSK_PASSPHRASE is a str ing that matches the

passphrase on your access point. It may also point to a variable. Define an ASCII passphrase here, from 1 to 63 characters long. An example is shown

below.

#define IFC_WIFI_WPA_PSK_PASSPHRASE "now is the time"

If possible, you should use IFC_WIFI_WPA_PSK_HEXSTR instead of IFC_WIFI_

WPA_PSK_PASSPHRASE

to set the key.

• Set WPA hexadecimal key—IFC_WIFI_WPA_PSK_HEXSTR is a string of hexadecimal digits that matches the 256-bit (32-byte) hexadecimal key used by your access point.

Specify a 64 hexadecimal digit (256 bits) key here. This key will be used and will override any passphrase set with the IFC_WIFI_WPA_PSK_PASSPHRASE macro. The example hex key shown below

#define IFC_WIFI_WPA_PSK_HEXSTR \ "57A12204B7B350C4A86A507A8AF23C0E81D0319F4C4C4AE83CE3299EFE1FCD27"

is valid for the SSID "rabbitTest" and the passphrase "now is the time". Using a passphrase is rather slow. It takes a Rabbit 5000 more than 20 seconds to gen-

erate the actual 256-bit key from the passphrase. If you use a passphrase and #define

WIFI_VERBOSE_PASSPHRASE

, the Wi-Fi library will helpfully print out the hex key

corresponding to that passphrase and SSID.

• Authentication algorithm—IFC_WIFI_AUTHENTICATION can be used to specify the authentication modes used.

The default shown below allows enables both open-system authentication and sharedkey authentication.

#define IFPARAM_WIFI_AUTH_ANY

User’s Manual 69

The following authentication options are available.

• IFPARAM_WIFI_AUTH_OPEN — only use open authentication.

• IFPARAM_WIFI_AUTH_SHAREDKEY — only use shared-key authentication (useful

for WEP only).

• IFPARAM_WIFI_WPA_PSK — use WPA preshared-key authentication (useful for

TKIP and CCMP only).

• Fragmentation threshold—IFC_WIFI_FRAG_THRESHOLD sets the fragmentation threshold. Frames (or packets) that are larger than this threshold are split into multiple fragments. This can be useful on busy or noisy networks. The value can be between

256 and 2346.

The default, 0, means no fragmentation.

#define IFC_WIFI_FRAG_THRESHOLD 0

• RTS threshold—IFC_WIFI_RTS_THRESHOLD sets the RTS threshold, the frame size

at which the RTS/CTS mechanism is used. This is sometimes useful on busy or noisy networks. Its range is

1 to 2347.

The default,

#define IFC_WIFI_RTS_THRESHOLD 2347

2347, means no RTS/CTS.

Examples are available within Dynamic C. Select “Function Lookup” from the Help menu, or press <ctrl-H>. Type “TCPCONFIG” in the Function Search field, and hit

<Enter>. Scroll down to the section on “Wi-Fi Configuration.” The Dynamic C TCP/IP

User’s Manual.(Volume 1) provides additional information about these macros and Wi-Fi.

It is also possible to redefine any of the above parameters dynamically using the ifcon-

fig()

ifconfig() function call, and may be used to change the above default macros or

function call. Macros for alternative Wi-Fi configurations are provided with the

configurations.

70 MiniCore RCM5600W

6.3.2 Configuring TCP/IP at Run Time

There is one basic function call used to configure Wi-Fi and other network settings —

ifconfig(). See the Dynamic C TCP/IP User’s Manual, Volume 1 for more informa-

tion about this function call.

6.3.3 Other Key Function Calls

Remember to call

sock_init() after all the Wi-Fi parameters have been defined. The

Wi-Fi interface will be up automatically as long as you configured Dynamic C at compile time with one of the

TCPCONFIG macros. Otherwise the Wi-Fi interface is neither up nor

down, and must be brought up explicitly by calling either ifup(IF_WIFI0) or

ifconfig(IF_WIFI0,…). You must bring the interface down when you configure

Dynamic C at run time before modifying any parameters that require the interface to be down (see Section 6.3.2) by calling

Finally, no radio transmission occurs until you call Instead of executing the above sequence based on

init_or_exit(1)

as a debugging tool to transmit packets (ARP, DHCP, association,

ifdown(IF_WIFI0). Then bring the interface back up.

tcp_tick(NULL).

sock_init(), you could use sock_

and authentication) while bringing up the interface and to get the IP address.

User’s Manual 71

6.4 Where Do I Go From Here?

NOTE: If you purchased your RCM5600W through a distributor or through a Rabbi t p art -

ner, cont act the distributor or partner firs t for technical support.

If there are any problems at this point:

• Use the Dynamic C

Help menu to get further assistance with Dynamic C.

• Check the Rabbit Technical Bulletin Board and forums at www.rabbit.com/support/bb/ and at www.rabbit,com/forums/.

• Use the Technical Support e-mail form at www.rabbit.com/support/.

If the sample programs ran fine, you are now ready to go on. An Introduction to TCP/IP and the Dynamic C TCP/IP User’s Manual.provide

background and reference information on TCP/IP, and are available on the CD and on our

Web site.

72 MiniCore RCM5600W

APPENDIX A. RCM5600W

SPECIFICATIONS

Appendix A provides the specifications for the RCM5600W.

User’s Manual 73

A.1 Electrical and Mechanical Characteristics

Figure A-1 shows the mechanical dimensions for the RCM5600W.

(30)

1.20

0.114

(2.9)

0.958

0.114

(2.9)

0.114

(2.9)

(24.3)

0.125

(3.2)

1.762

(44.8)

2.00

(51)

2.00

(51)

dia

× 2

(8.3)

0.326

0.157

(4.0)

0.642

(16.3)

0.130

(3.3)

0.326

0.085

(2.2)

0.050

(1.3)

0.324

(8.2)

0.085

(2.2)

(8.3)

0.039

0.4

(10)

(1.0)

0.40

(10)

1.20

(30)

(1.0)

0.039

Figure A-1. RCM5600W Dimensions

74 MiniCore RCM5600W

It is recommended that you allow for an “exclusion zone” of 0.08" (2 mm) around the RCM5600W top and bottom and 0.04" (1 mm) around the three non-connector edges when the RCM5600W is incorporated into an assembly that includes other printed circuit boards. This “exclusion zone” that you keep free of other components and boards will allow for sufficient air flow, and will help to minimize any electrical or electromagnetic interference between adjacent boards. Figure A-2 shows this “exclusion zone.”

(2)

0.08

(2)

0.08

(8.3)

0.326

2.00

(51)

0.04

(1)

(2)

0.08

(2)

0.08

(8.3)

0.326

0.04

(1)

1.20

(30)

0.04

(1)

Figure A-2. RCM5600W “Exclusion Zone”

Exclusion

Zone

User’s Manual 75

T ableA-1 lists the electrical, mechanical, and environmental specifications for the RCM5600W.

Table A-1. RCM5600W Specifications

Parameter RCM5600W

Microprocessor EMI Reduction Spectrum spreader for reduced EMI (radiated emissions)

Serial Flash Memory (program)

SRAM 1MB

Backup Battery

General-Purpose I/O

Additional Inputs Reset in Additional Outputs Status, reset out

External I/O Bus

up to 35 parallel digital I/0 lines configurable with four layers of

alternate functions

6 high-speed, CMOS-compatible ports:

Connection for user-supplied backup battery

Can be configured for 8 data lines and

8 address lines (shared with parallel I/O lines),

Rabbit

5000 at 73.73 MHz

1MB

(to support RTC)

plus I/O read/write

• all 6 configurable as asynchronous (with IrDA), 4 as clocked serial

Serial Ports

(SPI), and 2 as SDLC/HDLC

• 1 clocked serial port shared with programming port

Serial Rate Maximum asynchronous baud rate = CLK/8

Slave Interface

Real-Time Clock Yes

Timers

W atchdog/Supervisor Yes

Pulse-Wi dth Modulators

Input Capture

Quadrature Decoder

Slave port allows the RCM5600W to be used as an intelligent peripheral device slaved to a master processor

Ten 8-bit timers (6 cascadable from the first),

one 10-bit timer with 2 match registers, and

one 16-bit timer with 4 outputs and 8 set /reset registers

4 channels synchronized PWM with 10-bit counter or 4 channels variable-phase or synchronized PWM with 16-bit counter

2-channel input capture can be used to time input s ignals from vari ous

port pins

2-channel quadrature decoder accepts inputs

from external incremental encoder modules

76 MiniCore RCM5600W

Table A-1. RCM5600W Specificati ons (continued)

Parameter RCM5600W

3.15 V DC (min.) – 3.45 V DC (max.)

Power

Operating T emperatu re –30°C to +55°C Humidity 5% to 95%, noncondensing

625 mA @ 3.3 V while transmitting/receiving

85 mA @ 3.3 V while not transmitting/receiving

Connectors

Board Size

Typical Average Antenna Output Power

Compliance 802.11b/g, 2.4 GHz

Edge connectors for interface with

52-pin mini PCI Express socket

1.20" × 2.00" × 0.40"

(30 mm × 51 mm × 10 mm)

Wi-Fi

Region 802.11b 802.11g

Americas, Japan 19 dBm

Other Regions 18 dBm

15 dBm

User’s Manual 77

A.1.1 mini PCI Express Connector Design Recommendations

The RCM5600W is mounted on the Interface Board via a mini PCI Express connector and a corresponding locking latch connector. These are offered by manufacturers as a matched set, although in some cases different manufacturer’s parts may be interchangeable. Table A-2 lists the recommended parts for the mini PCI Express connector and the locking

latch connector used for the Interface Board.

Table A-2. Interface Board Connect or-Related Parts

Connector Part Manufacturer Part Number

mini PCI Express Connector Pinrex 984-63-052202 498-0090 Latch Connector FOXCONN AS0B226S68K-7F 498-0091

Rabbit Store Part

Number

Other manufacturers such as Molex offer similar connectors and latches, but these can have different mechanical structures and PCB footprints to what we use on the Interface Board. Table A-3 lists a pair of matched Molex parts that might be used.

Table A-3. Molex Connector-Related Parts

Connector Part Molex Part Number

mini PCI Express Connector 67910-0002 Latch Connector 48099-4000

Follow the PCB design and layout recommendations and considerations provided by the manufacturer for the connector and latch that you select.

78 MiniCore RCM5600W

A.2 Rabbit 5000 Microprocessor Characteristics

The Rabbit 5000 Microprocessor User’s Manual, which is included with the online docu-

mentation

microprocessor. Rabbit’s Technical Note TN227, Interfacing External I/O with Rabbit Microprocessor

Designs, which is also included with the online documentation, contains suggestions for

interfacing I/O devices to the Rabbit 5000 microprocessors.

, provides complete specifications and timing diagrams for the Rabbit 5000

User’s Manual 79

80 MiniCore RCM5600W

APPENDIX B. INTERFACE BOARD

Appendix B describes the features and accessories of the Interface Board, and explains the use of the Interface Board to demonstrate the RCM5600W . The Interface Board has power-supply connections and a USB interface to program the RCM5600W.

User’s Manual 81

B.1 Introduction

The Interface Board included in the Development Kit makes it easy to connect an RCM5600W module to a power supply and a PC workstation for development.

The Interface Board is shown below in Figure B-1, with its main features identified.

mini PCI Express

socket

RCM5600W

Snap-In holder

Program/Run Mode

Switch/LED

Jumper Settings

Stacking

User Interface

Connector

User

LED

Power

LED

User

Switch

Reset

Switch

Current-Limiting

Configuration

Jumper

mini USB

Programming/Power

Connector

USB LEDs

Power Input

Jack

Figure B-1. Interface Board

82 MiniCore RCM5600W

B.1.1 Interface Bo ard Features

• Power Connection—Power is supplied to the Interface Board either from the PC via the USB connection or through a power supply jack, J6. A chip at U4 disconnects the USB power supply from the rest of the Interface Board when power is supplied through jack J6.

Users providing their own power suppl y should ens ure that i t delivers +5 V DC at 10 W.

• Regulated Power Supply—The raw DC voltage is routed to a 3.3 V linear regulator. The regulator provides stable power to the RCM5600W module and other boards connected to it.

Power LED—The power LED lights whenever power is connected to the Interface

•

Board.

•

Reset Switch—A momentary-contact, normally open switch is connected directly to the

RCM5600W’ s

/RESET_IN pin. Pressing the switch forces a hardware reset of the system.

• mini USB Connector—A USB cable is used to connect the RCM5600W via the Interface Board to your PC to enable you to program your RCM5600W module.

•

mini PCI Express socket—The Interface Board provides a 52-pin mini PCI Express

socket to enable you to install your RCM5600W module. There is a snap-in holder to hold the opposite end of the RCM5600W module firmly in place.

• I/O Switch and LED—One momentary-contact, normally open switch is connected to PD1 on the RCM5600W module and may be read as an input by sample applications.

One LED is connected to PD0 on the RCM5600W module, and may be driven as an output indicator by sample applications.

User’s Manual 83

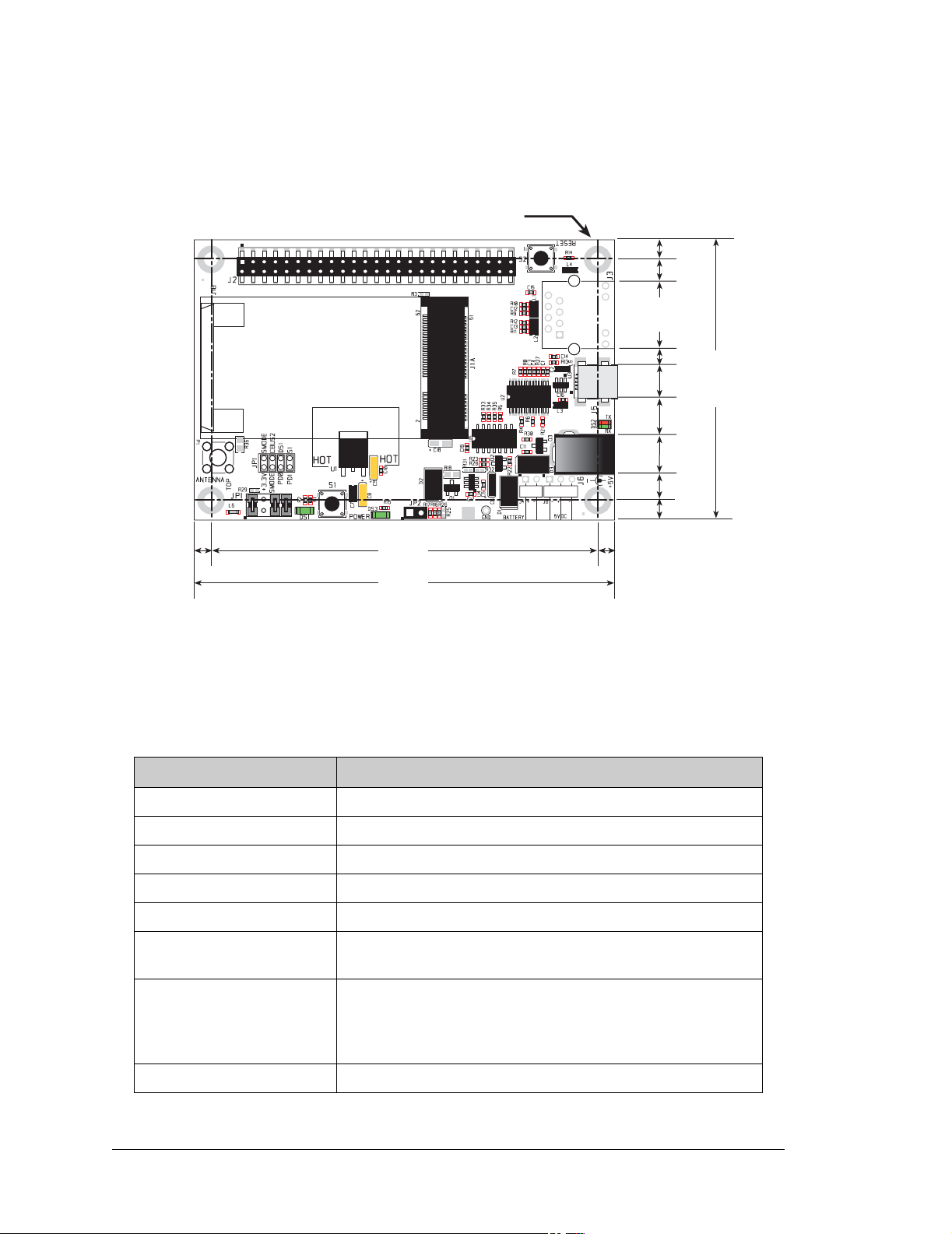

B.2 Mechanical Dimensions and Layout

Figure B-2 shows the mechanical dimensions and layout for the Interface Board.

dia

0.125

(3.2)

× 4

0.175

0.628

(4.4)

0.181

(4.6)

(15.9)

0.130

(3.3)

0.304

(7.7)

0.317

(8.1)

0.360

(9.1)

0.230

(5.8)

(64)

2.50

0.15

(3.8)

3.45

(88)

3.75

(95)

0.15

(3.8)

(4.4)

0.175

Figure B-2. Interface Board Dimensions

Table B-1 lists the electrical, mechanical, and environmental specifications for the Interface Board.

Table B-1. Interface Board Specifications

Parameter Specification

Board Size 2.50" × 3.75" × 0.60" (64 mm × 95 mm × 15 mm) Operating Temperature –40°C to +85°C Humidity 5% to 95%, noncondensing Input Voltage +5 V DC Output Voltage +3.3 V DC Maximum Current Draw

(includi ng user-added circuits)

Other Connectors

nominal 750 mA max. for USB supply,

1.5 A for separate power supply One 2 × 25 IDC header sockets, 0.1" pitch,

One 52-pin mini PCI Express socket to accept RCM5600W One mini USB connector One 2 mm power supply jack

Standoffs/Spacers 4

84 MiniCore RCM5600W

B.2.1 Headers

The Interface Board has a header socket at J2 for physical connection to other boards. J2 is a 2 × 25 SMT header socket with a 0.1" pin spacing. Figure B-3 shows the layout of another board to be plugged into the Interface Board — this footprint is identical for the Interface Board and the two accessory boards. The values are relative to the mounting hole.

0.275

(1.27)

0.110

(2.8)

MiniCore Boards Footprint

Figure B-3. Interface Board Footprint

User’s Manual 85

B.3 Power Supply

The RCM5600W requires a regulated 3.15 V – 3.45 V DC power source to operate. Depending on the amount of current required by the application, different regulators can be used to supply this voltage.

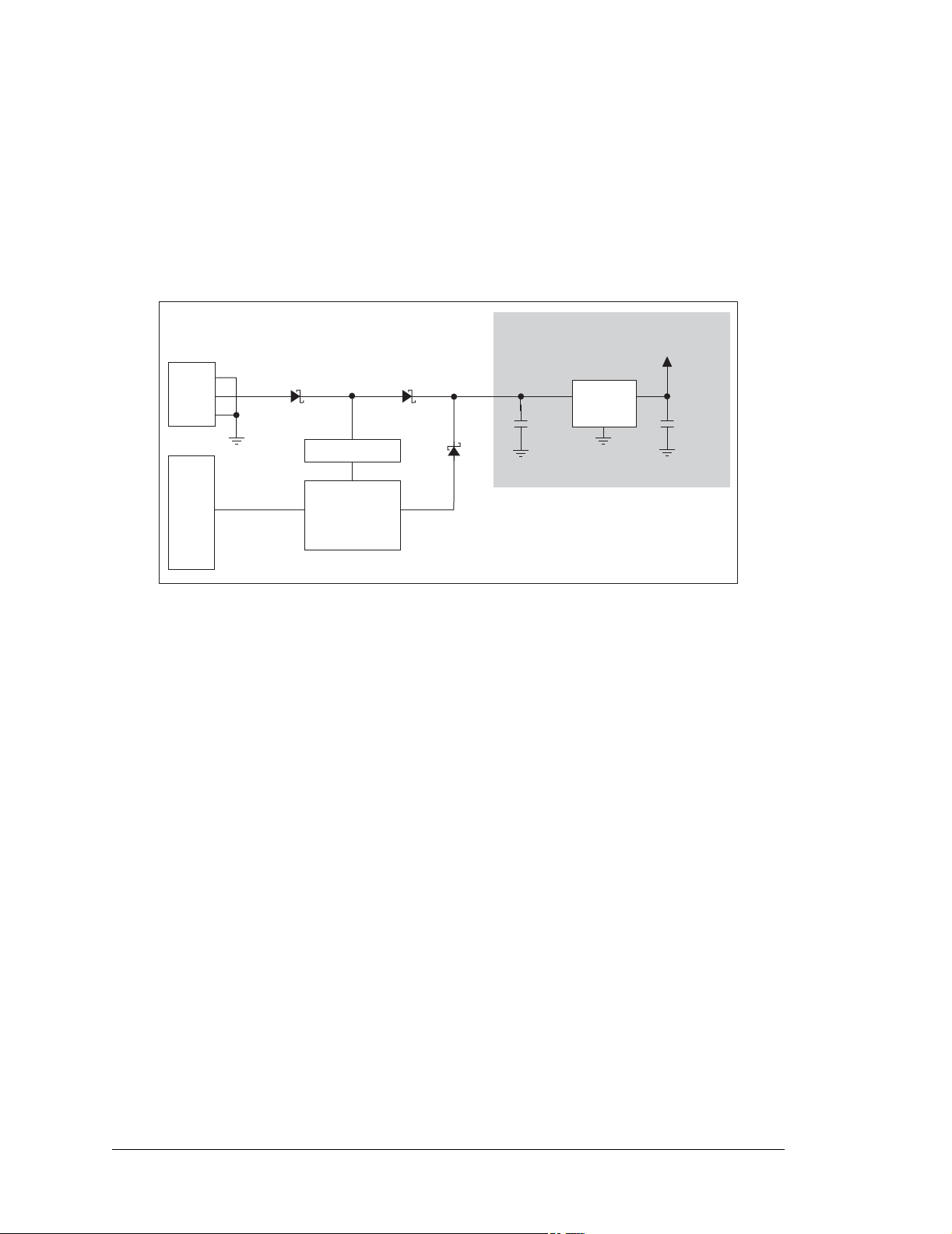

The Interface Board has an onboard +3.3 V linear regulator. The Interface Board is protected against reverse polarity by a Shottky diode at D3 as shown in Figure B-4.

LINEAR POWER

POWER

+RAW

B240

CONTROLLER

B240

REGULATOR

LD29150DT33R

10 µF

+3.3 V

10 µF

VBUS

mini USB

CONNNECTOR

POWER

SWITCH

Figure B-4. Interface Board Power Supply

Power may be supplied to the Interface Board either via the mini USB connector at J5 or through the power supply jack J6. When a separate power supply is used, the chip at U4 disables power from the mini USB connector, which continues to supply power only to the USB interface chip. Diodes at D1 and D2 prevent power from going back to the other power supply that is not supplying power. A separate power supply is required whenever the Interface Board is not connected to the PC.

A jumper on header JP2 controls the current limiting applied to the power drawn via the mini USB connector — the current is nominally limited to 700 mA when a jumper is installed (default), and is nominally limited to 500 mA when no jumper is installed.

86 MiniCore RCM5600W

B.4 Using the Interface Board

The Interface Board is also a demonstration board. It can be used to demonstrate the functionality of the

The Interface Board comes with the basic components necessary to demonstrate the operation of the RCM5600W. One LEDs (DS1) is connected to PD0, and one switch (S1) is connected to PD1 to demonstrate the interface to the Rabbit 5000 microprocessor. Reset switch S2 is the hardware reset for the RCM5600W.

RCM5600W

right out of the box without any modifications to either board.

The Interface veniently to header

Board provides the user with RCM5600W connection points b rought out con-

socket

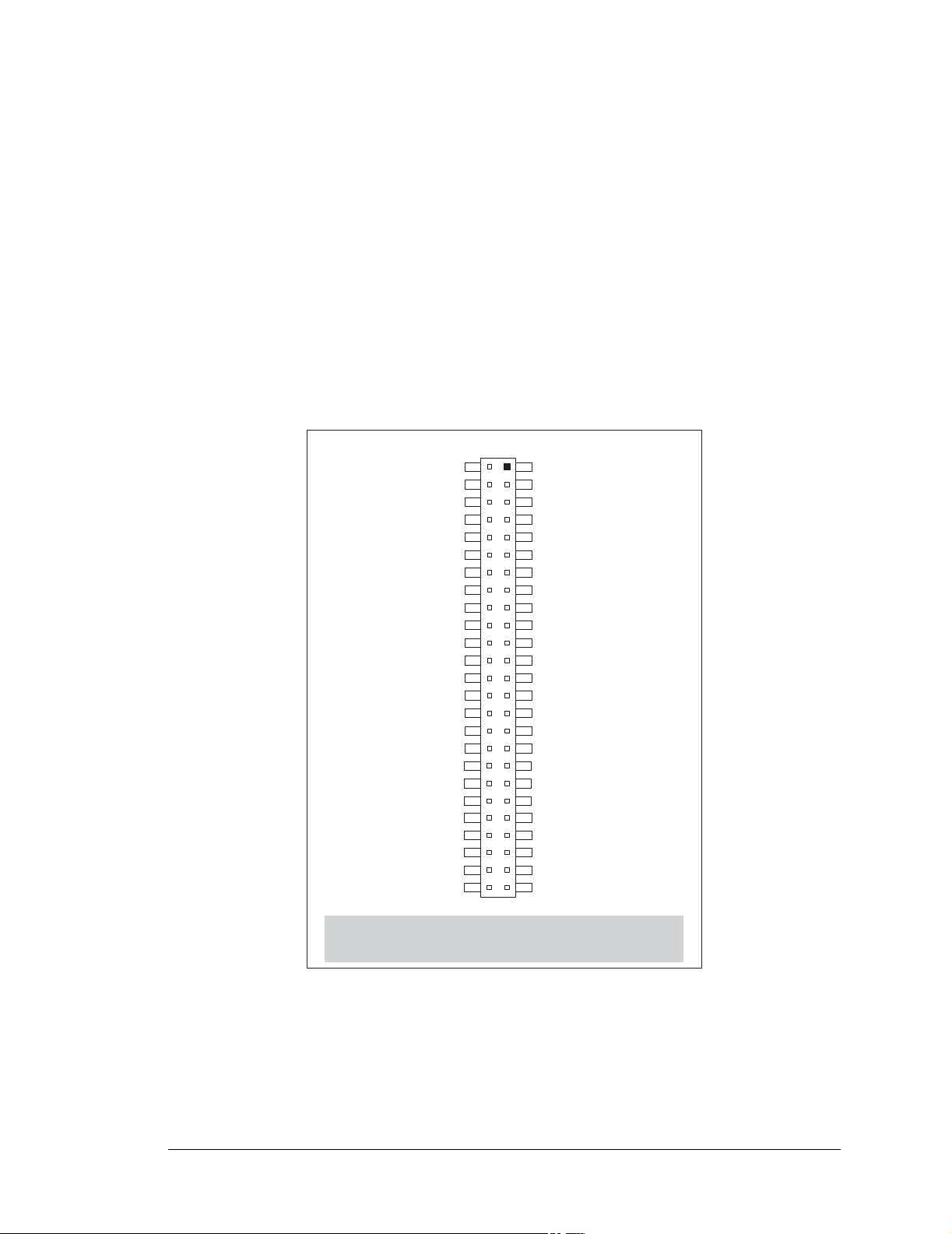

J2. Other boards such as the Prototyping Board or the accessory boards from the Deluxe Development Kit can be plugged into header socket J2. for header socket J2 are shown in Figure B-5.

GND

PE1 PE3 PE6

SMODE

PD1 PD3

/RESET

GND

PC1

PC3 PC5/RxB PC7/RxA

PB1/SCLKA

PB3

PB5

PB7

GND

PA1 PA3 PA5 PA7

/IOWR

VBAT_EXT

GND

+3.3 V PE0 PE2 PE5 PE7 PD0 PD2 /RESET_IN +3.3 V PC0 PC2 PC4/TxB PC6/TxA PB0/SCLKB PB2 PB4 PB6 +3.3 V PA0 PA2 PA4 PA6 /IORD STATUS +3.3 V

The pinouts

These pinouts are as seen on

Note:

the Top Side.

Figure B-5. Interface Board Pinout

User’s Manual 87

B.4.1 Add Additional Boards

The Prototyping Board and the two accessory boards included with the Deluxe Development Kit may be installed on the Interface Board as shown in Figure B-6.

Install header connector strip in bottom socket

Figure B-6. Install Additional Boards on Interface Board

1. Insert the header strip into header socket J2 on the Interface Board or the board already installed above the Interface Board.

2. Line up the board being installed above the pins extending from the header socket and the stand-offs/connectors.

3. Press down to install the board.

4. Insert additional plastic standoffs/connectors as shown to hold the board firmly in place and to hold another board if desired.

When additional boards are installed, the board-to-board spacing is 0.7" (17.8 mm). Multiple boards should be installed in this sequence from bottom to top.

• Interface Board with RCM5600W installed.

• Prototyping Board.

• Serial Communication accessory board.

• Digital I/O accessory board.

88 MiniCore RCM5600W

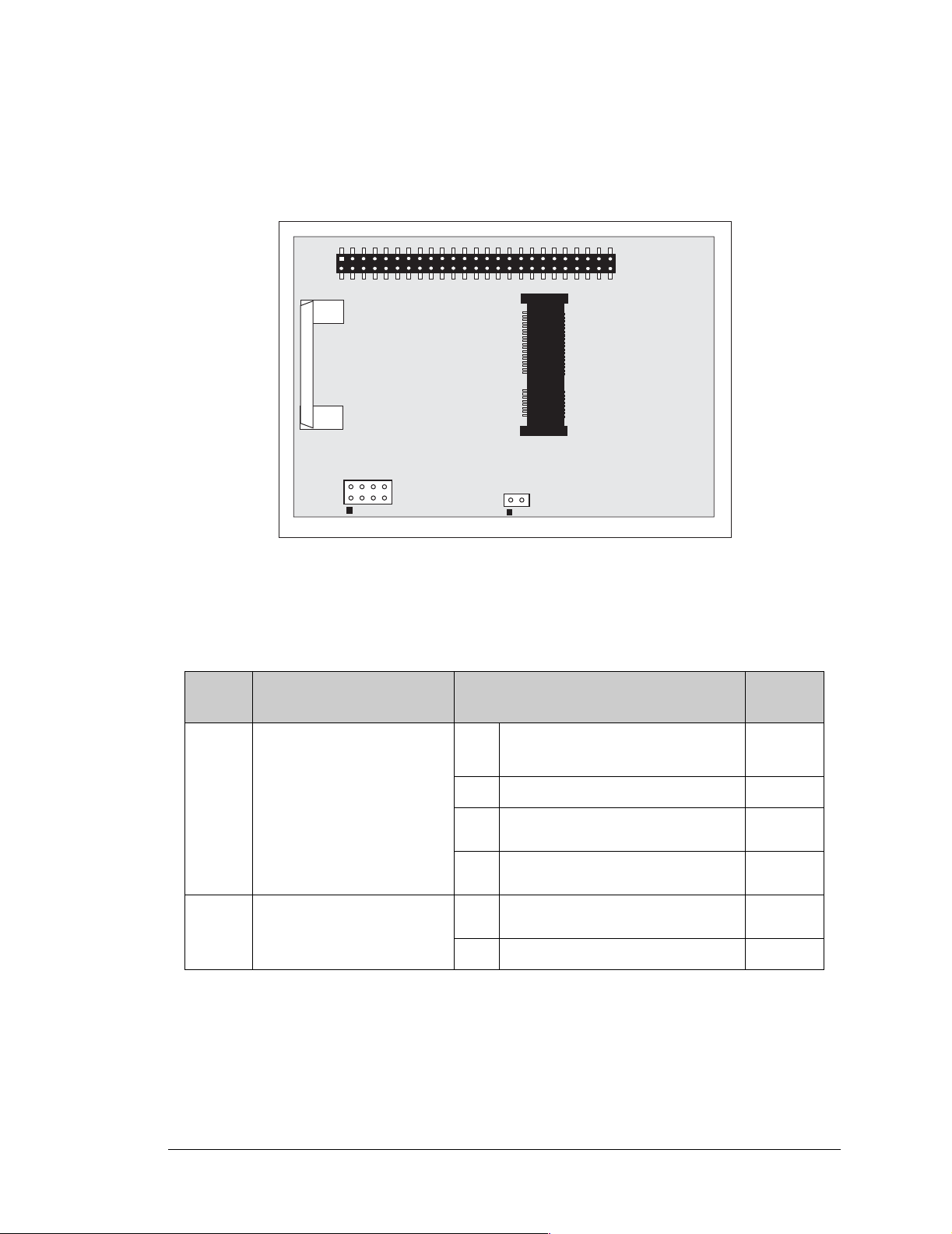

B.5 Interface Board Jumper Configurations

Figure B-7 shows the header locations used to configure the various Interface Board options via jumpers.

JP1

Figure B-7. Location of Configurable Jumpers on Interface Board

JP2

T able B-2 lists the configuration options using either jumpers or 0 Ω s urface-mount resistors.

Table B-2. Interface Board Jumper Configurations

Header Description Pins Connected

SMODE pins pu l l ed up

JP1 Dynamic C Setup

JP2

mini USB Connector Power Supply Current Limiting

1–2

(Programming Mode)

3–4 Reserved for future use

5–6 LED DS1 connected

7–8 Switch S1 connected

1–2 Nominal 700 mA

n.c. Nominal 500 mA

Factory

Default

× × ×

* The RCM5600W will operate in Run Mode when these pins are not jumpered.

User’s Manual 89

90 MiniCore RCM5600W

APPENDIX C. PROTOTYPING BOARD

Appendix C describes the features and accessories of the Prototyping Board, and explains the use of the Prototyping Board to build prototypes of your own circuits. The Prototyping Board mounts on the Interface Board from which it receives its power and signals.

User’s Manual 91

C.1 Introduction

The Prototyping Board included in the Development Kit provides a prototyping area for more advanced hardware development. The Prototyping Board is shown below in Figure C-1, with its main features identified.

RCM5600W

Module

Extension Header

Power

LED

3.3 V and GND Buses

Stacking

User Interface

Connector

Through-Hole

Prototyping Area

Figure C-1. Prototyping Board

C.1.1 Prototyping Board Features

SMT Prototyping

Area

• Power Connection—Power is supplied to the Prototyping Board via the RCM5600W header socket connections.

Power LED—The power LED lights whenever power is connected to the Prototyping

•

Board.

• Module Extension Headers—The complete pin set of the RCM5600W module is duplicated below header J2. Developers can solder wires directly into the appropriate holes, or, for more flexible development, a 2 × 25 header strip with a 0.1" pitch can be soldered into place. See Figure C-4 for the header pinouts.

• Prototyping Area—A generous prototyping area is provided for the installation of through-hole and surface-mount components. +3.3 V and ground buses run along the left and right edges of the through-hole prototyping area. The through-hole area is set up to accept components with a pitch of 0.1" or widths of 0.3" or 0.6". Several areas for surface-mount devices are also available. (Note that there are SMT pads on both the top and the bottom of the Prototyping Board.) Each SMT pad is connected to a hole designed to accept a 30 AWG solid wire.

92 MiniCore RCM5600W

C.2 Mechanical Dimensions and Layout

Figure C-2 shows the mechanical dimensions and layout for the Prototyping Board.

dia

0.125

(3.2)

× 4

(4.4)

0.175

(55)

2.15

(64)

2.50

0.15

(3.8)

3.45

(88)

3.75

(95)

Figure C-2. Prototyping Board Dimensions

0.15

(3.8)

(4.4)

0.175

User’s Manual 93

Table C-1 lists the electrical, mechanical, and environmental specifications for the Prototyping Board.

Table C-1. Prototyping Board Specifications

Parameter Specification

Board Size 2.50" × 3.75" × 0.52" (64 mm × 95 mm × 13 mm) Operating Temperature –40°C to +85°C Humidity 5% to 95%, noncondensing Operating Voltage +3.3 V DC

Current Draw from Interface Board (excluding user-added circuits)

2 mA

Prototyping Area

Connectors

Standoffs/Spacers 4

1.7" × 2.7" (40 mm × 70 mm) throughhole, 0.1" spacing, additional space for SMT components

Two 2 × 25 IDC header sockets, 0.1" pitch (a 2 × 25 IDC header strip is included to connect the Prototyping Board to the Interface Board below it)

94 MiniCore RCM5600W

Digi MCWIFI Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

1. INTRODUCTION

1.1 RCM5600W Features

1.2 Advantages of the RCM5600W

1.3 Development and Evaluation Tools

1.3.1 RCM5600W Standard Development Kit

1.3.2 RCM5600W Deluxe Development Kit

1.3.3 Optional Add-Ons

1.3.4 Software

1.3.5 Online Documentation

1.4 Certifications

1.4.1 FCC Part 15 Class B

1.4.2 Industry Canada Labeling

1.4.3 Europe

2. GETTING S TARTED

2.1 Install Dynamic C

2.2 Hardware Connections

2.2.1 Step 1 — Prepare the Interface Board for Development

2.2.3 Step 3 — Connect Antenna

2.2.4 Step 4 — Connect USB Cable

2.3 Run a Sample Program

2.3.1 Troubleshooting

2.4 Where Do I Go From Here?

2.4.1 Technical Support

3. RUNNING SAMPLE PROGRAMS

3.1 Introduction

3.2 Sample Programs

4. HARDWARE REFERENCE

4.1 RCM5600W Digital Inputs and Outputs

4.1.1 Memory I/O Interface

4.1.2 Other Inputs and Outputs

4.2 Serial Communication

4.2.1 Serial Ports

4.2.2 Programming Port

4.3 Wi-Fi

4.3.1 Antenna Grounding Requirements

4.4 Programming Modes

4.4.1 Standalone Operation of the RCM5600W

4.5 Other Hardware

4.5.1 Clock Doubler

4.5.2 Spectrum Spreader

4.6 Memory

4.6.1 SRAM

4.6.2 Flash M emory

4.6.3 Encryption RAM Memory

5. SOFTWARE REFERENCE

5.1 More About Dynamic C

5.2 Dynamic C Function Calls

5.2.1 Digital I/O

5.2.2 Serial Co mmunication Drive rs

5.2.3 Serial Flash Memory Use

5.2.4 User and ID Blocks

5.2.5 Wi-Fi Drivers

5.2.6 Interface Board Function Calls

5.3 Upgrading Dynamic C

5.3.1 Add-On Modules

6. USING THE WI-FI FEATURES

6.1 Introduction to Wi-Fi

6.1.1 Infrastructure Mode

6.1.2 Ad-Hoc Mode

6.1.3 Additional Information

6.2 Running Wi-Fi Sample Programs

6.2.1 Wi-Fi Setup

6.2.2 What Else You Will Need

6.2.3 Configuration Information

6.2.4 Wi-Fi Sample Programs

6.2.5 RCM5600W Sample Programs

6.3 Dynamic C Wi-Fi Configurations

6.3.1 Configuring TCP/IP at Compile Time

6.3.2 Configuring TCP/IP at Run Time

6.3.3 Other Key Function Calls

6.4 Where Do I Go From Here?

A.1 Electrical and Mechanical Characteristics

A.1.1 mini PCI Express Connector Design Recommendations

A.2 Rabbit 5000 Microprocessor Characteristics

APPENDIX B. INTERFACE BOARD
