DS-470 SERIES OPERATING MANUAL
SECTION INDEX PAGE NUMBER
1.0. GENERAL 1
1.1. Description 1
2.0. SPECIFICATIONS 2
2.1. Technical Specifications 2
2.2. Physical Dimensions 3
3.0. INSTALLATION 4
3.1. Unpacking 4
3.2. Inspection 4
3.3. Repackaging 4
3.4. DI-470 RS-232 Cable Installation 5
3.5. Platform Unlocking Procedure 6
4.0. ELECTRICAL TEST 7
4.1. Set-Up Procedure 7
4.2. Keyboard & Display Test 7
5.0. OPERATION 8
5.1. Keysheet and Display Layout 8
5.2. DS-470 Key Function Summary
5.3. Indicator Lamps
""""
See below
""""
See below
5.4. Operation Procedure Overview 9
5.5. Tare Reduction 10
5.5.1. Digital Tare 10
5.5.2. One Touch Tare 10
5.6. Set The Min And Max Values 10-12
5.6.1. Programming Of Minimum And Maximum Range By Numeric Key Entry 10
5.6.2. Programming Of Minimum And Maximum Range By Weighing 11
5.6.3. Programming Of Minimum And Maximum Range By Entering Target Weight 11
5.6.4. Programming Of Minimum And Maximum Range By Weighing Target Weight 12
5.7. Check Weighing Operation 12-13
5.7.1. Using Full Container 12
5.7.2. When Filling A Container 13
5.8. Clearing Min & Max Range 13
6.0. DS-470 OPTIONS 14-20

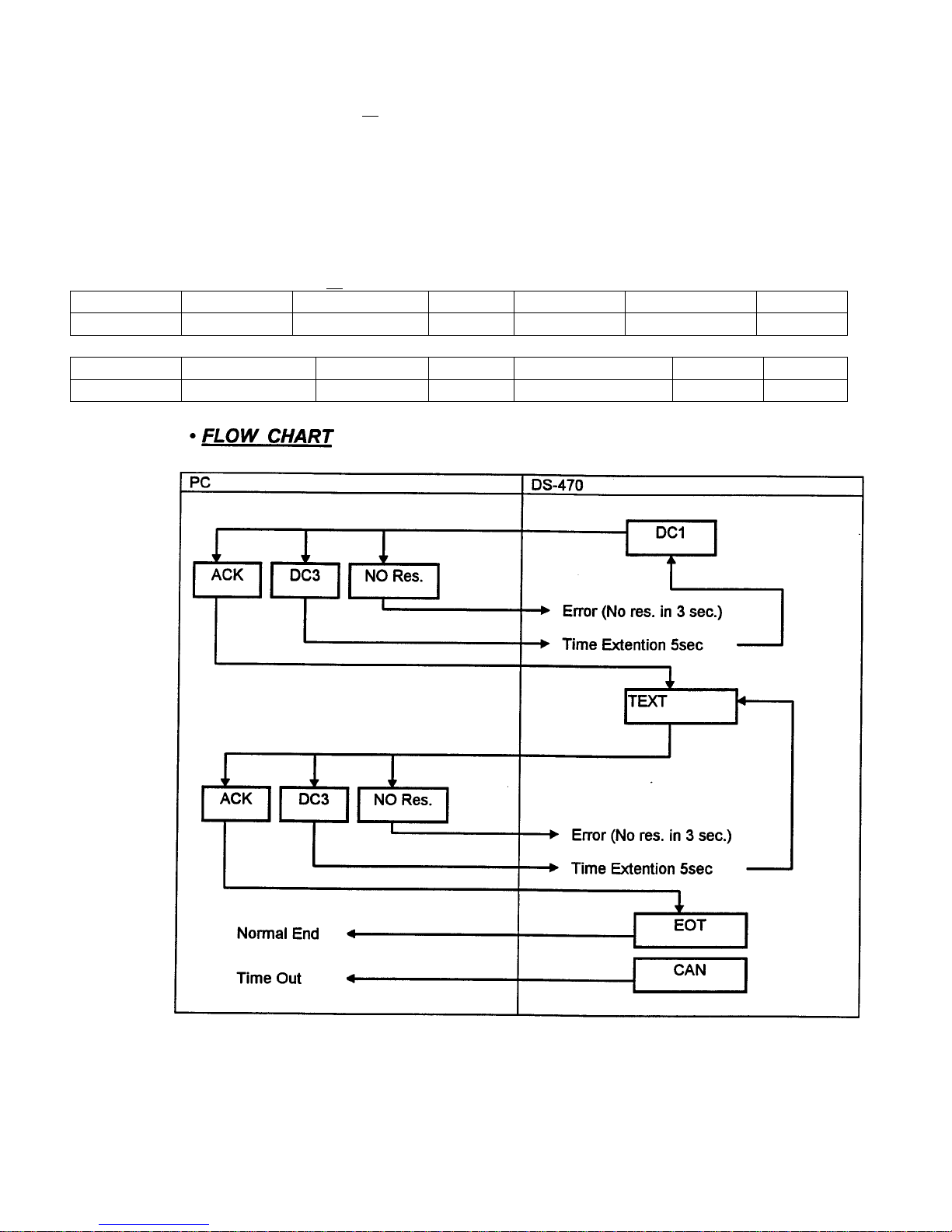

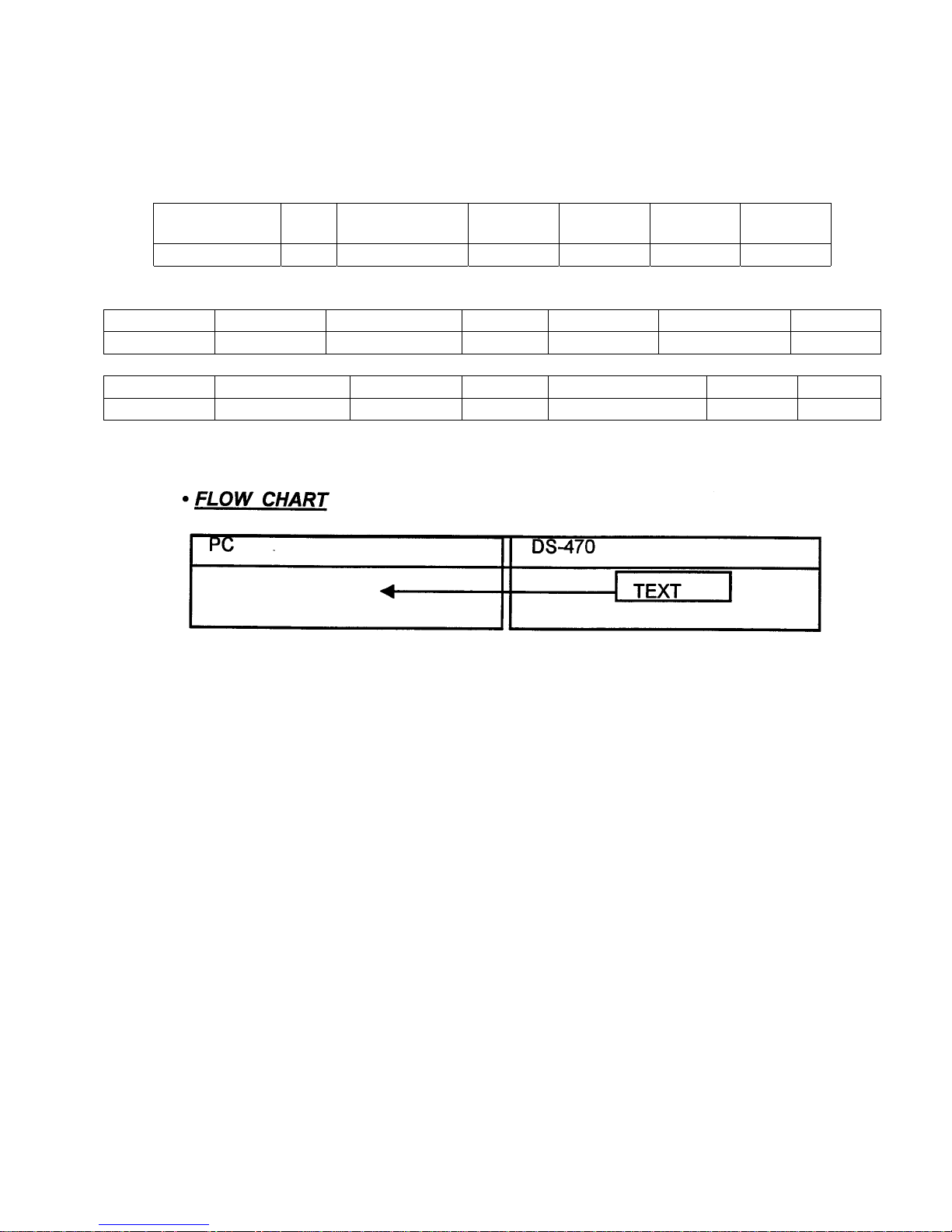

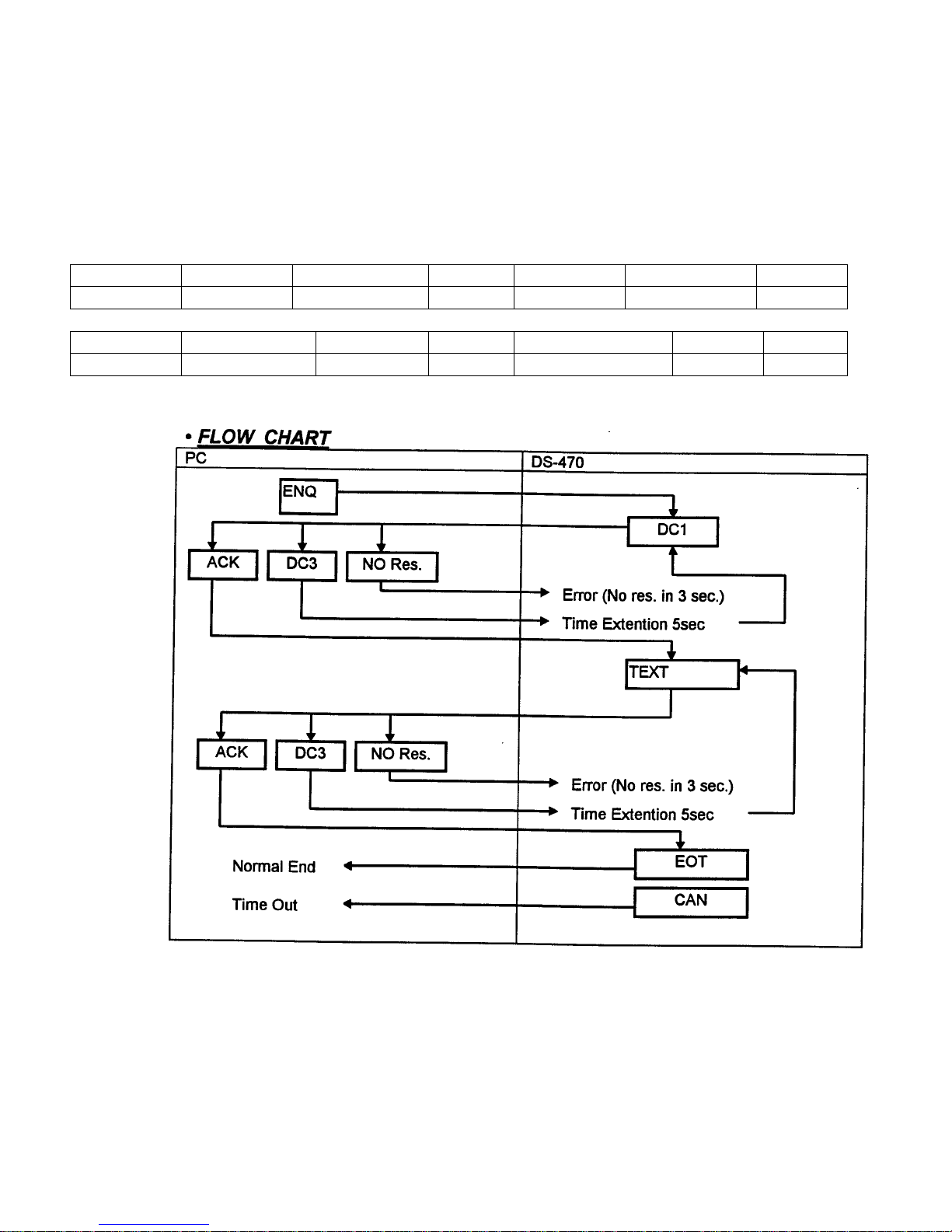

6.1. RS-232 Option 14-18
6.2. Set Point 19-20
7.0. MAINTENANCE, CALIBRATION, TEST PROCEDURE, SERVICE 21-31
7.1. Maintenance Procedures 21
7.2. Service & Repair 22
""""
7.3. Specification List
See below
7.4. Span Enable Switch 28
7.5. Internal Count 28
7.6. Calibration Mode 29
7.7. Error Messages
""""
See below
7.8. Shop Notes 30
""""
See pages 2,8, 25,26, 27 for revisions in this manual
8
8
23-27
29
1.0. GENERAL
1.1. Features
The DS-470SS Check Weighing Scale offers a practical solution to a wide
range of weighing applications. There are a variety of weight capacities and
increments available. The display resolution is selectable from 1/3,000 to
1/15,000. It features keyboard calibration with auto-span and ON/OFF,
REZERO, TARE, for one touch tare and a numeric keyboard for digital tare
and set point entry. For a list of platform sizes and available capacities see
page 2.
This instruction manual will provide the user with all the information necessary
to understand, set-up and operate the DS-470 scale. Included in this manual
are descriptions, specifications, drawings, and operating instructions.
DS-470 OPERATING MANUAL
1
2.0. SPECIFICATIONS
This section includes a detailed listing of all pertinent specifications and parameters
for each of the DS-470 weighing scales. The system weighing accuracy is 0.02 %
for all models and they meet or exceed the requirements of OIML, Class III, and
NIST Handbook, Number 44.
2.1 Technical Specifications
Â
Â
Â
Â
Model Name DS-470
Capacity 3kg / 6kg /15kg / 30kg
6lb / 15lb / 30lb / 60lb
Internal Resolution 1/600,000
Display Resolution Single Range: 1/3000 , 1/6000 , 1/12000 , 1/15000
Display Resolution
Capacity 1/3000 1/6000 1/12000 1/15000
3LB e=0.001 lb e=0.0005 lb Not avail. e=0.0002 lb
6lb e=0.002 lb e=0.001 lb e=0.0005 lb Not avail.
12lb Not avail. e=0.002 lb e=0.001 lb Not avail.
15lb e=0.005 lb Not avail. Not avail. e=0.001 lb
30lb e=0.01 lb e=0.005 lb Not avail. e=0.002 lb
60lb e=0.02 lb e=0.01 lb e=0.005 lb Not avail.
3kg e=0.001kg e=0.0005g Not avail. e=0.0002 kg
6kg e=0.002 kg e=0.001 kg e=0.0005 kg Not avail.
12kg Not avail. e=0.002 kg e=0.001 kg Not avail.
15kg e=0.005 kg Not avail. Not avail. e=0.001 kg
30kg E=0.01 kg e=0.005 kg Not avail. e=0.002 kg
Â
Display type Weight display 7 Segments FIP display 6 digits(including minus
sign) , (letter height = 13mm)
Min & Max display 7 Segments FIP display 5 digits(letter height =
Â
Â
Â
(platter size) 256(W) x 205(D)
Â
Â
Â
Colored LED bar graph 5 LEDs each color Red, Green, Yellow
Key Board 18 mechanical keys
Dimensions 256(W) x 320(D) x 87(H)mm
Net Weight Approximately 3kg
Interface RS-232C for external device (PC) or
Internal Buzzer Buzzer sounds at set point
7mm)
TTL Set Point Output by specification change
Power Source AC 100/110V, 220/230/240V(+10% to –15%)50 or 60 Hz
Operating Temperature
Relative Humidity
2
-10° degrees Celsius to 40° degrees Celsius
15% ≈ 85% RH

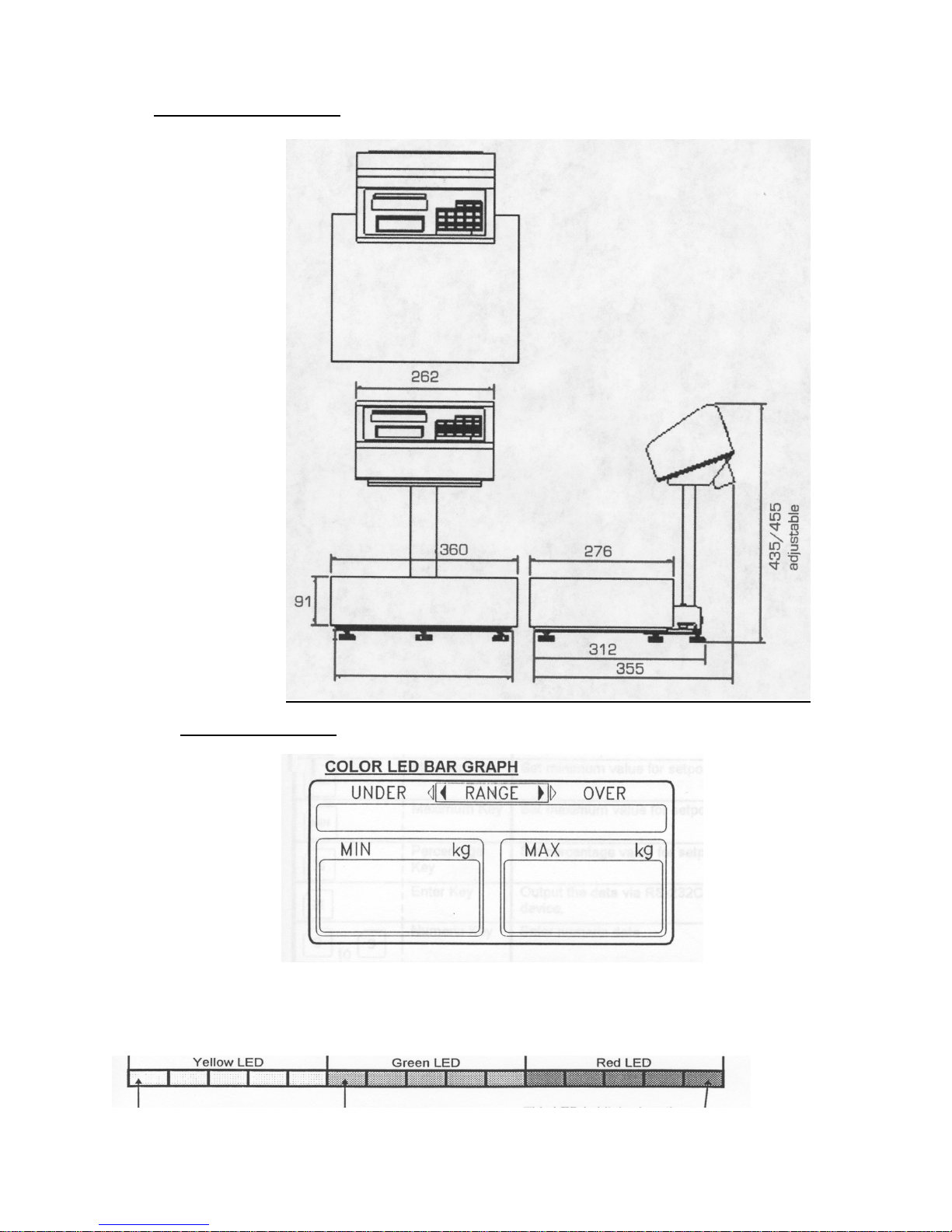

2.2. Physical Dimensions
2.3. Color LED Bar Graph
maximum besides the digital weight display.
LEDs provide clear indication of weight condition between minimum and
Target range is determined by entering 2 set points (min and max range.) The value can be
entered by any method described in section (5.6.) on pages 13 - 15. Set points alert the operator
with both auditory and visual signals if weight is within the target range.
The graduation of LED is determined by dividing the target range by 5 (Max weight – Min weight /5)
This LED is lit as the low min. This LED is lit as the min. acceptance range. This LED is lit as the high max.
3
3.0. INSTALLATION
This section provides the information required for installation of the DS-470 weight
indicator.
The following steps accomplish installation.
1. Unpacking
2. Set-up Procedure
3.1. Unpacking
Each component of the DS-470 is packed in a specially designed carton.
Remove each component from its carton, separate the component from its
polystyrene shell assembly and set aside. Inspect the carton interior to be
sure that all accessories have been removed from the carton. Inspect the
carton inner panels for accessories.
NOTE: Be sure to repack all materials within the carton set. Store the
cartons in a secure area so they can be available whenever shipment of the
scale is required.
3.2. Inspection
Immediately after unpacking, a visual inspection of the instrument should be
performed. If any damage has been incurred during transportation the
shipper and DIGI MATEX INC. should be notified immediately. Instructions
for assessment of damage and further procedures will then be determined.
3.3. Repackaging
If, at anytime, the DS-470 check weighing scale must be returned for
modification, calibration, or repair, be sure that it is properly packed with
sufficient cushioning materials.
Whenever possible, the original carton assembly should be retained for this
purpose. Any damage caused by improper packaging will not be covered by
warranty.
3.4. RS – 232 Cable Installation & Assembly
The DS-470 has RS-232 & set points as a standard feature and are spec
selectable, pole mounting kit comes with all the necessary hardware and
assembly is easy. See page 6 for details.
3.5. DS-470 SS Unlocking
The unlocking procedure is Included on page 6.
4

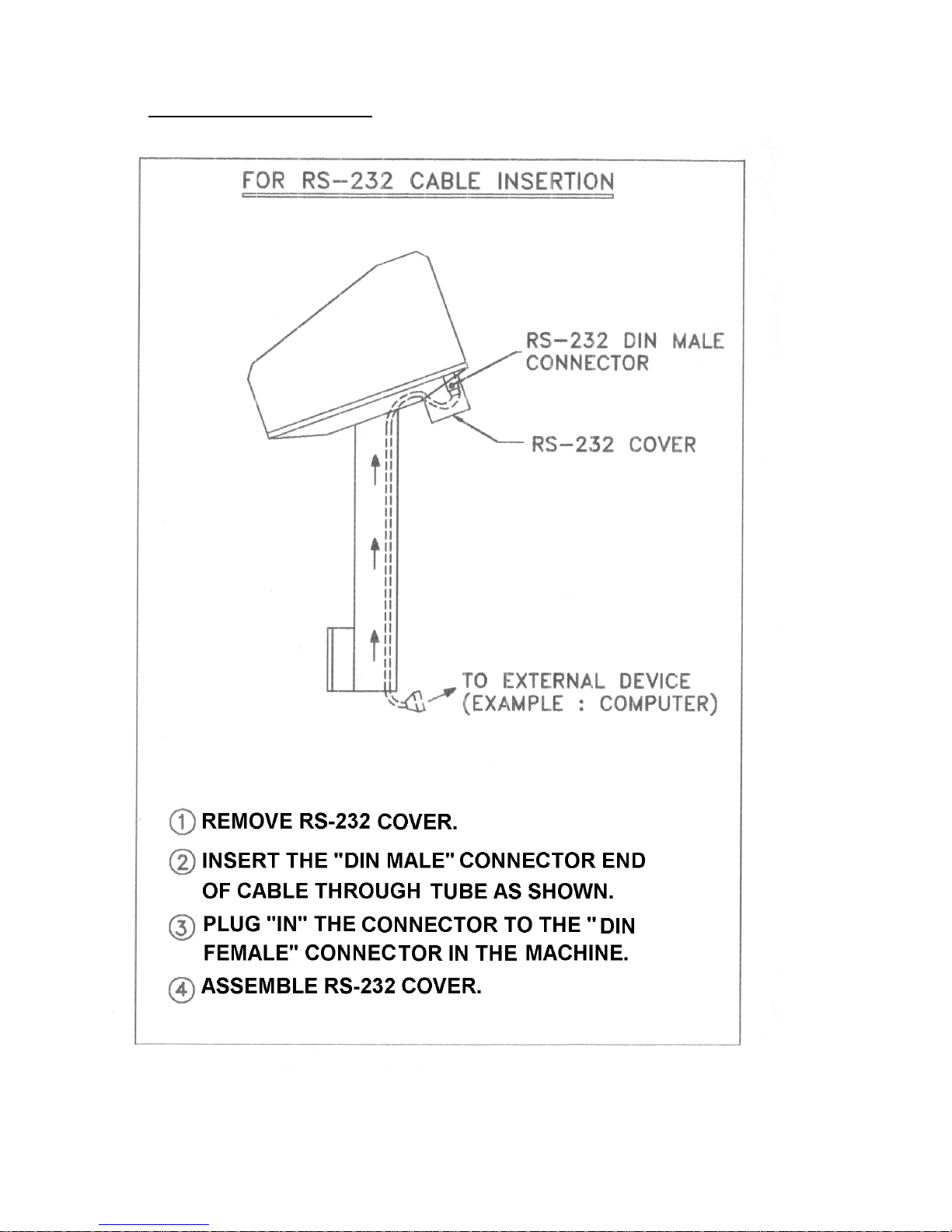

3.4. RS-232 Cable Installation
5

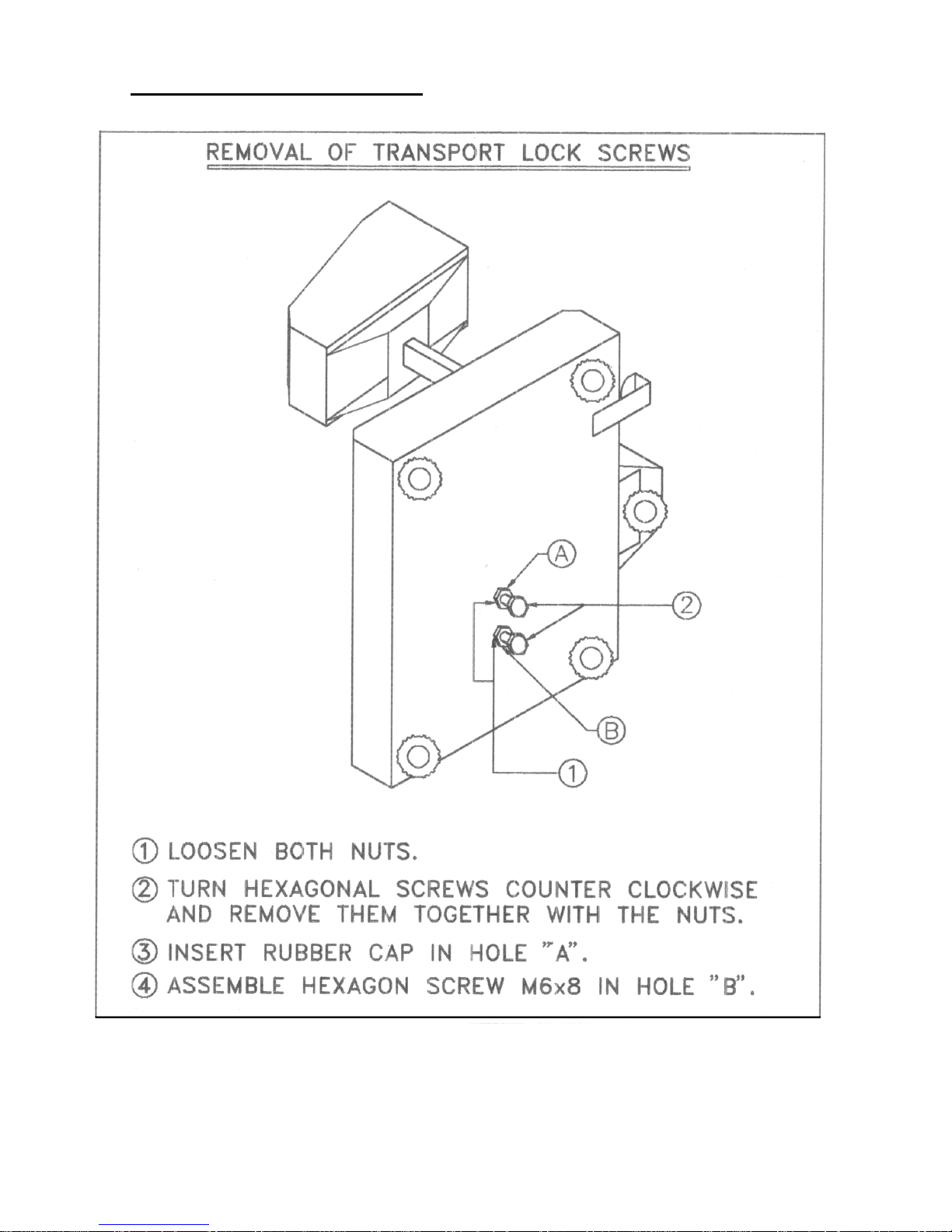

3.5.1. DS-470 SS Unlocking Procedure
6
4.0. ELECTRICAL TEST
4.1. Set-Up Procedure
This part of the procedure is used to verify proper operation of the weighing scale.
Place the scale on a reasonably level surface. Level the scale using the adjustable
legs and the level bubble guide.
Connect the AC power source, and press the "ON/OFF " key, the display will
momentarily show all digits from 0 to 9 in a "count-up" mode. Then the display will
blank, show all "8's", and enter the regular operating display.
If at any time the scale displays erratic data, it may be caused by a power transient.
Turn the scale "off" and momentarily unplug it from the wall outlet. Then restart, by
plugging the scale back in and pressing the "ON/OFF " key.
4.2. Keyboard and Display Test
This part of the procedure is used to verify proper operation of the various switches
and displays.
The following functions will be tested in this procedure:
A. Re-Zero
A. Tare Entry
B. Digital Tare Entry
4.2.2. One Touch Tare
A. Press the "0" key and then the "TARE" key to reset any Tare.
B. Press “REZERO” key to re-zero the scale.
C. Place the empty container on the scale and press the "TARE" key
once. The weight display should now read zero with the empty container
on the scale.
4.2.3. Digital Tare Entry
A Press the "TARE" key.
B Press the "RE-ZERO" key. After resetting, the Displays will read zero.
C Enter the number 0.2 by using the keyboard. Then press the "TARE" key.
D The weight display will show the weight entered with a negative sign
indicating that the weight displayed is a Tare Weight.
7
OPERATION

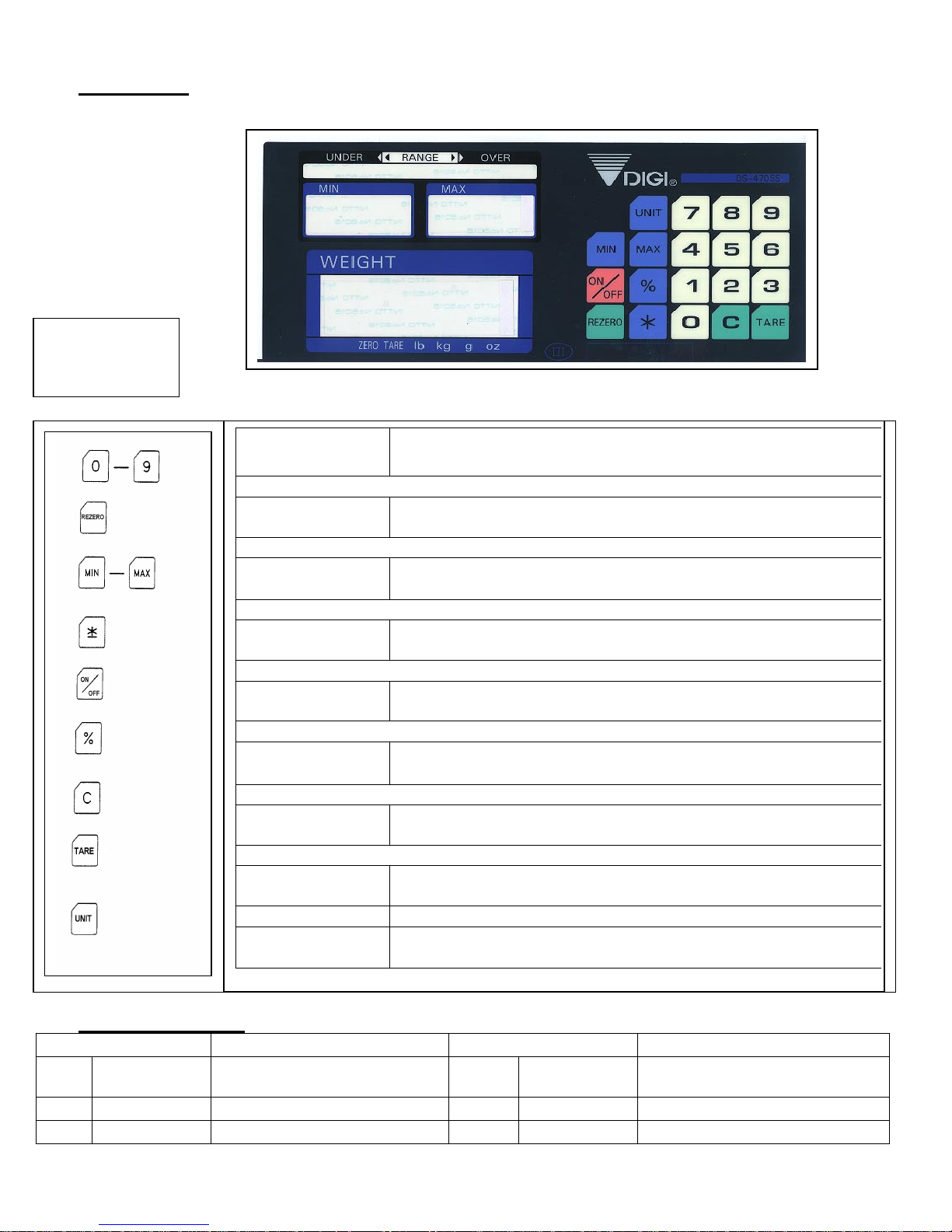

5.1. Keysheet and Display Layout
5.2. DS-470
Key Function
Summary
ZERO TARE lb kg g oz - and the [kg/lb] key is now labeled [UNIT]
""""Note:
For Ver 1.19 and above Indicator lights in the weight window are as follows
Numeric Keys : 0 - 9
Numeric Keys : 0 - 9
Re-Zero Key:
Re-Zero Key:
MIN & MAX key:
MIN & MAX key:
ENTER key:
ENTER key:
ON / OFF key:
ON / OFF key:
PERCENTAGE
PERCENTAGE
Key:
Key:
CLEAR key:
CLEAR key:
TARE key:
TARE key:
Kg/LB("now
Kg/LB("now
unit change)
unit change)
To return scale to zero point
To return scale to zero point
To enter the minimum & maximum
To enter the minimum & maximum
weight range Set point
weight range Set point
Used to send data with RS-232 &
Used to send data with RS-232 &
Used to store specs in program mode
Used to store specs in program mode
To turn on and off the power to the display
To turn on and off the power to the display
Used to min & max percent set point &
Used to min & max percent set point &
Used to exit spec mode
Used to exit spec mode
Used to clear data in display
Used to clear data in display
Used for setting and clearing tare weight
Used for setting and clearing tare weight
Switch between pounds, kilograms (
Switch between pounds, kilograms (
ounces see spec 3) ver1.19
ounces see spec 3) ver1.19
now also grams and
""""
now also grams and
""""
5.3. Indicator Lamps
Indicators
Function
Indicators
Function
ZERO Lamp When weight is at zero kg Kg Lamp When kilograms is selected
NET TARE Lamp When a tare is programmed
lb Lb Lamp When pounds is selected
8
g g Lamp When grams is selected
oz oz Lamp When ounces is selected
5.4. Operation Procedure Overview
Step 1. ----- Press ON/OFF key to turn on the power.
The numerical display windows will begin with all 0’s and scroll through to all 8’s. The
DS-470 is ready to weigh as shown below.
0 0
0.0000
Note: Please set scale on a firm surface and turn adjusting legs until bubble comes
to the center of the level indicator.
Step 2. ----- 5.5. Tare Subtraction.
Step 3. ----- 5.6. Set The Min And Max Values.
Step 4. ----- 5.7. Check Weighing Operation.
Step 5. ----- 5.8. Clearing Min & Max Range
9
SCALE OPERATION
5.5. Tare Reduction
5.5.1. Preset Tare Operation
Weighing mode
1. Enter tare weight with numeric
indicators
[9] [0] [0]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
••••
DISPLAY TASK OPERATION
0.000 0 0
0.900 0 0
keys. (Ex. Tare 0.900 lb.)
2. Subtract tare weight.
[T]
•••• ••••
−0.900
0 0
5.5.2. One Touch Tare Operation
Weighing mode
1. Place tare weight on platter.
indicators
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
DISPLAY TASK OPERATION
0.000 0 0
0.500 0 0
(Ex. Tare 0.500 lb.)
2. Press the tare key.
3. Remove the weight from
[T]
•••• ••••
••••
0.000 0 0
−0.500
0 0
platter.
""""NOTE: To clear a tare value, press [T] key with no weight on platter.
""""
NOTE: When setting min & max values the scale will not allow weight unit to
change, the [UNIT] key is disabled until both min & max values have been selected.
The min & max values will then be converted to weight unit selected.
5.6. Set the min and max values.
5.6.1. Programming Of Minimum And Maximum Range By Numeric Key Entry
Weighing mode
1. Enter minimum weight value
indicators
[1] [5] [6]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
••••
DISPLAY TASK OPERATION
0.000 0 0
0.156 0 0
by using the numeric keys.
(ex. 0.156 lb.)
2. Press MIN key to set the
[MIN]
0.000 0.156 0
••••
Minimum Value.
3. Enter maximum weight value
••••
0.183 0.156 0
by using the numeric keys.
(ex. 0.183 lb.)
4. Press MAX key to set the
[MAX]
0.000 0.156 0.183
••••
Maximum Value.
10
5.6.2. Programming Of Minimum And Maximum Range By Weighing
Weighing mode
1. Place weight equal to
indicators
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
DISPLAY TASK OPERATION
0.000 0 0
0.209 0 0
minimum value desired on
platter. (Ex.0.209 lb.)
2. Press MIN key to set the
[MIN]
0.209 0.209 0
minimum value.
3. Place weight equal to
0.309 0.209 0
maximum value desired on
platter. (Ex.0.309 lb.)
4. Press MAX key to set the
[MAX]
0.309 0.209 0.309
maximum value.
5.6.3. Programming Of Minimum And Maximum Range By Entering Target Weight
Weighing mode
1. Enter target weight with
indicators
[1] [0] [0] [0]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
••••
DISPLAY TASK OPERATION
0.000 0 0
1.000 0 0
numeric keys. (Ex.1.000 lb.)
2. Press % key.
[%]
••••
P 0 0 0
(input memory is 1.0 lb.)
3. Select minimum weight %
[1] [2]
••••
P 12 0 0
using numeric keys
4. Press MIN key to set the
[MIN]
••••
P 12 0.880 0
minimum value.
5. Select maximum weight %
[5]
••••
P 5 0.880 0
using numeric keys
6. Press MAX key to set the
[MAX]
••••
P 5 0.880 1.050
maximum value.
7. Press % key.
[%]
••••
0.000 0.880 1.050
(input memory is 1.0 lb.)
11
5.6.4. Programming Of Minimum And Maximum Range By Weighing Target Weight
Weighing mode
1. Place target weight on the
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
••••
DISPLAY TASK OPERATION
0.000 0 0
0.000 0 0
platter. (Ex. The target weight is
0.620 lb.)
2. Press % key.
3. Press minimum weight percent
[%]
[1] [0]
••••
••••
P 0 0 0
P 10 0 0
by using numeric keys. ( Ex.
10%)
4. Press MIN key to set the
[MIN]
••••
P 10 0.558 0
minimum value. (Ex. 0.620 x
(100% - 10%) = 0.558)
5. Press maximum weight
[1] [5]
••••
P 15 0.558 0
percent by using the numeric
keys. (Ex. 15%)
6. Press MAX key to the
[MAX]
••••
P 15 0.558 0.713
maximum value. (Ex. 0.620 x
(100% + 15%) = 0.713)
7. Press % key to enter weighing
••••
0.000 0.558 0.713
mode.
5.7. Check Weighing Operation
5.7.1. Using full container
Weighing mode. (from previous
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
DISPLAY TASK OPERATION
0.000 0.558 0.713
step)
1. Place full container on scale
2. Enter tare weight with numeric
keys. (Ex. Tare 0.900 lb.)
3. Subtract tare weight.
[9] [0] [0] as
••••
shown in 5.3.1.
[T] as shown in
••••
1.595 0.558 0.713
0.900 0.558 0.713
0.695 0.558 0.713
5.3.1.
3. If
weight is within the target range
••••
0.695 0.558 0.713
the set points will operate as
shown on page 19.
4. Once weight has been
••••
0.000 0.558 0.713
checked remove container of
parts.
12

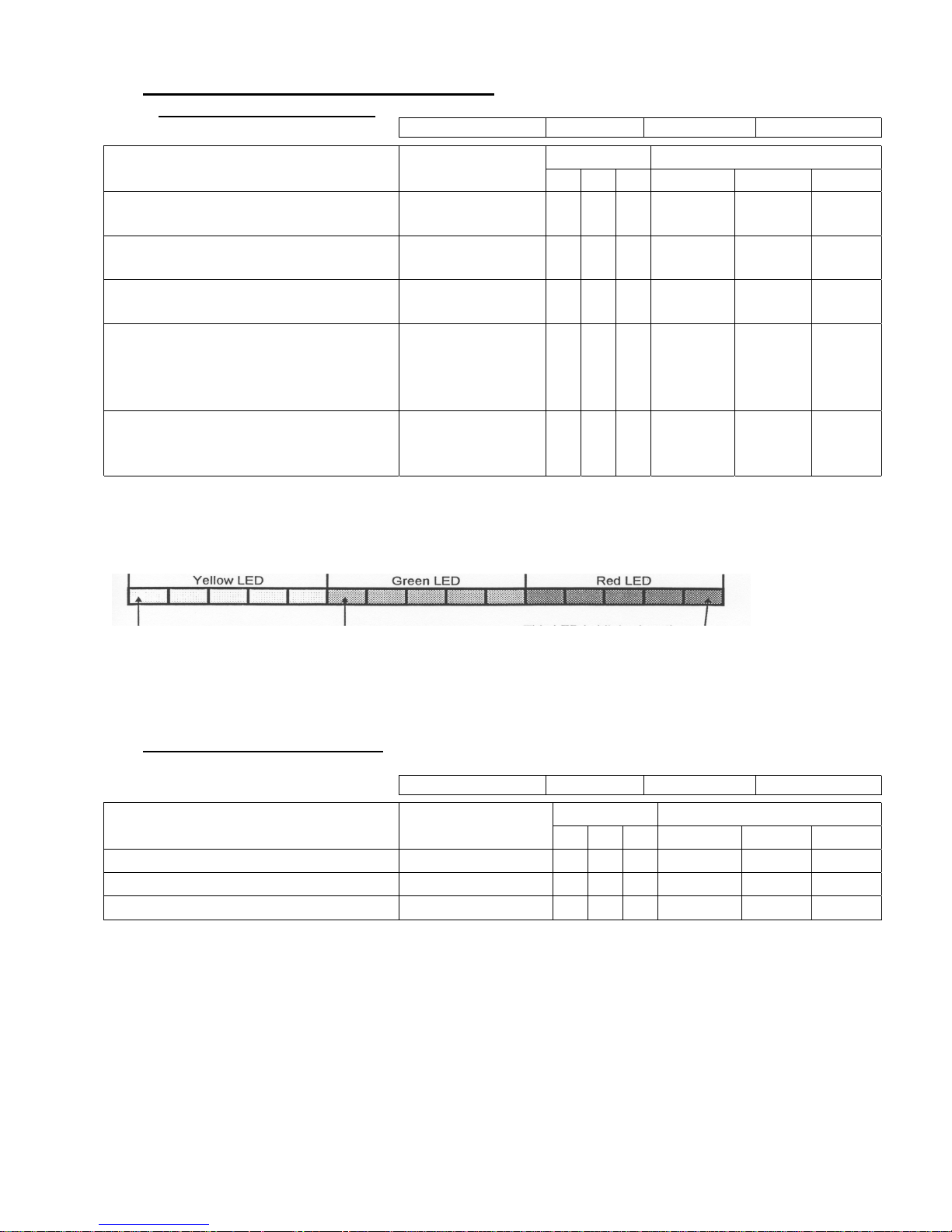

5.7. Check Weighing Operation (continued)
5.7.2. When filling a container
Weighing mode. (from 5.4.4. min
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
0.000 0.558 0.713
DISPLAY TASK OPERATION
& max programming)
1. Place empty container on
0.500 0.558 0.713
scale
2. Press tare key.
as shown in
•••• ••••
0.000 0.558 0.713
5.3.2.
3. Place parts in container, when
weight is within the target range
the
••••
0.695 0.558 0.713
set points will operate as shown
below.
4. Once weight has been
•••• ••••
0.000 0.558 0.713
checked remove container of
parts.
Set points alert the operator both auditory and visually if weight is within the target range.
The graduation of LED is determined by dividing the target range by 5 (Max weight – Min weight /5)
This LED is lit as the low min. This LED is lit as the min. acceptance range This LED is lit as the high max.
5.8. Clearing Min & Max Range
Weighing mode
1. Press minimum key
2. Press maximum key
Indicators
[MIN]
[MAX]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
••••
••••
DISPLAY TASK OPERATION
0.000 0.558 0.713
0.000 0 0.713
0.000 0 0
13
6.0. RS-232
6.0.1. Communication Specs
BAUD RATE 1200 / 2400 / 4800 / 9600
START BIT 1 BIT
STOP BIT 1 / 2 BIT
DATA BIT 7 / 8 BIT
PARITY BIT EVEN / ODD / NONE
6.0.2. Text Command
CR The end of data 0DH Termination code
LF The end of text 0AH
Data
0 - 9 Numeric data (30H – 39H)
Period Period (2EH)
Comma Comma (2CH)
Header code
: Gross weight (3AH)
0 Net weight (30H)
4 Tare weight (34H)
Weight stable
B Set –point status (42H)
SOH Weight stable (01H)
NUL Weight unstable (00H)
6.1.3. PIN ASSIGNMENT
PIN NO. SIGNAL
1 SP1
2 S GND
3 SP2
4 RXD
5 TXD
6 CTS
7 RTS
14
6.1.4. COMMUNICATION METHOD
By specification setting (Spec 59 bit 2 & 3), the communication method may be
selected from Stream (continuous output), Manual (output by pressing [½½½½] key,
and Command (output by command from external device).
6.1.4.1. STREAM
Data is transmitted to external device continuously.
DATA STREAM:
The SPEC to select whether weight stable status or not by specification setting
(Spec 53 bit 3).
Example: without stable flag
STX Header Gross Weight CR Header Net Weight CR
1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
Example: with stable flag
STX Stable Header Gross Weight CR Header Net Weight CR
1 1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
Weight Stable Status:
Status Data
Stable SOH (01 H)
Un-stable NUL (00 H)
Set-point status
Status Data
Set-point is not programmed B 1 1
Weight < Set-point 1 B 1 1
Set-point 1 < Weight <Set-point B 0 1
Set-point 2 < Weight B 0 0
The Data is transmitted when the machine is in operation mode. While entering
numeric data, the transmission would be stopped.
15
6.1.4.2. MANUAL
Data is output by pressing [½½½½] key. User may select to transmit the data right away
or to hold the command until weight becomes stable (from Spec 59 bit 1). If weight
is not back to stable within a certain interval (from Spec 59 bit 0), TIME OUT ERROR
will appear on the display. The two communication methods may be selected in this
mode.
6.1.4.2.1. MANUAL (METHOD 1)
DATA FORMAT:
Example: By pressing [½½½½] key.
STX Header Gross Weight CR Header Net Weight CR
1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
16
6.1.4.2.2. MANUAL (METHOD 2)
The data text can be selected without headers or with headers (by setting Spec 56
bit 3)
DATA FORMAT:
Example: Without header codes
Gross Weight CR Net Weight CR Tare
Weight
CR
LF
5 1 5 1 5 1 1
Example: With header codes
STX Header Gross Weight CR Header Net Weight CR
1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
17
6.1.4.3. COMMAND
Data is transmitted by receiving ENQ from external device. By specification setting
(Spec 59, Bit 1), it is to select to transmit the data right away or to hold the command
until weight becomes stable. If weight is not back to stable within a certain interval
(by specification setting Spec 59 bit 0), TIME OUT ERROR will appear on the
display.
Example:
STX Header Gross Weight CR Header Net Weight CR
1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
18

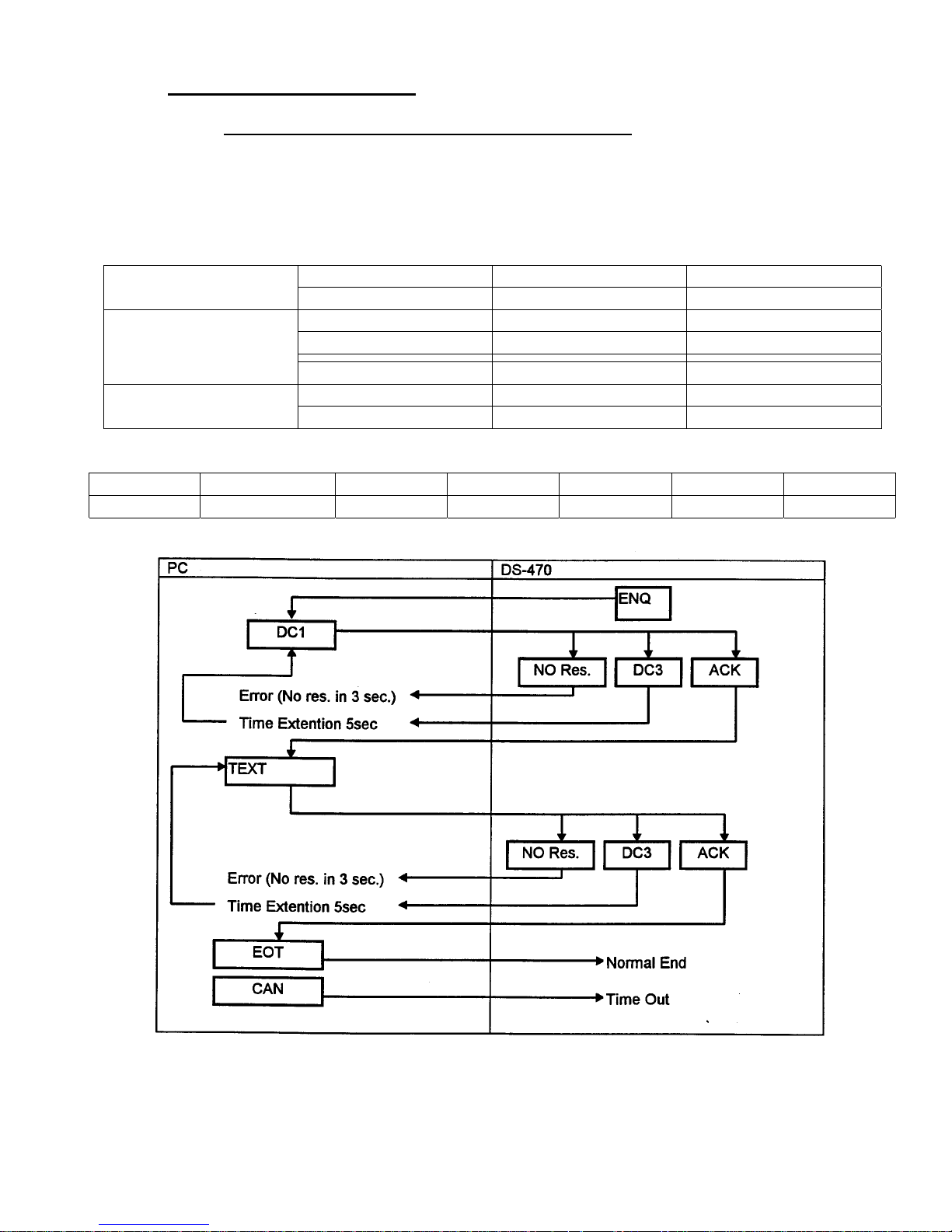

6.2. Transmit Set-Point Data
6.0.1. Transmit Set-Point Data From External Device
If Set-point data from an external device spec(spec 53 bit 2) is enabled and when
MAX key is pressed without entering numeric data I Operation mode, the scale would
send ENQ data and the external device would send the set-point data back.
TEXT COMMAND
CR The end of data 0DH Termination code
LF The end of text 0AH
Data
0 –9 Numeric data (30H – 39H)
Period Period (2EH)
Comma Comma (2CH)
F Set-point 1 (46H) Header code
H Set-point 2 (48H)
DATA FORMAT:
Header Set-point 1 CR Header Set-point 2 CR LF
1 5 1 1 5 1 1
19
Data

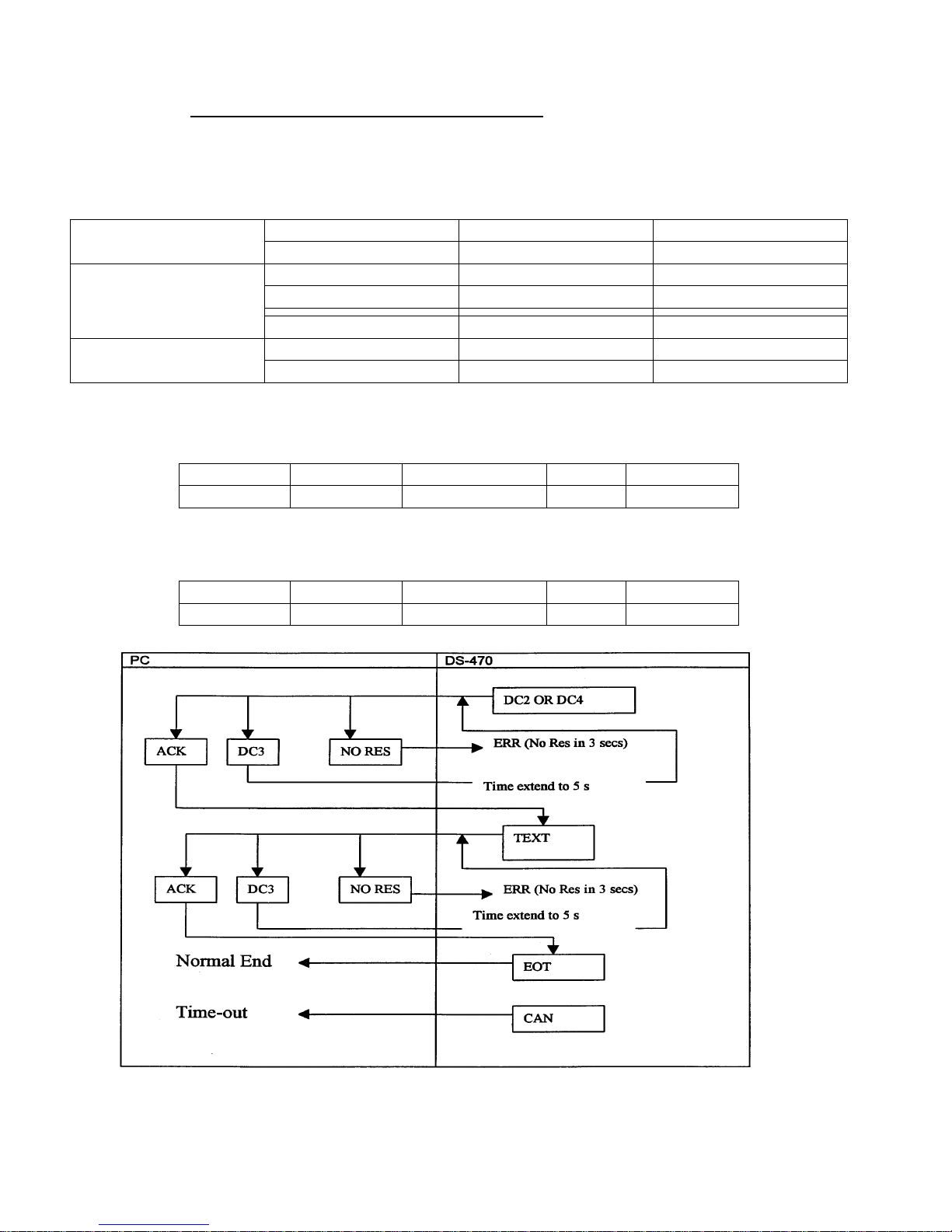

6.0.2. Transmit Set-Point Data To External Device
If Set-point data to an external device spec (spec 53 bit 2 ) is enabled and when
MAX key or MIN key is pressed in the in Operation mode, the scale would send DC2
or DC4 and the external device would receive the set-point data.
TEXT COMMAND
CR The end of data 0DH Termination code
LF The end of text 0AH
0 –9 Numeric data (30H – 39H)
Period Period (2EH)
Comma Comma (2CH)
F Set-point 1 (46H) Header code
H Set-point 2 (48H)
DATA FORMAT:
Example 1: Send MINimum set -point by pressing [MIN] key and scale sends DC2 to
external device.
STX Header MIN Set-point CR LF
1 1 5 1 1
Example 2: Send MAXimum set -point by pressing [MAX] key and scale sends DC4
to external device.
STX Header MAX Set-point CR LF
1 1 5 1 1
20
7.0. MAINTENANCE, CALIBRATION, TEST PROCEDURE & SERVICE
This section contains information and instructions concerning maintenance of the
DS-470 check weighing scale.
Preventive maintenance consists of periodically cleaning the external surfaces of
the instrument and should be performed as often as operating conditions warrant.
The calibration procedure is designed to be an aid in maintaining the scale accuracy
within specifications. The calibration procedure may also serve as a performance
test procedure.
CAUTION: DO NOT ATTEMPT ANY SERVICE WHILE THE INSTRUMENT IS
CONNECTED TO THE POWER LINES.
7.1. Maintenance Procedures
7.1.1. Exterior Maintenance
The exterior surfaces of the counting scale can be easily cleaned using
soap and water. However, extreme caution should be used so that there is
no possibility of water penetration into the scale electrical or mechanical
sections. A damp cloth or sponge is suggested. NEVER USE ACETONE,
MEK, OR SIMILAR SOLVENTS ON THE PLASTIC HOUSING AS THEY
WILL ETCH THESE SURFACES.
For grease or other difficult spots, a chlorothane or naptha based cleaner
may be used. Never use any solvents on the front or rear panels.
Accumulations of dust or direct particles between the pins of the
connectors may be removed by using dry forced air or a small dry brush.
7.1.2. Internal Maintenance
Internal maintenance is not normally required and if it is, should not be
attempted except by a qualified, authorized service technician.
7.1.3. Calibration
The following procedure should be followed periodically (every six to
twelve months is suggested) to determine that the scale is functioning in all
modes.
a. Electrical
Follow section 4.0 through all its steps
21
7.1.3 Continued
7.2. Service & Repair
No service or repair should be attempted except by qualified personnel, and
not until it has been positively determined that the counting scale requires
such service. All service should be done in a clean, dry, dust-proof area.
b. Accuracy
Weighing: The scale weighing accuracy can be determined by
applying various known weights to the platform. Because of the
scale's very high accuracy, only weights that are certifiably more
accurate than the scale's specifications should be used in testing
for accuracy. (NBS class "F" or higher)
Since the scale owner does not normally have such certifiable
weights available to him, it is suggested that the customer call
their authorized
DIGI dealer.
22
7.3. DS-470 Specification List
7.3.1. Customer Spec Setting
To change the CUSTOMER SPEC setting
Weighing mode
Enter customer spec mode
Enter new spec data. Old data
will be displayed in MAX window,
new data will be displayed in MIN
window.
Advance to the next spec
number, will not save new data.
Returns to previous spec, this will
not save new data entered.
Clears the data to all 0’s in the
MIN window.
Advance to the next spec
number and save new data.
Save spec changes and exit to
weighing mode.
Indicators
[Re-zero]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
0.000 0 0
SPC 50 0000
DISPLAY TASK OPERATION
[1] [4] [1]
[0] [0] [1] [0]
[MAX]
[MIN]
[C]
[½½½½]
[%]
••••
••••
SPC 50 0010 0000
SPC 51 1111
SPC 50 0010
SPC 50 0000
0.000 0 0
0.000 0 0
23
Customer Specification: To enter this mode, press and hold the re-zero key, while
holding the re-zero press 1 , 4 , 1.
Sequence: [Re-zero] [1] [4] [1].
Spec
Bit 3 Bit 2 Bit 1 Bit 0
no.
50 Not used Not used Not used Not used
51 Not used Not used Not used Not used
52 Not used Not used Not used Not used
53 Stream Method
0 = No Weight Stable
Status
Not used Set Point TTL Output
0 = Active Low
1 = Active High
Set Point Buzzer
0 = No
1 = Yes
1 = Weight Stable
Status
Baud Rate For RS-232 Option 54 RS-232 connection
0 = no
1 = yes
Parity Bit (Optional) 55
00 = no
01 = odd
56 Manual 2 Mode
Header Code
0 = no , 1 = yes
000 = 1200
001 = 2400
10 = even
11 = not used
Set Point
buzzer range
0 = within min
010 = 4800
011 = 9600
RS-232 stop bit
(optional)
0 = 2 bits , 1 = 1 bit
100 = not used
101 = not used
RS-232 data length
(optional)
0 = 8 bits , 1 = 7 bits
Not used Not used
& max
1 = outside
min & max
Set Point External Communication 57 Not used Not used
00 = not used
01 = RS-232 set point data from
external device to DS-470
10 = RS232 set point data to external
device from DS -470
11 = not used
58 Not used Not used Not used Not used
RS-232 Mode 59
00 = stream
01 = manual 1
10 = manual 2
11 = command
Manual Mode By
½Key Press
0 = transmit right
away
Delay For Time –out
Error
0 = 3 seconds
1 = 5 seconds
1 = transmit after
weight stable
24
7.3.2. Weights & Measures Spec Setting
To change the WEIGHTS & MEASURES SPEC setting
TASK
Weighing mode
Enter weights & measures spec mode
Indicators
OPERATION
[Re-zero]
1 : 2 : NET 3 : Îgh
INDICATORS
DISPLAY
1 2 3 WEIGHT MIN MAX
••••
0.000 0 0
SPC 00 0000
[1] [4] [2]
Enter new spec data. Old data will be
[0] [0] [1] [0]
displayed in MAX window, new data will
be displayed in MIN window.
Advance to the next spec number, will not
[MAX]
save new data.
Returns to previous spec, this will not
[MIN]
save new data entered.
Clears the data to all 0’s in the MIN
[C]
window.
Advance to the next spec number and
[½½½½]
••••
save new data.
Save spec changes and exit to weighing
mode.

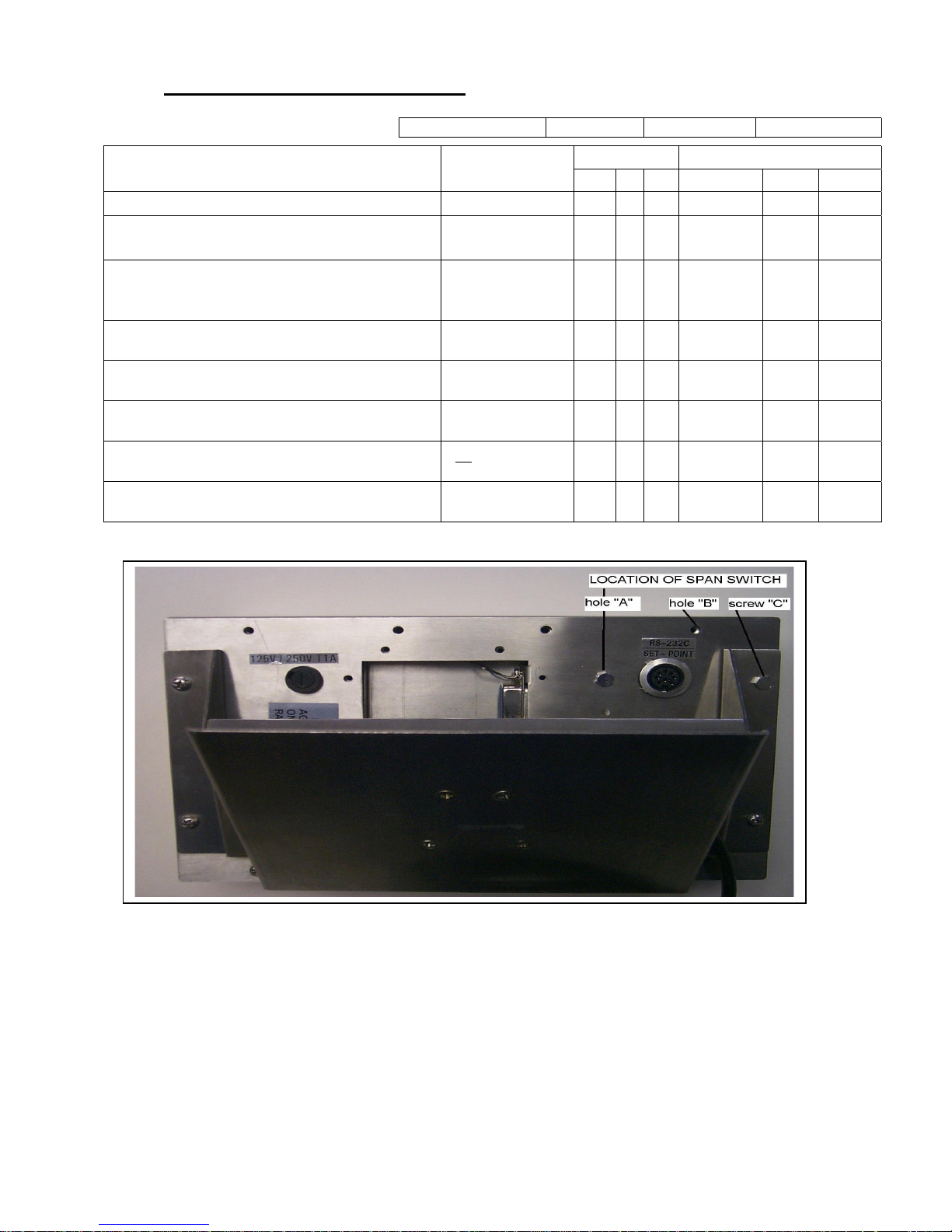

LOCATION OF SPAN SWITCH
[%]
••••
""""
new information Ver 1.19
1. Remove access cover with four knurled and slotted screws.
2. Remove hex head screw in hole “A”.
3. Insert long thin rod into hole “A”.
4. Push span switch. Display shows S-On, the W & M specs and calibration can now be
performed.
When calibration is finished and the scale is ready to be sealed
1. Install hex screw in hole “A” to cover span switch.
2. Install access cover
3. Install supplied hex screw in hole “B”, replacing one of the knurled and slotted screws.
4. Install wire seal from screw “B” to screw “C”.
SPC 00 0010 0000
SPC 01 1111
SPC 00 0010
SPC 00 0000
0.000 0 0
0.000 0 0
25
Weight and Measures Specification : The Span Switch must be on to enter this mode. To
enter this mode, press and hold the Re-zero Key, while holding the Re-zero press 1, 4, 2,
then release the Re-zero key.
Sequence: [Re-zero] [1] [4] [2].
Spec No. Bit 3 Bit 2 Bit 1 Bit 0
Display Resolution 0
00 = 1/3000
01 = 1/6000
10 = 1/12000
11 = 1/15000
Not used 0 = single range
1 = multi range
Weight Decimal Point Position 1 Display
0 = decimal pt
1 = comma
000 = 00000
001 = 0000.0
011 = 00.000
100 = 0.0000
010 = 000.00
Minimum Display 2 Not used
3
4
000 = 1
001 = 2
Change Units
(lb.
↔↔↔↔
kg
↔↔↔↔g ↔↔↔↔
oz)
Not used IR Mode
0 = no
1 = yes
""""
new spec ver1.19
Set-Point Buzzer Range
(Outside Min & Max)
/Print Range(RS-232)
00 = >net 5d & gross 21d
01 => net 1d
10 => net 19d
11 => net 20d
010 = 5
011 = 10
Protected By
Span Switch
0 = no
1 = yes
Auto Tare Clear
Range
0 = gross over
20d and net
over 4d
1 = gross over
0d and net
100 = not used
101 = not used
Change Units
(lb.↔ kg)
0 = no
1 = yes
Not used
over 1d
5 Not used Not used Not used Not used
6 Not used Not used Not used Not used
7 Not used Not used Not used Not used
8 Not used Not used Not used Not used
9 Not used Not used Not used Not used
26
Weight and Measures Specification (continued):
Spec No. Bit 3 Bit 2 Bit 1 Bit 0
20 Tare Addition
0 = yes
1 = no
Dual Range
0 = multi gross
1 = multi net
Digital Tare
Setting
0 = no
Tare Range
0 = 50% of max
1 = 100% of max
1 = yes
21 Not used Not used Digital Tare
Rounding
0 = tare exactly
Tare Auto Clear
0 = no
1 = yes
1 = round to
nearest
increment
22 Not used Not used Not used Not used
23 Not used Not used Not used Not used
Load Cell Sensitivity Selection (mV/V) 24
Value
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Minimum
3.46
3.00
2.59
2.25
1.95
1.69
1.46
1.27
1.09
0.95
0.82
0.71
0.61
0.53
0.48
0.40
Maximum
4.00
3.46
3.00
2.59
2.25
1.95
1.69
1.46
1.27
1.09
0.95
0.82
0.71
0.61
0.53
0.46
25 Not used Not used Not used Not used
26 Not used Not used Not used Not used
27 Not used Not used Not used Not used
28 Not used Not used Re-zero
Tracking Range
0 = +/- 2%
1 = unlimited
29 Not used Not used Not used
Power-On Start
Range
0 = +/- 10%
1 = unlimited
Enter weight for
Calibration
0 = no
1 = yes
""""
new spec
ver1.10+
27
7.4. Span Switch Status
To check position of SPAN SWITCH
Indicators
Weighing mode
1. Press & hold Re-zero while
pressing 2, 8, 4
Scale returns to weighing mode
[Re-zero]
[2] [8] [4]
after 3 seconds.
7.5. Internal Count
To check the INTERNAL COUNT of the A/D
Indicators
Weighing mode.
1. To display the internal count,
press & hold Re-zero while
[Re-zero]
[0] [0] [9]
pressing 0, 0, 9.
2. To view A/D count.
3. to toggle back to internal
[C]
[C]
count.
4. Exit to weighing mode.
[%]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
S-ON or
DISPLAY TASK OPERATION
0.000 0 0
S-OFF
S-ON = Span switch enabled
S-OFF = Span switch disabled
••••
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
0.000 0 0
DISPLAY TASK OPERATION
0.000 0 0
00000
10000
00000
••••
0.000 0 0
28
7.6. Calibration Mode
To CALIBRATE the scale, the span switch must be enabled.
Weighing mode.
1. Press Span Switch
2. To enter calibration mode,
press & hold Re-zero while
Indicators
[Re-zero]
[8] [7] [1] [5]
1 : 2 : NET 3 : Îgh
INDICATORS
1 2 3 WEIGHT MIN MAX
••••
0.000 0 0
DISPLAY TASK OPERATION
S-on
90614 CAL00 0.002
pressing 8, 7, 1, 5.
3. Press Re-zero key.
4. With no weight on the platter,
[Re-zero]
[½½½½]
90614 CAL00 0.000
- - - - - - - - - - - - - - press [½½½½]key in order to
calibrate the zero point.
Span Calibration
5. Place capacity test weight on
0.000 CALSP 87342
0.271 CALSP 66000
platter
6. Press [½½½½]key in order to
[½½½½]
- - - - - - - - - - - - - - calibrate the span.
7. After a few seconds, the scale
60000 SPAn CoUnt
shows the span counts.
8. Remove the weight. Press [%]
[%]
••••
S-on
key to exit calibration mode.
9. Calibration finished. Press
••••
0.000 0 0
Span Switch to return to the
weighing mode.
7.7. Error Indication
Overflow – Indication – weight display blanks and all range indicator lights flash.
Underflow – Indication – weight display blanks and all range indicator lights flash.
When scale is outside the re-zero range – Indication –Display shows all 8’s
88888 88888
888888
When calibrating scale and scale is behind zero – Indication – Display shows
PrESS
SPr Int
When calibrating scale and calibration weight is incorrect – Indication – Display
shows (incorrect value) 10000 - - - - -
- - - - - -
When calibrating scale and mV/V setting is incorrect – Indication – Display shows
(all dashes) - - - - - - - - - -
- - - - - -
29
7.8. Shop Notes
30
DS-470 Limited Warranty
Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a
Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed
by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects
in materials and workmanship for one year.
RLWS warrants that the equipment sold hereunder will conform to the current written specifications
authorized by RLWS. RLWS warrants the equipment against faulty workmanship and defective materials. If
any equipment fails to conform to these warranties, RLWS will, at its option, repair or replace such goods
returned within the warranty period subject to the following conditions:
• Upon discovery by Buyer of such nonconformity, RLWS will be given prompt written notice with a detailed explanation
of the alleged deficiencies.
• Individual electronic components returned to RLWS for warranty purposes must be packaged to prevent electrostatic
discharge (ESD) damage in shipment. Packaging requirements are listed in a publication, “Protecting Your Components
From Static Damage in Shipment,” available from RLWS Equipment Return Department.
• Examination of such equipment by RLWS confirms that the nonconformity actually exists, and was not caused by
accident, misuse, neglect, alteration, improper installation, improper repair or improper testing; RLWS shall be the sole
judge of all alleged non-conformities.
• Such equipment has not been modified, altered, or changed by any person other than RLWS or its duly authorized repair
agents.
• RLWS will have a reasonable time to repair or replace the defective equipment. Buyer is responsible for shipping charges
both ways.
• In no event will RLWS be responsible for travel time or on-location repairs, including assembly or disassembly of
equipment, nor will RLWS be liable for the cost of any repairs made by others.
THESE WARRANTIES EXCLUDE ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. NEITHER RLWS NOR DISTRIBUTOR WILL, IN ANY EVENT,
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
RLWS AND BUYER AGREE THAT RLWS’S SOLE AND EXCLUSIVE LIABILITY HEREUNDER
IS LIMITED TO REPAIR OR REPLACEMENT OF SUCH GOODS. IN ACCEPTING THIS
WARRANTY, THE BUYER WAIVES ANY AND ALL OTHER CLAIMS TO WARRANTY.
SHOULD THE SELLER BE OTHER THAN RLWS, THE BUYER AGREES TO LOOK ONLY TO
THE SELLER FOR WARRANTY CLAIMS.
No terms, conditions, understanding, or agreements purporting to modify the terms of this warranty shall have any legal effect unless
made in writing and signed by a corporate officer of RLWS and the Buyer.
© 2002 Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved.
RICE LAKE WEIGHING SYSTEMS
• 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 • USA
1
Loading...
