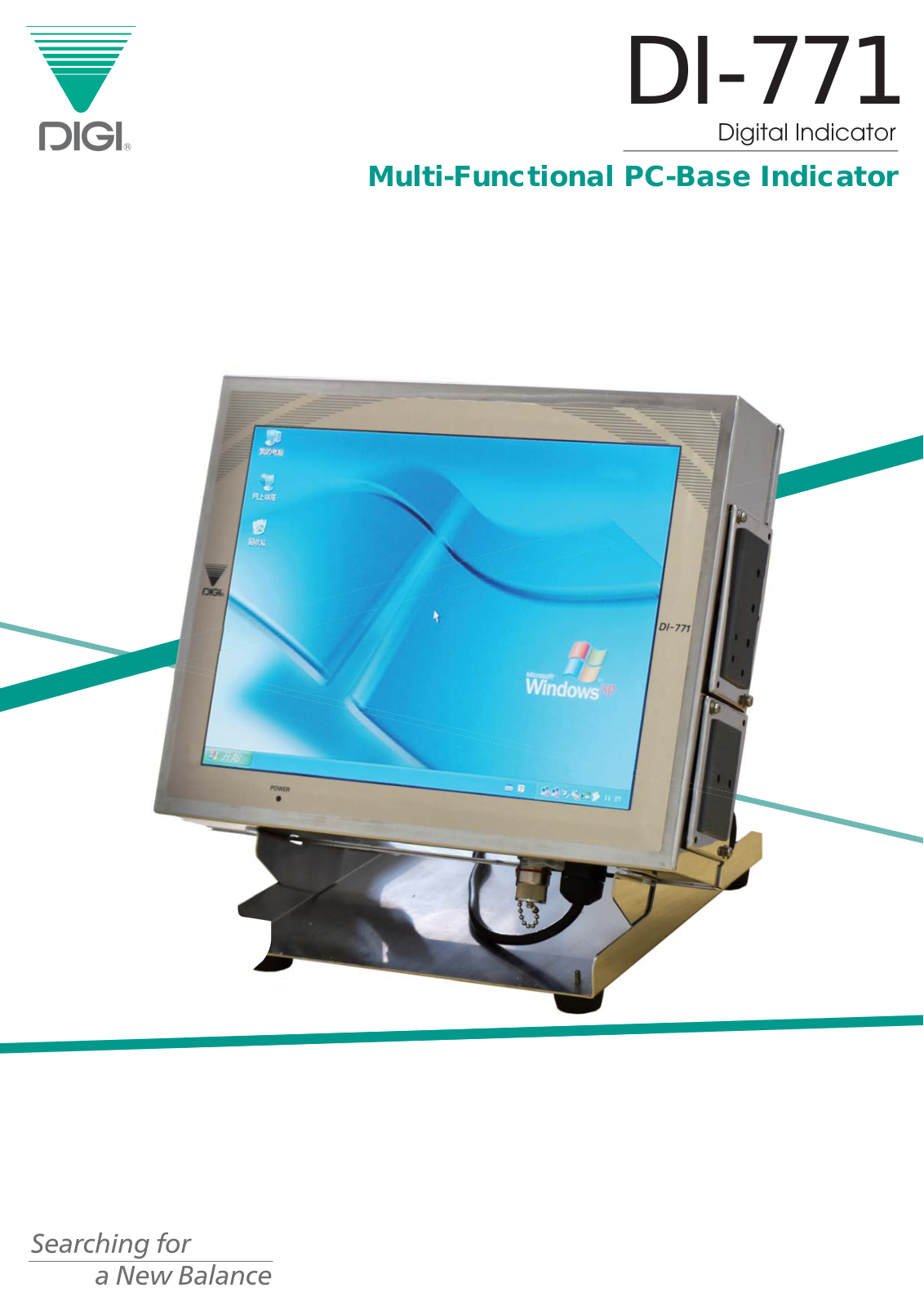

DIGI DI-771 Specification

DI-771

Multi-Functional PC-Base Indicator

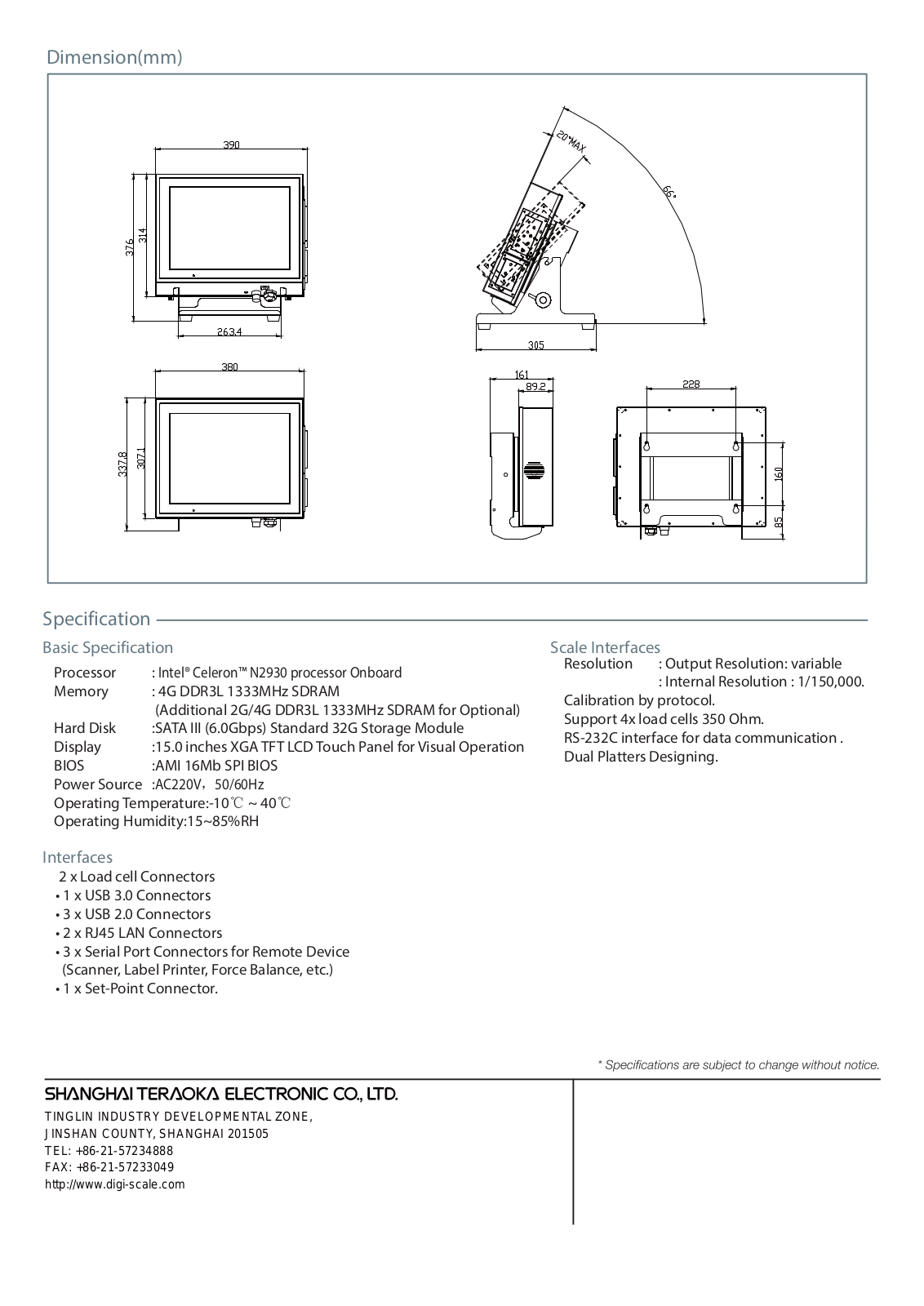

Dimension(mm)

Specification

Processor :
Memory : 4G DDR3L 1333MHz SDRAM
(Additional 2G/4G DDR3L 1333MHz SDRAM for Optional)
Hard Disk :SATA III (6.0Gbps) Standard 32G Storage Module
Display :15.0 inches XGA TFT LCD Touch Panel for Visual Operation
BIOS :AMI 16Mb SPI BIOS
Power Source :
Operating Temperature:-10℃ ~ 40℃
Operating Humidity:15~85%RH

Interfaces

2 x Load cell Connectors

• 1 x USB 3.0 Connectors

• 3 x USB 2.0 Connectors

• 2 x RJ45 LAN Connectors

• 3 x Serial Port Connectors for Remote Device
(Scanner, Label Printer, Force Balance, etc.)

• 1 x Set-Point Connector.

Intel® Celeron™ N2930 processor Onboard

AC220V，50/60Hz

Scale InterfacesBasic Specification

Resolution : Output Resolution: variable
: Internal Resolution : 1/150,000.
Calibration by protocol.
Support 4x load cells 350 Ohm.
RS-232C interface for data communication .
Dual Platters Designing.
