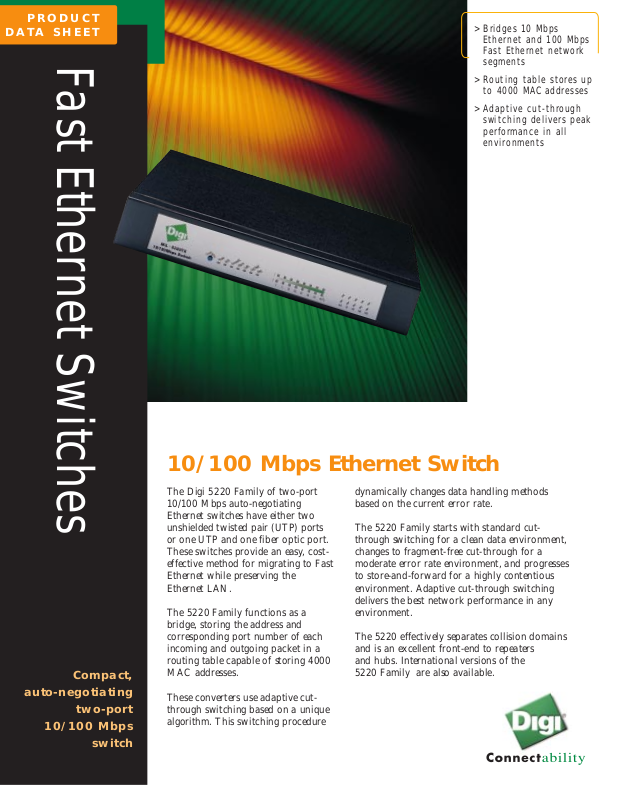

Fast Ethernet Switches
PRODUCT
DATA SHEET
The Digi 5220 Family of two-port
10/100 Mbps auto-negotiating
Ethernet switches have either two
unshielded twisted pair (UTP) ports
or one UTP and one fiber optic port.
These switches provide an easy, costeffective method for migrating to Fast
Ethernet while preserving the
Ethernet LAN.
The 5220 Family functions as a
bridge, storing the address and
corresponding port number of each
incoming and outgoing packet in a
routing table capable of storing 4000
MAC addresses.
These converters use adaptive cutthrough switching based on a unique
algorithm. This switching procedure
dynamically changes data handling methods
based on the current error rate.
The 5220 Family starts with standard cutthrough switching for a clean data environment,
changes to fragment-free cut-through for a
moderate error rate environment, and progresses
to store-and-forward for a highly contentious
environment. Adaptive cut-through switching
delivers the best network performance in any
environment.
The 5220 effectively separates collision domains
and is an excellent front-end to repeaters
and hubs. International versions of the
5220 Family are also available.
10/100 Mbps Ethernet Switch
> Bridges 10 Mbps
Ethernet and 100 Mbps
Fast Ethernet network
segments
> Routing table stores up
to 4000 MAC addresses
> Adaptive cut-through
switching delivers peak
performance in all
environments
Compact,
auto-negotiating
two-port
10/100 Mbps
switch
Features/Specifications
91000714
B1/199
2-port 10/100 Mbps Switch, 2 UTP ports
MIL-5220TX
International MIL-5220TXIN
2-port 10/100 Mbps Switch, 1 UTP port,
one multi-mode fiber optic port with an
SC connector
MIL-5220FXC
International MIL-5220FXCIN
2-port 10/100 Mbps Switch, 1 UTP port,
one multi-mode fiber optic port with an
ST connector
MIL-5220FXT
International MIL-5220FXTIN
MODEL/PART
NUMBERS
© 1999 Digi International Inc. All rights reserved.
Digi, Digi International and the Digi logo are either trademarks or registered trademarks
of Digi International Inc. in the United States and/or other countries. All other trademarks
are the property of their respective holders.
DIGI SERVICE
AND SUPPORT
You can purchase with
confidence knowing that Digi is
here to support you with expert
technical support, a strong fiveyear warranty and a 30-day
money-back guarantee.
FEATURES
>Speed, mode and media
conversion
>
10/100 Mbps auto-negotiating
two-port bridge
> Fiber
port that can be configured for
half- or full-duplex mode
>
Fragment-free cut-through, standard cutthrough and store-and-forward switching
used in an adaptive cut-through
switching algorithm
>
Back pressure that eliminates frame loss
when buffers are full
>
Per port buffer of 160 Kbps
>
Routing table that contains 4096 entries
to store node MAC addresses
> Indicator panel for configuring the
switch or monitoring the overall
condition of the switch
> Frame filtering and forwarding functions
for each port, which are capable of
filtering and forwarding 100% of all
Ethernet packets at line speed
> Per port LEDs for link, transmit, receiver
duplex mode and speed
> Latency of less than 20 microseconds
INTERFACES
5220TX
> Two UTP ports (two RJ-45 connectors
per port, MDI/MDIX)
5220FXC
> One UTP port (one RJ-45 connector
per port, MDI/MDIX)
> One multi-mode fiber optic port with
an SC connector
5220FXT
> One UTP port (two RJ-45 connectors
per port, MDI/MDIX)
> One multi-mode fiber optic port with
an ST connector
PORT LEDs
>
LNX indicates the port sees a LINK
signal detect
>
TX indicates the port is transmitting
>
RX indicates the port is receiving
>
Full indicates the fiber port is
operating in full duplex
>
100 indicates the port is operating
at 100 Mbps speed
Digi International
11001 Bren Road E.
Minnetonka, MN 55343
U.S.A.
http://www.dgii.com
Customer Support
and Technical Support:
North America:
800-344-4273
612-912-3456
support fax:
612-912-4958
Europe:
(+49) 231-9747-280
Hong Kong:
(+852)-2833-1008
Australia:
(+61)-2-9680-8944
e-mail:
cust_serv@dgii.com
REGULATORY APPROVALS
>
FCC Class A
>
CE Mark
>
EN55022 Class B
(CISPR 22)
>
UL 1950
>
CSA 22.2 No. 950
>
EN60950 (TUV)
SYSTEM LEDs
>
PWR: Indicates the presence of
POWER on the unit
>
Six display mode LEDs
ENVIRONMENTAL
> Operating temperature:
5ºC to 50ºC (41ºF to 122ºF)
> Relative humidity:
10% to 95% (non-condensing)
> Altitude: 0 to 3,660 m
(0 to 12,000 feet)
POWER REQUIREMENTS
(Internal supply)
> Ranging 110 VAC - 220 VAC,
50 - 60 Hz, 400 ma
