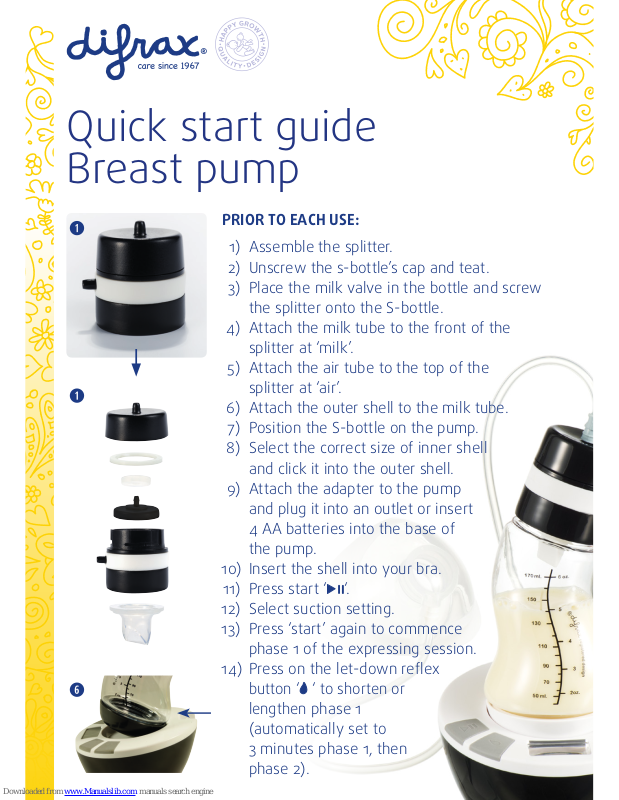

Difrax 611 Quick Start Manual

Quick start guide
Breast pump

PRIOR TO EACH USE:

1) Assemble the splitter.

2) Unscrew the s-bottle’s cap and teat.

3) Place the milk valve in the bottle and screw
the splitter onto the S-bottle.

4) Attach the milk tube to the front of the
splitter at ‘milk’.

5) Attach the air tube to the top of the
splitter at ‘air’.

6) Attach the outer shell to the milk tube.

7) Position the S-bottle on the pump.

8) Select the correct size of inner shell
and click it into the outer shell.

9) Attach the adapter to the pump
and plug it into an outlet or insert
4 AA batteries into the base of
the pump.

10) Insert the shell into your bra.

11) Press start ‘ ‘.

12) Select suction setting.

13) Press ‘start’ again to commence
phase 1 of the expressing session.

14) Press on the let-down reflex
button ‘ ‘ to shorten or

lengthen

phase 1
(automatically set to
3 minutes phase 1, then
phase 2).

difrax.com

Read the user manual ALWAYS before use
and go to difrax.com for more tips.

AFTER EACH USE:

1) Press the start button ‘ ‘ for a few seconds to end the expressing
session.

2) Remove the inner shell from the outer shell and wash it.

3) Disconnect the milk tube from the S-bottle. Keep the outer shell

connected to the milk tube and use it as a funnel to flush out the milk

tube under running water. Rinse with soap and then with clean water.

4) Sterilise the parts 1x a day.

5) Immediately start feeding with the S-bottle or store your breast milk

in the refrigerator or freezer.

TIPS:

• For more suction, replace the S-bottle valve with
the blue closed valve included with the

breast pump.

• Use Difrax storage containers or bags to store

your breast milk in the freezer.

• You can also express your breast milk straight

into the Difrax storage containers.

Boiling Microwave Dishwasher** Damp cloth
temperature steriliser*

Pump

•

Adapter

Air tube

Milk tube

• •

Shell
(inner and

• • •

outer shell)

Splitter D

• • •

Cleaning and sterilising instructions

* 800 Watt, maximum 3 minutes
** Cleaning the shell in the machine may cause discolouration of the soft edges.
