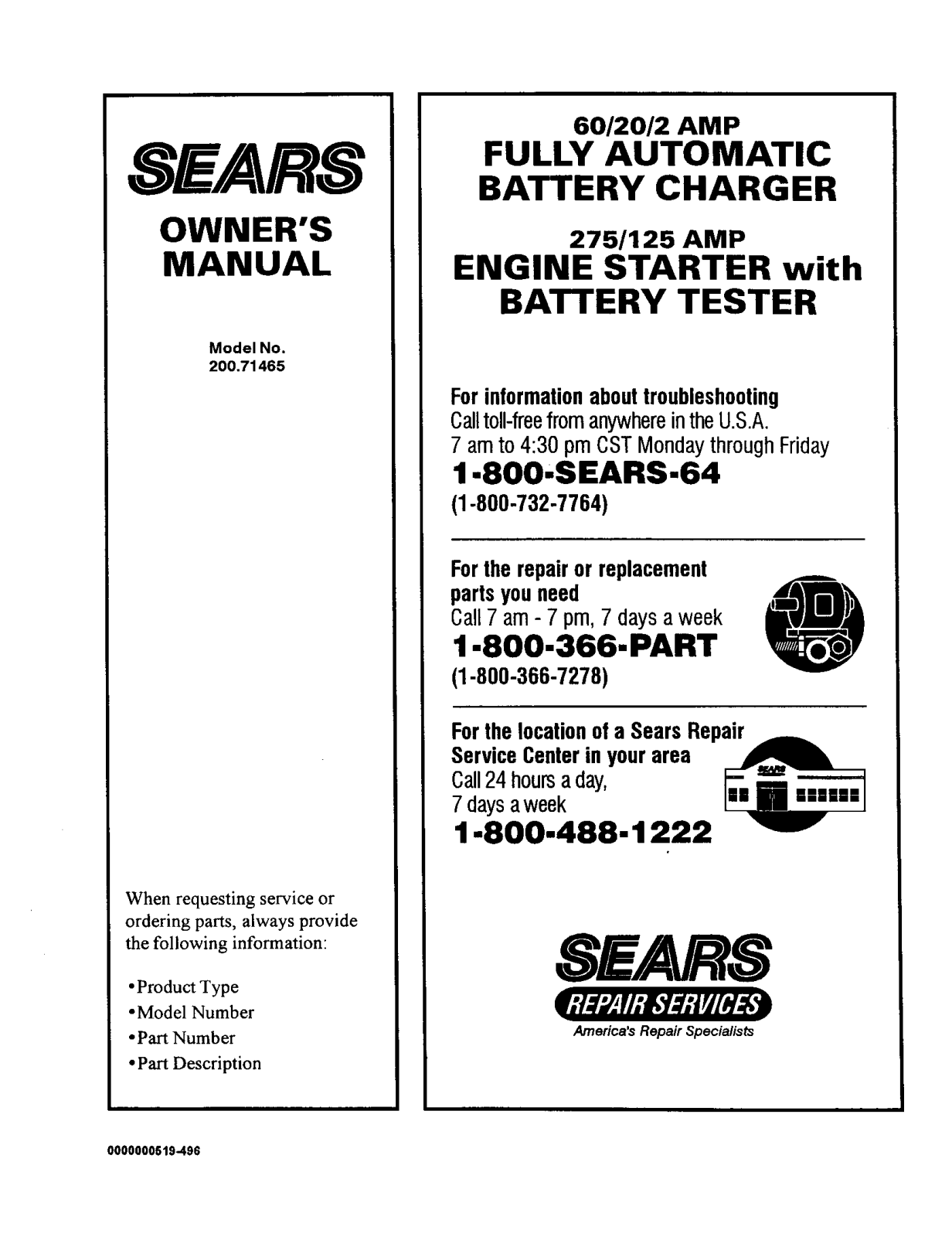

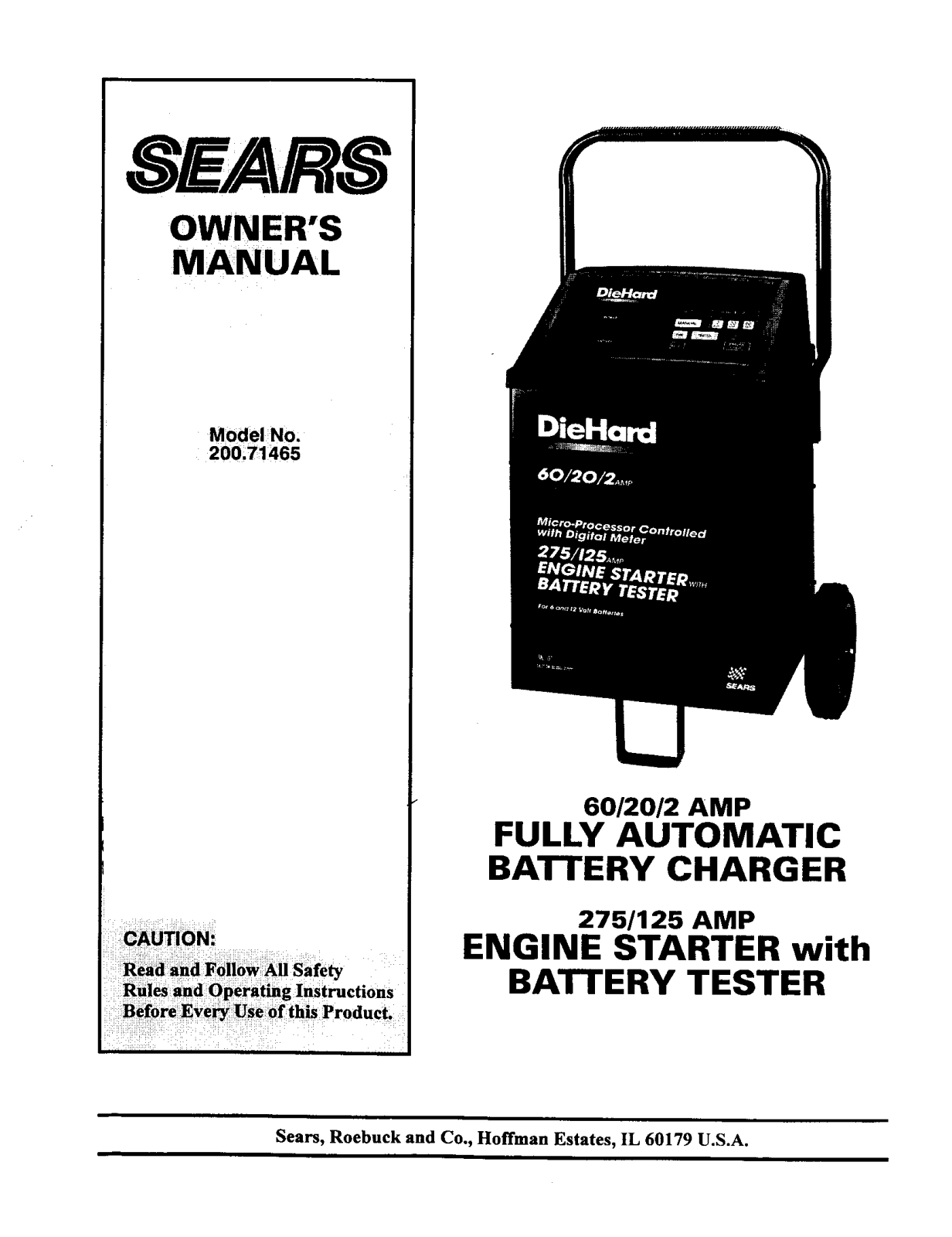

Diehard 200.71465 User Manual
SEARS
OWNER'S
MANUAL
Model NO,
200_71465
60/20/2 AMP
FULLY AUTOMATIC
BATTERY CHARGER
275/125 AMP
ENGINE STARTER with
BATTERY TESTER
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

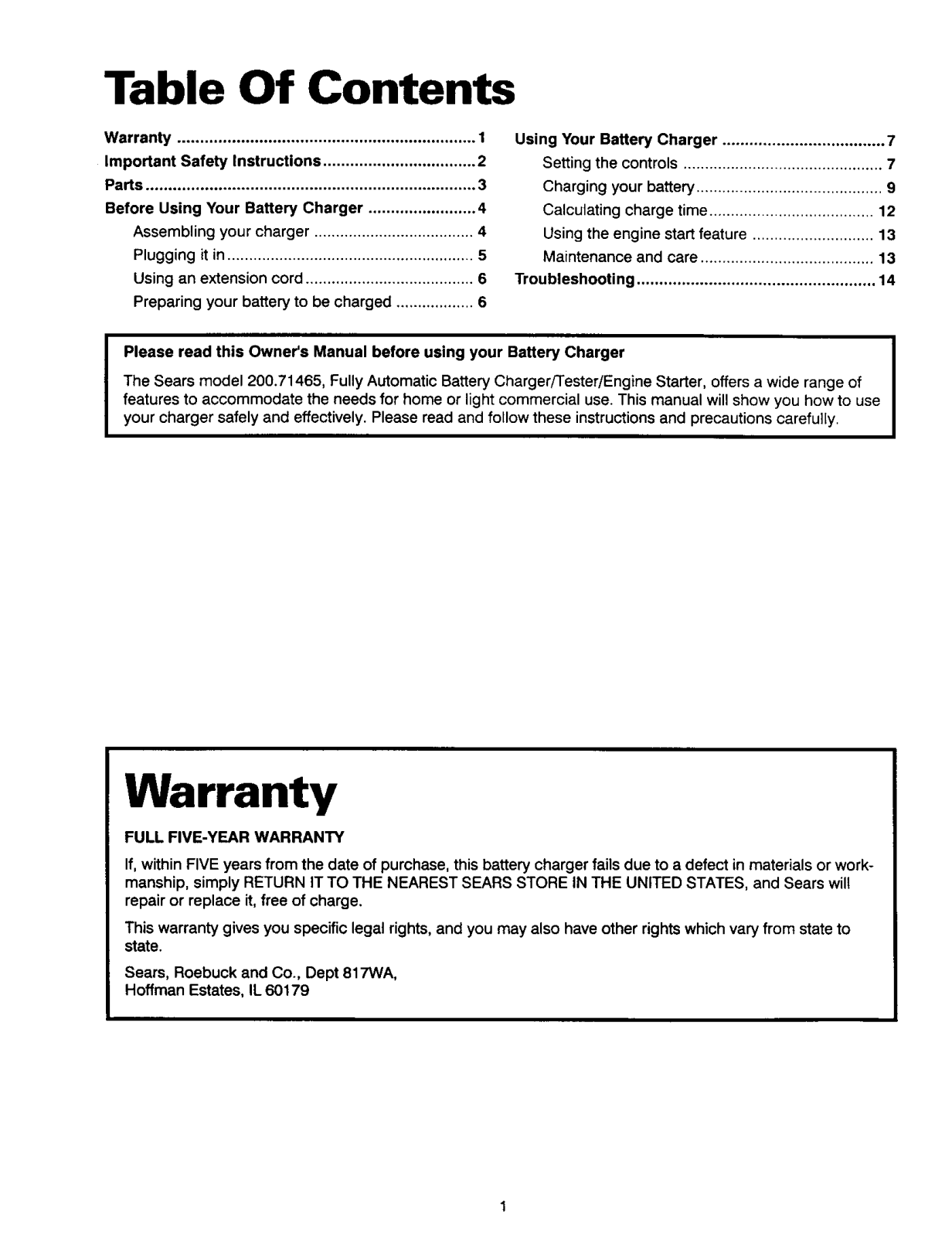

Table Of Contents
Warranty .................................................................. 1
Important Safety Instructions .................................. 2
Parts ......................................................................... 3
Before Using Your BaRery Charger ........................ 4
Assembling your charger ..................................... 4

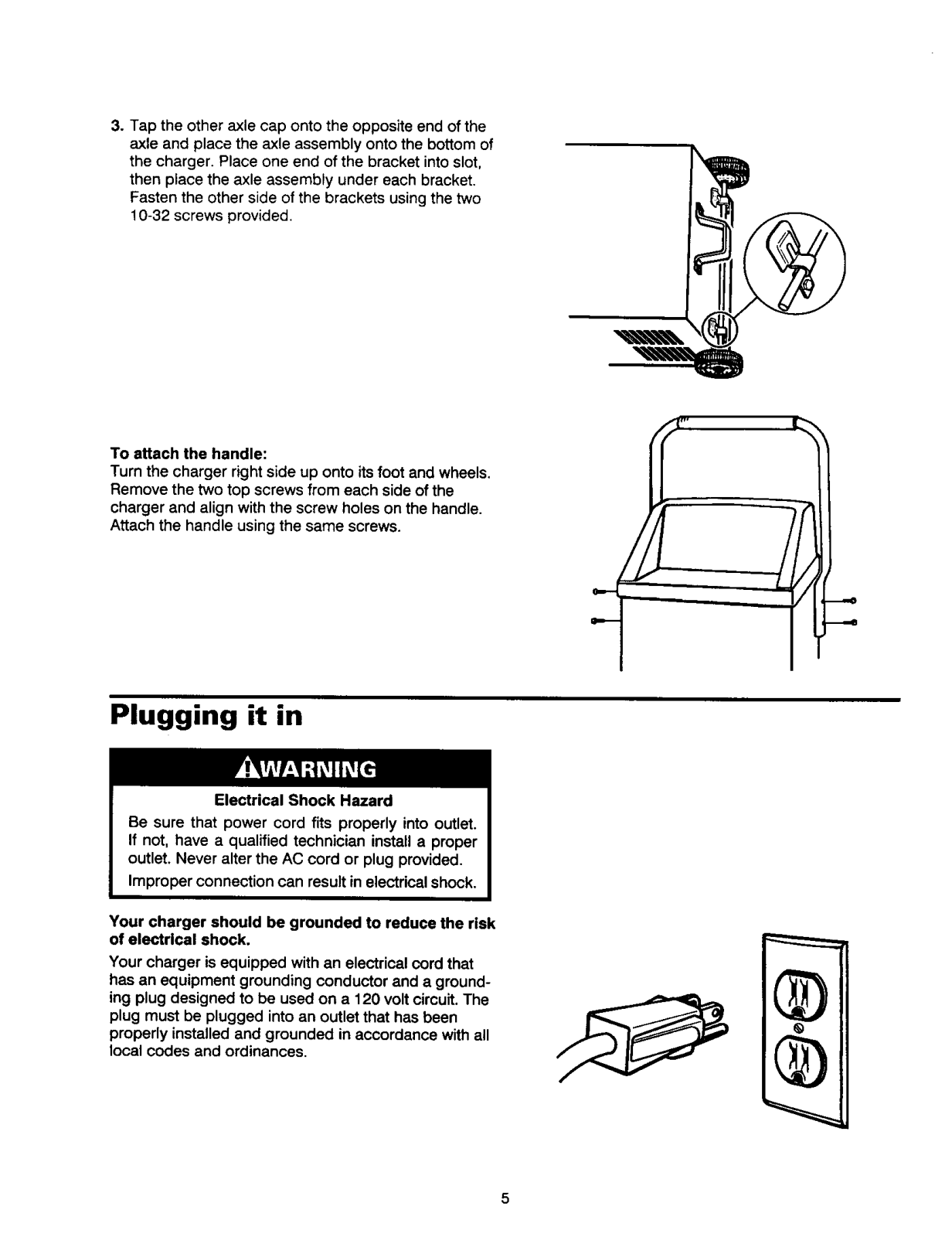

Plugging it in ......................................................... 5

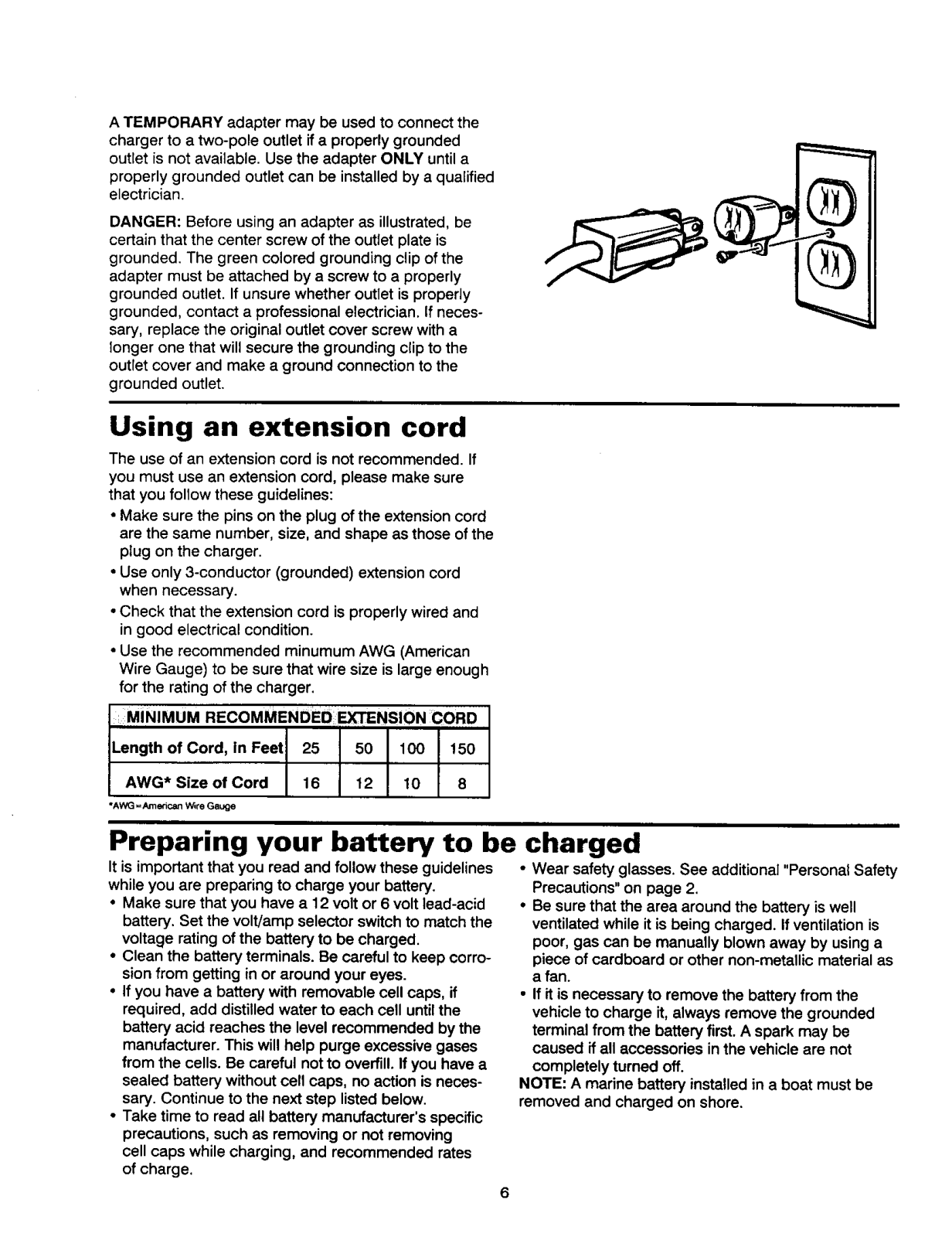

Using an extension cord ....................................... 6
Preparing your battery to be charged .................. 6
Please read this Owner's Manual before using your Battery Charger
The Sears model 200.71465, Fully Automatic Battery Charger/Tester/Engine Starter, offers a wide range of
features to accommodate the needs for home or light commercial use. This manual will show you how to use
your charger safely and effectively. Please read and follow these instructions and precautions carefully.

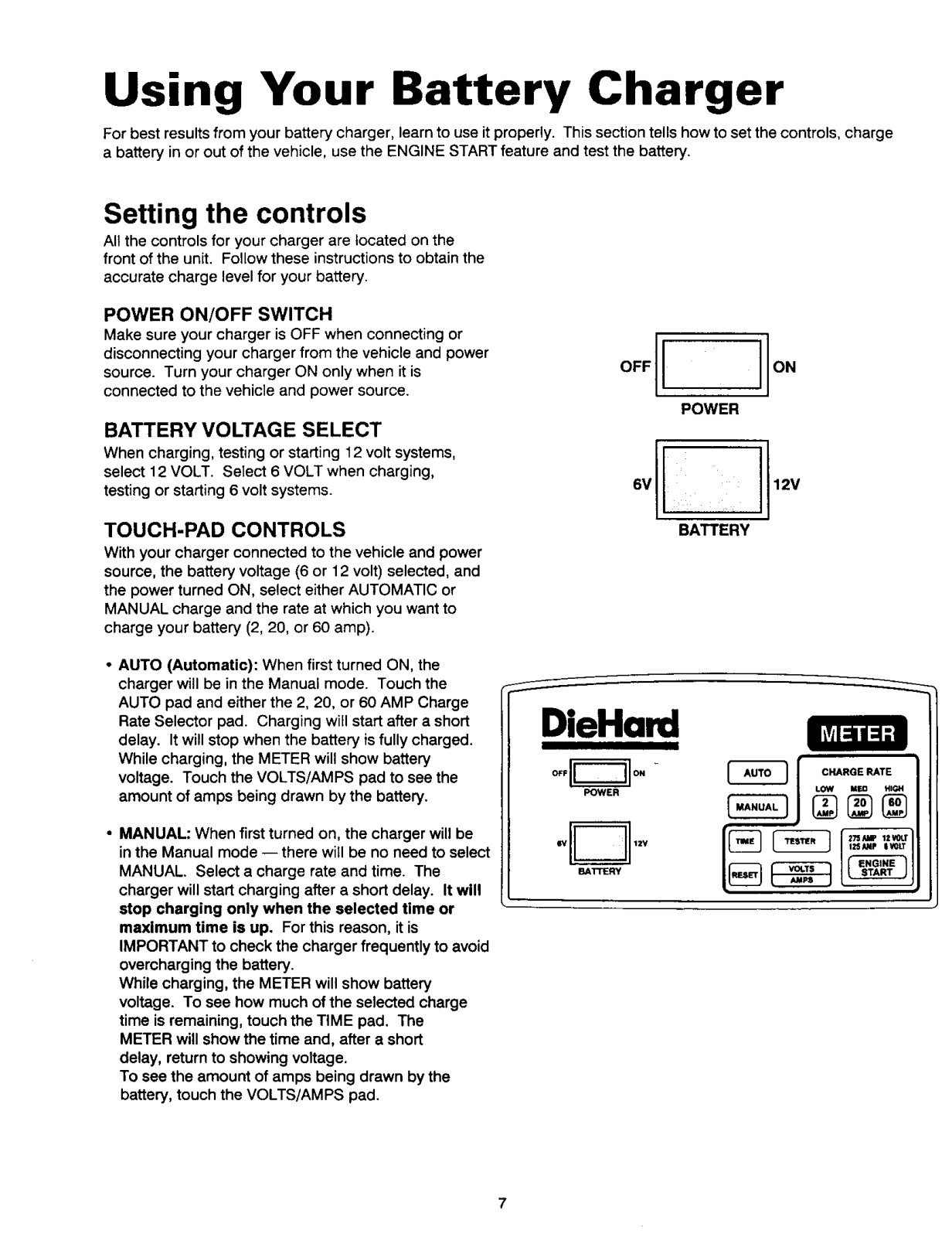

Using Your Battery Charger .................................... 7

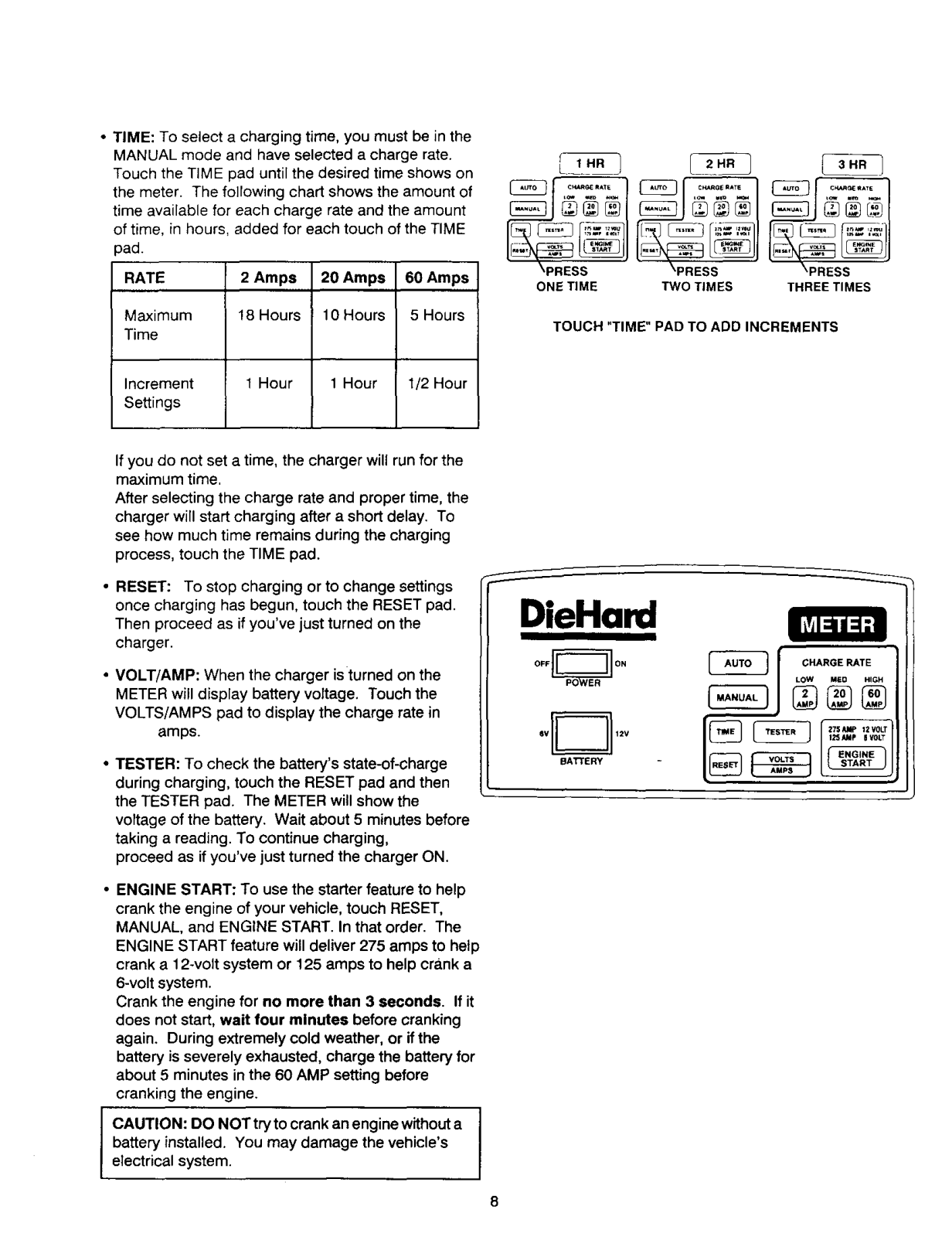

Setting the controls .............................................. 7

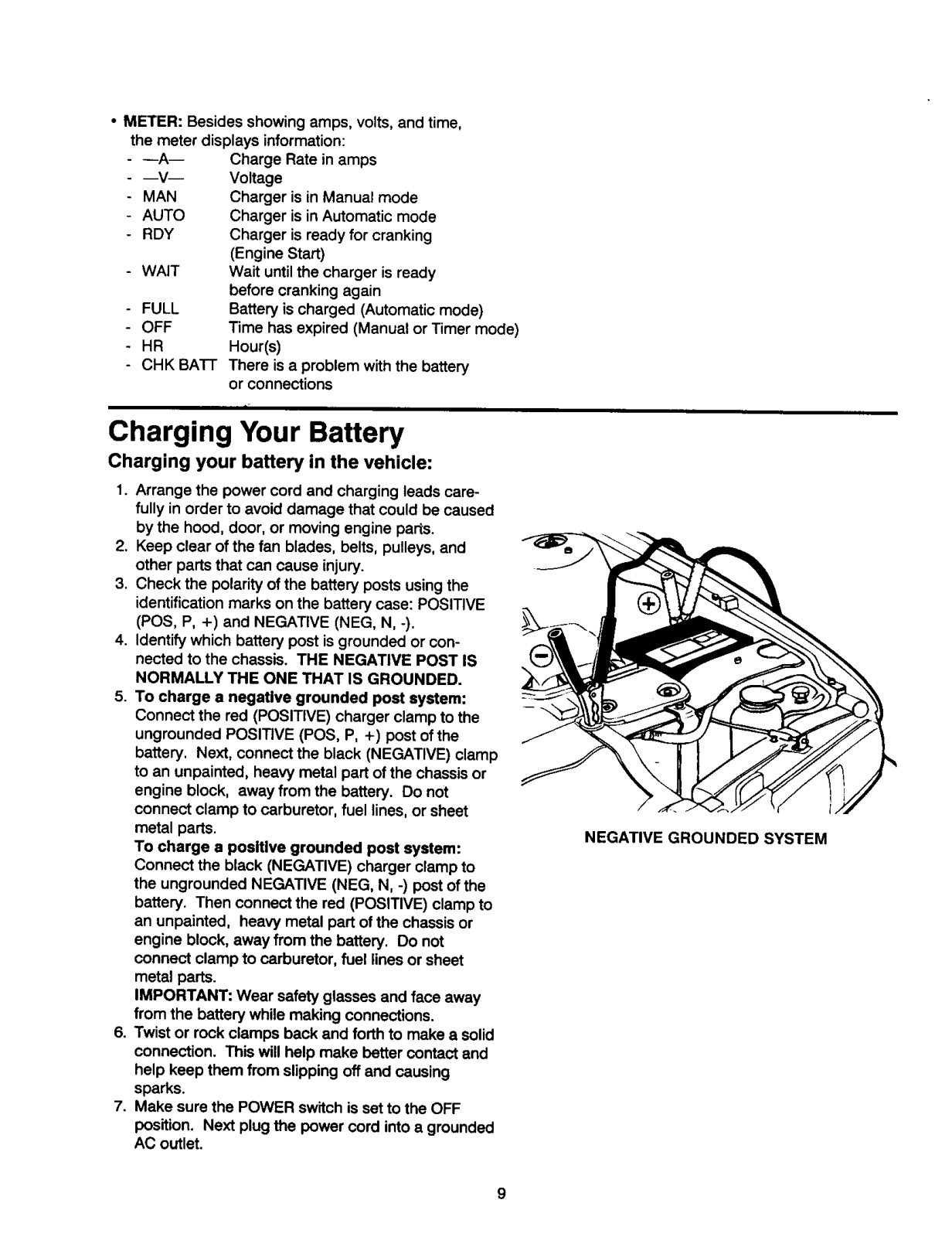

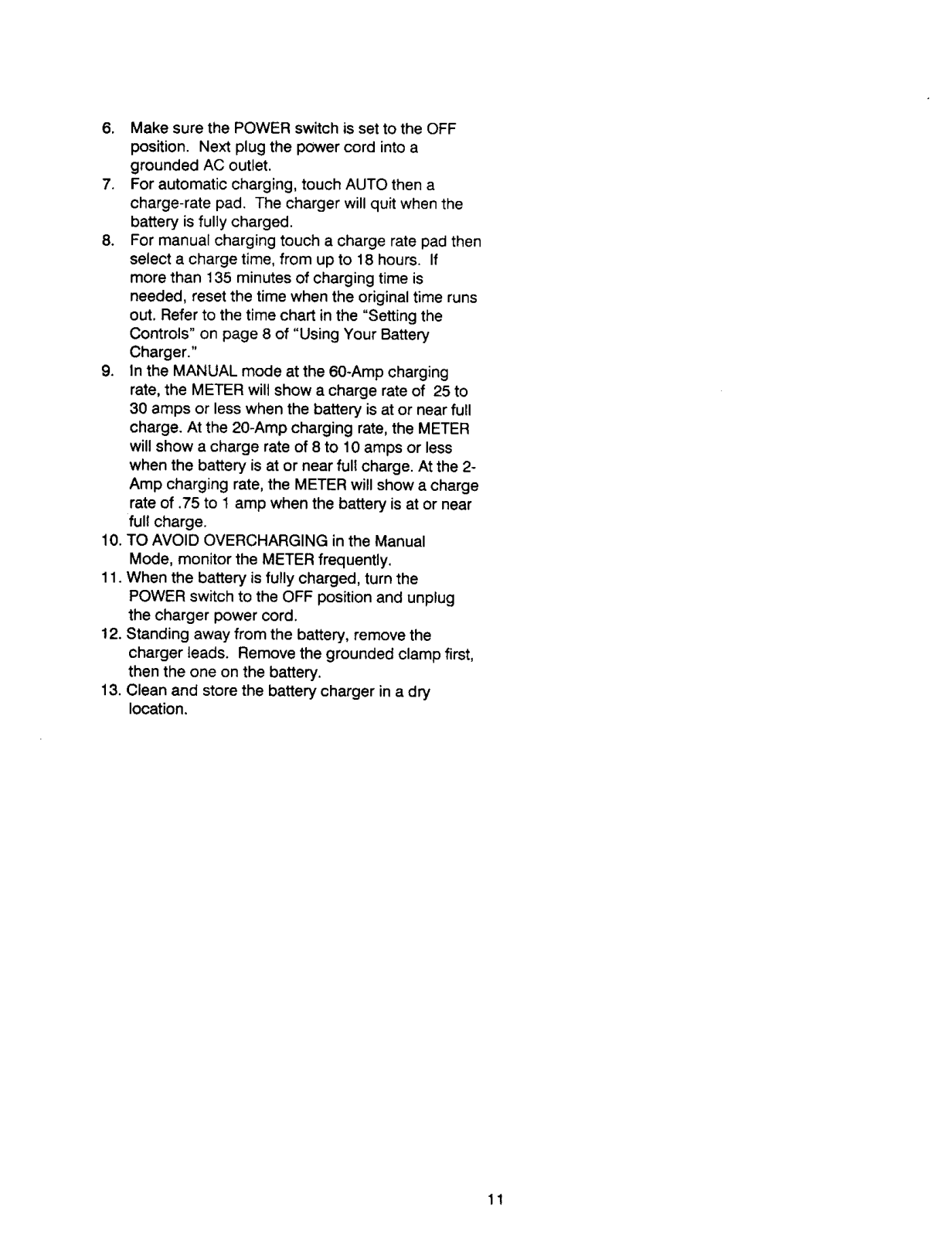

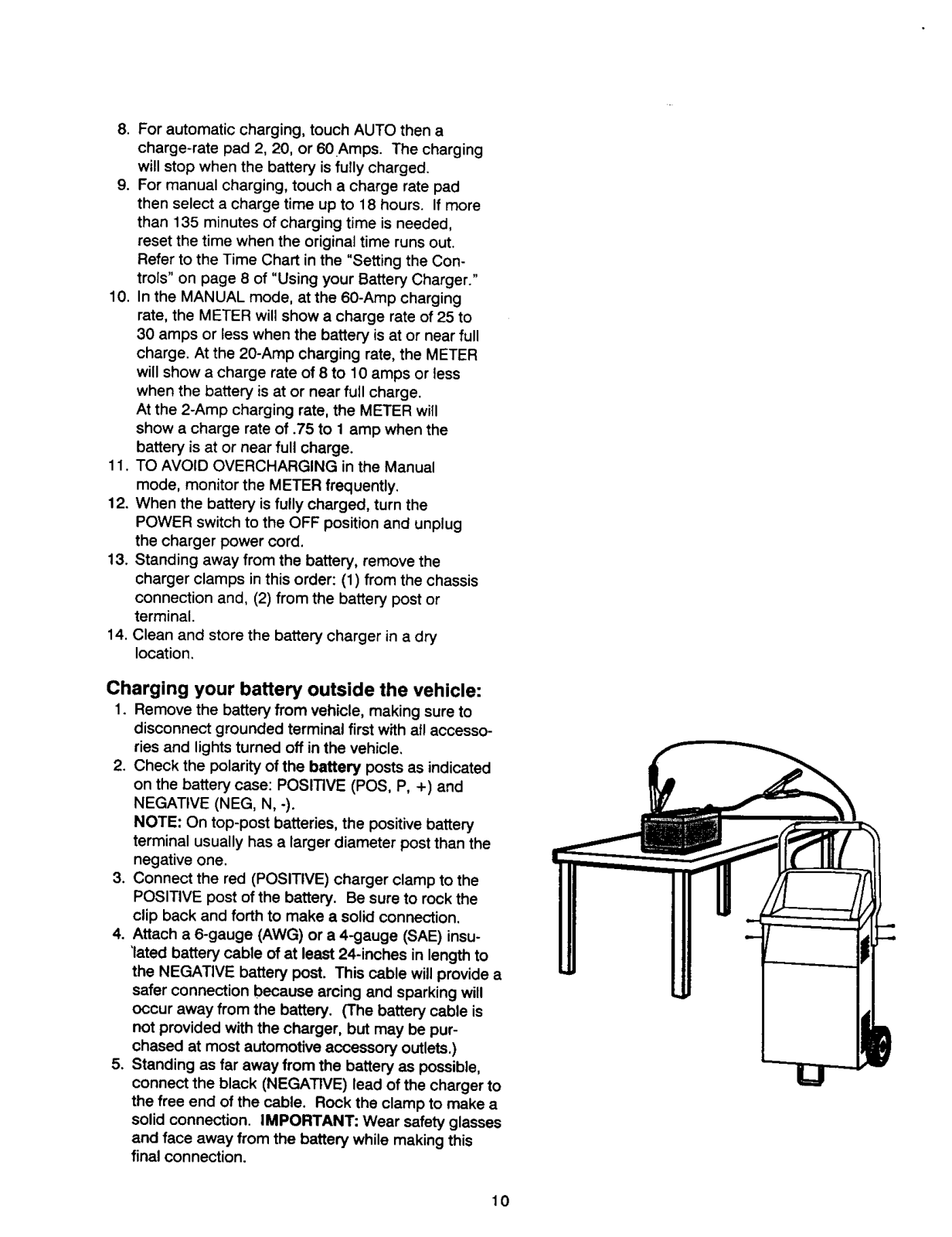

Charging your battery ........................................... 9

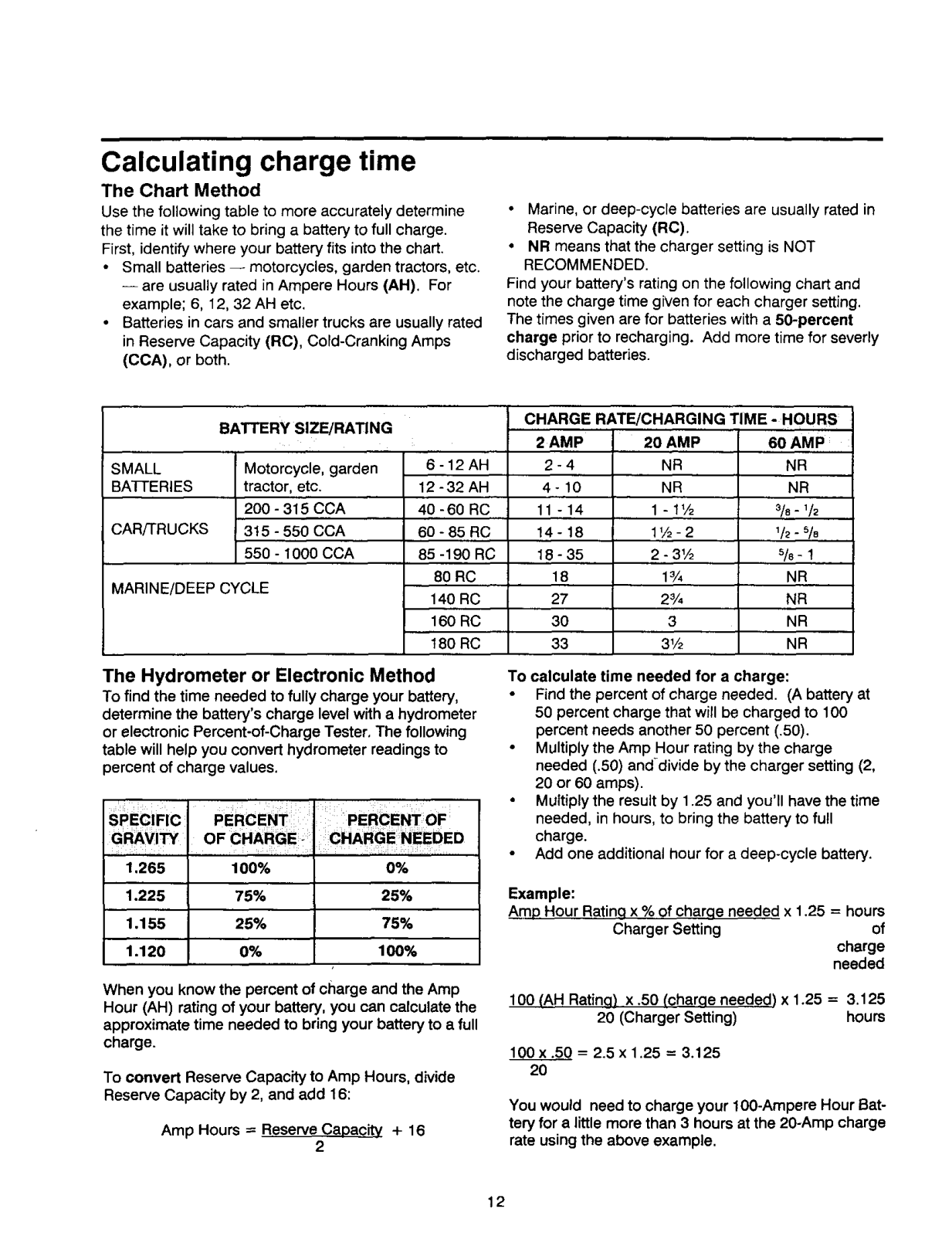

Calculating charge time ...................................... 12

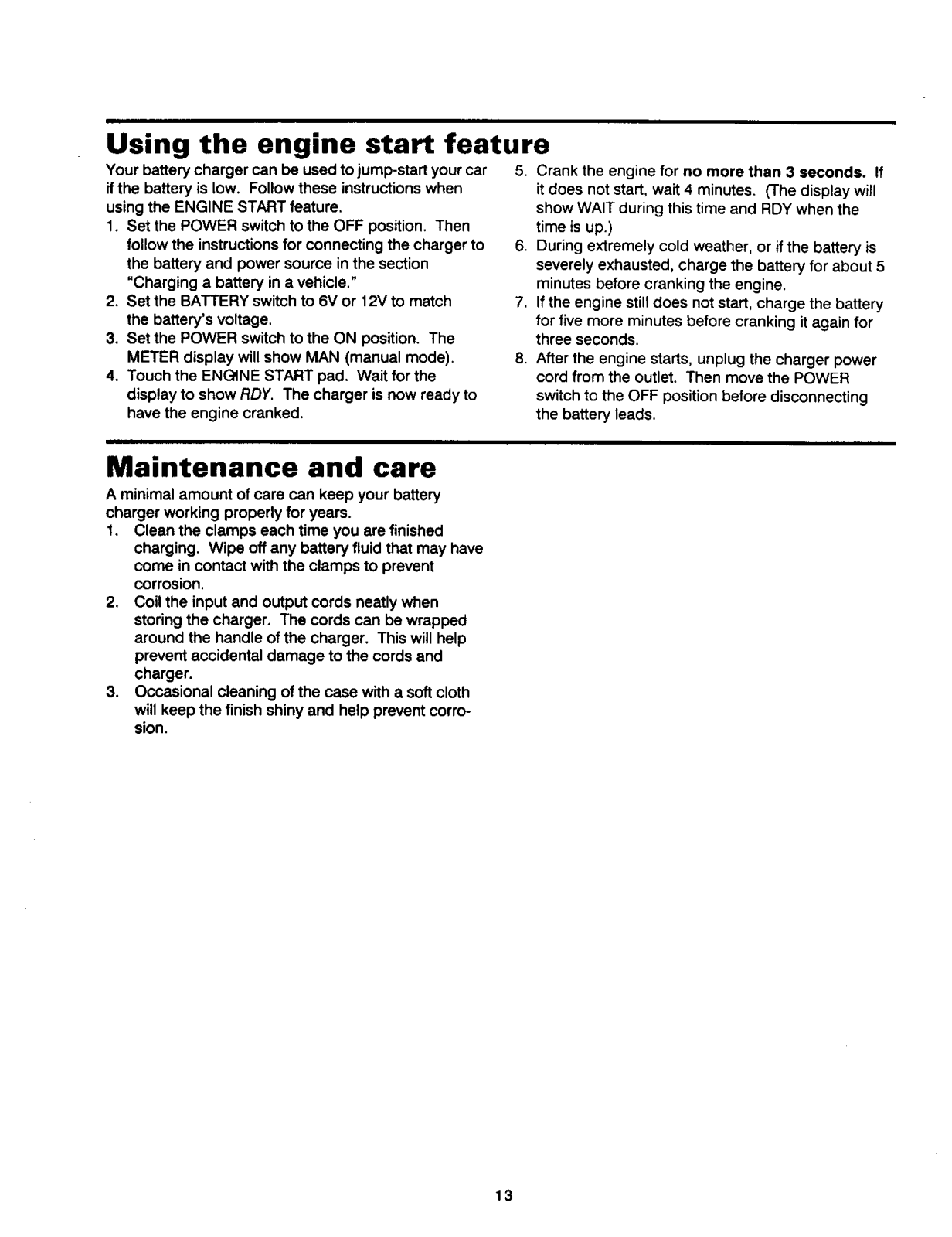

Using the engine start feature ............................ 13
Maintenance and care ........................................ 13

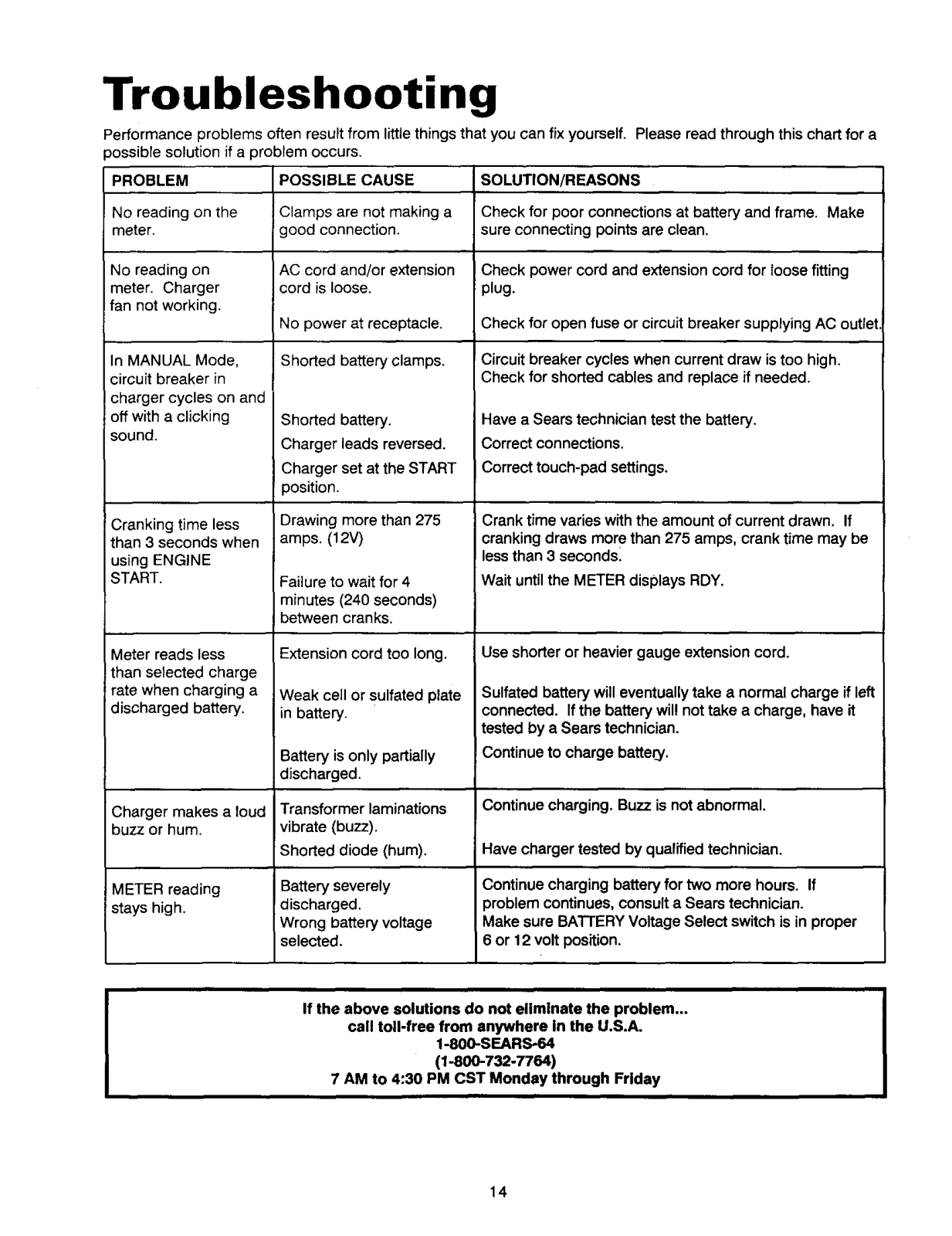

Troubleshooting ..................................................... 14
Warranty
FULL FIVE-YEAR WARRANTY
If, within FIVE years from the date of purchase, this battery charger fails due to a defect in materials or work-
manship, simply RETURN iT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will
repair or replace it,free of charge.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Dept 817WA,
Hoffman Estates, IL 60179

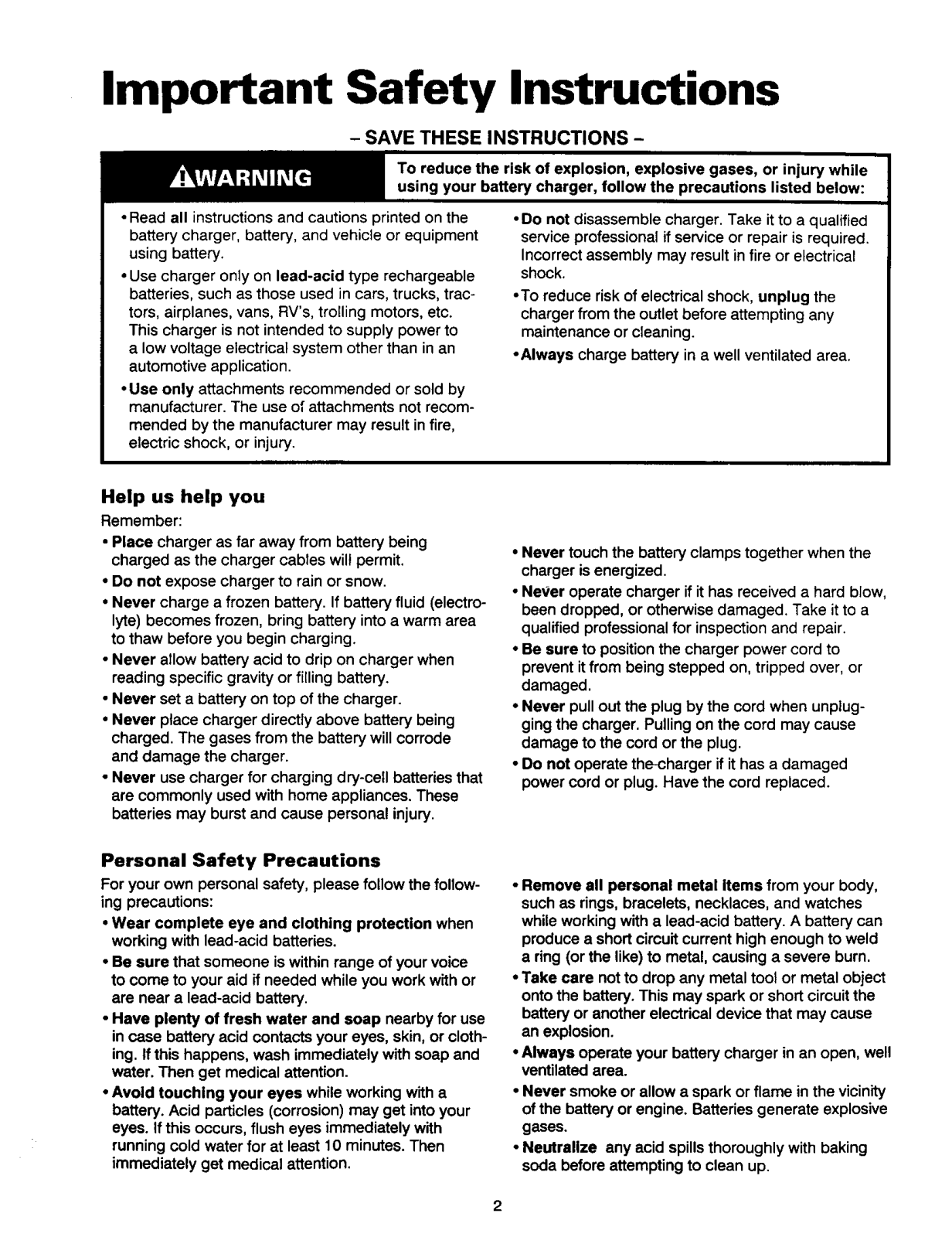

Important Safety Instructions
- SAVE THESE INSTRUCTIONS -
• Read all instructions and cautions printed on the
battery charger, battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type rechargeable
batteries, such as those used in cars, trucks, trac-
tors, airplanes, vans, RV's, trolling motors, etc.
This charger is not intended to supply power to
a low voltage electrical system other than in an
automotive application.
•Use only attachments recommended or sold by
manufacturer. The use of attachments not recom-
mended by the manufacturer may result in fire,
electric shock, or injury.
Help us help you
Remember:
• Place charger as far away from battery being
charged as the charger cables will permit.
• Do not expose charger to rain or snow.
• Never charge a frozen battery. If battery fluid (electro-
lyre) becomes frozen, bring battery into a warm area
to thaw before you begin charging.
• Never allow battery acid to drip on charger when
reading specific gravity or filling battery.
• Never set a battery on top of the charger.
• Never place charger directly above battery being
charged. The gases from the battery will corrode
and damage the charger.
• Never use charger for charging dry-cell batteries that
are commonly used with home appliances. These
batteries may burst and cause personal injury.
•Do not disassemble charger. Take it to a qualified
service professional if service or repair is required.
Incorrect assembly may result in fire or electrical
shock.
• To reduce risk of electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
• Always charge battery in a well ventilated area.
• Never touch the battery clamps together when the
charger is energized.
• Never operate charger if ithas received a hard blow,
been dropped, or otherwise damaged, Take it to a
qualified professional for inspection and repair.
• Be sure to position the charger power cord to
prevent itfrom being stepped on, tripped over, or
damaged.
• Never pull out the plug by the cord when unplug-
ging the charger. Pulling on the cord may cause
damage to the cord or the plug.
• Do not operate the-charger if ithas a damaged
power cord or plug. Have the cord replaced.
Personal Safety Precautions
For your own personal safety, please follow the follow-
ing precautions:
• Wear complete eye and clothing protection when
working with lead-acid batteries.
• Be sure that someone iswithin range of your voice
to come to your aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and soap nearby for use
in case battery acid contacts your eyes, skin, or cloth-
ing. If this happens, wash immediately with soap and
water. Then get medical attention.
• Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. If this occurs, flush eyes immediately with
running cold water for at least 10 minutes. Then
immediately get medical attention,
• Remove all personal metal Items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. A battery can
produce a short circuit current high enough to weld
a ring (or the like) to metal, causing a severe burn.
•Take care not to drop any metal tool or metal object
onto the battery. This may spark or short circuit the
battery or another electrical device that may cause
an explosion.
•Always operate your battery charger in an open, well
ventilated area.
• Never smoke or allow a spark or flame in the vicinity
of the battery or engine. Batteries generate explosive
gases.
• Neutralize any acid spills thoroughly with baking
soda before attempting to clean up,

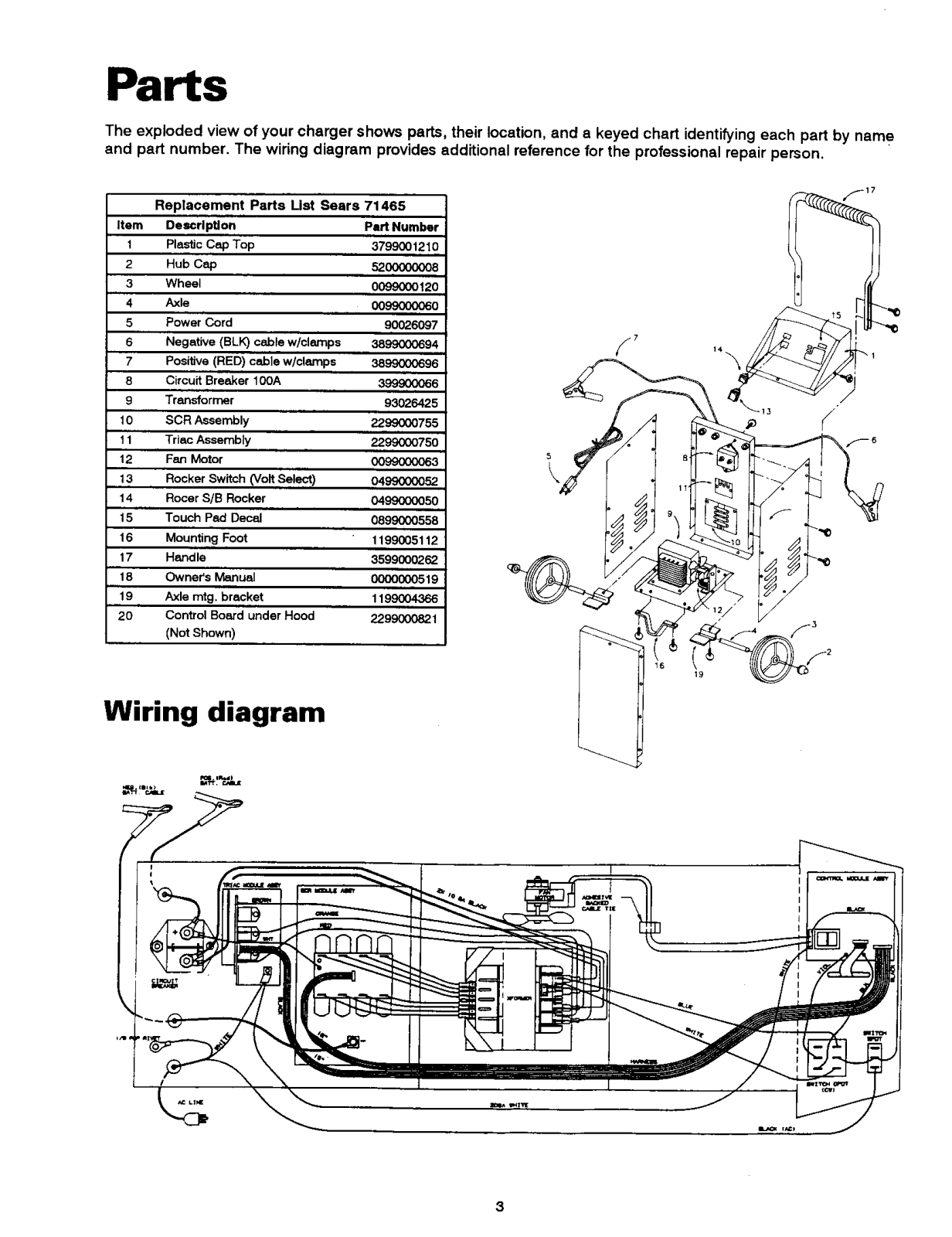

Parts
The exploded view of your charger shows parts, their location, and a keyed chart identifying each part by name
and part number. The wiring diagram provides additional reference for the professional repair person.
Replacement Parts Ust Sears 71465
Item Description Part Number
1 Plastic Cap Top 3799001210
2 Hub Cap 5200000008
3 Wheel 0099000120
4 Axle 0099000060
5 Power Cord 90026097
6 Negative (BLK) cable w/clamps 3899000694
7 Positive (RED) cable w/clamps 3899000696
8 Circuit Breaker 100A 399900066
9 Transformer 93026425
10 SCR Assembly 2299000755
11 Triac Assembly 2299000750
12 Fan Motor 0099000063
13 Rocker Switch (Volt Select) 0499000052
14 Rocer S/B Rocker 0499000050
15 Touch Pad Decal 0899000558
16 Mounting Foot 1199005112
17 Handle 3599000262
18 Owner's Manual 0000000519
19 Axle rntg. bracket 1199004366
20 Control Board under Hood 2299000821
(Not Shown)
Wiring diagram
3

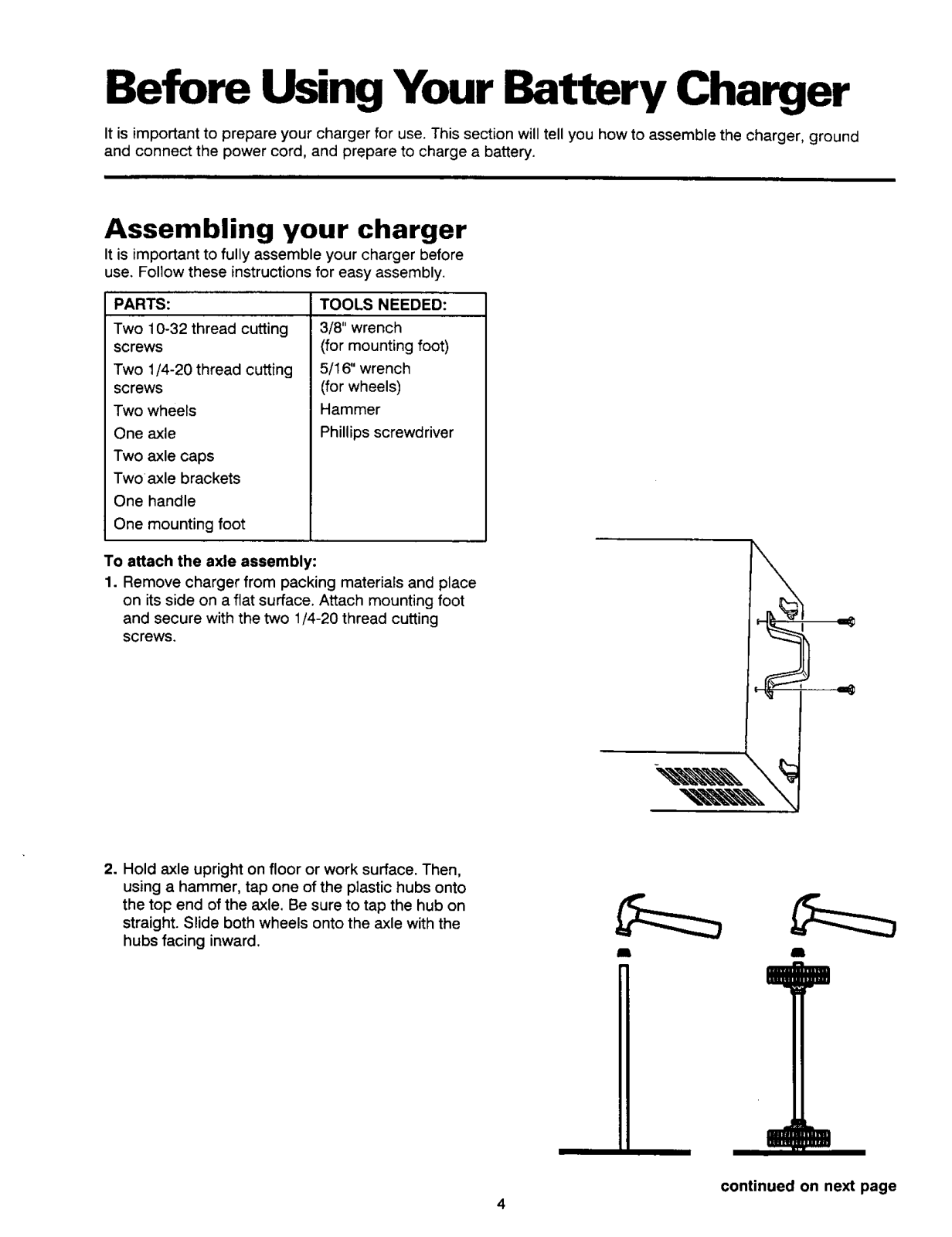

Before Using Your Battery Charger
It is important to prepare your charger for use. This section will tell you how to assemble the charger, ground
and connect the power cord, and prepare to charge a battery.
Assembling your charger
It is important to fully assemble your charger before
use. Follow these instructions for easy assembly.
PARTS:
Two 10-32 thread cutting
screws
Two 1/4-20 thread cutting
screws
Two wheels
One axle
Two axle caps
Two axle brackets
One handle
One mounting foot
To attach the axle assembly:
1. Remove charger from packing materials and place
on itsside on a flat surface. Attach mounting foot
and secure with the two 1/4-20 thread cutting
screws.
TOOLS NEEDED:
3/8" wrench
(for mounting foot)
5/16" wrench
(for wheels)
Hammer
Phillips screwdriver
2. Hold axle upright on floor or work surface. Then,
using a hammer, tap one of the plastic hubs onto
the top end of the axle. Be sure to tap the hub on
straight. Slide both wheels onto the axle with the
hubs facing inward.
II II
continued on next page
4
