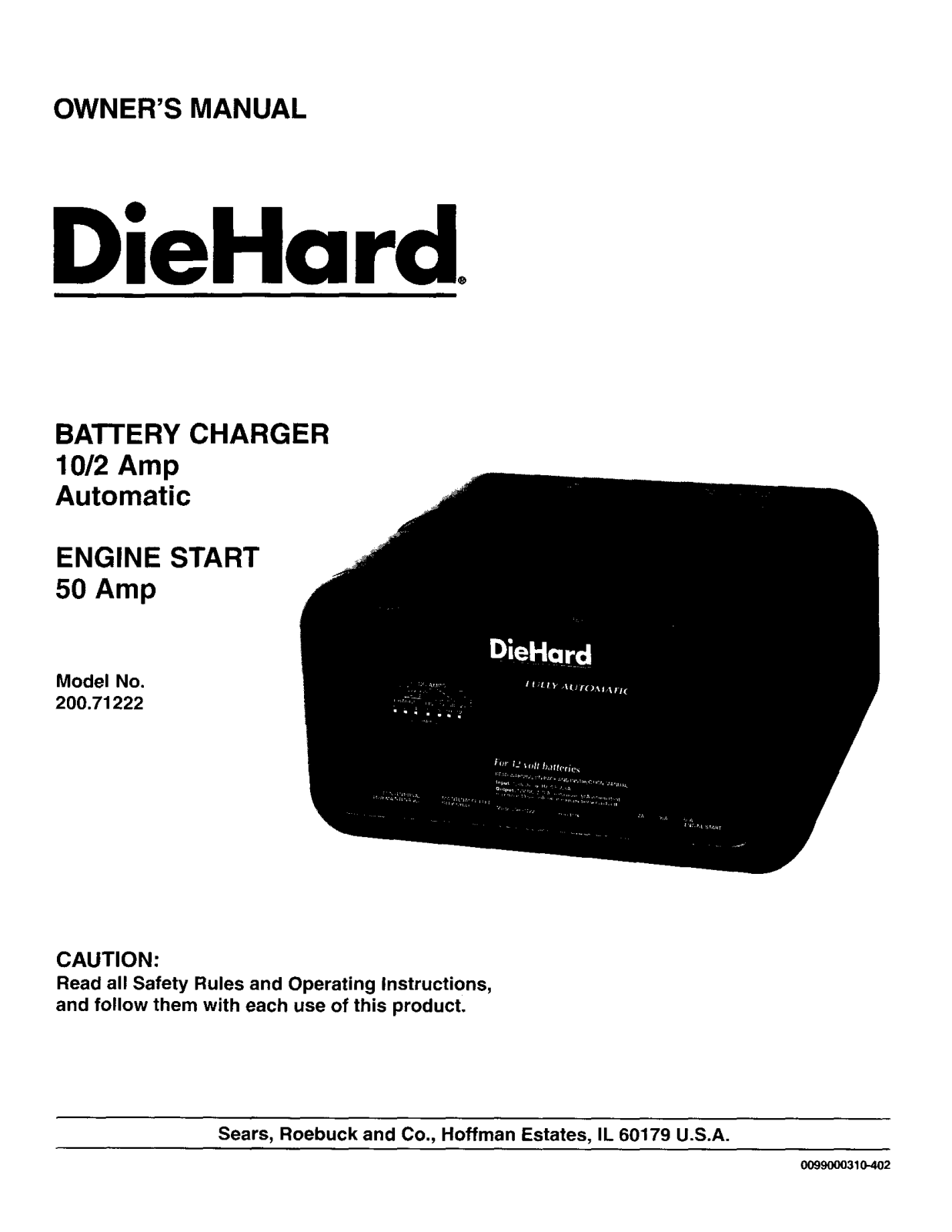

DieHard 200.71222 Owner's Manual
OWNER'S MANUAL
DieHard,
BATTERY CHARGER
10/2 Amp
Automatic
ENGINE START
50 Amp
Model No.
200.71222
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
0099O00310-402

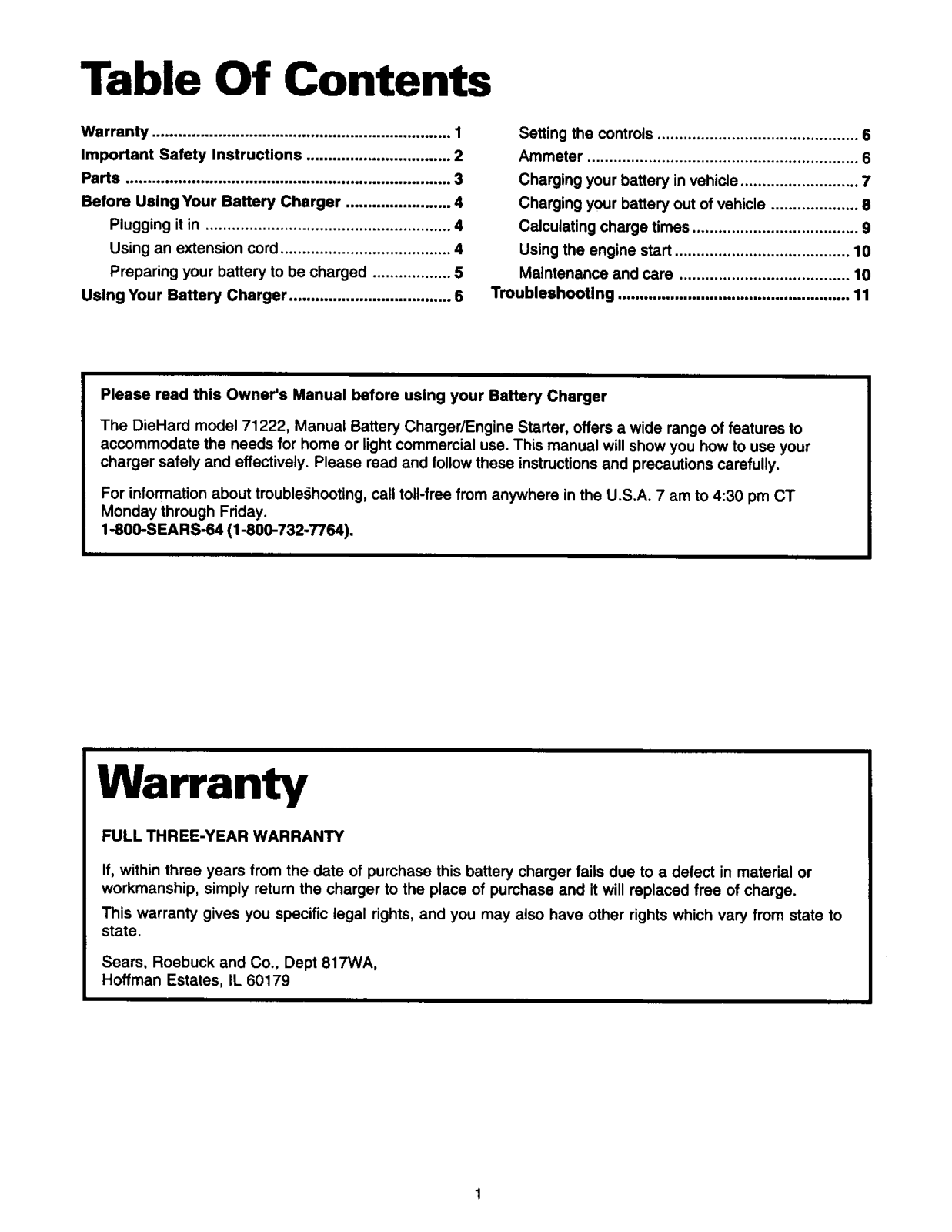

Table Of Contents
Warranty .................................................................... 1
Important Safety Instructions ................................. 2
Parts .......................................................................... 3

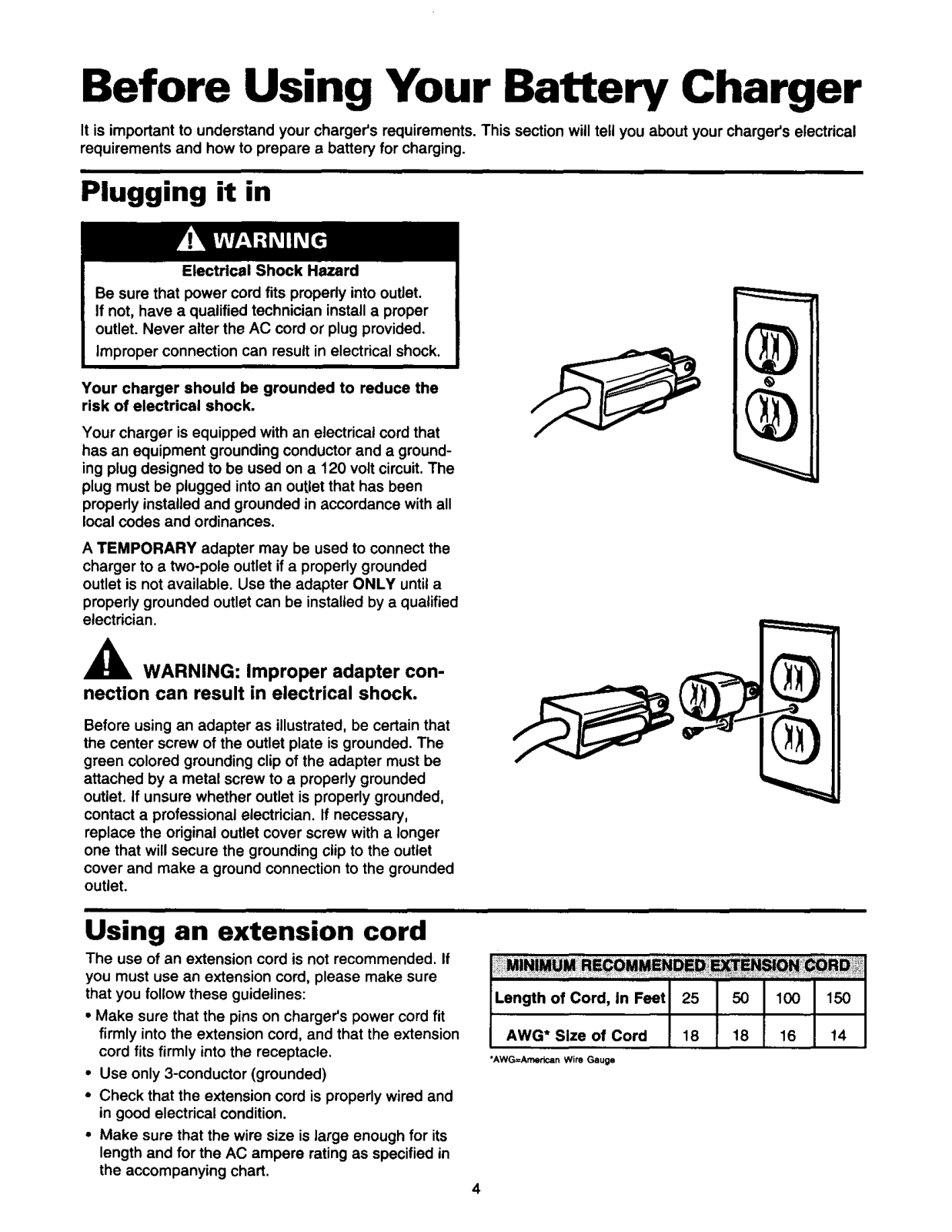

Before Using Your Battery Charger ........................ 4
Plugging it in ........................................................ 4
Using an extension cord....................................... 4

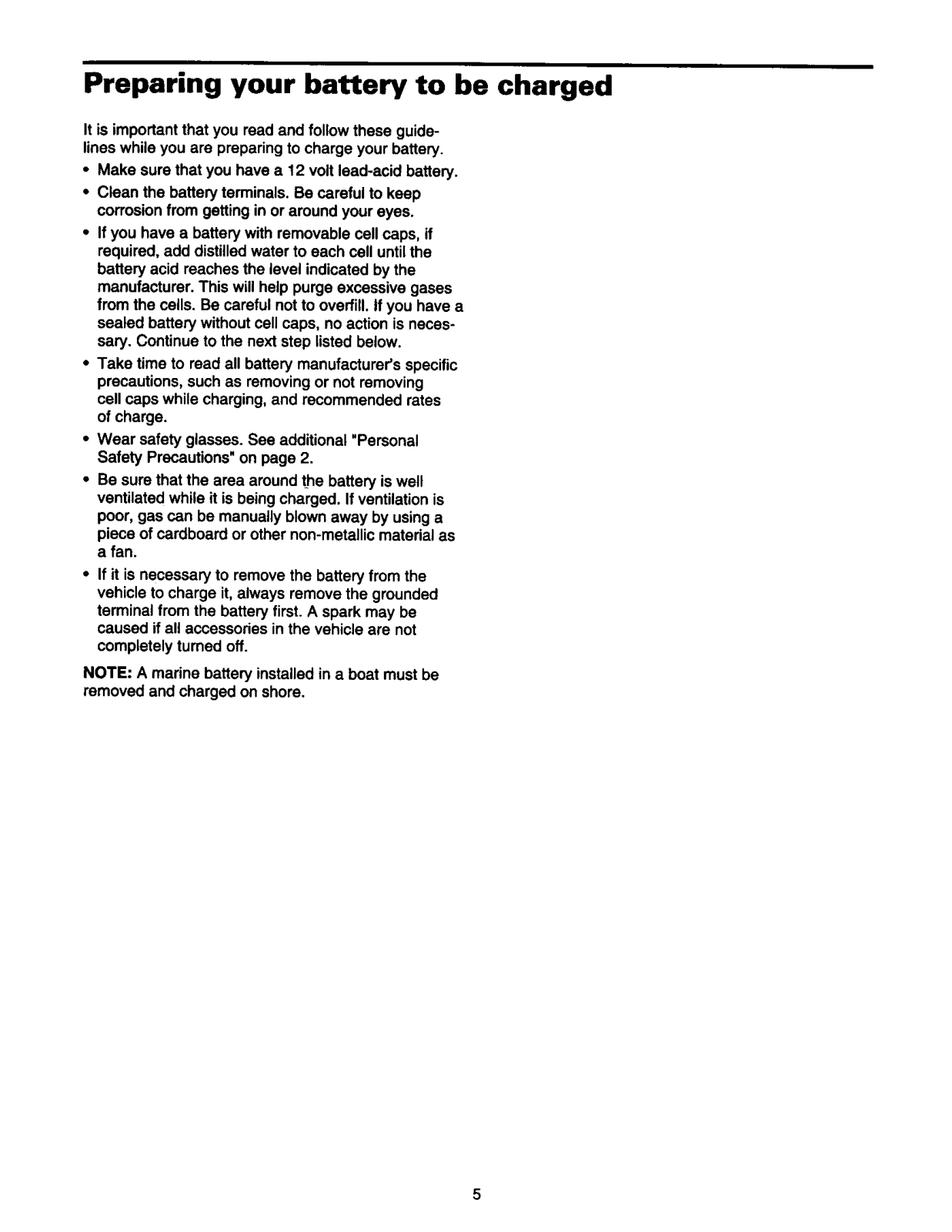

Preparing your battery to be charged .................. 5

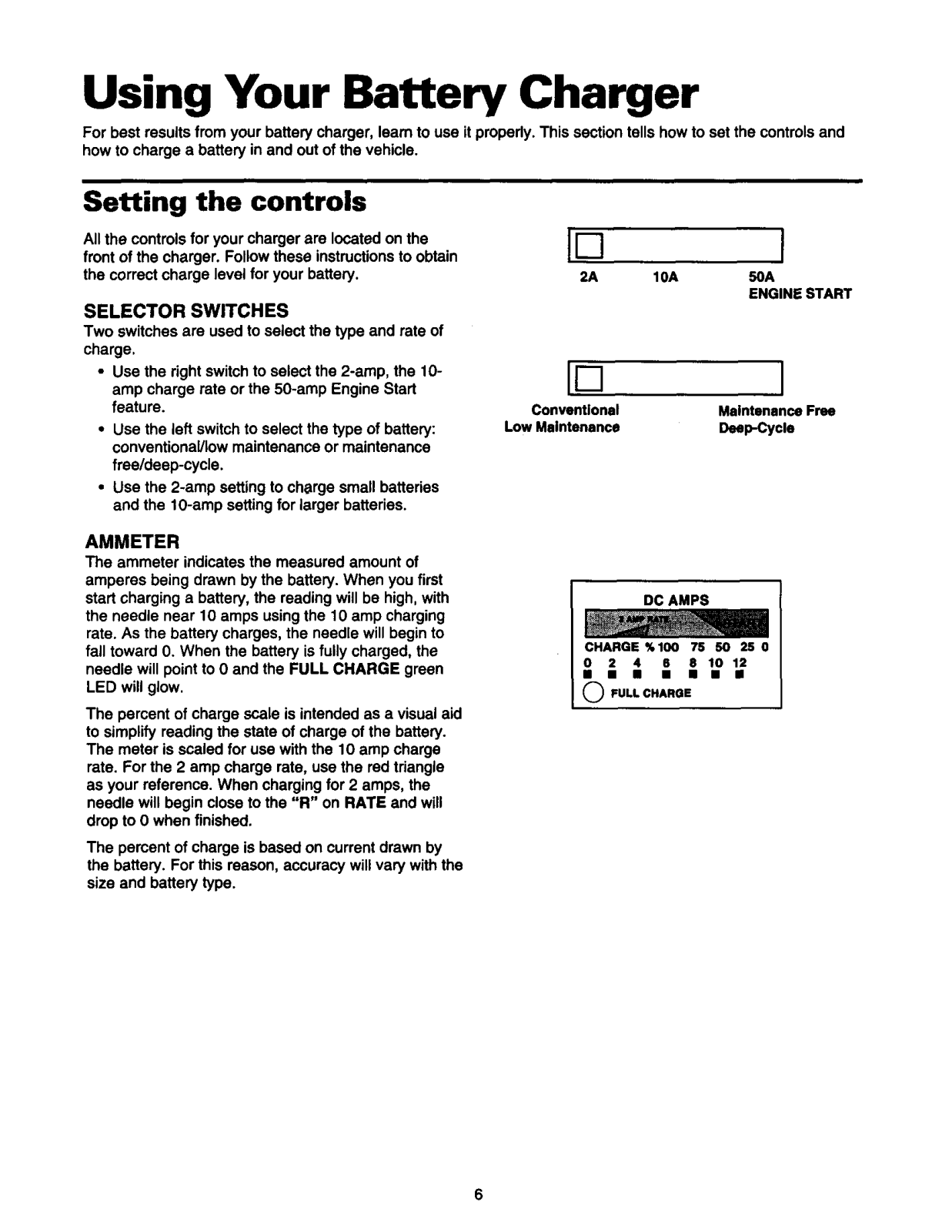

Using Your Battery Charger ..................................... 6
Setting the controls .............................................. 6
Ammeter .............................................................. 6

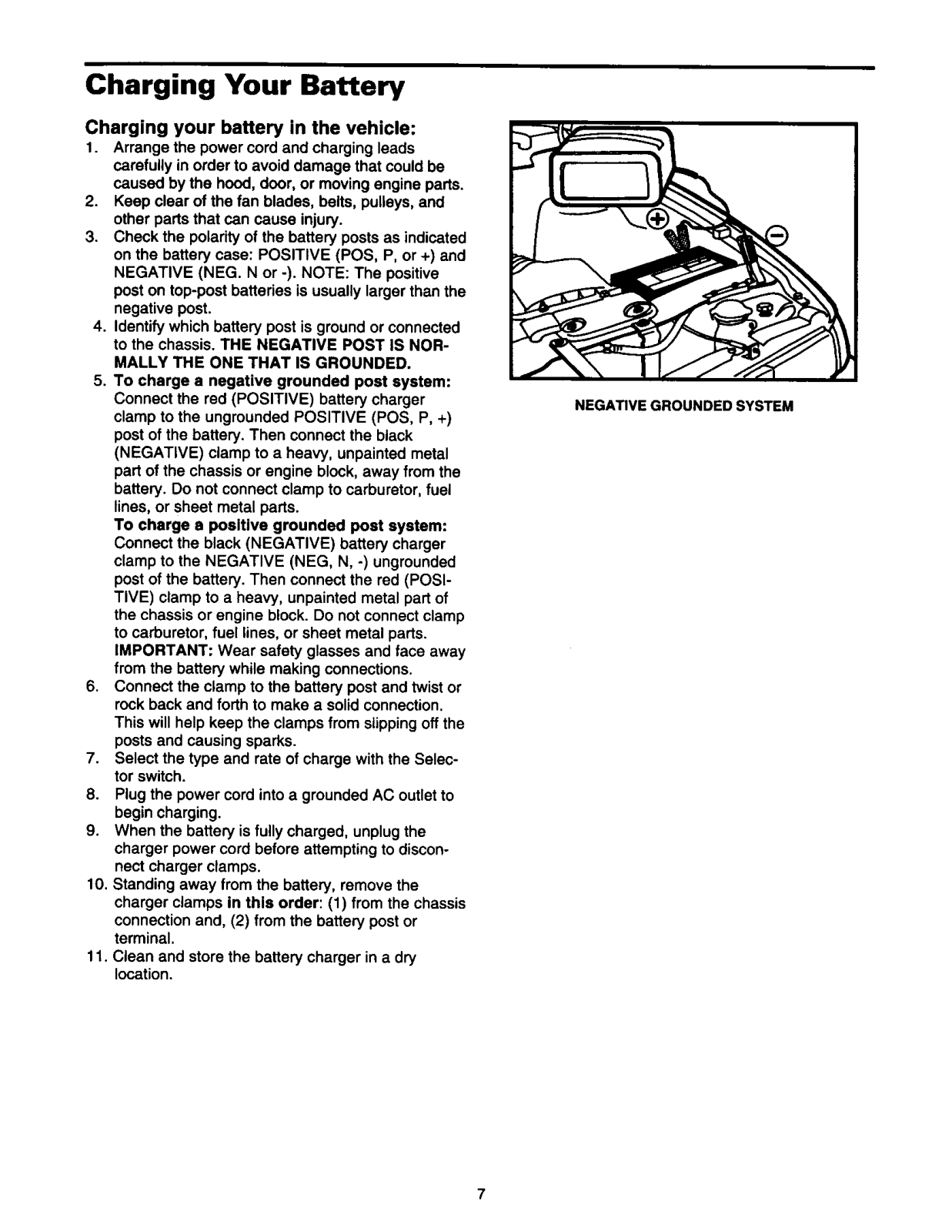

Charging your battery in vehicle........................... 7

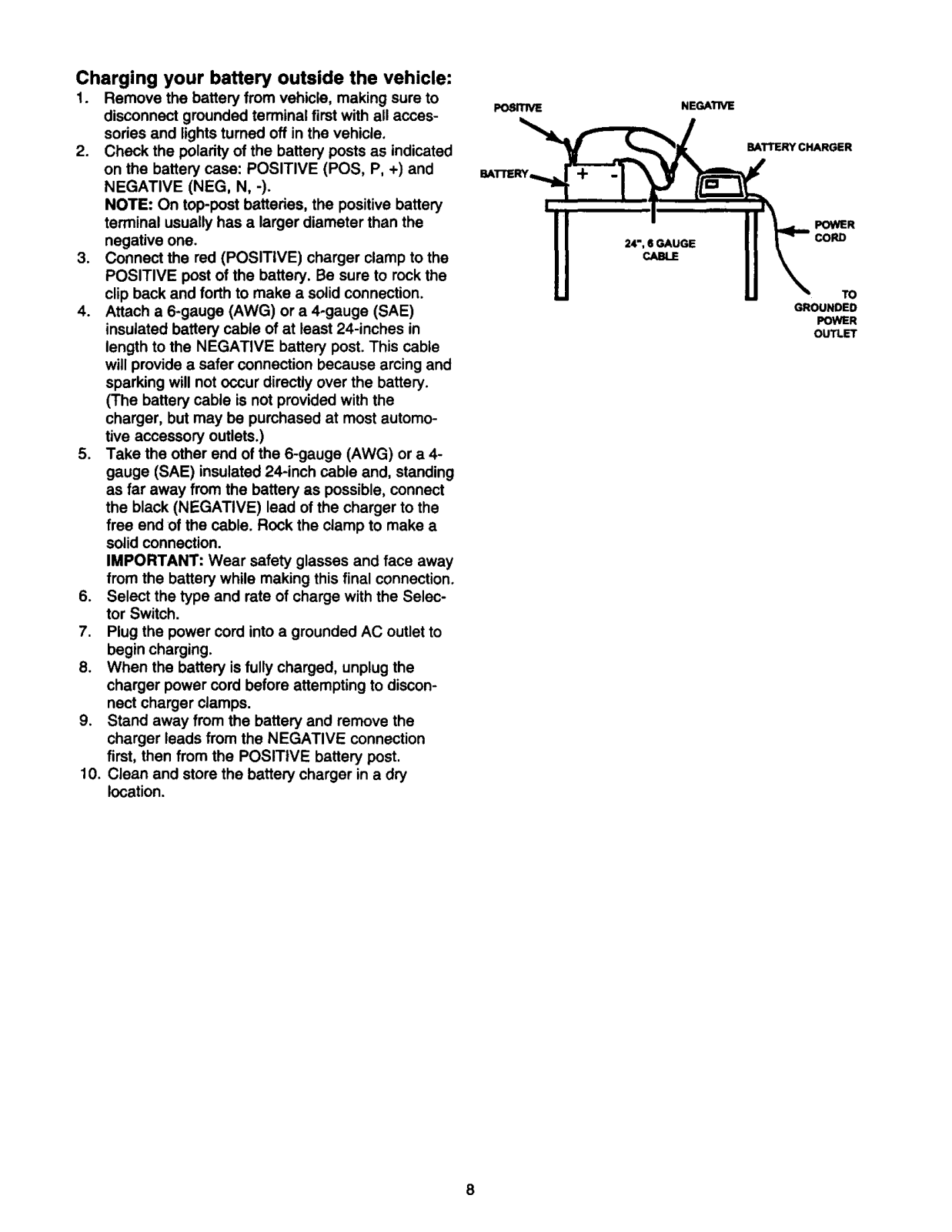

Charging your battery out of vehicle .................... 8

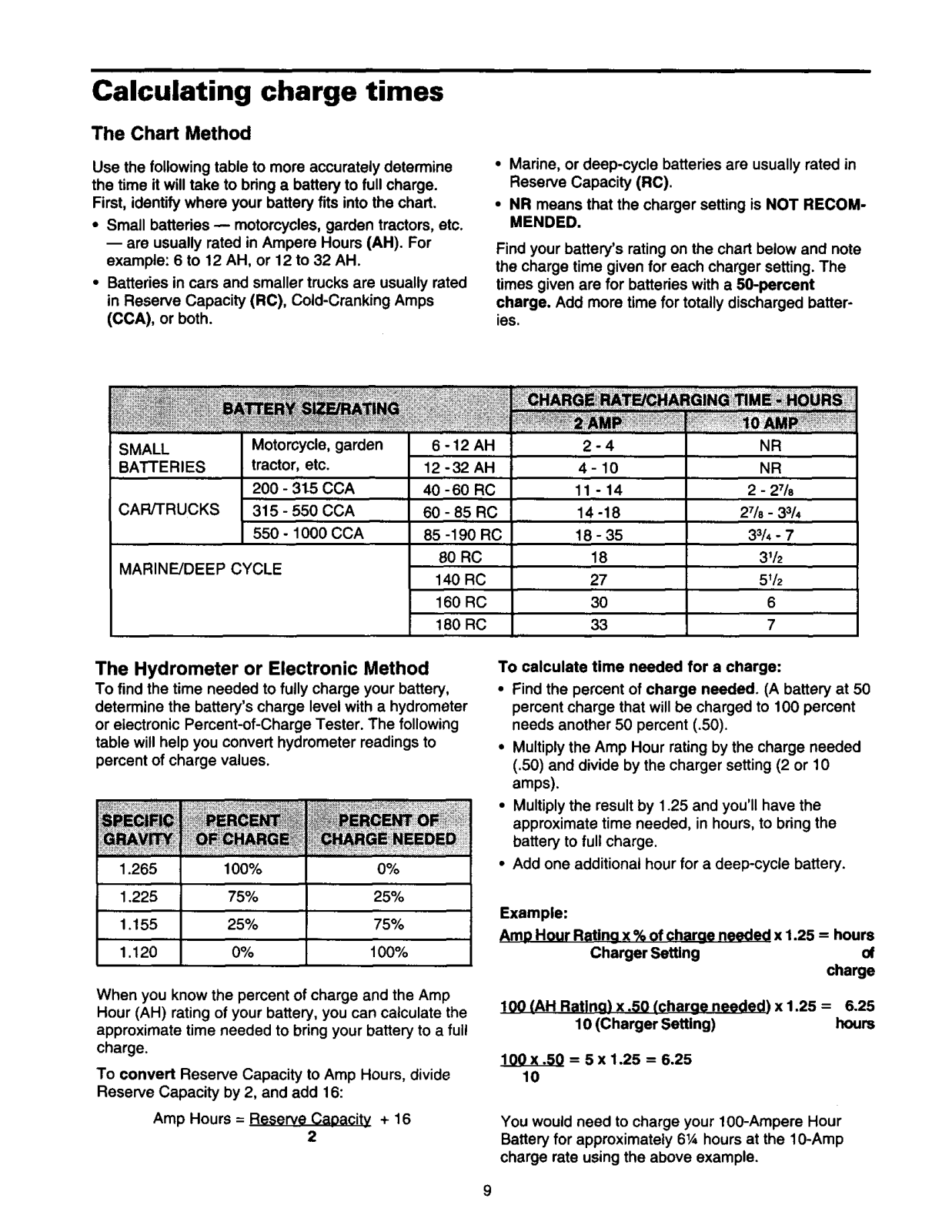

Calculating charge times ...................................... 9

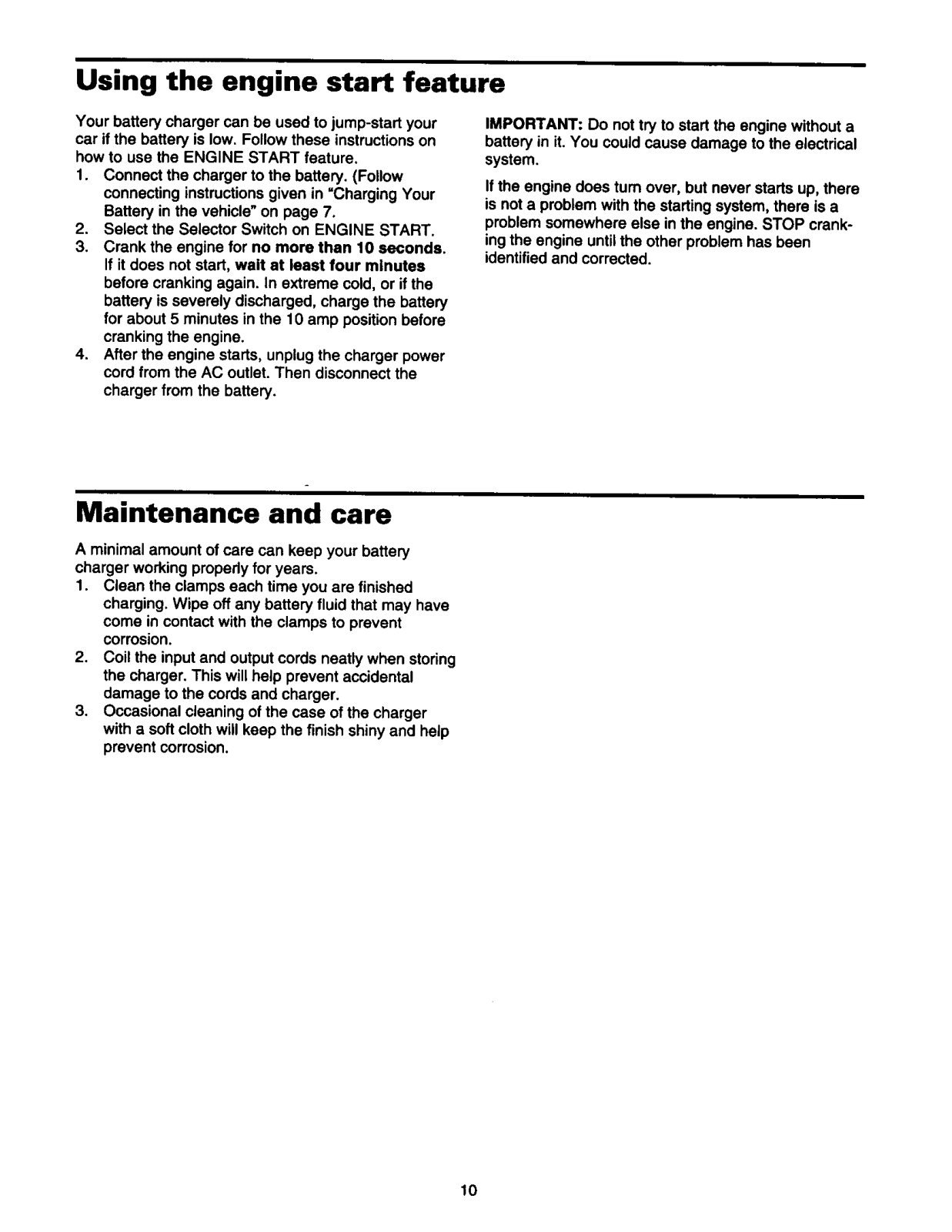

Using the engine start ........................................ 10
Maintenance and care ....................................... 10

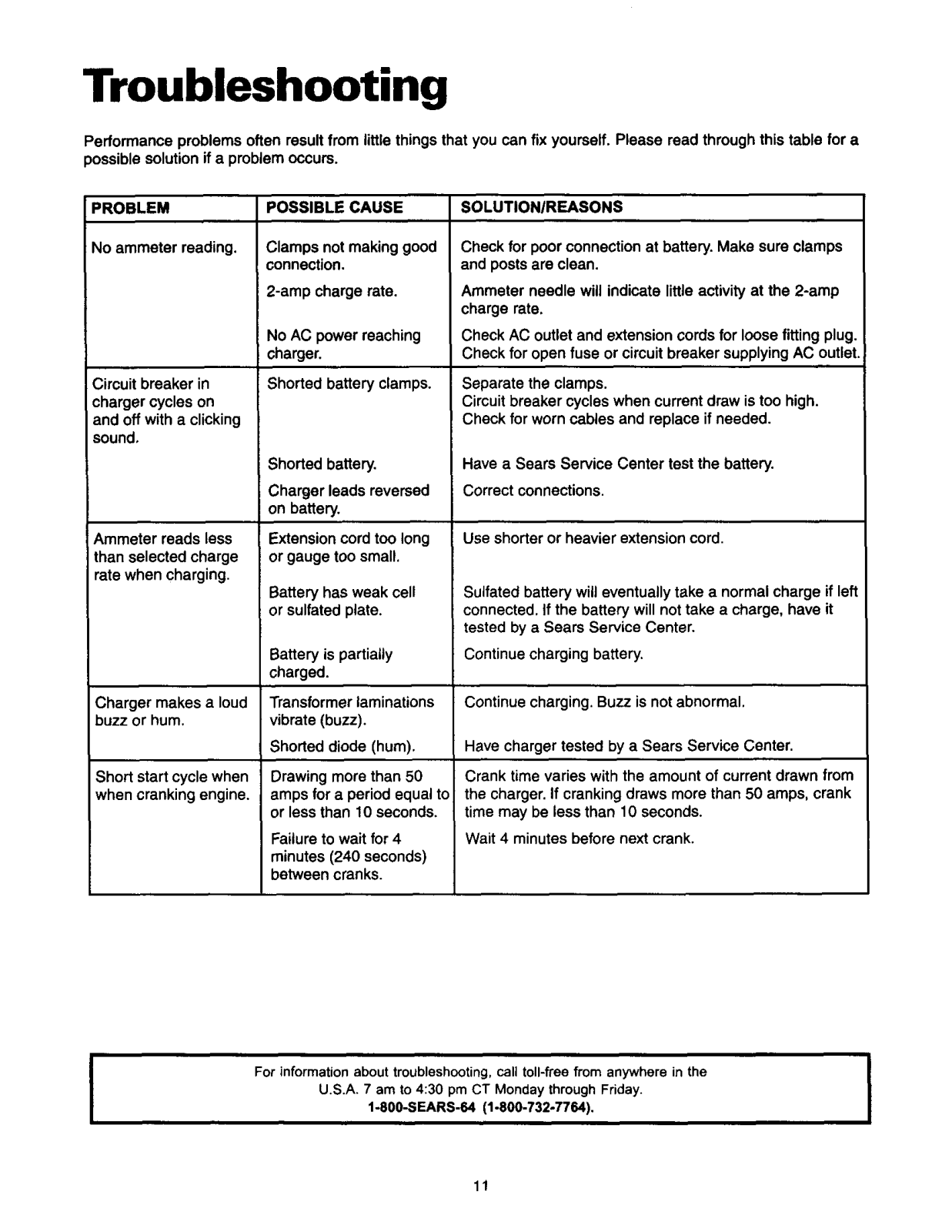

Troubleshooting ..................................................... 11
Please read this Owner's Manual before using your Battery Charger
The DieHard model 71222, Manual Battery Charger/Engine Starter, offers a wide range of features to
accommodate the needs for home or lightcommercial use. This manual will show you how to use your
charger safely and effectively. Please road and follow these instructions and precautions carefully.
For information about troubleshooting, call toll-froe from anywhere in the U.S.A. 7 am to 4:30 pm CT
Monday through Friday.
1-800-SEARS-84 (1-800-732-7764).
Warranty
FULL THREE-YEAR WARRANTY
If, within three years from the date of purchase this battery charger fails due to a defect in material or
workmanship, simply return the charger to the place of purchase and it will replaced free of charge.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Dept 817WA,
Hoffman Estates, IL 60179

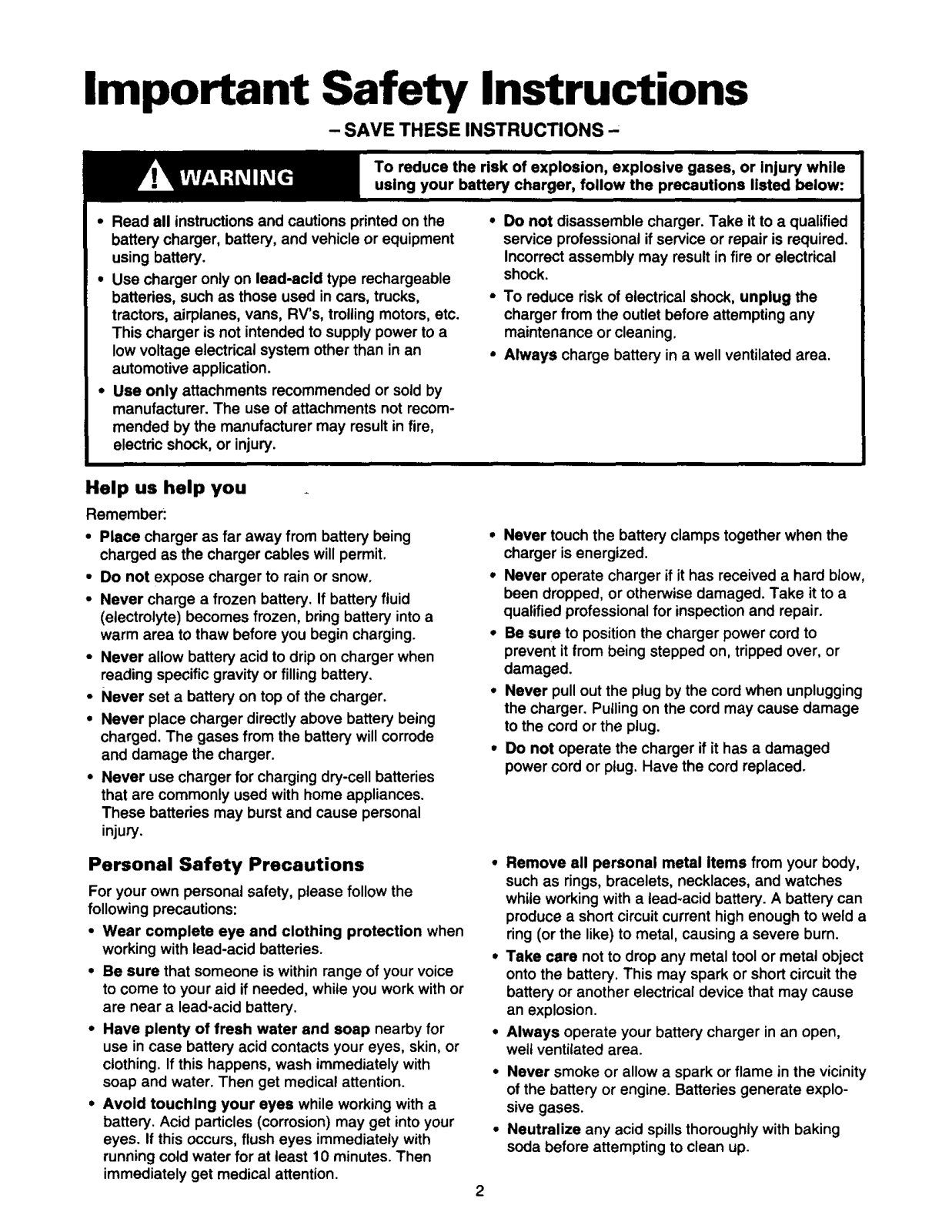

Important Safety Instructions
- SAVE THESE INSTRUCTIONS -
battery charger, battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type rechargeable
batteries, such as those used in cars, trucks,
tractors, airplanes, vans, RV's, trolling motors,etc.
This charger is not intended to supply power to a
low voltage electrical system other than inan
automotive application.
• Use only attachments recommended or sold by
manufacturer. The use of attachments not recom-
mended by the manufacturer may result in fire,
electdc shock, or injury.
service professional ifservice or repair is required.
Incorrect assembly may result in fire or electrical
shock.
• To reduce risk of electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
• Always charge battery in a well ventilated area.
Help us help you
Remember:
• Place charger as far away from battery being
charged as the charger cables will permit.
• Do not expose charger to rain or snow.
• Never charge a frozen battery. If battery fluid
(electrolyte) becomes frozen, bring battery into a
warm area tOthaw before you begin charging.
• Never allow battery acid to dripon charger when
reading specific gravity orfilling battery.
• Never set a battery on top of the charger.
• Never place charger directlyabove battery being
charged. The gases from the battery will corrode
and damage the charger.
• Never use charger for charging dry-cell batteries
that are commonly used with home appliances.
These batteries may burst and cause personal
injury.
Personal Safety Precautions
For your own personal safety, please follow the
following precautions:
• Wear complete eye and clothing protection when
working with lead-acid batteries.
• Be sure that someone is within range of your voice
to come to your aid if needed, while you workwith or
are near a lead-acid battery.
• Have plenty of fresh water and soap nearby for
use in case battery acid contacts your eyes, skin, or
clothing. If this happens, wash immediately with
soap and water. Then get medical attention.
• Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. If this occurs, flush eyes immediately with
running cold water for at least 10 minutes. Then
immediately get medical attention.
• Never touch the battery clamps together when the
charger is energized.
• Never operate charger if it has received a hard blow,
been dropped, or otherwise damaged. Take it to a
qualified professional for inspection and repair.
• Be sure to position the charger power cord to
prevent it from being stepped on, tripped over, or
damaged.
• Never pull outthe plug by the cord when unplugging
the charger. Pulling on the cord may cause damage
to the cord or the plug.
• Do not operate the charger if it has a damaged
power cord or plug, Have the cord replaced.
• Remove all personal metal Items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. A battery can
produce a short circuit current high enough to weld a
ring (or the like) to metal, causing a severe burn.
• Take care not to drop any metal tool or metal object
onto the battery. This may spark or short circuit the
battery or another electrical device that may cause
an explosion.
• Always operate your battery charger in an open,
welt ventilated area.
• Never smoke or allow a spark or flame in the vicinity
ofthe battery or engine. Batteries generate explo-
sive gases.
• Neutralize any acid spills thoroughlywith baking
soda before attempting to clean up.

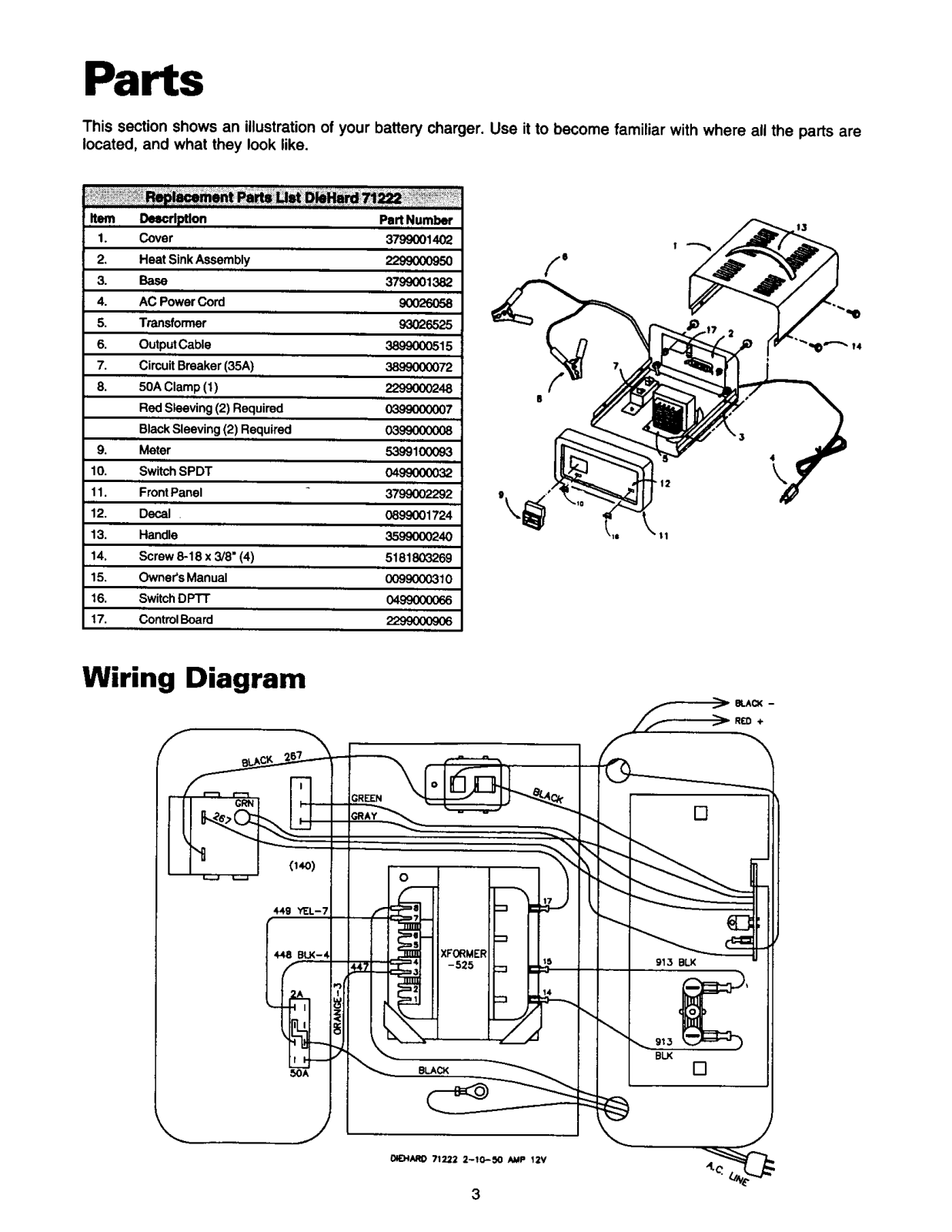

Parts
This section shows an illustration of your battery charger. Use itto become familiar with where all the parts are
located, and what they look like.
Item Deocdptlon Pert Number
1. Cover 3799001402
2, Heat Sink Assembly 2299000950
3. Base 3799001382
4. AC Power Cord 80026_
5. Transformer 930_6525
6. Output Cable 3899000515
7. Circuit Breaker (35A) 3899000072
8. 50A Clamp (1) 22990G0248
Red Sleeving (2) Required 0_99000007
Black Sleeving (2) Required 0399000008
9. Meter 5399100093
10. Switch SPDT 0499000032
11. FrontPanel 3799002292
12, Decal 0899001724
13. Handle 3599000240
14. Screw 8-18 x 3/8" (4) 518180_269
15. OwneCs Manual 0099000310
16. Switch DPTT 0499000066
17. Control Board 22990009C6
3
\
Wiring Diagram
GREEN
04o)
BU<-,
I
50A
o ]
::_ XFORMER
-525
k _
3
