Page 1
AC Input Power Specifications
External Trigger Specifications
General Purpose Output Specifications
Interface Specifications
Electrical Specifications
0081C

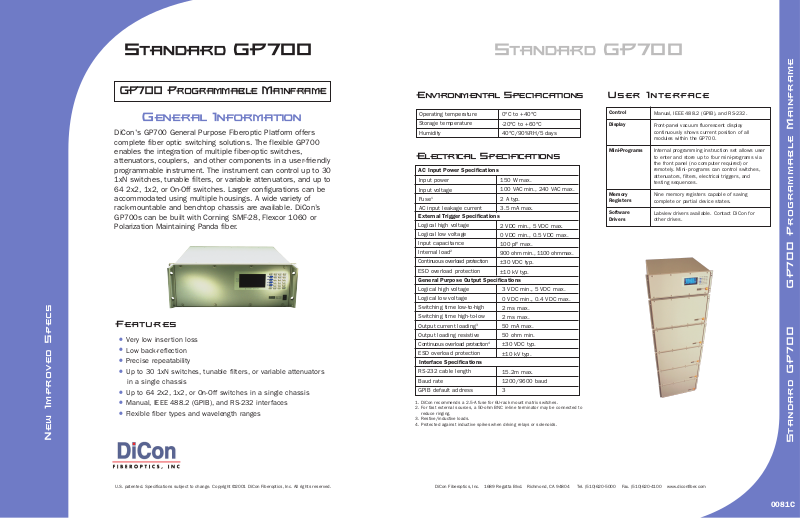

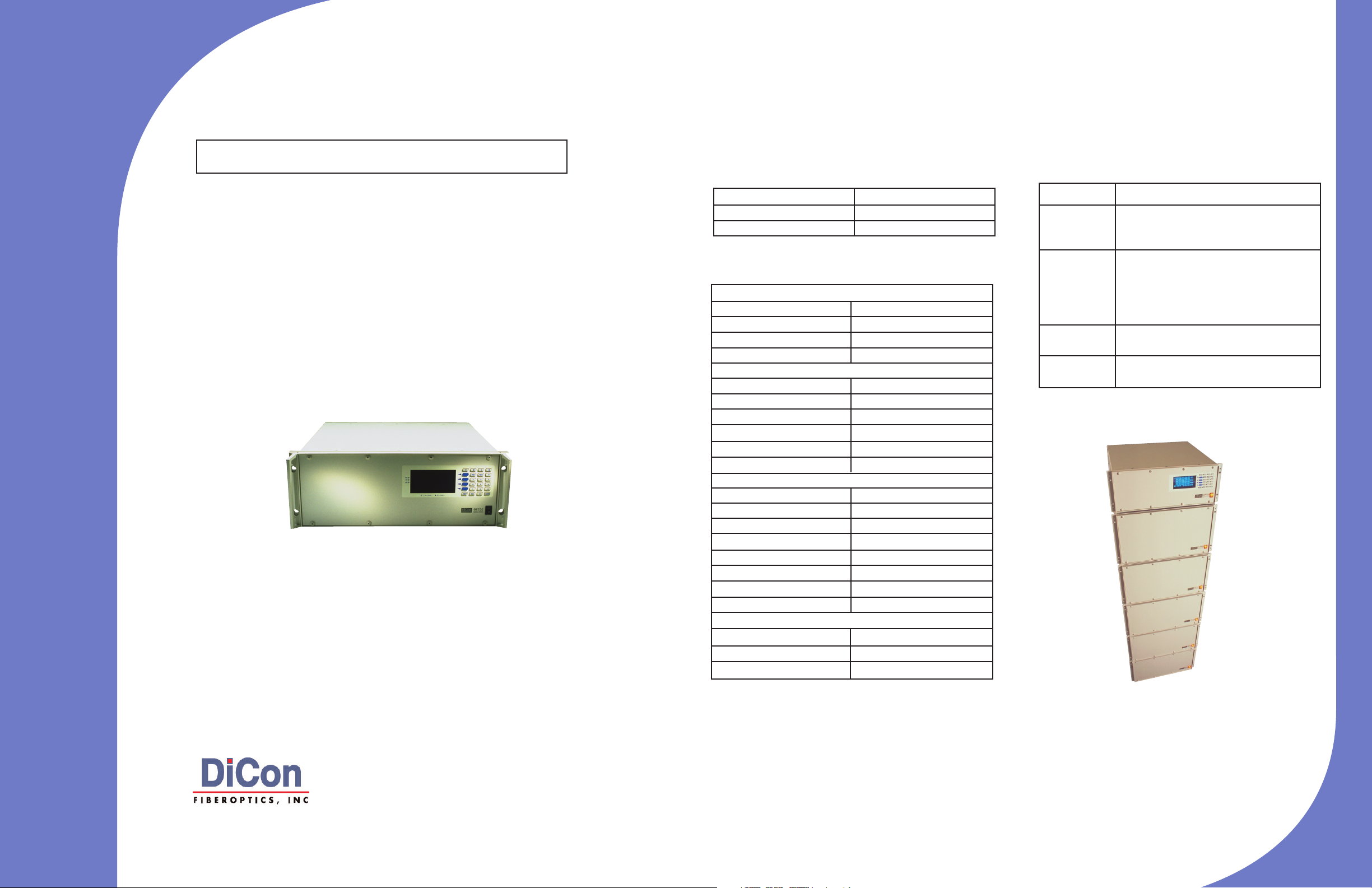

GP700 Programmable Mainframe
Standard GP700
Standard GP 700
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510)620-5000 Fax. (510)620-4100 www.diconfiber.com
User Interface
Input power
Input voltage
Fuse
1
AC input leakage current
150 W max.
100 VAC min., 240 VAC max.
2 A typ.
3.5 mA max.
1. DiCon recommends a 2.5-A fuse for 6U-rack mount matrix switches.
2. For fast external sources, a 50-ohm BNC in-line terminator may be connected to
reduce ringing.
3. Restive/inductive loads.
4. Protected against inductive spikes when driving relays or solenoids.
Operating temperature
Storage temperature
Humidity
Environmental Specifications
0°C to +40°C
-20°C to +60°C
40°C/90%RH/5 days
Logical high voltage
Logical low voltage
Input capacitance
Internal load
2
Continuous overload protection
ESD overload protection
2 VDC min., 5 VDC max.
0 VDC min., 0.5 VDC max.
100 pF max.
900 ohm min., 1100 ohmmax.
±30 VDC typ.
±10 kV typ.
Logical high voltage
Logical low voltage
Switching time low-to-high
Switching time high-to-low
Output current loading
3
Output loading resistive
Continuous overload protection
4
ESD overload protection
3 VDC min., 5 VDC max.
0 VDC min., 0.4 VDC max.
2 ms max.
2 ms max.
50 mA max.
50 ohm min.
±30 VDC typ.
±10 kV typ.
RS-232 cable length
Baud rate
GPIB default address
15.2m max.
1200/9600 baud
3
Control
Display
Mini-Programs
Memory
Registers
Software
Drivers
Manual, IEEE 488.2 (GPIB), and RS-232.
Front-panel vacuum fluorescent display
continuously shows current position of all
modules within the GP700.
Internal programming instruction set allows user
to enter and store up to four mini-programs via
the front panel (no computer required) or
remotely. Mini- programs can control switches,
attenuators, filters, electrical triggers, and
testing sequences.
Nine memory registers capable of saving
complete or partial device states.
Labview drivers available. Contact DiCon for
other drives.
General Information
Standard GP 700
U.S. patented. Specifications subject to change. Copyright ©2001 DiCon Fiberoptics, Inc. All rights reserved.
DiCon's GP700 General Purpose Fiberoptic Platform offers
complete fiber optic switching solutions. The flexible GP700
enables the integration of multiple fiber-optic switches,
attenuators, couplers, and other components in a user-friendly
programmable instrument. The instrument can control up to 30
1xN switches, tunable filters, or variable attenuators, and up to
64 2x2, 1x2, or On-Off switches. Larger configurations can be
accommodated using multiple housings. A wide variety of
rack-mountable and benchtop chassis are available. DiCon’s
GP700s can be built with Corning SMF-28, Flexcor 1060 or
Polarization Maintaining Panda fiber.
Features
•
Very low insertion loss
•
Low back-reflection
•
Precise repeatability
•
Up to 30 1xN switches, tunable filters, or variable attenuators
in a single chassis
•
Up to 64 2x2, 1x2, or On-Off switches in a single chassis
•
Manual, IEEE 488.2 (GPIB), and RS-232 interfaces
•
Flexible fiber types and wavelength ranges
GP700 Programmable Mainframe
New Improved Specs
