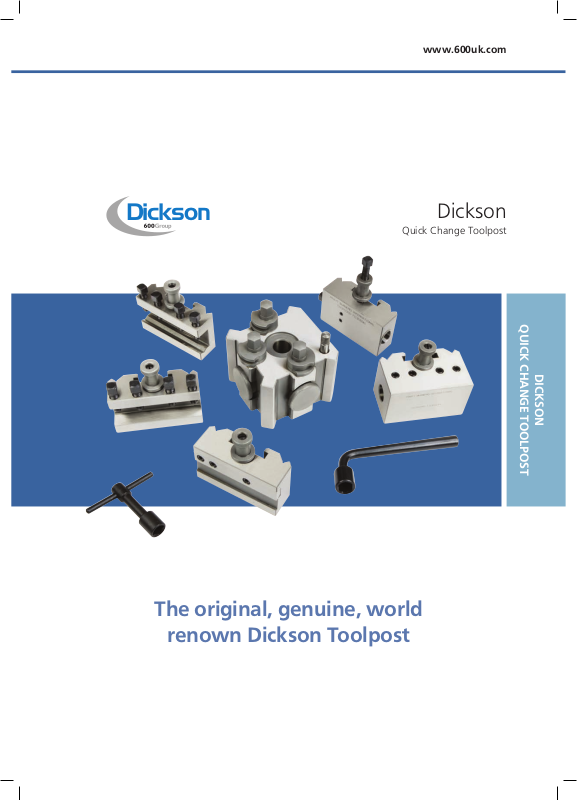

Page 1
www.600uk.com
Dickson
Dickson
Quick Change Toolpost
QUICK CHANGE TOOLPOST
DICKSON
The original, genuine, world
renown Dickson Toolpost

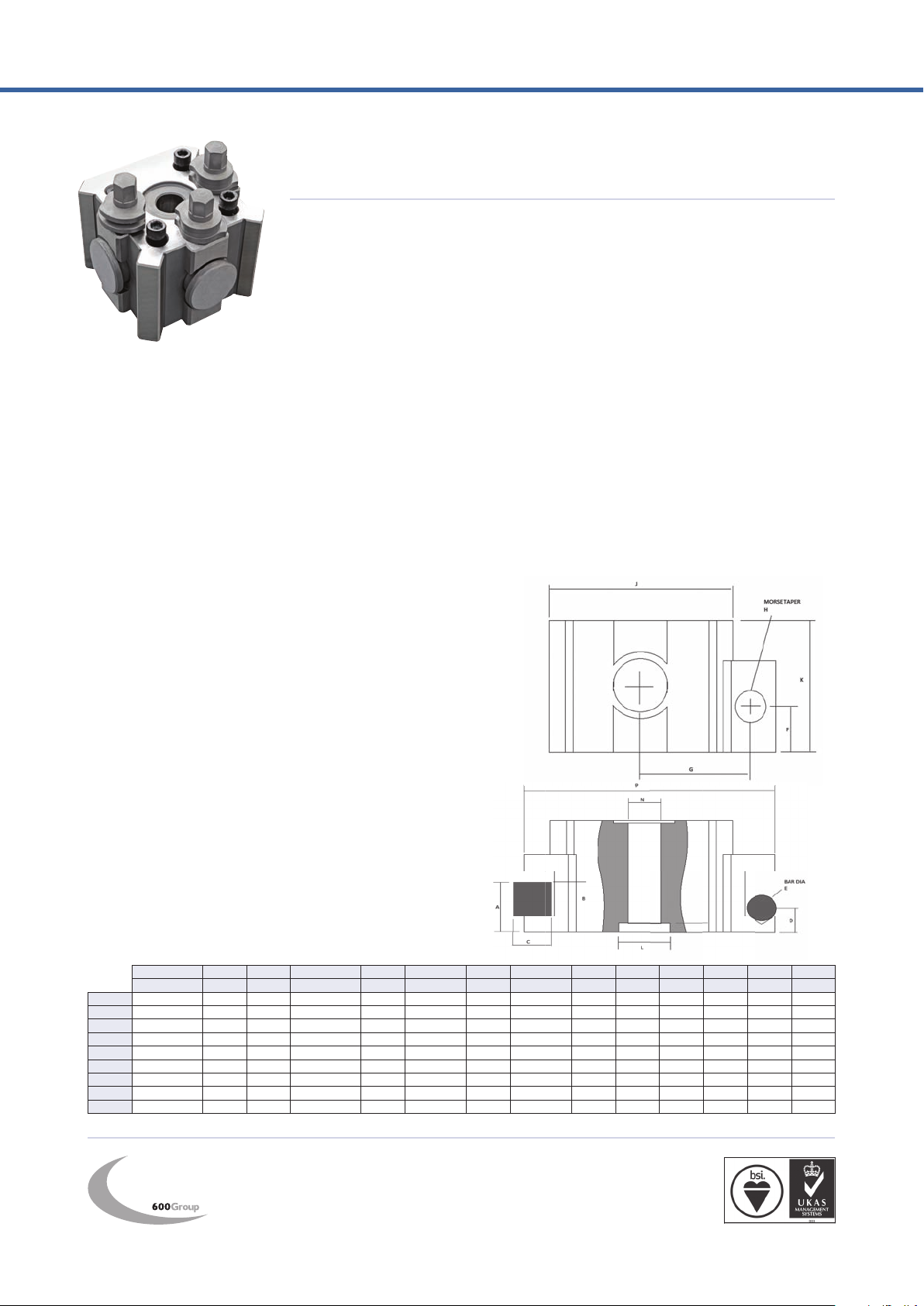

Page 2
www.600uk.com
Dickson Quick Change Toolpost
The world renown Dickson quick change system was developed
as a major advance from the conventional four way toolpost and
this simple, robust design uses hardened and ground components
to give high levels of accuracy and repeatability.
A versatile range of supplied toolholders can be interchanged in seconds,
providing a fl exible approach to machining, giving proven signifi cant setup time savings.
Centre height adjustment is achieved in seconds with a simple knurled
nut, eliminating the need for packing pieces.

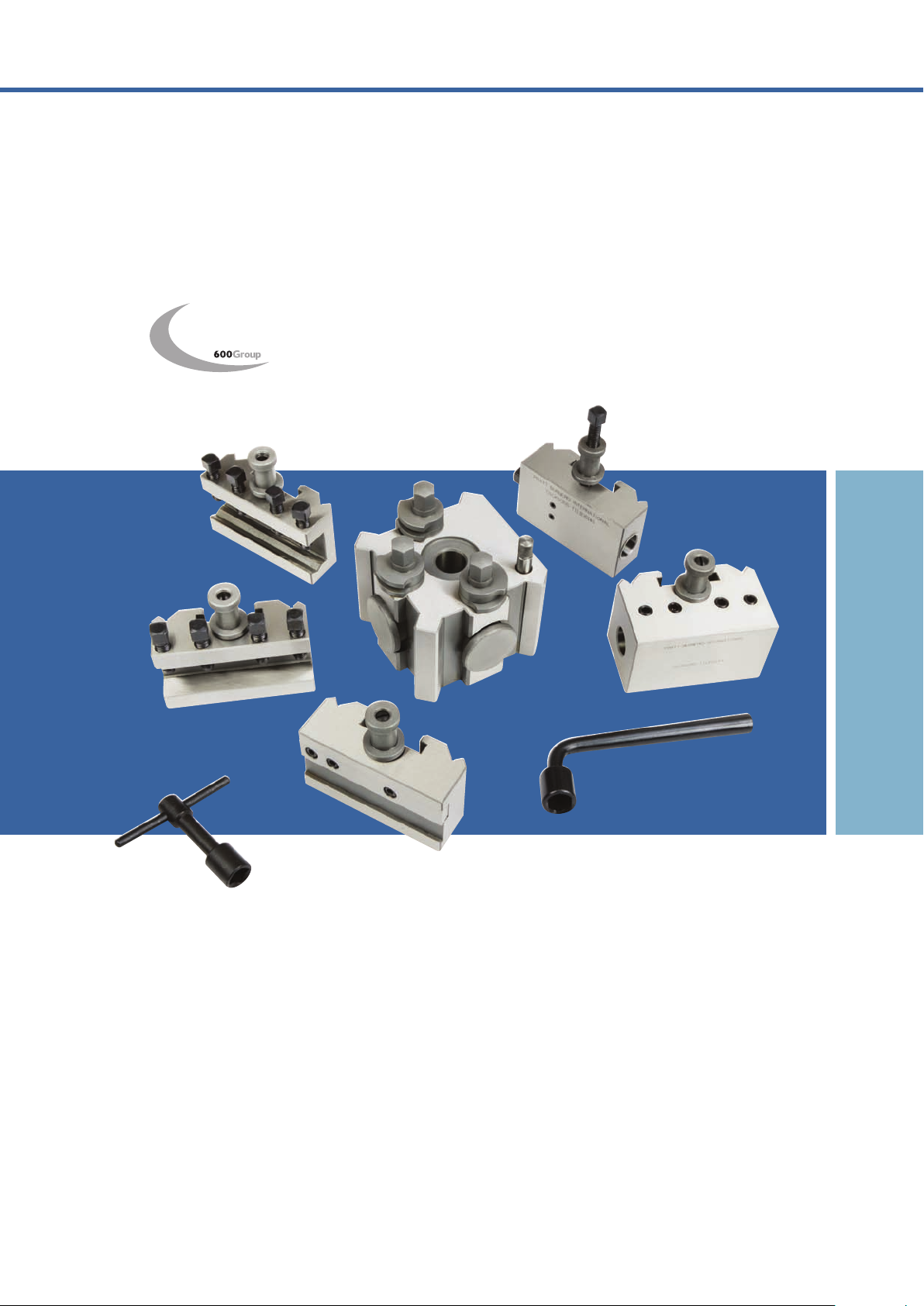

Dickson Quick change toolpost kits are supplied with 2 off standard
toolholders and 1 off ‘V’ / Boring bar toolholder as standard.
Additional Morse Taper, Plain Bore, Parting Off and Extended toolholders
are also available as options.
The stud assembly which attaches the Toolpost onto the machine Top
Slide are also available.
Key features:
• Toolpost body has capacity for up to 3 Toolholders
• Toolholder change over time can be reduced
signifi cantly using the preset holders
• Supplied in a range of 6 sizes with derivatives,
to suit most lathe requirements
• Precision clamping surfaces and guide grooves
allow accurate toolholder location
• Straightforward single quick release mechanism
for manual indexing of turret
• Simple toolholder height adjustment
• Manufactured with all case hardened and
precision ground components
• Heavy duty CNC versions available
A B C D E F G H J K L M N P
S00
S0
S1
S1X
S2
S2T
S3
S3X
S4
mm mm mm mm mm mm mm M/Taper mm mm mm mm mm mm
19.5 / 35 13 13 11.5 / 28 10 57 42 16 77. 5
26.5 / 39 16 16 17 / 30 16 19 / 32 50 MT1 73 50.8 22.03 11 19 98
31 / 53 20 16 22.5 / 44 16 23 / 42 50 MT1 73 63.5 31.75 6.3 19 123
40.5 / 62.5 20 20 32 / 53.5 16 32.5 / 51.5 50 MT1 73 73 31.75 6.3 19 123
34.5 / 51.5 20 25 26 / 47 19 28 / 50 65 MT2 97. 4 71.4 44.45 7.9 25.4 158
41.5 / 59 25 25 24.5 / 42 19 32.5 / 52 70 MT2 106 76.2 44.45 7.9 25.4 16 7
52 / 76 32 25 29 / 58.5 25 36 / 61 85 MT3 125.7 95.2 50.8 9.5 25.4 200
68 / 92 32 25 45 / 74.5 25 52 / 77 85 MT3 125.7 111 50.8 9.5 25.4 200
57.5 / 89 32 32 40.5 / 75 25 40/79 100.6 MT4 149 120.5 63.5 12.7 38.1 241
Dickson
Dickson
World renown Quick Change Toolposts
Union Street | Heckmondwike | West Yorkshire | WF16 0HL
Telephone +44 (0) 1924 415 000 | Fax +44 (0) 1924 415 011 | [email protected]
Certificate No. FM12345
