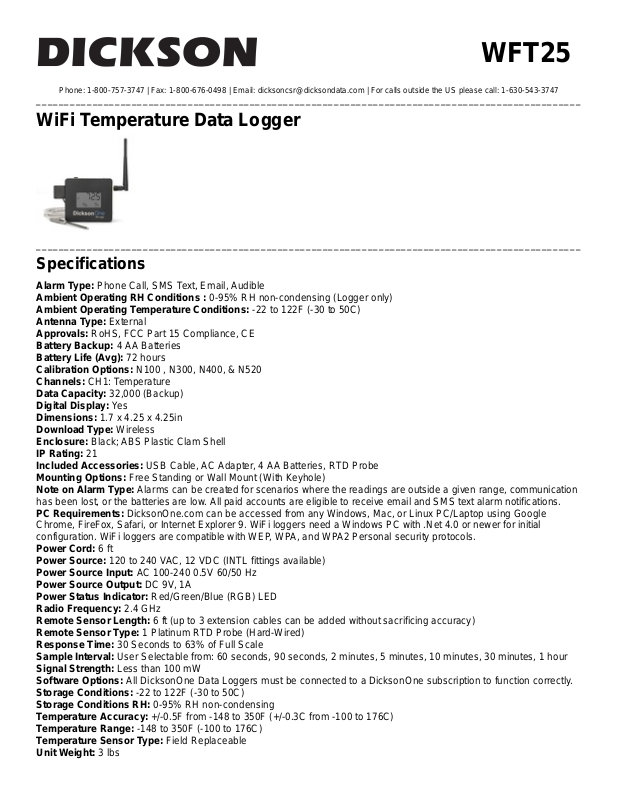

Dickson WFT25 User Manual

WFT25

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

WiFi Temperature Data Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Phone Call, SMS Text, Email, Audible
Ambient Operating RH Conditions : 0-95% RH non-condensing (Logger only)
Ambient Operating Temperature Conditions: -22 to 122F (-30 to 50C)
Antenna Type: External
Approvals: RoHS, FCC Part 15 Compliance, CE
Battery Backup: 4 AA Batteries
Battery Life (Avg): 72 hours
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature
Data Capacity: 32,000 (Backup)
Digital Display: Yes
Dimensions: 1.7 x 4.25 x 4.25in
Download Type: Wireless
Enclosure: Black; ABS Plastic Clam Shell
IP Rating: 21
Included Accessories: USB Cable, AC Adapter, 4 AA Batteries, RTD Probe
Mounting Options: Free Standing or Wall Mount (With Keyhole)
Note on Alarm Type: Alarms can be created for scenarios where the readings are outside a given range, communication

has been lost, or the batteries are low. All paid accounts are eligible to receive email and SMS text alarm notifications.
PC Requirements: DicksonOne.com can be accessed from any Windows, Mac, or Linux PC/Laptop using Google
Chrome, FireFox, Safari, or Internet Explorer 9. WiFi loggers need a Windows PC with .Net 4.0 or newer for initial
configuration. WiFi loggers are compatible with WEP, WPA, and WPA2 Personal security protocols.

Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available)
Power Source Input: AC 100-240 0.5V 60/50 Hz
Power Source Output: DC 9V, 1A
Power Status Indicator: Red/Green/Blue (RGB) LED
Radio Frequency: 2.4 GHz
Remote Sensor Length: 6 ft (up to 3 extension cables can be added without sacrificing accuracy)
Remote Sensor Type: 1 Platinum RTD Probe (Hard-Wired)
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable from: 60 seconds, 90 seconds, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
Signal Strength: Less than 100 mW
Software Options: All DicksonOne Data Loggers must be connected to a DicksonOne subscription to function correctly.
Storage Conditions: -22 to 122F (-30 to 50C)
Storage Conditions RH: 0-95% RH non-condensing
Temperature Accuracy: +/-0.5F from -148 to 350F (+/-0.3C from -100 to 176C)
Temperature Range: -148 to 350F (-100 to 176C)
Temperature Sensor Type: Field Replaceable
Unit Weight: 3 lbs

Units/Pkg: 1

WFT25

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories WFT25

Replaceable Sensor

Platinum RTD Replaceable Temperature Sensor

DicksonOne IQOQ Validation Package

DicksonOne IQOQ Validation Package

Certificate of Validation

Certificate of Validation

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

AC Adapter

AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

WFT25

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories WFT25

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
