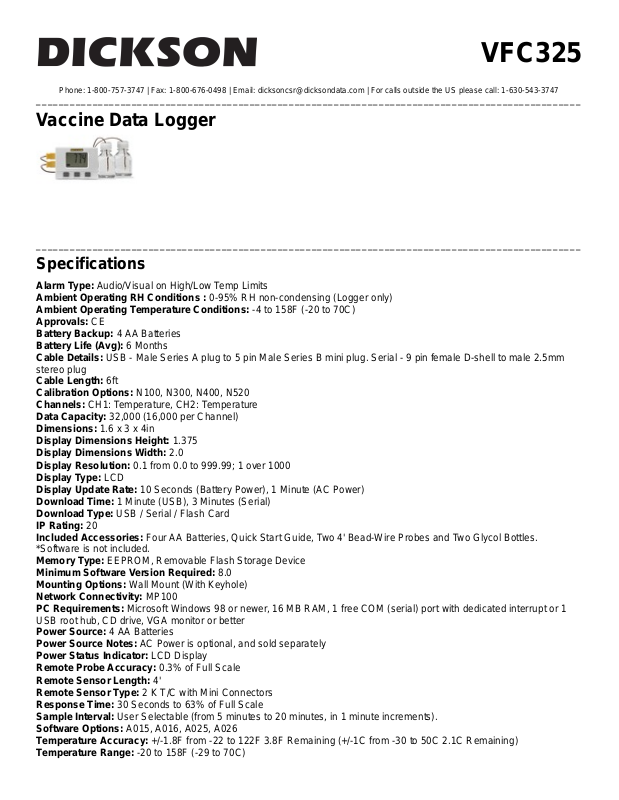

Dickson VFC325 User Manual

VFC325

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Vaccine Data Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing (Logger only)
Ambient Operating Temperature Conditions: -4 to 158F (-20 to 70C)
Approvals: CE
Battery Backup: 4 AA Batteries
Battery Life (Avg): 6 Months
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug. Serial - 9 pin female D-shell to male 2.5mm

stereo plug

Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature, CH2: Temperature
Data Capacity: 32,000 (16,000 per Channel)
Dimensions: 1.6 x 3 x 4in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000
Display Type: LCD
Display Update Rate: 10 Seconds (Battery Power), 1 Minute (AC Power)
Download Time: 1 Minute (USB), 3 Minutes (Serial)
Download Type: USB / Serial / Flash Card
IP Rating: 20
Included Accessories: Four AA Batteries, Quick Start Guide, Two 4' Bead-Wire Probes and Two Glycol Bottles.

*Software is not included.

Memory Type: EEPROM, Removable Flash Storage Device
Minimum Software Version Required: 8.0
Mounting Options: Wall Mount (With Keyhole)
Network Connectivity: MP100
PC Requirements: Microsoft Windows 98 or newer, 16 MB RAM, 1 free COM (serial) port with dedicated interrupt or 1

USB root hub, CD drive, VGA monitor or better

Power Source: 4 AA Batteries
Power Source Notes: AC Power is optional, and sold separately
Power Status Indicator: LCD Display
Remote Probe Accuracy: 0.3% of Full Scale
Remote Sensor Length: 4'
Remote Sensor Type: 2 K T/C with Mini Connectors
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable (from 5 minutes to 20 minutes, in 1 minute increments).
Software Options: A015, A016, A025, A026
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F Remaining (+/-1C from -30 to 50C 2.1C Remaining)
Temperature Range: -20 to 158F (-29 to 70C)

Temperature Sensor Type: Thermistor/Thermocouples
Unit Weight: 3 lbs
Units/Pkg: 1
Warranty: 12-Month Limited

VFC325

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories VFC325

Software

DicksonWare Software with USB Cable

Secure Software

DicksonWare Secure Software with USB Cable

Certificate of Validation

Certificate of Validation

USB Download Cable

USB Download Cable - length 6 feet (2m)

Memory Card

Removable Flash Memory Card

Card Reader Kit

Includes USB Reader and Flash Memory Card

VFC325

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories VFC325

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

AA Battery

AA Alkaline Battery

Temperature Probe

Replacement Bead Wire Temperature Probe

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

AC Adapter

AC Adapter

Calibration Software

Logger Calibration Software

VFC325

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories VFC325

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
