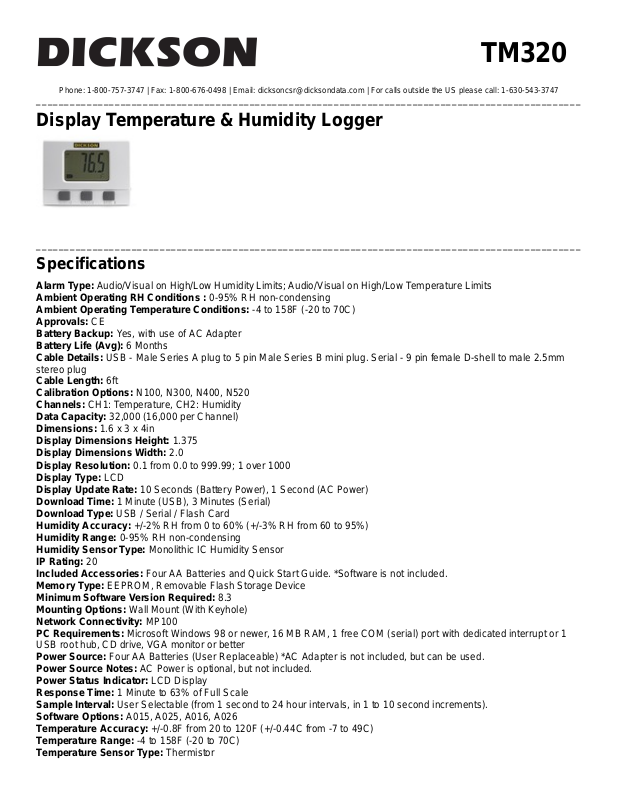

TM320

Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Display Temperature & Humidity Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual on High/Low Humidity Limits; Audio/Visual on High/Low Temperature Limits Ambient Operating RH Conditions : 0-95% RH non-condensing Ambient Operating Temperature Conditions: -4 to 158F (-20 to 70C) Approvals: CE Battery Backup: Yes, with use of AC Adapter Battery Life (Avg): 6 Months Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug. Serial - 9 pin female D-shell to male 2.5mm

stereo plug

Cable Length: 6ft Calibration Options: N100, N300, N400, N520 Channels: CH1: Temperature, CH2: Humidity Data Capacity: 32,000 (16,000 per Channel) Dimensions: 1.6 x 3 x 4in Display Dimensions Height: 1.375 Display Dimensions Width: 2.0 Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000 Display Type: LCD Display Update Rate: 10 Seconds (Battery Power), 1 Second (AC Power) Download Time: 1 Minute (USB), 3 Minutes (Serial) Download Type: USB / Serial / Flash Card Humidity Accuracy: +/-2% RH from 0 to 60% (+/-3% RH from 60 to 95%) Humidity Range: 0-95% RH non-condensing Humidity Sensor Type: Monolithic IC Humidity Sensor IP Rating: 20 Included Accessories: Four AA Batteries and Quick Start Guide. *Software is not included. Memory Type: EEPROM, Removable Flash Storage Device Minimum Software Version Required: 8.3 Mounting Options: Wall Mount (With Keyhole) Network Connectivity: MP100 PC Requirements: Microsoft Windows 98 or newer, 16 MB RAM, 1 free COM (serial) port with dedicated interrupt or 1

USB root hub, CD drive, VGA monitor or better

Power Source: Four AA Batteries (User Replaceable) *AC Adapter is not included, but can be used. Power Source Notes: AC Power is optional, but not included. Power Status Indicator: LCD Display Response Time: 1 Minute to 63% of Full Scale Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 to 10 second increments). Software Options: A015, A025, A016, A026 Temperature Accuracy: +/-0.8F from 20 to 120F (+/-0.44C from -7 to 49C) Temperature Range: -4 to 158F (-20 to 70C) Temperature Sensor Type: Thermistor
