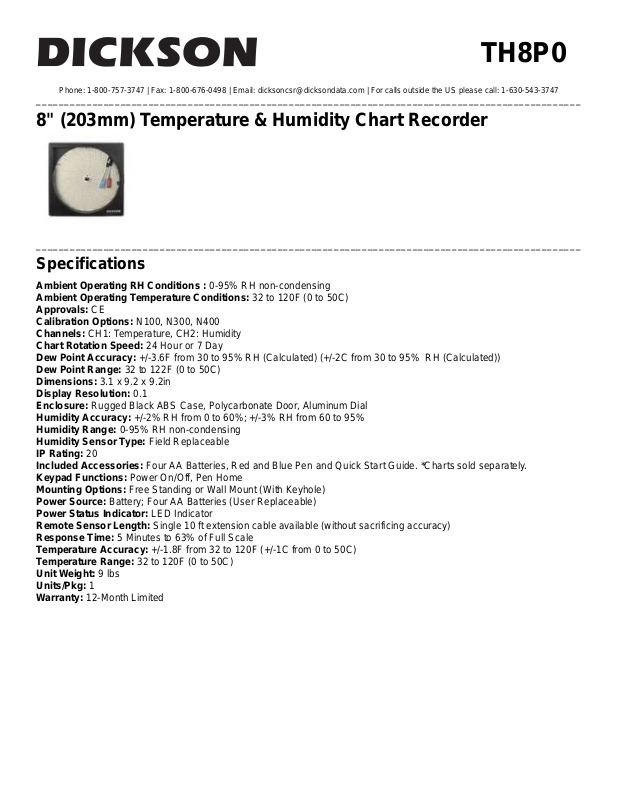

Page 1
TH8P0
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
8" (203mm) Temperature & Humidity Chart Recorder
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: 32 to 120F (0 to 50C)
Approvals: CE
Calibration Options: N100, N300, N400
Channels: CH1: Temperature, CH2: Humidity
Chart Rotation Speed: 24 Hour or 7 Day
Dew Point Accuracy: +/-3.6F from 30 to 95% RH (Calculated) (+/-2C from 30 to 95% RH (Calculated))
Dew Point Range: 32 to 122F (0 to 50C)
Dimensions: 3.1 x 9.2 x 9.2in
Display Resolution: 0.1
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
Humidity Accuracy: +/-2% RH from 0 to 60%; +/-3% RH from 60 to 95%
Humidity Range: 0-95% RH non-condensing
Humidity Sensor Type: Field Replaceable
IP Rating: 20
Included Accessories: Four AA Batteries, Red and Blue Pen and Quick Start Guide. *Charts sold separately.
Keypad Functions: Power On/Off, Pen Home
Mounting Options: Free Standing or Wall Mount (With Keyhole)
Power Source: Battery; Four AA Batteries (User Replaceable)
Power Status Indicator: LED Indicator
Remote Sensor Length: Single 10 ft extension cable available (without sacrificing accuracy)
Response Time: 5 Minutes to 63% of Full Scale
Temperature Accuracy: +/-1.8F from 32 to 120F (+/-1C from 0 to 50C)
Temperature Range: 32 to 120F (0 to 50C)
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
TH8P0
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories TH8P0
Replaceable Temperature/Humidity Sensor
Angled Temperature/Humidity Replaceable Sensor
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
AC Adapter
AC Adapter
Sensor Dust Filter
Sensor Dust Filter - prolong the life of your sensor.
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
