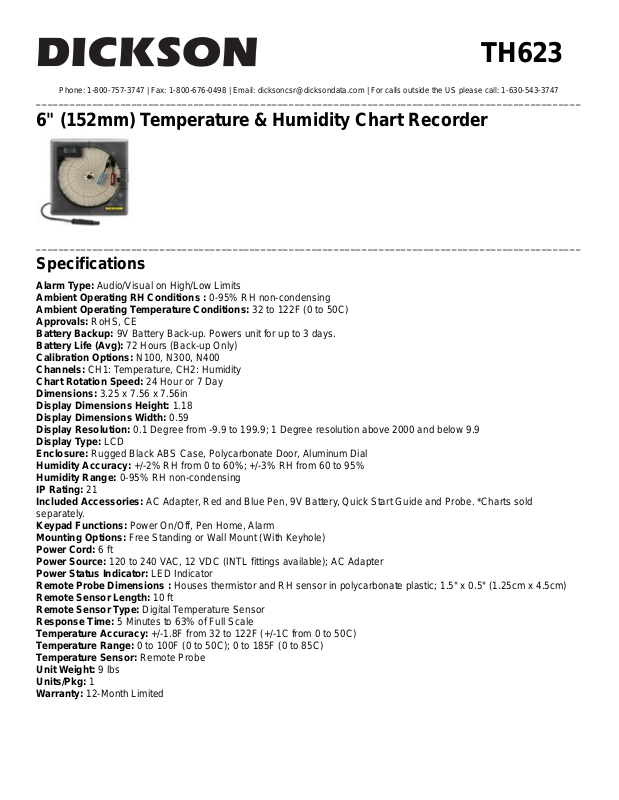

Page 1
TH623
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
6" (152mm) Temperature & Humidity Chart Recorder
_________________________________________________________________________________________________
Specifications
Alarm Type: Audio/Visual on High/Low Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: RoHS, CE
Battery Backup: 9V Battery Back-up. Powers unit for up to 3 days.
Battery Life (Avg): 72 Hours (Back-up Only)
Calibration Options: N100, N300, N400
Channels: CH1: Temperature, CH2: Humidity
Chart Rotation Speed: 24 Hour or 7 Day
Dimensions: 3.25 x 7.56 x 7.56in
Display Dimensions Height: 1.18
Display Dimensions Width: 0.59
Display Resolution: 0.1 Degree from -9.9 to 199.9; 1 Degree resolution above 2000 and below 9.9
Display Type: LCD
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
Humidity Accuracy: +/-2% RH from 0 to 60%; +/-3% RH from 60 to 95%
Humidity Range: 0-95% RH non-condensing
IP Rating: 21
Included Accessories: AC Adapter, Red and Blue Pen, 9V Battery, Quick Start Guide and Probe. *Charts sold
separately.
Keypad Functions: Power On/Off, Pen Home, Alarm
Mounting Options: Free Standing or Wall Mount (With Keyhole)
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator: LED Indicator
Remote Probe Dimensions : Houses thermistor and RH sensor in polycarbonate plastic; 1.5" x 0.5" (1.25cm x 4.5cm)
Remote Sensor Length: 10 ft
Remote Sensor Type: Digital Temperature Sensor
Response Time: 5 Minutes to 63% of Full Scale
Temperature Accuracy: +/-1.8F from 32 to 122F (+/-1C from 0 to 50C)
Temperature Range: 0 to 100F (0 to 50C); 0 to 185F (0 to 85C)
Temperature Sensor: Remote Probe
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
TH623
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories TH623
Page 3
Page 4
Probe Dust Filter
Probe Dust Filter - prolong the life of your instrument.
2-Year Warranty
2-Year Warranty
9V Battery
9V Battery
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
AC Adapter
AC Adapter
Page 5
Page 6
AC Adapter Extension Cable
10' Power Extension for AC Adapter
_________________________________________________________________________________________________
Page 7
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
