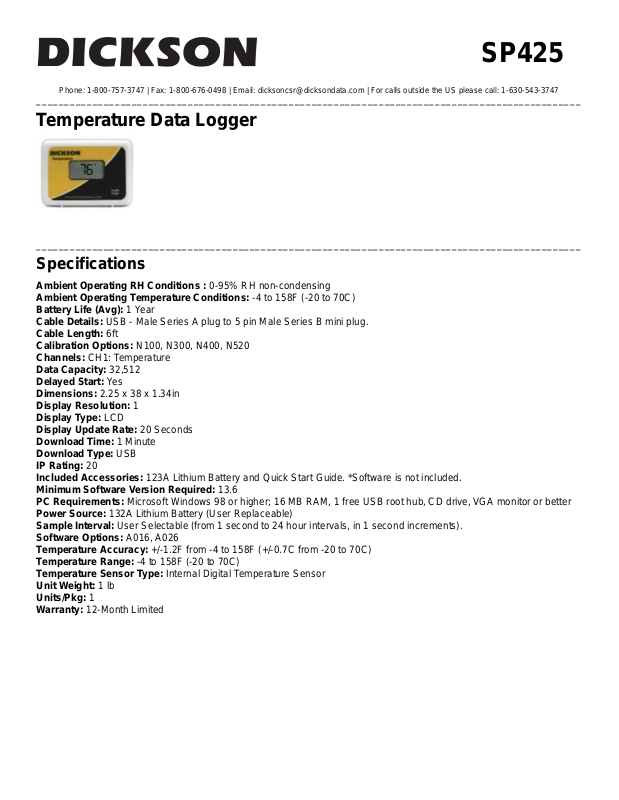

Page 1
SP425
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Temperature Data Logger
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -4 to 158F (-20 to 70C)
Battery Life (Avg): 1 Year
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature
Data Capacity: 32,512
Delayed Start: Yes
Dimensions: 2.25 x 38 x 1.34in
Display Resolution: 1
Display Type: LCD
Display Update Rate: 20 Seconds
Download Time: 1 Minute
Download Type: USB
IP Rating: 20
Included Accessories: 123A Lithium Battery and Quick Start Guide. *Software is not included.
Minimum Software Version Required: 13.6
PC Requirements: Microsoft Windows 98 or higher; 16 MB RAM, 1 free USB root hub, CD drive, VGA monitor or better
Power Source: 132A Lithium Battery (User Replaceable)
Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 second increments).
Software Options: A016, A026
Temperature Accuracy: +/-1.2F from -4 to 158F (+/-0.7C from -20 to 70C)
Temperature Range: -4 to 158F (-20 to 70C)
Temperature Sensor Type: Internal Digital Temperature Sensor
Unit Weight: 1 lb
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
SP425
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP425
Software
DicksonWare Software with USB Cable
Secure Software
DicksonWare Secure Software with USB Cable
Page 3
Page 4
USB Download Cable
USB Download Cable - length 6 feet (2m)
Certificate of Validation
Certificate of Validation
Page 5
Page 6
123A Battery
3 Volt Lithium Battery
Wall Mount Case
Small Locking Wall Mount Case
Page 7
SP425
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP425
Calibration Software
Logger Calibration Software
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
