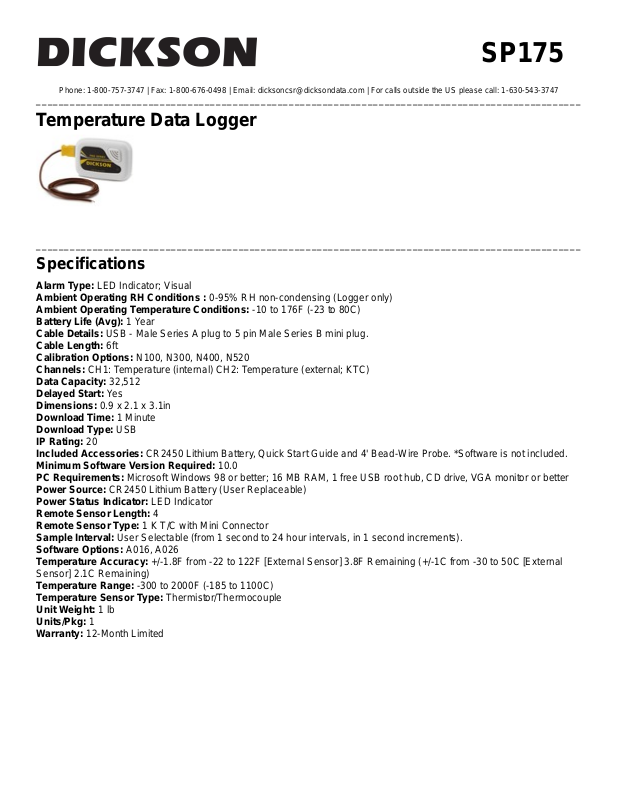

Page 1
SP175
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Temperature Data Logger
_________________________________________________________________________________________________
Specifications
Alarm Type: LED Indicator; Visual
Ambient Operating RH Conditions : 0-95% RH non-condensing (Logger only)
Ambient Operating Temperature Conditions: -10 to 176F (-23 to 80C)
Battery Life (Avg): 1 Year
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature (internal) CH2: Temperature (external; KTC)
Data Capacity: 32,512
Delayed Start: Yes
Dimensions: 0.9 x 2.1 x 3.1in
Download Time: 1 Minute
Download Type: USB
IP Rating: 20
Included Accessories: CR2450 Lithium Battery, Quick Start Guide and 4' Bead-Wire Probe. *Software is not included.
Minimum Software Version Required: 10.0
PC Requirements: Microsoft Windows 98 or better; 16 MB RAM, 1 free USB root hub, CD drive, VGA monitor or better
Power Source: CR2450 Lithium Battery (User Replaceable)
Power Status Indicator: LED Indicator
Remote Sensor Length: 4
Remote Sensor Type: 1 K T/C with Mini Connector
Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 second increments).
Software Options: A016, A026
Temperature Accuracy: +/-1.8F from -22 to 122F [External Sensor] 3.8F Remaining (+/-1C from -30 to 50C [External
Sensor] 2.1C Remaining)
Temperature Range: -300 to 2000F (-185 to 1100C)
Temperature Sensor Type: Thermistor/Thermocouple
Unit Weight: 1 lb
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
SP175
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP175
Software
DicksonWare Software with USB Cable
Secure Software
DicksonWare Secure Software with USB Cable
Page 3
Page 4
Glycol Bottle
Bottle of Propylene Glycol Solution - dampen temperature swings.
Shielded Immersion Probe
15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip
Certificate of Validation
Certificate of Validation
Piercing Probe
4" (10cm) Thermocouple Handled Piercing Probe
Page 5
SP175
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP175
Page 6
Page 7
Thermocouple Extension
K-Thermocouple 100' (30m) Extension Cable
Temperature Probe
Replacement Bead Wire Temperature Probe
Page 8
Page 9
Temperature Probe
6" (15cm) High Temperature Immersion Probe
Probe Extension
K-Thermocouple 10' (3m) Extension Cable
Case
Small Water-Resistant Pouch
Wall Mount Case
Small Locking Wall Mount Case
Page 10
SP175
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP175
CR2450 Battery
3 Volt Lithium Coin Cell Battery
Page 11
Page 12
USB Download Cable
USB Download Cable - length 6 feet (2m)
Calibration Software
Logger Calibration Software
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
