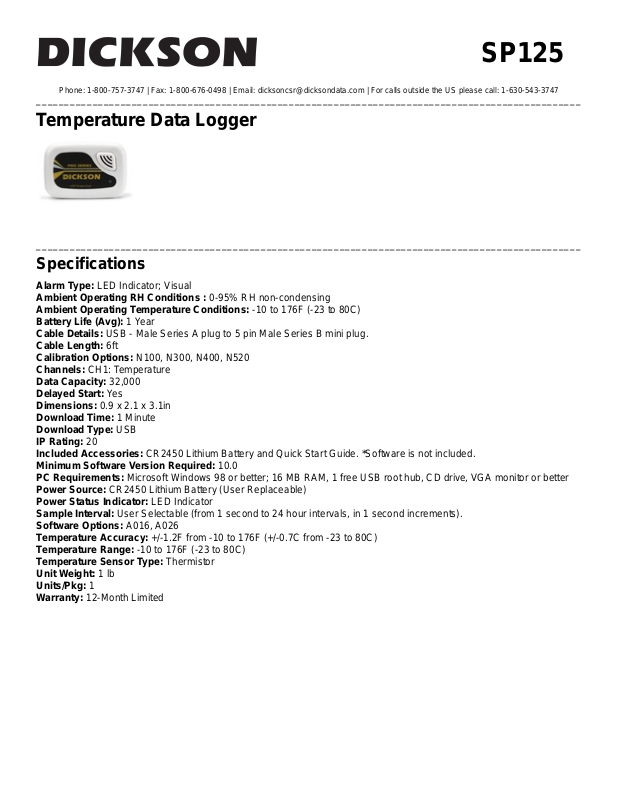

Temperature Data Logger
_________________________________________________________________________________________________
Specifications
Alarm Type: LED Indicator; Visual
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -10 to 176F (-23 to 80C)
Battery Life (Avg): 1 Year
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature
Data Capacity: 32,000
Delayed Start: Yes
Dimensions: 0.9 x 2.1 x 3.1in
Download Time: 1 Minute
Download Type: USB
IP Rating: 20
Included Accessories: CR2450 Lithium Battery and Quick Start Guide. *Software is not included.
Minimum Software Version Required: 10.0
PC Requirements: Microsoft Windows 98 or better; 16 MB RAM, 1 free USB root hub, CD drive, VGA monitor or better
Power Source: CR2450 Lithium Battery (User Replaceable)
Power Status Indicator: LED Indicator
Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 second increments).
Software Options: A016, A026
Temperature Accuracy: +/-1.2F from -10 to 176F (+/-0.7C from -23 to 80C)
Temperature Range: -10 to 176F (-23 to 80C)
Temperature Sensor Type: Thermistor
Unit Weight: 1 lb
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
SP125
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP125
Software
DicksonWare Software with USB Cable
Secure Software
DicksonWare Secure Software with USB Cable
Page 3
Page 4
USB Download Cable
USB Download Cable - length 6 feet (2m)
Certificate of Validation
Certificate of Validation
CR2450 Battery
3 Volt Lithium Coin Cell Battery
Case
Small Water-Resistant Pouch
Page 5
SP125
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: [email protected] | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SP125
Wall Mount Case
Small Locking Wall Mount Case
Calibration Software
Logger Calibration Software
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
