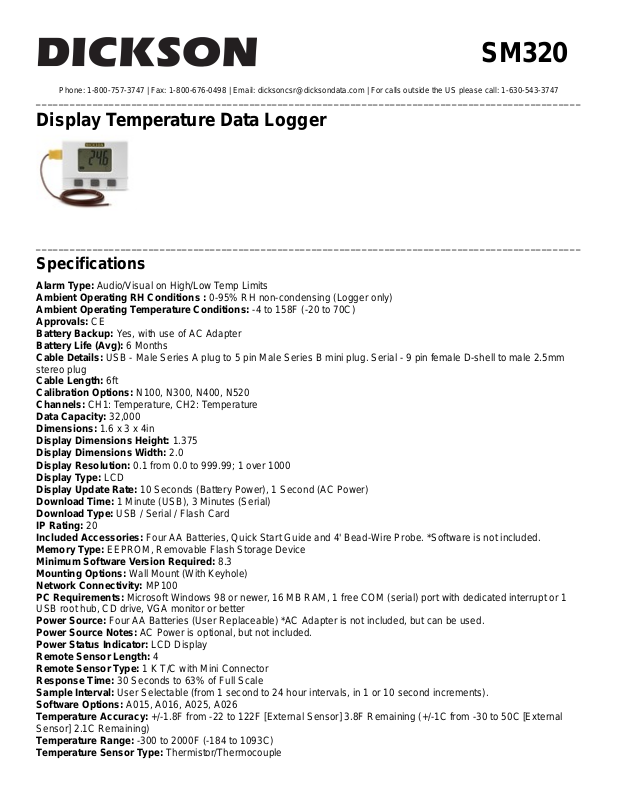

Dickson SM320 User Manual

SM320

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Display Temperature Data Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing (Logger only)
Ambient Operating Temperature Conditions: -4 to 158F (-20 to 70C)
Approvals: CE
Battery Backup: Yes, with use of AC Adapter
Battery Life (Avg): 6 Months
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug. Serial - 9 pin female D-shell to male 2.5mm

stereo plug

Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature, CH2: Temperature
Data Capacity: 32,000
Dimensions: 1.6 x 3 x 4in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000
Display Type: LCD
Display Update Rate: 10 Seconds (Battery Power), 1 Second (AC Power)
Download Time: 1 Minute (USB), 3 Minutes (Serial)
Download Type: USB / Serial / Flash Card
IP Rating: 20
Included Accessories: Four AA Batteries, Quick Start Guide and 4' Bead-Wire Probe. *Software is not included.
Memory Type: EEPROM, Removable Flash Storage Device
Minimum Software Version Required: 8.3
Mounting Options: Wall Mount (With Keyhole)
Network Connectivity: MP100
PC Requirements: Microsoft Windows 98 or newer, 16 MB RAM, 1 free COM (serial) port with dedicated interrupt or 1

USB root hub, CD drive, VGA monitor or better

Power Source: Four AA Batteries (User Replaceable) *AC Adapter is not included, but can be used.
Power Source Notes: AC Power is optional, but not included.
Power Status Indicator: LCD Display
Remote Sensor Length: 4
Remote Sensor Type: 1 K T/C with Mini Connector
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 or 10 second increments).
Software Options: A015, A016, A025, A026
Temperature Accuracy: +/-1.8F from -22 to 122F [External Sensor] 3.8F Remaining (+/-1C from -30 to 50C [External

Sensor] 2.1C Remaining)

Temperature Range: -300 to 2000F (-184 to 1093C)
Temperature Sensor Type: Thermistor/Thermocouple

Unit Weight: 3 lbs
Units/Pkg: 1
Warranty: 12-Month Limited

SM320

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories SM320

Software

DicksonWare Software with USB Cable

Secure Software

DicksonWare Secure Software with USB Cable

Certificate of Validation

Certificate of Validation

Memory Card

Removable Flash Memory Card

Card Reader Kit

Includes USB Reader and Flash Memory Card

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

SM320

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories SM320

Thermocouple Extension

K-Thermocouple 100' (30m) Extension Cable

Shielded Immersion Probe

15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip

Temperature Probe

6" (15cm) High Temperature Immersion Probe

Piercing Probe

4" (10cm) Thermocouple Handled Piercing Probe

Probe Extension

K-Thermocouple 10' (3m) Extension Cable

Temperature Probe

Replacement Bead Wire Temperature Probe

SM320

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories SM320

AC Adapter

AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

AA Battery

AA Alkaline Battery

Calibration Software

Logger Calibration Software

AA Batteries

4 Pack AA Lithium Batteries

Serial Download Cable

Serial Download Cable - length 6 feet (2m)

SM320

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories SM320

USB Download Cable

USB Download Cable - length 6 feet (2m)

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
