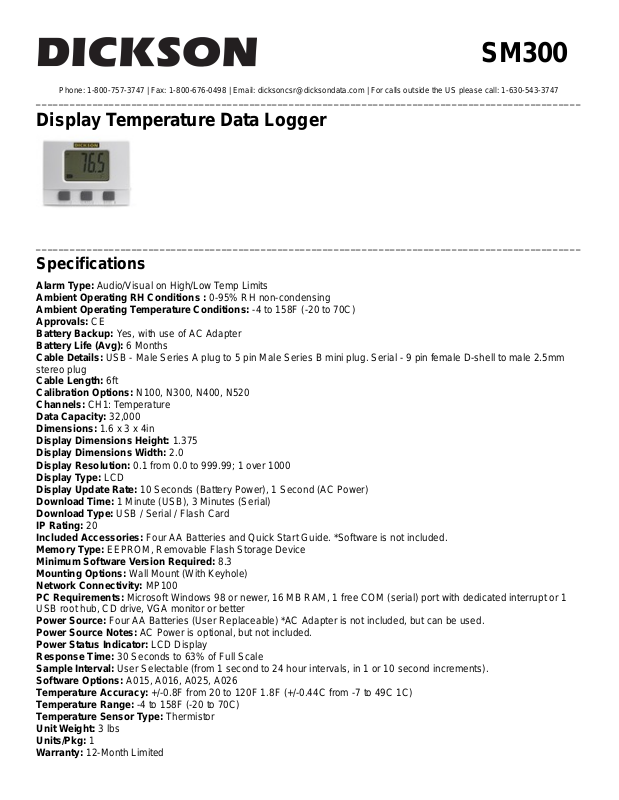

Page 1
SM300
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Display Temperature Data Logger
_________________________________________________________________________________________________
Specifications
Alarm Type: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -4 to 158F (-20 to 70C)
Approvals: CE
Battery Backup: Yes, with use of AC Adapter
Battery Life (Avg): 6 Months
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug. Serial - 9 pin female D-shell to male 2.5mm
stereo plug
Cable Length: 6ft
Calibration Options: N100, N300, N400, N520
Channels: CH1: Temperature
Data Capacity: 32,000
Dimensions: 1.6 x 3 x 4in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000
Display Type: LCD
Display Update Rate: 10 Seconds (Battery Power), 1 Second (AC Power)
Download Time: 1 Minute (USB), 3 Minutes (Serial)
Download Type: USB / Serial / Flash Card
IP Rating: 20
Included Accessories: Four AA Batteries and Quick Start Guide. *Software is not included.
Memory Type: EEPROM, Removable Flash Storage Device
Minimum Software Version Required: 8.3
Mounting Options: Wall Mount (With Keyhole)
Network Connectivity: MP100
PC Requirements: Microsoft Windows 98 or newer, 16 MB RAM, 1 free COM (serial) port with dedicated interrupt or 1
USB root hub, CD drive, VGA monitor or better
Power Source: Four AA Batteries (User Replaceable) *AC Adapter is not included, but can be used.
Power Source Notes: AC Power is optional, but not included.
Power Status Indicator: LCD Display
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable (from 1 second to 24 hour intervals, in 1 or 10 second increments).
Software Options: A015, A016, A025, A026
Temperature Accuracy: +/-0.8F from 20 to 120F 1.8F (+/-0.44C from -7 to 49C 1C)
Temperature Range: -4 to 158F (-20 to 70C)
Temperature Sensor Type: Thermistor
Unit Weight: 3 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
SM300
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SM300
Software
DicksonWare Software with USB Cable
Certificate of Validation
Certificate of Validation
Secure Software
DicksonWare Secure Software with USB Cable
Card Reader Kit
Includes USB Reader and Flash Memory Card
Page 3
Page 4
Memory Card
Removable Flash Memory Card
Page 5
Page 6
Glycol Bottle
Bottle of Propylene Glycol Solution - dampen temperature swings.
Page 7
SM300
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SM300
Probe Extension
K-Thermocouple 10' (3m) Extension Cable
Temperature Probe
Replacement Bead Wire Temperature Probe
Page 8
Page 9
Thermocouple Extension
K-Thermocouple 100' (30m) Extension Cable
Page 10
Page 11
Temperature Probe
6" (15cm) High Temperature Immersion Probe
Shielded Immersion Probe
15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip
Piercing Probe
4" (10cm) Thermocouple Handled Piercing Probe
Page 12
SM300
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SM300
AA Batteries
4 Pack AA Lithium Batteries
Calibration Software
Logger Calibration Software
AA Battery
AA Alkaline Battery
Page 13
Page 14
Serial Download Cable
Serial Download Cable - length 6 feet (2m)
Page 15
Page 16
USB Download Cable
USB Download Cable - length 6 feet (2m)
AC Adapter
AC Adapter
Page 17
SM300
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SM300
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
Page 18
Page 19
AC Adapter Extension Cable
10' Power Extension for AC Adapter
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
