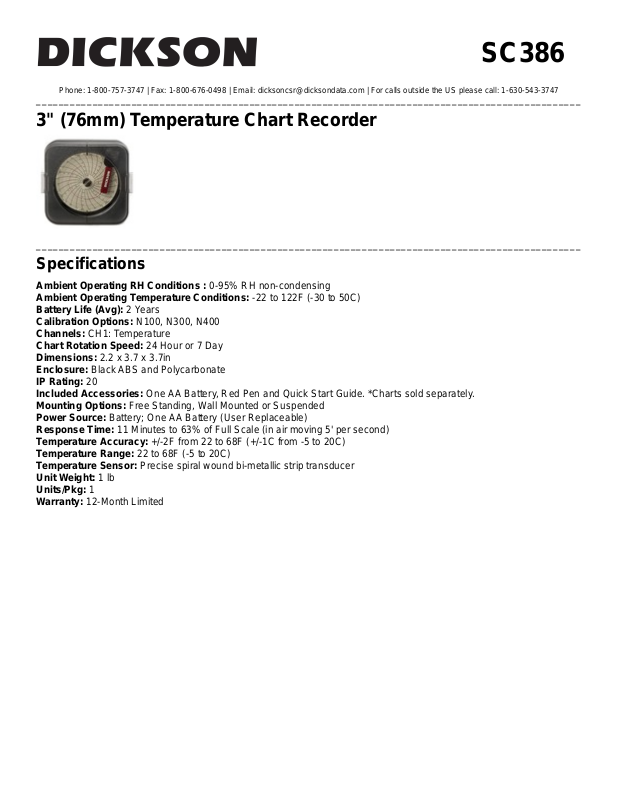

Page 1
SC386
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
3" (76mm) Temperature Chart Recorder
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -22 to 122F (-30 to 50C)
Battery Life (Avg): 2 Years
Calibration Options: N100, N300, N400
Channels: CH1: Temperature
Chart Rotation Speed: 24 Hour or 7 Day
Dimensions: 2.2 x 3.7 x 3.7in
Enclosure: Black ABS and Polycarbonate
IP Rating: 20
Included Accessories: One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately.
Mounting Options: Free Standing, Wall Mounted or Suspended
Power Source: Battery; One AA Battery (User Replaceable)
Response Time: 11 Minutes to 63% of Full Scale (in air moving 5' per second)
Temperature Accuracy: +/-2F from 22 to 68F (+/-1C from -5 to 20C)
Temperature Range: 22 to 68F (-5 to 20C)
Temperature Sensor: Precise spiral wound bi-metallic strip transducer
Unit Weight: 1 lb
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
SC386
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories SC386
Wall Mount Case
Small Locking Wall Mount Case
AA Battery
AA Alkaline Battery
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
