PW476
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________

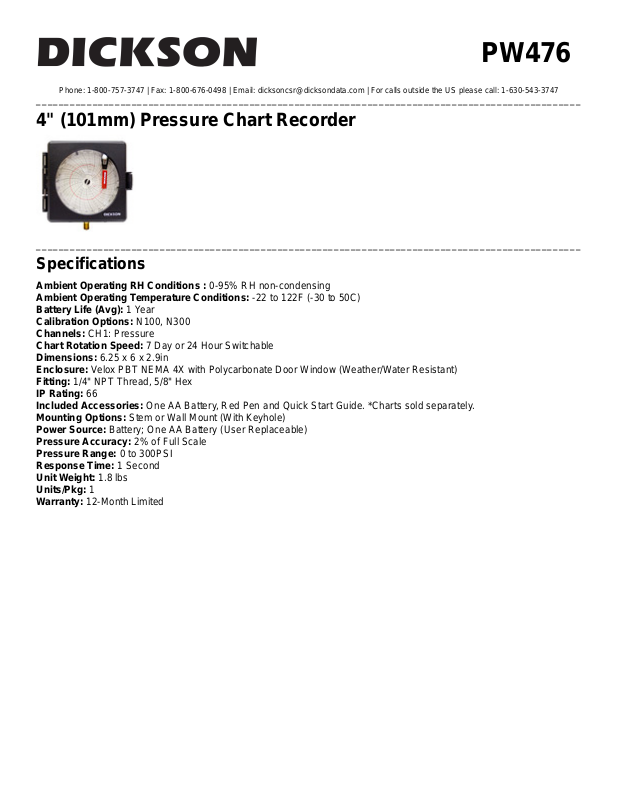

4" (101mm) Pressure Chart Recorder
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -22 to 122F (-30 to 50C)
Battery Life (Avg): 1 Year
Calibration Options: N100, N300
Channels: CH1: Pressure
Chart Rotation Speed: 7 Day or 24 Hour Switchable
Dimensions: 6.25 x 6 x 2.9in
Enclosure: Velox PBT NEMA 4X with Polycarbonate Door Window (Weather/Water Resistant)
Fitting: 1/4" NPT Thread, 5/8" Hex
IP Rating: 66
Included Accessories: One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately.
Mounting Options: Stem or Wall Mount (With Keyhole)
Power Source: Battery; One AA Battery (User Replaceable)
Pressure Accuracy: 2% of Full Scale
Pressure Range: 0 to 300PSI
Response Time: 1 Second
Unit Weight: 1.8 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
PW476
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories PW476
Pressure Kit
Pressure Fitting Accessory Kit
Pressure Pigtail
Steam Pressure Pigtail
Page 3
Page 4
Hydrant Kit
Fire Hydrant Adapter Kit
AA Battery
AA Alkaline Battery
Pressure Filter Kit
Filter Kit includes Snubber
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
