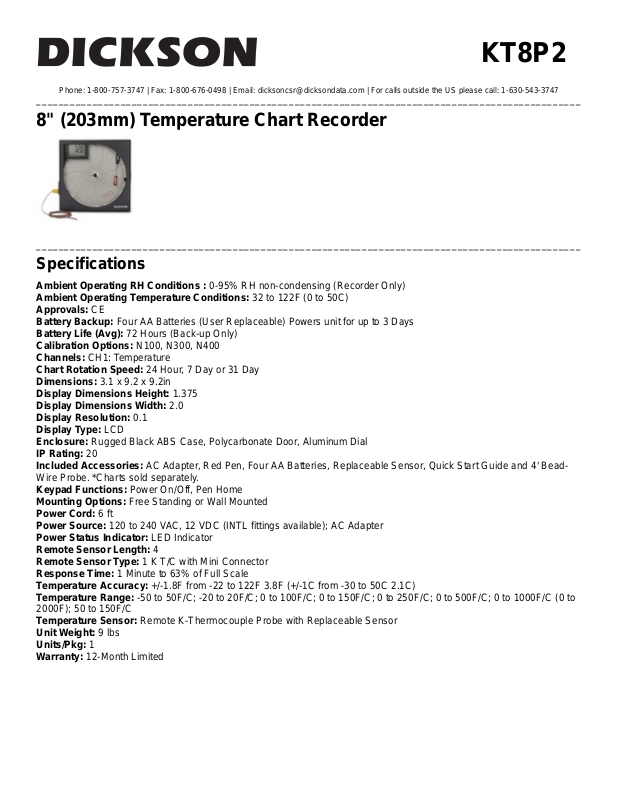

Page 1
KT8P2
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
8" (203mm) Temperature Chart Recorder
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing (Recorder Only)
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: CE
Battery Backup: Four AA Batteries (User Replaceable) Powers unit for up to 3 Days
Battery Life (Avg): 72 Hours (Back-up Only)
Calibration Options: N100, N300, N400
Channels: CH1: Temperature
Chart Rotation Speed: 24 Hour, 7 Day or 31 Day
Dimensions: 3.1 x 9.2 x 9.2in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: 0.1
Display Type: LCD
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
IP Rating: 20
Included Accessories: AC Adapter, Red Pen, Four AA Batteries, Replaceable Sensor, Quick Start Guide and 4' Bead-
Wire Probe. *Charts sold separately.
Keypad Functions: Power On/Off, Pen Home
Mounting Options: Free Standing or Wall Mounted
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator: LED Indicator
Remote Sensor Length: 4
Remote Sensor Type: 1 K T/C with Mini Connector
Response Time: 1 Minute to 63% of Full Scale
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F (+/-1C from -30 to 50C 2.1C)
Temperature Range: -50 to 50F/C; -20 to 20F/C; 0 to 100F/C; 0 to 150F/C; 0 to 250F/C; 0 to 500F/C; 0 to 1000F/C (0 to
2000F); 50 to 150F/C
Temperature Sensor: Remote K-Thermocouple Probe with Replaceable Sensor
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
KT8P2
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT8P2
Replaceable Sensor
Single K-TC Replaceable Temperature Sensor
Temperature Probe
Replacement Bead Wire Temperature Probe
Page 3
Page 4
Thermocouple Extension
K-Thermocouple 100' (30m) Extension Cable
Page 5
Page 6
Temperature Probe
6" (15cm) High Temperature Immersion Probe
Page 7
Page 8
Glycol Bottle
Bottle of Propylene Glycol Solution - dampen temperature swings.
Shielded Immersion Probe
15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip
Page 9
KT8P2
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT8P2
Piercing Probe
4" (10cm) Thermocouple Handled Piercing Probe
Probe Extension
K-Thermocouple 10' (3m) Extension Cable
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
AC Adapter
AC Adapter
Page 10
Page 11
AC Adapter Extension Cable
10' Power Extension for AC Adapter
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
