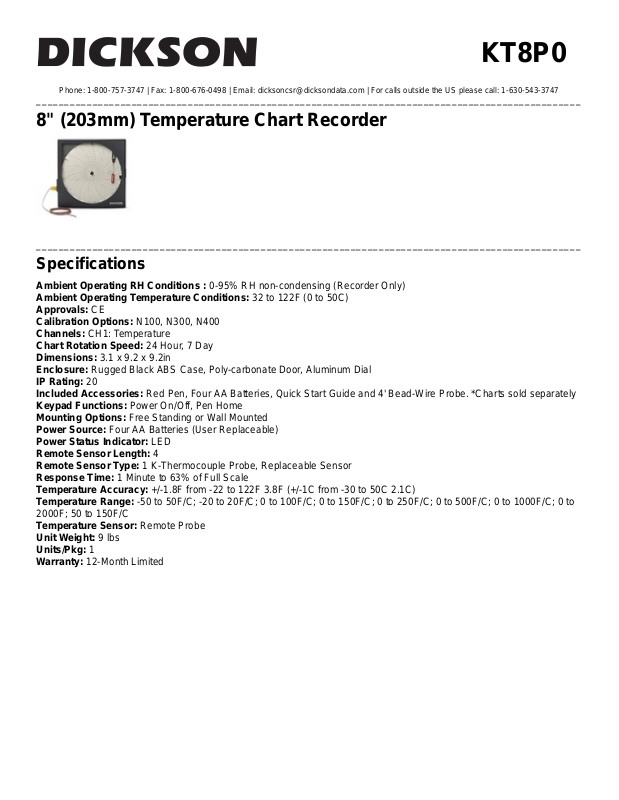

Page 1
KT8P0
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
8" (203mm) Temperature Chart Recorder
_________________________________________________________________________________________________
Specifications
Ambient Operating RH Conditions : 0-95% RH non-condensing (Recorder Only)
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: CE
Calibration Options: N100, N300, N400
Channels: CH1: Temperature
Chart Rotation Speed: 24 Hour, 7 Day
Dimensions: 3.1 x 9.2 x 9.2in
Enclosure: Rugged Black ABS Case, Poly-carbonate Door, Aluminum Dial
IP Rating: 20
Included Accessories: Red Pen, Four AA Batteries, Quick Start Guide and 4' Bead-Wire Probe. *Charts sold separately
Keypad Functions: Power On/Off, Pen Home
Mounting Options: Free Standing or Wall Mounted
Power Source: Four AA Batteries (User Replaceable)
Power Status Indicator: LED
Remote Sensor Length: 4
Remote Sensor Type: 1 K-Thermocouple Probe, Replaceable Sensor
Response Time: 1 Minute to 63% of Full Scale
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F (+/-1C from -30 to 50C 2.1C)
Temperature Range: -50 to 50F/C; -20 to 20F/C; 0 to 100F/C; 0 to 150F/C; 0 to 250F/C; 0 to 500F/C; 0 to 1000F/C; 0 to
2000F; 50 to 150F/C
Temperature Sensor: Remote Probe
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
KT8P0
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT8P0
Replaceable Sensor
Single K-TC Replaceable Temperature Sensor
Temperature Probe
Replacement Bead Wire Temperature Probe
Page 3
Page 4
Thermocouple Extension
K-Thermocouple 100' (30m) Extension Cable
Page 5
Page 6
Temperature Probe
6" (15cm) High Temperature Immersion Probe
Page 7
Page 8
Glycol Bottle
Bottle of Propylene Glycol Solution - dampen temperature swings.
Shielded Immersion Probe
15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip
Page 9
KT8P0
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT8P0
Piercing Probe
4" (10cm) Thermocouple Handled Piercing Probe
Probe Extension
K-Thermocouple 10' (3m) Extension Cable
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
AC Adapter
AC Adapter
Probe Extension Cable
10' Extension Probe for Angled Pre-Calibrated Sensor
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
