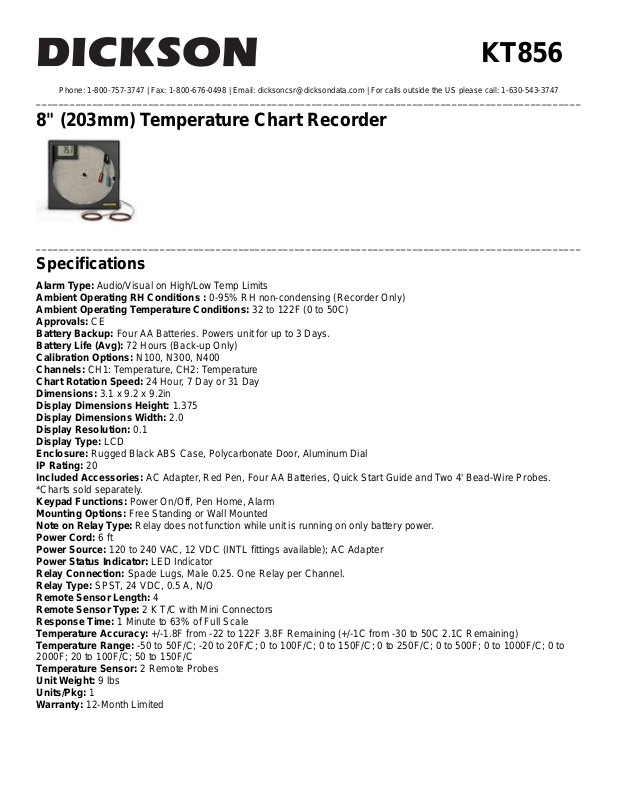

Page 1
KT856
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
8" (203mm) Temperature Chart Recorder
_________________________________________________________________________________________________
Specifications
Alarm Type: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing (Recorder Only)
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: CE
Battery Backup: Four AA Batteries. Powers unit for up to 3 Days.
Battery Life (Avg): 72 Hours (Back-up Only)
Calibration Options: N100, N300, N400
Channels: CH1: Temperature, CH2: Temperature
Chart Rotation Speed: 24 Hour, 7 Day or 31 Day
Dimensions: 3.1 x 9.2 x 9.2in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: 0.1
Display Type: LCD
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
IP Rating: 20
Included Accessories: AC Adapter, Red Pen, Four AA Batteries, Quick Start Guide and Two 4' Bead-Wire Probes.
*Charts sold separately.
Keypad Functions: Power On/Off, Pen Home, Alarm
Mounting Options: Free Standing or Wall Mounted
Note on Relay Type: Relay does not function while unit is running on only battery power.
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator: LED Indicator
Relay Connection: Spade Lugs, Male 0.25. One Relay per Channel.
Relay Type: SPST, 24 VDC, 0.5 A, N/O
Remote Sensor Length: 4
Remote Sensor Type: 2 K T/C with Mini Connectors
Response Time: 1 Minute to 63% of Full Scale
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F Remaining (+/-1C from -30 to 50C 2.1C Remaining)
Temperature Range: -50 to 50F/C; -20 to 20F/C; 0 to 100F/C; 0 to 150F/C; 0 to 250F/C; 0 to 500F; 0 to 1000F/C; 0 to
2000F; 20 to 100F/C; 50 to 150F/C
Temperature Sensor: 2 Remote Probes
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
KT856
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT856
Page 3
Page 4
Glycol Bottle
Bottle of Propylene Glycol Solution - dampen temperature swings.
Page 5
Page 6
Thermocouple Extension
K-Thermocouple 100' (30m) Extension Cable
Shielded Immersion Probe
15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip
Page 7
Page 8
Temperature Probe
6" (15cm) High Temperature Immersion Probe
Piercing Probe
4" (10cm) Thermocouple Handled Piercing Probe
Probe Extension
K-Thermocouple 10' (3m) Extension Cable
Page 9
KT856
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories KT856
Temperature Probe
Replacement Bead Wire Temperature Probe
Page 10
Page 11
Sensaphone Dialer
Remote Monitoring Unit - calls 4 numbers
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
Page 12
Page 13
AC Adapter Extension Cable
10' Power Extension for AC Adapter
AC Adapter
AC Adapter
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
