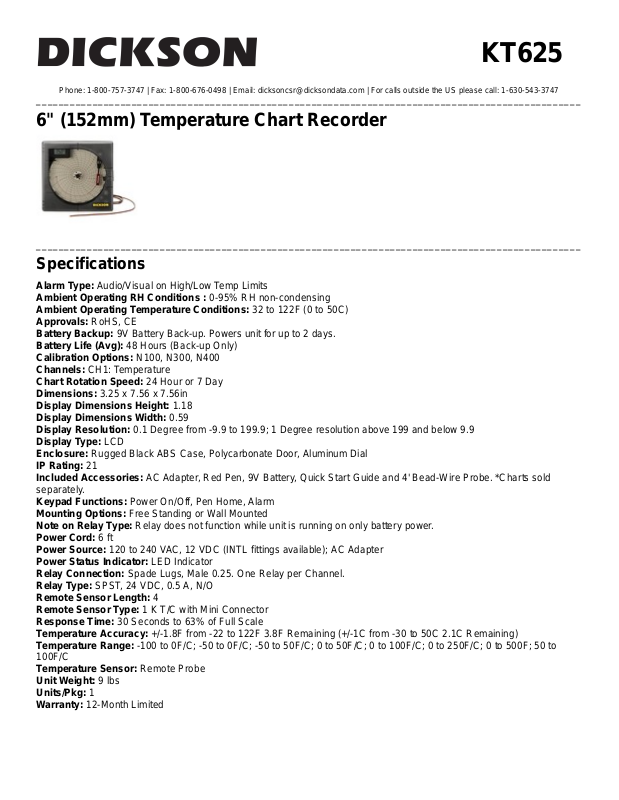

Dickson KT625 User Manual

KT625

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

6" (152mm) Temperature Chart Recorder

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: RoHS, CE
Battery Backup: 9V Battery Back-up. Powers unit for up to 2 days.
Battery Life (Avg): 48 Hours (Back-up Only)
Calibration Options: N100, N300, N400
Channels: CH1: Temperature
Chart Rotation Speed: 24 Hour or 7 Day
Dimensions: 3.25 x 7.56 x 7.56in
Display Dimensions Height: 1.18
Display Dimensions Width: 0.59
Display Resolution: 0.1 Degree from -9.9 to 199.9; 1 Degree resolution above 199 and below 9.9
Display Type: LCD
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
IP Rating: 21
Included Accessories: AC Adapter, Red Pen, 9V Battery, Quick Start Guide and 4' Bead-Wire Probe. *Charts sold

separately.

Keypad Functions: Power On/Off, Pen Home, Alarm
Mounting Options: Free Standing or Wall Mounted
Note on Relay Type: Relay does not function while unit is running on only battery power.
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator: LED Indicator
Relay Connection: Spade Lugs, Male 0.25. One Relay per Channel.
Relay Type: SPST, 24 VDC, 0.5 A, N/O
Remote Sensor Length: 4
Remote Sensor Type: 1 K T/C with Mini Connector
Response Time: 30 Seconds to 63% of Full Scale
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F Remaining (+/-1C from -30 to 50C 2.1C Remaining)
Temperature Range: -100 to 0F/C; -50 to 0F/C; -50 to 50F/C; 0 to 50F/C; 0 to 100F/C; 0 to 250F/C; 0 to 500F; 50 to

100F/C

Temperature Sensor: Remote Probe
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited

KT625

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories KT625

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

Thermocouple Extension

K-Thermocouple 100' (30m) Extension Cable

Temperature Probe

6" (15cm) High Temperature Immersion Probe

Shielded Immersion Probe

15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip

Piercing Probe

4" (10cm) Thermocouple Handled Piercing Probe

Probe Extension

K-Thermocouple 10' (3m) Extension Cable

KT625

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories KT625

Temperature Probe

Replacement Bead Wire Temperature Probe

2-Year Warranty

2-Year Warranty

9V Battery

9V Battery

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

AC Adapter

AC Adapter

Sensaphone Dialer

Remote Monitoring Unit - calls 4 numbers

KT625

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories KT625

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
