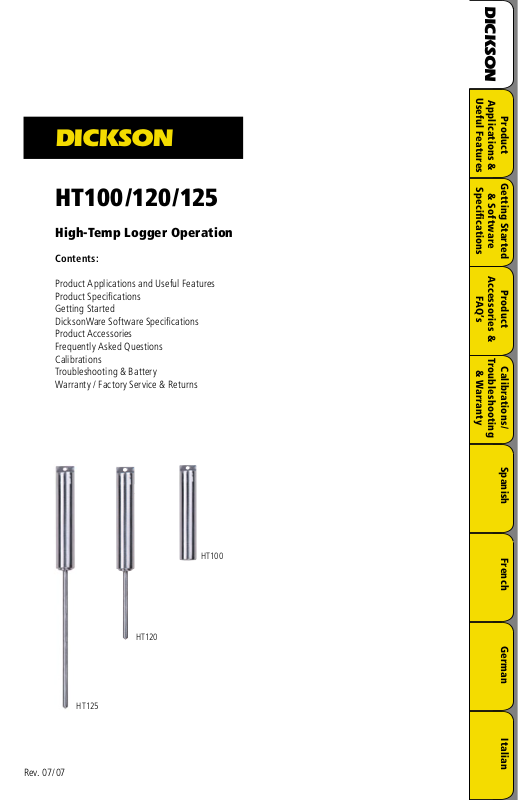

Page 1
DICKSON
HT100/120/125
High-Temp Logger Operation
Contents:
Product Applications and Useful Features
Product Specifications
Getting Started
DicksonWare Software Specifications
Product Accessories
Frequently Asked Questions
Calibrations
Troubleshooting & Battery
Warranty / Factory Service & Returns
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Rev. 07/07
HT125
HT120
HT100
German ItalianSpanish FrenchCalibrations /
Page 2
Product Applications
The HT100, HT120 & HT125 were developed to handle the extreme temperatures and conditions previously
impossible for a data logger. With a temperature monitoring range of -40 to +257˚F and a waterproof case
constructed of stainless steel, the HT100, HT120 & HT125 are ready for your toughest applications. Perfect
for HACCP, FDA, pharmaceutical, medical agricultural and oil & gas applications.
Real time monitoring and graphing
•
Faster downloads
•
Makes exporting to other software a snap!
•
Test a demo version at www.dicksonweb.com
•
Useful Features
Temperature range -40 to +257°F (-40 to +125°C)
•
316 stainless steel enclosure
•
Stores 7936 sample points
•
Battery operation–5 year battery life
•
HT100
Dimensions: 3.69” x 0.69” diameter
•
Ideal for:
Process monitoring of food, pharmaceuticals, oil, gas and chemical production
•
Monitoring temperatures in remote or hard to read locations including wells and storage tanks
•
HT120
Dimensions: 6.25” x 0.69” diameter (2.5” x 3/16” diameter probe)
•
Ideal for:
Agricultural applications including monitoring soil temperature and hay and feed storage
•
Monitoring temperatures in laboratory incubators, autoclaves and baths
•
HT125
Dimensions: 8.69” x 0.69” diameter (5” x 0.11” diameter piercing probe)
•
Ideal for:
HACCP compliance including monitoring temperatures in coolers, smokers and freezers
•
Piercing probe is perfect for monitoring meat and diary processes storage
•
DICKSON
Applications &
Specifications
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Spanish FrenchCalibrations /
Rev. 07/07
German Italian
Page 3
Product Specifications
HT100 HT120
Temperature Range:
Temperature Accuracy :
IP Rating IP68 IP68
Sensor Type: Internal Thermistor Internal Thermistor
Battery Life:
Sample Point Storage: 7936 7936
Download Time:
Response Time: 15 min. to 63% full scale
Resolution: (0.6°C) over range -40 to +275°F
Approvals: CE CE
Enclosure Type : 316 Stainless Steel 316 Stainless Steel
Dimensions (enclosure):
Weight : 2.5oz (72g) 2.7oz (78g)
Minimum DicksonWare™
Version Required:
-40 to +257°F
(-40 to +125°C)
±1.8°F (±1°C) over range
-4 to +212°F (-20 to +100°C)
5 years typical at 1 minute
sample intervals
45 seconds, typical when
not logging
0.1°F (0.1°C) at +70°F; 1°F
(-40 to +125°C)
3.69” x 0.6875” diameter
(9.37cm x 1.75cm)
6.0.2.11 6.0.2.11
-40 to +257°F
(-40 to +125°C)
±1.8°F (±1°C) over range
-4 to +212°F (-20 to +100°C)
5 years typical at 1 minute
sample intervals
45 seconds typical when
not logging
5 min. to 63% full scale
0.1°F (0.1°C) at +70°F; 1°F
(0.6°C) over range -40 to +275°F
(-40 to +125°C)
6.25” x 0.6875” diameter
(15.88cm x 1.75cm)
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
HT125
Temperature Range:
Temperature Accuracy :
IP Rating IP68
Sensor Type: Internal Thermistor
Battery Life:
Sample Point Storage: 7936
Download Time:
Response Time: 5 min. to 63% full scale
Resolution: (0.6°C) over range -40 to +275°F
Approvals: CE
Enclosure Type : 316 Stainless Steel
Dimensions (enclosure):
Weight : 2.7oz (78g)
Minimum DicksonWare™
Version Required:
Rev. 07/07
-40 to +257°F
(-40 to +125°C)
±1.8°F (±1°C) over range
-4 to +212°F (-20 to +100°C)
5 years typical at 1 minute
sample intervals
45 seconds, typical when
not logging
0.1°F (0.1°C) at +70°F; 1°F
(-40 to +125°C)
8.69” x 0.6875” diameter
(22.07cm x 1.75cm)
6.0.2.11
German ItalianSpanish FrenchCalibrations /
Page 4
Getting Started
Install the DicksonWare™ Software.
•
Connect the cable (supplied with the software) to the logger and to a working serial port on your
•
computer.
Click the Setup button. When the setup window appears, all fields should be automatically filled in,
•
this will confirm that DicksonWare™ has recognized the logger. Should all fields remain blank, refer to
“No Communication” in the Trouble Shooting section of this manual. Once DicksonWare™ recognizes
the logger, press the Clear button. This will delete all data currently stored.
The logger is now sampling and ready for use. The default sample interval is 1 minute. You may
•
choose to change Default settings for sample interval and start-date and time. When changing
these settings, the logger will automatically go through the clear process to accept your changes.
Note: To conserve battery life when storing unit, press the Setup button and select the shortest Sample
Interval and Stop When Full in the Samples section. Do not expose download cable to temperatures above
175˚F
*WARNING*
Fire, explosion and server burn hazard. Do not recharge, disassemble, heat above 145˚C, incinerate, or
expose battery to water.
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Rev. 07/07
German ItalianSpanish FrenchCalibrations /
Page 5
DicksonWare™ Software Specifications
Microsoft Windows® compatible
•
Allows for simple viewing and zooming of logged data
•
Easy set-up of Dickson Data Loggers including:
•
• User selectable sample intervals from 10 seconds to 24 hours
• Display temperature in °C or °F
• Delayed logger start times
• Logger data capacity can be set to wrap data or stop when full
• Allow for real time monitoring and graphing.
• Effortless exporting of data and graphs to other software
• Data can be viewed in tabular (numeric/table) or graphical formats
• Fast downloading of logged data - 30 seconds (typical) from full logger
• Even shows battery power status for battery operated loggers
Specifications:
Compatible With: Microsoft Windows® 95, 98, 2000, NT & XP
•
PC Requirements: PC with 386 MHz or better microprocessor, 4 M RAM, 1 free COM (serial) port,
•
CD drive
Cable Type/ Length: 9 pin male D-shell to male 2.5mm stereo plug, 6’ long
•
Computer Interface: RS-232 COM (serial) port
•
DicksonWare™ Version Required (minimum) : See Specific Model for Version Requirement
•
DicksonWare™ SECURE Software Specifications
To ensure the authenticity, integrity and confidentiality of data, 21CFR Part 11 requires that electronic
records adhere to certain criteria. DicksonWare™ SECURE software collects data from our validated data
logger, creates detailed graphs and reports and contains the following features that comply with 21CFR11:
Password protection
•
Electronic signature consisting of User ID and Password
•
Collected data encrypted in secure files
•
Audit trail capability to identify date, time, user and action
•
For a complete 21CFR11 compliant package, order the following:
Appropriate Validated data logger
1.
DicksonWare™ SECURE Software & Serial Download Cable - A025
2.
Certificate of Validation/logger - N520
3.
Choose One Calibration Option Listed Below:
4.
a. NIST Traceable Calibration 3-pt. (new unit) - N300
b. NIST Traceable Calibration 1-pt. (new unit) - N100
c. A2LA Accredited Calibration 3-pt. (new unit) - N400
Note: SW400 Calibration Software may not be used with DicksonWare™ SECURE software.
Specifications:
Compatible With: Windows® 95, 98, 2000, NT & XP
•
PC Requirements: 386MHz processor or higher, 4MB RAM, 1 free COM (serial) port, CD drive
•
Cable Type/ Length: 9 pin male D-shell to male 2.5mm stereo plug, 6” long
•
Operating Range: -20 to +135˚F, 0 to 95%RH (non-condensing)
•
Computer Interface: RS-232 COM (serial port)
•
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
German ItalianSpanish FrenchCalibrations /
Rev. 07/07
Page 6
Accessories (for current pricing go to www.dicksondata.com or call 1-800-323-2448)
Software Order #
DicksonWare™ Software and Serial Download Cable A015
DickosnWare™ SECURE Software and Serial Download Cable A025
Logger Calibration Software* SW400
Calibrations
NIST Traceable Calibration 3-pt (new unit) N300
NIST Traceable Calibration 1-pt (new unit) N100
A2LA Accredited Calibration 3-pt. (new units) N400
Certificate of Validation N520
*SW400 not for use with DicksonWare SECURE™ (A025)
Frequently Asked Questions
Sample Interval: The Sample Interval determines how frequently the data logger will save a
•
reading. Using DicksonWare™ Software, the user can set a Sample Interval ranging from 10 seconds
to 24 hours in 10 second increments. A temperature logger with data storage of 32,512 set at a 10
second Sample Interval will record for 3.75 days, while the same logger set at a 1 minute Sample
Interval will record for 22.5 days.
Data Storage: Data Storage is the number of Sample Points a data logger can hold. You will find
•
models that range from 7,680 samples to 32,512. A temperature logger with Data Storage of 32,512
and a sample interval set at 30 seconds would record for 11.25 days, while a temperature logger with
Data Storage of 7,680 and the same sample interval would record for only 2.6 days.
Does it have to stay connected to a PC in order for it to work? No. Unless you’re viewing
•
data in real-time you only connect the logger to a PC when you want to view / retrieve data.
What happens when all the storage space is taken up? Do I have to throw it away?
•
After you have downloaded the data, you simply “clear” the logger and it is ready to log more data.
•
What happens if I leave it monitoring somewhere too long? The Data Loggers have two user
•
selectable modes, Stop and Wrap. In Stop mode, they will quit logging data when the memory is full.
In Wrap mode, the Logger will begin to overwrite the oldest data in its memory.
Where can I put them? Depending on the Dickson model, just about anywhere. We have
•
waterproof units, stainless steel models, units with probes, and units that handle extreme
temperatures. Our wide selection of instruments should fit about any application.
What is the biggest advantage of a Data Logger? Its data is “logged”, stored on a microchip
•
inside the Data Logger. Data in electronic memory takes advantage of the power of a PC and
software.
* Store the data as you would store any document on your PC.
* Retrieve archived data as easily as opening a file on your PC.
* Share the data as you would any PC file, email, copy and paste.
* Data can be imported into spreadsheet software and word processing documents.
* Easily import data from multiple data loggers onto a single graph.
How are they mounted? The smallest ones, about the size of a pager, can be wall-mounted with
•
Velcro or simply set anywhere you need to monitor. The larger units have keyhole slots for wall
mounting and can also stand on their own.
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
German ItalianSpanish FrenchCalibrations /
Rev. 07/07
Page 7
Calibration Services - New Units
N100 - NIST Traceable Calibration 1-Point: Includes documentation to one Dickson pre-selected
•
point on new units only.
N300 - NIST Traceable Calibration 3-Point: Includes documentation of three Dickson pre-selected
•
points (a high, medium, and low) on new units only.
The Importance and Benefits of Regular Calibrations
Once you begin to use your precision Dickson instrumentation, regular calibrations are necessary to ensure
accurate readings.
The following Calibration Services are available:
N150 - NIST Traceable Calibration 1-Point : Includes documentation to one Dickson pre-selected
•
point after re-calibration.
N350 - NIST Traceable Calibration 3-Point : Includes documentation of three Dickson pre-selected
•
points (a high, medium, and low) after re-calibration.
Why should I recalibrate my instrumentation?
Over time dirt, dust and normal handling can throw your precision instrumentation out of calibration.
•
Regular calibrations ensure that you receive the most accurate readings possible.
How often should I recalibrate my instrumentation?
Depending on the environment your instrument is used in and how often it is handled you will want
•
to recalibrate your instrument every 6 to 12 months. Instruments in environments where there are
extreme temperatures, wide temperature ranges, humidity or pressure variations, high condensation,
dirt, dust and other debris will require calibration at least every 6 months. Instruments that are
frequently moved or in locations with heavy machinery that cause vibrations should also be calibrated
at least every 6 months.
Why should I return my instrument to Dickson for calibration?
Dickson calibrates your instrument at the factory using proprietary production/calibration software that
•
guarantees proper calibration.
Our Capabilities
Dickson is the first manufacturer of humidity and temperature instrumentation to receive A2LA accreditation.
We are also NIST Traceable; our procedures conform to MIS-STD-45662A, ANSI/NCSL 2540-1-1994, ISO/IEC
Guide 25 and ISO10012. We are experts in the manufacture and calibration of humidity and temperature
instruments.
Fast Service: Our turnaround time is 3 days or less so you receive not only expert service but fast
•
service as well.
Easy: We make it easy for you! No phone calls for Return Authorization Numbers are required. We
•
remind you when your instrument is due for calibration. You simply send in the completed Calibration
Order Form with your unit for calibration with freight prepaid to Dickson.
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Rev. 08/08
German ItalianSpanish French
Page 8
Troubleshooting
For troubleshooting information, click here for the technical support page.
Warranty
Dickson warrants that the products it sells will be free from defects in material and workmanship under
normal use and service for a period of twelve months after delivery. In the event of a claim under this
warranty, the product or part must be returned to the factory for repair or replacement (shipping pre-paid)
with a Return Authorization Number (see Return Information above). It will be repaired at Dickson’s option
without charge. This warranty DOES NOT cover routine calibration, pen, chart and battery replacement. The
foregoing warranty and remedy are exclusive and in lieu of all other warranties either expressed or implied.
Dickson shall not be liable for consequential or incidental damages resulting from failure or malfunction of
its products. Dickson makes no warranty for products not manufactured by it or for any products modified by
buyer, or subject to misuse or neglect.
Factory Service & Returns
Contact the factory (630-543-3747) for a Return Authorization (RA) Number before returning any
instrument. The model number, serial number and a purchase order number will be requested before an RA
number is issued.
Carefully repack the instrument, label the outside of the box with the RA# and return the instrument
•
(freight pre-paid) to Dickson.
All instruments that do not have the RA# clearly marked on the outside of the box will be refused. When
•
returning instruments for credit, please include all accessories in shipment.
Calibration/Freight charges are non-refundable.
•
NOTE: Dickson shall not be liable for consequential or incidental damages resulting from failure or
malfunction of its products.
Customer Satisfaction
Dickson takes pride in providing you, the customer, with the highest quality instrumentation. We welcome
the opportunity to help you in any way possible. Whether it be a question or a new idea in documentation,
the Dickson Company would like to hear your response. Please call our Customer Service Department at
1-800-323-2448 or (630) 543-3747 (in Illinois).
Software Return Policy
IMPO R TANT-Read your Software License Agreement carefully before installing software. DIckson will
accept returns for replacement of defective disks and CDs only.
DICKSON
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Rev. 07/07
German ItalianSpanish FrenchCalibrations /
DICKSON
930 South Westwood Avenue
Addison, Illinois 60101
Phone: (630) 543-3747 • E-mail: DicksonCSR@dicksondata.com
Page 9
HT100/120/125
Operación de registro de Alta-Temperatura
DICKSON
Introducción
Instale DicksonWare™ (compatible con Windows® 98 o más alto). DicksonWare™ versión 6.0.2.11
•
o más alta es requerida.
Si ya tiene Dickson Ware en su ordenador, verifique la versión seleccionando “Ayuda” y “Acerca de”
•
desde el menú de la barra para verificar que versión tiene instalado y asegurarse que cumple con los
requisitos del registrador.
Inicie DicksonWare™ usando el icono que está en el escritorio.
•
Conecte el cable (suministrado con el software) al registrador y a un puerto Serial COM o USB que este
•
funcionando en su ordenador.
Pinche el botón de configuración. Le indicará que seleccione el puerto USB o Serial COM, seleccione su
•
conexión y presione “Continué”. Aparecerá una ventana de configuración, y todos los campos
deberían llenarse automáticamente. Esto confirma que DicksonWare™ ha reconocido al registrador.
El registrador esta tomando muestras a partir de este momento.
*ADVERTENCIA*
Riesgo de fuego, explosión y quemaduras severas. No debe recargarse, desarmarse, exponer a temperaturas
mayores de 145°C, incinerarse, o exponer la batería al agua. No debe exponerse el cable de descarga a
temperaturas mayores a 175°C
Importante Saber
Cuando se cambia la configuración del registrador (intervalo de muestreo y fecha y hora de inicio) el
•
registrador borrará toda la información almacenada automáticamente.
Para extender la vida de la batería durante la operación, use una frecuencia de muestreo menos
•
frecuente y desconecte la unidad del puerto USB o serial cuando no esté bajando data.
Fahrenheit/ Centígrados
El registrador de datos tiene como por defecto la captura de temperatura en grados Fahrenheit. Si desea
ver datos registrados en el futuro en el grafico o en la tabla en grados Centígrados, vaya a “Archivo,”
“Preferencias” y luego cambie la selección de temperatura.
Cambio de la Batería
El monitor de nivel de batería en la pantalla de “Configuración” muestra el voltaje de la batería y una
advertencia de batería baja cuando es requerido que sea cambiada.
Cuando se está cambiando la batería, el registrador no recolecta datos sin embargo no se pierde información
de la memoria. Para reiniciar la recolección de muestras, baje la data y luego limpie la memoria.
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
La Garantía Dickson
Dickson garantiza que esta línea de instrumentos estará libre de defectos materiales y de mano de obra bajo
condiciones de uso y servicio normales, por un período de doce meses desde el momento de su entrega.
Esta garantía no cubre calibración de rutina ni reemplazo de batería.
Para Especificaciones y Soporte Técnico vaya a www.DicksonData.com
Rev. 07/07
German ItalianSpanish FrenchCalibrations /
Page 10
HT100/120/125
Mode d’emploi de l’enregistrement haute température
DICKSON
Débuter
Installez DicksonWare™ (compatible avec Windows® 98 ou supérieur). DicksonWare™ version
•
6.0.2.11 ou supérieure est requis.
Si vous disposez déjà de DicksonWare sur votre ordinateur, vérifiez la version en cliquant sur “Help”
•
et “About” dans la barre de menu pour vérifier la version dont vous disposez et assurez-vous qu’elle
est conforme aux exigences du dispositif d’enregistrement.
Lancez DicksonWare™ en cliquant sur l’icône installé sur votre bureau.
•
Connectez le câble (fourni avec le logiciel) à l’enregistreur et au port série dans votre ordinateur,
•
COM ou USB.
Cliquez sur le bouton Setup. Vous serez invités à sélectionner le port USB ou COM série, sélectionnez
•
votre connexion puis cliquez sur Continue. Une fenêtre de configuration apparaîtra et tous les champs
seront automatiquement remplis. Cela confirmera que DicksonWare™ a reconnu le dispositif
d’enregistrement. Ce dernier commencera alors l’échantillonnage.
*AVERTISSEMENT*
Risque d’incendie, d’explosion et de brûlures graves. Ne rechargez pas, ne démontez pas, ne chauffez pas au
delà de 145°C, n’incinérez pas et n’exposez pas la pile à l’eau. N’exposez pas le câble de téléchargement à
des températures dépassant 175°C
A savoir
Lors de la modification des paramètres du dispositif d’enregistrement (intervalle de mesure, date et
•
heure de début), l’enregistreur effacera automatiquement toutes les données stockées.
Pour obtenir une plus longue durée de vie de la pile durant l’opération, utilisez un intervalle de mesure
•
moins fréquent et déconnectez l’unité du port USB ou COM série lorsque vous ne téléchargez pas de
données.
Fahrenheit/Celsius
L’enregistreur de données est réglé par défaut pour enregistrer des données en Fahrenheit. Si vous désirez
changer l’unité de mesure sur le graphique ou la table, allez dans “File,” “Preferences” puis modifiez la
sélection de température.
Remplacement de la pile
Le moniteur du niveau de la pile de l’écran “Setup” affiche la tension de la pile et une alarme de pile faible
lorsqu’un remplacement est nécessaire.
Lors du remplacement de la pile, l’enregistreur de données ne collectera pas de données mais la mémoire ne
sera pas perdue. Pour recommencer l’échantillonnage, téléchargez les données puis effacez la mémoire.
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
La garantie Dickson
Dickson garantit cette ligne d’instruments sans défauts en matériel ou en main-d’oeuvre sous usage et
service normal pour une période de douze mois à compter de a livraison.
Cette garantie ne couvre pas l’étalonnage de routine et le remplacement de la pile.
Veuillez visiter le site www.DicksonData.com pour des spécifications et l’assistance technique.
German ItalianSpanish FrenchCalibrations /
Page 11
HT100/120/125
Betrieb des Loggers bei hohen Temperaturen
DICKSON
Erste Schritte
Installieren Sie die DicksonWare™ Software (Windows® 98- oder aufwärtskompatibel).
•
DicksonWare™ Version 6.0.2.11 oder höher erforderlich.
Falls sich die DicksonWare Software bereits auf Ihrem PC befindet, so schauen bitte Sie in der
•
Menüleiste unter „Hilfe“ und „Über ..“ nach, um welche Version es sich handelt und vergewissern Sie
sich, dass die Software die Vorraussetzungen des Loggers erfüllt.
Öffnen Sie die DicksonWare™ Software mittels des auf Ihrem Desktop befindlichen Icons.
•
Verbinden Sie das Kabel (wird zusammen mit der Software ausgeliefert) mit der Registriereinrichtung
•
und einen an Ihrem Rechner befindlichen funktionsfähigen Seriellen COM oder USB Anschluss.
Klicken Sie auf den Button „Einrichten“. Sie werden dazu aufgefordert, einen USB oder Seriellen COM
•
Anschluss auszuwählen. Wählen Sie daraufhin Ihren Verbindungstyp aus und klicken Sie auf „Weiter“.
Ein Fenster zum Einrichten der Software erscheint, woraufhin sämtliche Felder automatisch ausgefüllt
werden sollten. Dies ist eine Bestätigung, dass die DicksonWare™ Software den Logger erkannt hat.
Der Logger ist jetzt dabei, Daten zu erfassen.
*WARNHINWEIS*
Feuer, Explosionen und ernsthafte Brandgefahr. Laden Sie die Batterie nicht wieder auf, bauen Sie die
Batterie nicht auseinander, erhitzen Sie die Batterie nicht auf mehr als 145°C, verbrennen Sie die Batterie
nicht, und lassen Sie die Batterie nicht mit Wasser in Berührung kommen. Setzen Sie das Kabel zum
Herunterladen keinen Temperaturen aus, die 80°C übersteigen
Wissenswertes
Wenn Sie die Konfiguration des Loggers ändern (Erfassungsintervalle sowie Starttermin und –zeit),
•
löscht der Logger automatisch alle gespeicherten Daten.
Zur Erhöhung der Batterielebensdauer verwenden Sie bitte eine geringere Erfassungsfrequenz und
•
entfernen Sie den Geräteanschluss aus dem USB oder Seriellen Anschluss, wenn Sie keine Daten
herunterladen.
Fahrenheit/ Celsius
Der Datenlogger erfasst Daten standardmäßig in Fahrenheit. Falls Sie künftig die erfassten Daten oder
die grafische Darstellung in Celsius ansehen möchten, so wählen Sie bitte unter „Datei“ die Menüoption
„Präferenz“ aus und ändern Sie dann die Temperaturauswahl.
Austausch der Batterie
Wenn ein Austauschen der Batterie erforderlich wird, zeigt der Überwachungsbildschirm des
Aufladezustands der Batterie auf dem Bildschirm „Einrichten“ den Spannungszustand der Batterie und einen
Warnhinweis bzgl. des niedrigen Batteriespannungszustands an.
Während des Austauschens der Batterie erfasst der Logger keine Daten, diese gehen jedoch nicht verloren.
Zum erneuten Starten der Datenerfassung laden Sie die Daten herunter und löschen danach den Speicher.
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
Die Dickson Garantie
Dickson garantiert, dass die Produktlinie dieses Instruments hinsichtlich Material und Verarbeitung bei
standardmäßigem Gebrauch und Service frei von Mängeln ist.
Diese Garantie deckt keine routinemäßigen Kalibrierungen und Austausch von Batterien.
Genauere Angaben sowie Hinweise zum Technischen Support finden Sie unter www.DicksonData.com.
Rev. 07/07
German ItalianSpanish FrenchCalibrations /
Page 12
HT100/120/125
Funzionamento del Logger alle alte temperature
DICKSON
Per iniziare
Installare DicksonWare™ (compatibile con Windows® 98 o successivo). È richiesta la versione
•
6.0.2.11 o superiore di DicksonWare™.
Se DicksonWare è già installato sul PC verificarne la versione selezionando “Help” ed “About” dalla
•
barra di menu bar e assicurarsi che la versione sia compatibile con i requisiti del logger.
Attivare DicksonWare™ cliccando l’icona che si trova sul desktop.
•
Collegare il cavo (fornito con il software) al logger ed a una porta operativa seriale COM o USB del
•
computer.
Fare clic sul pulsante Setup. Sarà chiesto di selezionare la porta USB o COM seriale, ed una volta
•
fatto cliccare Continue. Apparrà la finestra Setup, in cui tutti i campi sono compilati automaticamente.
Questo conferma che DicksonWare™ ha riconosciuto il logger. Il logger sta ora eseguendo le letture.
*PERICOLO*
Pericolo di incendio, esplosione e ustioni severe. Non ricaricare, smontare, riscaldare al di sopra di 145°C,
incenerire, o esporre la batteria all’acqua. Non esporre il cavo di scarica a temperature superiori a 175°F
Informazioni indispensabili
Quando si modificano le impostazioni del logger (intervallo fra le letture e data ed ora d’inizio) il
•
logger rimoverà automaticamente tutti i dati memorizzati.
Allo scopo di ottenere una maggiore durata della batteria durante il funzionamento, usare una
•
frequenza di lettura inferiore e sconnettere l’unità dalla porta seriale o USB quando non si stanno
scaricando dati.
Fahrenheit/ Celsius
Il data logger è predisposto per la registrazione dei dati in gradi Fahrenheit. Se si vogliono leggere futuri
dati registrati sul grafico o sulla tabella in gradi Celsius selezionare “File,” “Preferences” e quindi cambiare la
selezione delle unità di misura di temperatura.
Sostituzione della batteria
Il monitor di livello batteria sul display “Setup” visualizza la tensione della batteria e l’avviso di batteria
scarica quando è necessario sostituirla.
Nella sostituzione della batteria il logger non raccogliere dati ma i dati registrati in memoria non andranno
persi. Per iniziare nuovamente le letture, scaricare i dati e poi cancellare la memoria.
Useful Features
Applications &
Product
Getting Started
Specifications
& Software
Accessories &
Product
FAQ’s
Troubleshooting
& Warranty
La garanzia Dickson
Dickson garantisce che questa linea di strumenti sarà priva di difetti di materiale e manodopera nelle
condizioni normali d’uso e di servizio per il periodo di dodici mesi dalla consegna.
Questa garanzia non copre la calibrazione di routine e la sostituzione della batteria.
Per informazioni tecniche ed assistenza tecnica accedere al sito www.DicksonData.com
Rev. 07/07
German ItalianSpanish FrenchCalibrations /
Loading...
