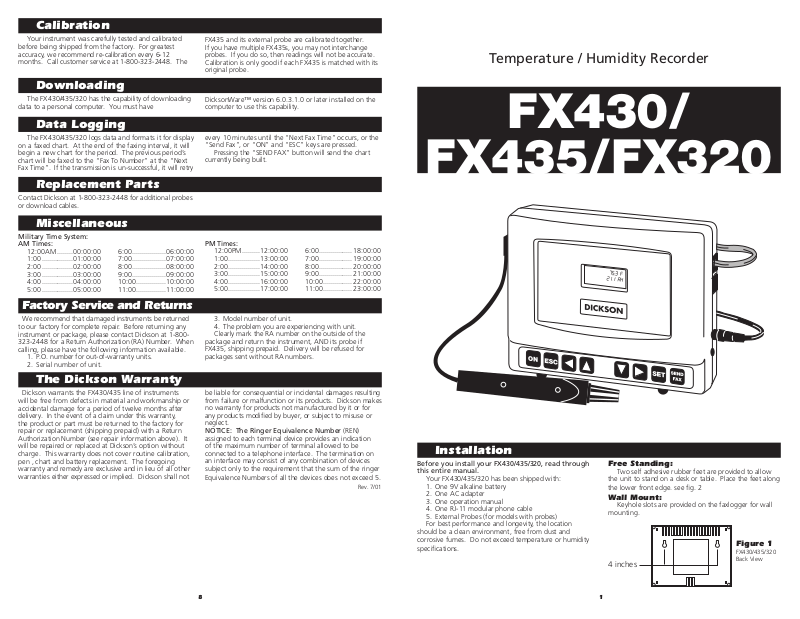

Page 1
Calibration
Your instrument was carefully tested and calibrated
before being shipped from the factory. For greatest
accuracy, we recommend re-calibration every 6-12
months. Call customer service at 1-800-323-2448. The
Downloading
The FX430/435/320 has the capability of downloading
data to a personal computer. You must have
FX435 and its external probe are calibrated together.
If you have multiple FX435s, you may not interchange
probes. If you do so, then readings will not be accurate.
Calibration is only good if each FX435 is matched with its
original probe.
DicksonWare™ version 6.0.3.1.0 or later installed on the
computer to use this capability.
Temperature / Humidity Recorder
Data Logging
The FX430/435/320 logs data and formats it for display
on a faxed chart. At the end of the faxing interval, it will
begin a new chart for the period. The previous period’s
chart will be faxed to the “Fax To Number” at the “Next
Fax Time”. If the transmission is un-successful, it will retry
Replacement Parts
Contact Dickson at 1-800-323-2448 for additional probes
or download cables.
Miscellaneous
Military Time System:
AM Times:
12:00AM ........00:00:00 6:00................. 06:00:00
1:00................01:00:00 7:00................. 07:00:00
2:00................02:00:00 8:00................. 08:00:00
3:00................03:00:00 9:00................. 09:00:00
4:00................04:00:00 10:00............... 10:00:00
5:00................05:00:00 11:00............... 11:00:00
Factory Service and Returns
We recommend that damaged instruments be returned
to our factory for complete repair. Before returning any
instrument or package, please contact Dickson at 1-800323-2448 for a Return Authorization (RA) Number. When
calling, please have the following information available.
1. P.O. number for out-of-warranty units.
2. Serial number of unit.
The Dickson Warranty
Dickson warrants the FX430/435 line of instruments
will be free from defects in material and workmanship or
accidental damage for a period of twelve months after
delivery. In the event of a claim under this warranty,
the product or part must be returned to the factory for
repair or replacement (shipping prepaid) with a Return
Authorization Number (see repair information above). It
will be repaired or replaced at Dickson’s option without
charge. This warranty does not cover routine calibration,
pen , chart and battery replacement. The foregoing
warranty and remedy are exclusive and in lieu of all other
warranties either expressed or implied. Dickson shall not
every 10 minutes until the “Next Fax Time” occurs, or the
“Send Fax”, or “ON” and “ESC” keys are pressed.
Pressing the “SEND FAX” button will send the chart
currently being built.
PM Times:
12:00PM.........12:00:00 6:00................. 18:00:00
1:00................13:00:00 7:00................. 19:00:00
2:00................14:00:00 8:00................. 20:00:00
3:00................15:00:00 9:00................. 21:00:00
4:00................16:00:00 10:00............... 22:00:00
5:00................17:00:00 11:00............... 23:00:00
3. Model number of unit.
4. The problem you are experiencing with unit.
Clearly mark the RA number on the outside of the
package and return the instrument, AND its probe if
FX435, shipping prepaid. Delivery will be refused for
packages sent without RA numbers.
be liable for consequential or incidental damages resulting
from failure or malfunction or its products. Dickson makes
no warranty for products not manufactured by it or for
any products modied by buyer, or subject to misuse or
neglect.
NOTICE: The Ringer Equivalence Number (REN)
assigned to each terminal device provides an indication
of the maximum number of terminal allowed to be
connected to a telephone interface. The termination on
an interface may consist of any combination of devices
subject only to the requirement that the sum of the ringer
Equivalence Numbers of all the devices does not exceed 5.
Rev. 7/01
FX430/
FX435/FX320
O
N
E
S
S
E
N
S
E
D
Installation
Before you install your FX430/435/320, read through
this entire manual.
Your FX430/435/320 has been shipped with:
1. One 9V alkaline battery
2. One AC adapter
3. One operation manual
4. One RJ-11 modular phone cable
5. External Probes (for models with probes)
For best performance and longevity, the location
should be a clean environment, free from dust and
corrosive fumes. Do not exceed temperature or humidity
specications.
Free Standing:
Two self adhesive rubber feet are provided to allow
the unit to stand on a desk or table. Place the feet along
the lower front edge. see g. 2
Wall Mount:
Keyhole slots are provided on the faxlogger for wall
mounting.

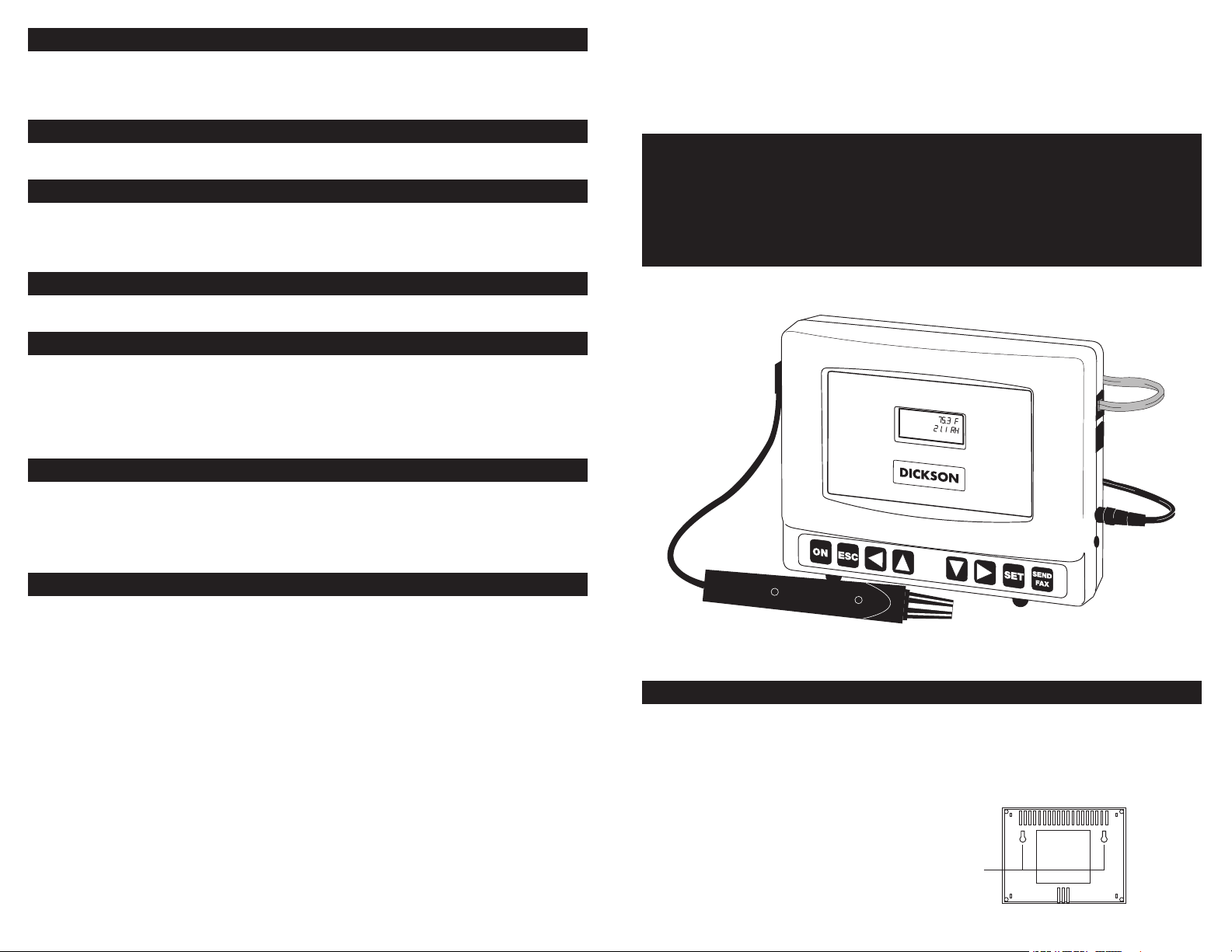

Figure 1
FX430/435/320
4 inches
Back View
18
Page 2
Quick Start
The FX430/435 has been preset to operate using
the most popular temperature range settings. The
FX430/435 has been preset to record and send a fax
every 24 hours. The range has been preset at 0 to 100˚F
for the temperature channel, and 0 to 100% RH for the
humidity channel (FX430/435); 0 to 220˚F for channel 1,
and 0 to 100˚F for channel 2 (FX320).
When the unit is connected to an AC adapter
or battery power source, it will alternate between
displaying the date/time and Ch. 1/Ch. 2 readings.
To set up date, times, phone numbers and location
names, temperature scale or alarms, see detailed
instructions in the “Programming the Unit” section.
Getting Started:
1. Insert back-up battery
2. Plug unit into AC adapter, connect phone
line
3. Go to menus and set the date,
time, fax-to-number, fax-to-name, fax interval,
next fax date, next fax time.
To set up date, time, phone numbers, and
location names, see detailed instructions in
Specications FX430/435
FX430/FX435 Temperature Scales:
0 to +100˚F (-17.8 to 37.8˚C)
Temperature Range:
Internal TH: 0 to +100˚F (-17.8 to +37.8˚C)
External Probe: 0 to +100˚F (-17.8 to +37.8˚C)
Temperature Sensor: Thermistor
Temperature Accuracy: ±1.8˚F (±1˚C)
Humidity Range:
Internal TH and External Probe: 0 to 95%RH
Humidity Sensor: Capacitive
Humdity Accuracy: ±2%RH at 73˚F (22.7˚C)
Chart Interval: 1 day, 7 day, 31 day
Weight: Approximately 1 lb.
Specications FX320
FX320: The FX320 is a two temperature model with
an external thermocouple probe (Channel 1), and an
internal sensor (channel 2).
FX320 Temperature Scales:
Remote Sensor: 0 to +220˚F, -17.8 to +104˚C
Internal Sensor: 0 to +100˚F, -17.8 to +37.8˚C
Temperature Range:
Unit: 0 to +100˚F, -17.8 to +104˚C
Thermocouple Probe: 0 to +220˚F, -17.8 to +37.8˚C
Temperature Sensor: K-type Thermocouple
(external probe IC); Sensor (internal sensor)
Temperature Accuracy: ±1.8˚F (±1˚C)
Chart Interval: 1 day, 7 day, 31 day
Variable Time Settings
The FX430/435/320 can be programmed to fax a
chart on a daily, weekly, monthly, or alarm only basis.
You can select the time at which the unit will send you
the chart (daily) or both the date and time (weekly or
monthly)
For a daily fax, the data graph consists of data from
midnight to midnight. For a weekly fax, data graph
starts on Sunday and nishes on Saturday at midnight.
For a monthly fax, the data graph starts on the rst
of the month and goes till the end of the month. A
monthly graph has enough space for 31 days worth of
and then release the keys. A scrolling message should
appear warning you that continuing with this operation
the “Programming the Unit” section.
4. Press “ON” and “SET” to reset graphs
External Probes (FX435/320):
Units requiring external probes will give incorrect
readings unless the external probes are connected.
Optional Settings:
Allow you to program the minimum and maximum
alarm values and select Fahrenheit or Celsius temperature
scales.
Reset:
Before the unit can be used, it is recommended that
it be reset. This is accomplished by pressing and holding
the “ON” and “SET” keys simultaneously for 2 seconds.
A scrolling message will appear stating that you are
about to reset and clear the logger. You may abort by
pressing “ESC” or continue by pressing “SET”.
When you hit “SET”, the unit will clear all data and
reset itself. You must now wait at least 15 minutes while
chart axes are reconstructed internally before a fax may
be sent.
Display: 8 x 2 characters LCD
Display Update Rate:
Varies with Logging Interval
Power Supply:
120V AC adapter with 9V battery for back-up
power
Dimensions: 7.0” x 5.0” x 2.0”
Memory: 16,128 samples per channel
Sample Rate: Varies depending on Interval selected
Ambient Operating Conditions:
+32 to +122˚F (0 to +50˚C)
0 to 90% RH (non-condensing)
Ringer Equivalence: .4
Weight: Approximately 1 lb.
Display: 8 x 2 Characters LCD
Display Update Rate: Data: Varies with logging
interval
Power Supply:
120V AC adapter with 9V battery for back-up
power
Dimensions: 7.0” x 5.0” x 2.0”
Memory: 16,128 samples per channel
Sample Rate: Varies depending on Interval selected
Ambient Operating Conditions:
+32 to +122˚F (0 to +50˚C)
0 to 90% RH (non-condensing)
data. If the month has less than 31 days in it, then there
will be some extra blank space leftover on the chart.
If the faxing interval is set to “Alarms”, then you will
only get a fax when an alarm situation occurs and it will
only be the most recent days worth of data. But if you
disable the alarms, then you will only get a fax when
the unit is disconnected from A.C. power. Selecting
“Disable” in the enable alarms menu only disables the
capacity of the Temperature and/or Humidity minimums
and maximums triggering the sending of a fax.
2 7
will clear the logger. You have the choice of continuing
by pressing “SET”, or aborting by pressing “ESC”. If the
scrolling message does not appear, try the key sequence
again, holding the keys slightly longer or shorter times.
Clearing and resetting, or Reset are ignored while a fax
is being sent.
Troubleshooting
First, inspect the unit for signs of physical damage
which should indicate abuse, or that it has been dropped
or exposed to dust, dirt, corrosive fumes or liquids.
Unit dials out but I get no fax:
• Are you dialing the correct phone number?
• Is there toner in the receiving fax machine?
• Has the unit been connected to power or is
the battery dead?
• Is the AC adapter working?
• Has the unit been set up properly?
I programmed name and location but they don’t
show on the fax received:
• Did you do a system reset (“ON & “SET” keys)
and wait 15 minutes?
None of the keys work:
• Has the unit been connected to power or is
the battery dead?
• Is the AC adapter working?
• Is the unit sending a fax? Keys are disabled
during sending a fax and are not supposed to
work.
• Not sending a fax? Try pressing “ON” & “ESC” to
reset it.
Clearing and Resetting:
To clear all data and reset the unit, press and hold
the “ON” key and the “SET” key for 2 seconds, and
then release the keys. A scrolling message should appear
warning you that continuing with this operation will clear
the logger. You have the choice of continuing by pressing
“SET”, or aborting by pressing “ESC”. Pressing “SET”
will clear the logger. If the scrolling message does not
appear, try the key sequence again, holding the keys
slightly longer or shorter times.
Unit will not dial out:
• Is the phone line you are connecting to an
analog line? It won’t work on a digital type line
or system.
Alarms and Messages
Included on the faxed chart is a set of conditional
symbols that tell you under what circumstances the fax
was sent.
1. Fax On Demand
This indicates that the chart was sent when the user
pressed the “Send Fax” button. A normal timed fax,
(one that gets sent when the faxing interval time occurs)
will not have this message on it.
2. Alarm
This indicates that the fax was initiated by an alarm
condition. These occur when conditions exceed those
that are programmed in the alarm minimums and
maximums. (See Programming the Unit, Setting Alarm
Mins and Maxs section) or the AC power has been
disconnected.
The particular condition that triggered the alarm fax is
indicated by an icon. Descriptions follow:
3. Thermometer
This means that the temperature has exceeded one of
the minimum or maximum values that is programmed to
trigger an alarm situation. For an FX320, thermocouple
model, there is a thermometer icon for each channel.
4. %RH (only on humidity units)
This means that the relative humidity has exceeded
Once the unit is cleared and reset, you must now wait
at least 15 minutes while chart messages are reconstructed
internally before a fax may be sent.
Resetting the Unit:
To reset to a normal state, WITHOUT CLEARING DATA,
press and hold “ON” and “ESC” simultaneously for 2
seconds. This may be used in the case where the display
freezes up.
• Do you have to use an access code to get an
outside line?
• Is power connected and is the battery good?
• Are you dialing the right number?
• Is the modular cable good and plugged into
the right jack (top one) also, is it plugged into
correct jack on the wall?
There is a blank space in the data graph:
• Does the blank space correspond to the time
when the fax was being sent? If yes, logging
is disabled during a fax transmission and this is
normal.
The Display doesn’t work:
• Is the unit connected to AC power? If not,
unit is in sleep mode.
Reset:
To reset the unit, but not clear the saved, press and
hold the “ON” and “ESC” keys for 2 seconds.
The readings are incorrect:
Return the unit to Dickson for calibration.
Only one of the graphs show:
Temps > 100˚ or < 0˚ will not be seen. If RH
graph shows but no temperature and the unit is in an
environment ranging from 0-100 then one of the internal
sensors could be bad and needs to be replaced. Return
unit for repair.
It faxes, but the graph area is blank or partial:
The unit actually stores two days worth of data. At
midnight, the unit switches from writing data to the
previous day’s chart, to writing for the present day’s chart.
If the unit is set up for a timed fax, and there has not been
a complete previous period’s worth of data logged, then
the fax may appear blank or have blank areas.
The unit has been pre-programmed at the factory to
sent the previous day’s graph at 1:00AM. If you elect to
change this time, it may take up to 2 days before a full
chart of data will be seen.
one of the minimum or maximum values that is
programmed to trigger an alarm situation.
5. Battery Mode
This indicates a loss of AC power to the unit and that
it is running on backup battery.
1. 2. 3. 4. 5.
FAX ON
DEMAND
If the alarms are disabled (see Programming the Unit,
Enabling the Alarms section), then Temperature and/or
%RH minimums and maximums will not generate an
alarm fax. However, the battery mode alarm will still
occur if the unit is disconnected from AC power.
ALARM! %RH
Alarm Icon M essages
Figure 6
BATT
MODE
Page 3
Keypad Information
Basic Description:
The keypad allows you to program the unit without
having to connect it to a personal computer. There are
eight keys on the front panel of the unit. Descriptions
of their function and operation follows:
ON ESC SET
ON KEY
This key turns the unit on and activates the screen.
However, with AC adapter connected, the unit will
never go into sleep mode, and the display will always
be on.
ESCAP E KEY
This key is used when in the menu system and
editing data or settings. It exits the particular menu
setting without saving. Pressing “ESC” during fax will
cancel fax.
LEFT A RROW
The left arrow key is used in the menu mode to
move the menu system cursor to the left. The cursor
is used to select the menu eld that the user wishes to
edit or program when setting up the unit.
The left arrow is also used when editing alarm
minimum and maximum values to decrease the
programmed value by 1 tenth of a degree or %RH unit.
UP ARRO W
Move up or increment by 1. Adds 1 to number
presently selected by cursor, or goes to the next letter
of the alphabet. Moves the cursor or highlighted area
of display up. If cursor is already on the top half of
the screen, the up arrow button will cause the screen
to scroll downwards, bringing into view on the top half
of the screen the menu selec tion that is above the one
that was highlighted.
In Set Date, Set Time, Fax to Number, Fax to
Name, Next Fax Time, Unit Location and Set Temp /
Humidity Alarms Min /Max modes, this key increments
the highlighted digit. In Fax Interval, Set for F or C,
Enable alarms and Set Alarms, this key scrolls the screen
to a different choice.
DOWN AR ROW
Moves the cursor or highlighted area of display
down. Subtracts 1 from number presently selected by
Figure 5
SEND
FAX
Menus
Description:
The FX430/435 has a menu system that enables you
to program the unit’s various parameters without having
to connect it to a personal computer.
The menus allow you to set or adjust the following:
1. The faxlogger’s internal clock date and time
2. The phone number to send faxes to
3. The name of where the fax is being sent
4. The faxing interval, Daily, Weekly, Monthly or
Alarm only
5. The location of the faxlogger
6. The Fahrenheit or Celsius Temperature scale
7. Alarm enable/disable
8. Set Alarm mode
9. Minimum and maximum alarm extremes for
both channels
To access the menu, press the “SET” key once. Press
the “SET” key repeatedly to display all of the menu
options one after another. After the last item, the
menu will return to the normal Time/Date, Temperature/
Humidity display.
You can also skip over any part of the menu that you
do not want to change at that time. Each menu option
has a short message explaining its function. While
scanning through the menu options, you may stop at
cursor, or goes to the previous letter of the alphabet. If
cursor is already on the bottom half of the screen, the
down button will cause the screen to scroll upwards,
bringing into view on the bottom half of the screen,
the menu selection that is below the one that was
highlighted.
In Set Date, Set Time, Fax to Number, Fax to
Name, Next Fax Time, Unit Location and Set Temp /
Humidity Alarms Min /Max modes, this key decrements
the highlighted digit. In Fax Interval, Set F or C, Enable
Alarms and Set Alarms, this key scrolls the screen to the
next choice.
RIGHT A RROW
The right arrow key is used when the unit is in
the menu mode to move the menu system cursor to
the right. The cursor is used to select the menu eld
that the user wishes to edit or program when setting
up the unit.
The right arrow is also used when editing alarm
minimum and maximum values to increase the
programmed value by 1 tenth of a unit.
SET
Saves the menu choices selected into unit memory.
Also, the “SET” key, when held, or pressed repeatedly,
will scroll the menu through all the menu options.
SEND FA X
Causes the unit to fax the current chart to the
“FAX TO” number. Once the key is pressed , all other
functions will be disabled until the fax transmission is
complete. It will take approximately 5-7 minutes for the
fax to be completed.
ON & ESC
Simultaneously Pressing “ON” and “ESC” keys will
reset the unit. Currently logged data is unaffected.
ON & SET
Simultaneously pressing “ON” and “SET” keys will
clear and start the graphs. You must wait at least 15
minutes while the messages are reconstructed internally
before a fax may be sent.
ON & SEND FA X
Simultaneously pressing “ON” and “SEND FAX” keys
will immediately send yesterday’s chart. This is the
same graph that is sent for the “Timed” fax.
any one of them to view or program new settings.
There is a 2 second delay before the edit screen for
that particular option will appear and you can change
its settings. If you are in editing mode, pressing the
“ESCAPE” key will back you out into the main menu.
There is a 2 second time-out before the menu will
re-enter the edit section if you have not hit the set key to
move on to the next section.
To select a value to edit, position the cursor in the
eld for that value and use the “UP” and “DOWN”
arrow keys to add to or subtract from, the letter or
number displayed.
When editing phone numbers or names and
locations, the “UP” and “DOWN” keys will sequence
through the set of characters that you are able to
program. They are as follows:
Phone Numbers:
space ! “ # $ % & ‘ ( ) * + , - . / 0123456789
Name and Location:
space ! “ # $ % & ‘ ( ) * + , - . / 0123456789
; : < = > ? @ ABCDEFGHIJKLMNOPQRSTUVWXYZ
4
Programming the Unit
Date and Time:
Enter the menu by pressing the “SET” key. Once in the
menu, scan the menu choices until you get to “SET DATE
AND TIME”. Release the set key. After 2 seconds, “SET
DATE” will appear on top, with a date on the bottom. The
date is in the following format: MM/DD/YY, where MM is
the month, DD is the day of the month, and YY is the two
digit year (2001=01). A cursor will indicate the eld of
the date that will be edited. Use the “UP” or “DOWN”
keys to adjust the number displayed. Use the “LEFT” or
“RIGHT” keys to move the cursor to a different eld to
edit it in the same way. When the date has been adjusted
to where you want it, press the “SET” key to save the
settings into memory. The next menu choice will be the
“SET TIME” section. Set the time in the same way as
you set the date. The format of the time is as follows:
HH:MM:SS, where HH is the hour in military time (see
section labeled “Miscellaneous” for a complete table of
military times), MM is the minute and SS is the seconds.
Press “SET” to store the new time into memory. After
changing the date and time and all other menu items have
been programmed to your satisfaction, the unit should be
cleared. See “Clearing and Resetting”.
Set Fax To Number:
Scan the menu choices until you get to “SET FAX TO
NUMBER”. Release the “SET” key. After 2 seconds, the
screen will switch to the phone number edit area. A
phone number can be up to 24 digits long using numbers
0 through 9, #, * and comma. All other characters are
ingnored. a comma ( , ) is used to insert a pause in the
dialing sequence, such as when using an access code to
get an outside line. This will cause the dialing to pause
for 1 second.
Edit the phone number by moving the cursor right or
left to the digit you want to change. use the “UP” or
“DOWN” keys to increase or decrease the value. Once
you have completed all digits, ll in the rest with blank
spaces and save the number by pressing the “SET” key.
The “ESC” key will exit without saving. If you don’t see
the complete number on the screen, you can scroll left or
right to see more digits.
E-Mail:
If you prefer to receive your charts via e-mail, you may
register to use a fax-to-email conversion service. As of
this printing, these services were available for free through
jfax.com and efax.com. These companies will give you a
fax number which you can program into the unit, allowing
your chart to be sent directly to your e-mail.
Set Faxing Interval:
Scan the menu choices unitl you get to “Set Fax
Interval”. Release the “Set” key. After a delay, the screen
will switch to a scrolling message stating that continuing
with this operation will clear and reset the logger. If you
want to continue, then press the “Set” key once. Now
you will have a choice of time intervals displayed two at a
time with a blinking cursor indicating which one of them
is currently active. To change the interval, use the up
or down keys to move the cursor and scroll the screen
to another choice. Program the new interval by pressing
the “Set” key when the cursor highlights the interval you
want. Pressing the “ESC” key will take you back to the
beginning of the “Set Fax Interval” option and from here,
you can continue on to other menu options. Available
faxing intervals are: Daily, Weekly, monthly, and faxing on
Alarm conditions only.
Set Fax To Name:
This information will appear on the received fax as the
person who should receive the fax. “TO.....”
Scan the menu choices until you get to “SET FAX TO
NAME”. Release the “SET” key. After 2 seconds, the
screen will switch to the name edit area. A name can be
up to 16 characters long and contain numbers 0 through
9, letters A-Z, and most symbols.
Edit the name by moving the cursor right or left to the
letter you want to change. Use the “UP” or “DOWN”
arrow to increase or decrease the value. Once you have
completed all letters save the name by pressing the “SET”
key. The “ESC” key will exit without saving.
Once the the fax to name information has been edited,
it will not appear on the fax page until the unit is reset
and cleared. This is done by simultaneously pressing the
“ON” and “SET” keys. The scrolling message will appear
and when you hit”SET” again, the unit will clear all
logged data and reset itself. you must now wait at least
15 minutes while the chart messages are reconstructed
internally before a fax may be sent. However, do not reset
and clear until you are nished programming all desired
options.
Setting Next Fax Time:
This value is programmed in the same way as the “SET
TIME” mode (see “Setting Date and Time”). It also uses
the same military time system. This is the time the fax
will be sent on a daily basis. The default Fax To time is
1:00 AM.
Setting Unit Location:
This information will appear on the received fax as the
location of where it came from, “FROM.....”. Scan the
menu choices until you get to “SET UNIT LOCATION”.
Release the “SET” key. After 2 seconds, the display will
switch to a screen where you can program in the name
description of the location where the unit is located. Use
the “RIGHT” and “LEFT” keys to move the cursor, and the
“UP” or “DOWN” keys to change the character at the
cursor position. Continue in this manner until you have
spelled out the location name. The location name can be
up to 16 characters long. To save your settings, press the
“SET” key. to exit without saving, press the “ESC” key.
Once the unit location information has been edited, it
will not appear on the fax page until the unit is reset and
cleared by simultaneously pressing the “ON” and “SET”
keys. When you hit”SET”, the unit will clear all data and
reset itself. You must now wait at least 15 minutes while
chart messages are reconstructed internally before a fax
may be sent that will contain the changed information.
Setting F or C Scale:
Scan the menu choices until you get to “SET F OR C”.
Release the “SET” key. After 2 seconds, the display will
switch to a screen with a choice of the letter F or C. By
using the “UP” and “DOWN” keys, you can move the
cursor to the temperature scale of your choice. Pressing
the “SET” key will program in the new temperature scale.
To exit without saving, press the “ESC” key.
Enabling the Alarms:
Scan the menu choices until you get to “ENABLE
ALARMS”. Release the “SET” key. After 2 seconds, the
display will switch to a screen with a choice of “ENABLE”
or “DISABLE”. The highlighted text should be what the
present state of alarm enable/disable is. By using the
“UP” and “DOWN” keys, you can move the cursor to
another choice. Pressing the “SET” key while “ENABLE” is
highlighted will enable the faxing on alarms capability. To
exit without saving, press “ESC”.
The alarm minimums and maximums are preprogrammed at the factory and are set to 0 and 100 for
both the temperature and humidity channel.
Setting the Alarm Mins and Maxs:
Scan the menu choices until you get to “SET ALARMS”.
Release the “SET” key. After 2 seconds, the display will
switch to a screen with a choice of the letter “Y”, for
Yes and “N”, for No. By using the “UP” and “DOWN”
keys, you can move the cursor to choose “YES”. Pressing
the “SET” key while “YES” is highlighted will enable the
minimum and maximum settings menus. To exit without
saving, press “ESC”.
5
Page 4
Setting and Editing Alarms:
O
N
E
S
C
S
E
T
SEND
FAX
O
N
E
S
C
S
E
T
SEND
FAX
If you choose “YES” in the “SET ALARMS” menu, the
next menus you see will be where you can adjust the
minimum and maximum temperatures or humidity which
will trigger an alarm situation. The Yes/No screen just
allows you to skip over four more menu options if you
have no need to change any of them at this time. The
values are saved in memory and exist even when alarms
are not enabled. They can can be turned on or off at any
time. Any one of the min/max settings can be modied
independently of the others. If you only want to change
one of them, you can adjust it, program it and skip over
setting the others. Or, you can modify all of them, or any
combination you want.
For each of these menus there is a two second delay
and then the screen will switch to a display of the current
setting for that particular min/max adjustment.
To adjust the value, press the “DOWN” or “UP” keys
to decrease or increase the number by 1, and to ne
tune, press the “LEFT” or “RIGHT” keys to decrease or
increase the number by .1 or one tenth.
To save any adjusted setting, press the “SET” key. To
exit without saving, press the “ESC” key. If you need
to re-program any other mins or maxs, just press “SET”
until you get to the menu choice you want, then wait for
the 2 second delay to take you to the edit screen. Note:
Maximum and minimum values are limited by the range
of temperatures or humidity that the unit is capable of
withstanding.
There are currently ve alarm conditions:
“Alarm Temp Min”
“Alarm Temp Max”
“Alarm RH Min”
“Alarm RH Max”
“Battery Mode”
If the unit senses an alarm condition continuously for
more than (about) 10 seconds it will start sending an
alarm fax. The alarm fax will indicate all alarm conditions
currently active. High/Low just show as Ch. 1 and Ch. 2
or temperature and %RH. Once an alarm condition has
been faxed, it will not send another fax until midnight
has been passed, or the system block has been reset.
If, however, another different alarm condition occurs, all
current alarm conditions will show on the fax.
The Battery Mode alarm level is preset at the factory
and is not adjustable.
Clearing and Resetting:
To clear all data and reset the unit, press and hold the
“ON” key for 2 seconds, then press and hold the “SET”
key for 2 seconds, and then release the keys. A scrolling
message should appear warning you that continuing
with this operation will clear the logger. You have
the choice of continuing by pressing “SET”, or aborting
by pressing “ESC”. If the scrolling message does not
appear, try the key sequence again, holding the keys
slightly longer or shorter times. Clearing and resetting,
or Reset are ignored while a fax is being sent.
Once the unit is cleared and reset, you must now
wait at least 15 minutes while chart messages are
reconstructed internally before a fax may be sent.
Resetting the Unit:
To reset to a normal state, WITHOUT CLEARING
DATA, press and hold “ON” and “ESC” simultaneously
for 2 seconds. This may be used in the case where the
display freezes up.
Setting Fax Date and Time:
Next Fax Date
This menu option will appear if you have selected a
faxing interval of weekly or monthly. You program the
Next-Fax-Date in the same way as the internal clock date,
(see Setting Date and Time).
Next Fax Time
This value is programmed in the same way as the “Set
Time” mode, (see Setting Date and Time). It also uses
the same military time system. For a daily fax interval,
this setting determines what time the fax will be sent
every day. For a weekly or monthly fax interval, this
setting determines the time the fax will be sent on the
date that was programmed as the Next-Fax-Date.
Default Fax Date and Time
If you do not program a time and/or date for the
fax to occur, the unit will use the factory pre-set default
values. For a daily fax, the default Fax Time is 1:00 AM.
For a weekly fax, the default is Sunday at 1:00 AM. for
a monthly fax, the default is 1:00 AM the rst of the
month.
Instrument Anatomy
Figure 2
Temperature Dis play
Humidit y Display
Figure 3
Typical
Chart
Remote Prob e
Graph A or B
Softwa re Version
Model Num ber
Name of Orig inating
Locatio n
Recipient o f Fax
Temperature Sc ale
O
N
E
S
DICKSON Monitoring Solutions Product Support: www. dicksonweb.com
100.0
90.0
80.0
70.0
60.0
50.0
˚F
40.0
30.0
20.0
10.0
0.0
0 2 4 6 8 10 noon 14 16 18 20 22 24
FAX ON
ALARM! %RH
DEMAND
TO: RECEIVING E ND FROM: DICKSONFAXLOG GER PHON E:123456789 0 FX 420 1.03.00 5 A
Alarm Mes sages
Operating Information
Power Supply:
We recommend using the supplied AC adapter with
one 9V battery installed as a back-up power source. This
ensures that your recording will not be interrupted when
there is a power failure.
To replace the back-up battery:
1. Keep unit plugged into the AC adapter while
changing the battery
2. Unscrew 4 screws in recessed holes on back
of the unit
3. Replace 9V battery
4. Replace back cover and 4 screws holding it
Telephone Jacks:
If you are looking at the unit from the front, and the
unit is in its upright position, the two RJ-11 telephone
jacks will be on the right side of the unit. The top jack
is used to connect the logger to the telephone line and
the bottom jack to an optional telephone using a standard
RJ-11 modular phone plug.
This unit does not require a dedicated phone line. It
will work with any analog phone line. It will not work as
an extension of a business telephone system.
Up to 12 units may be placed on a single phone line as
long as the total Ringer Equivalence Number on the line
does not exceed 5.0. The units should be programmed to
call out at different times,
Staggered by a minimum of 30 minute increments (see
gure 4). An explanation of Ringer Equivalence is
provided in the section labeled “The Dickson Warranty”.
Telephone Li ne-In
R = Remote Sensor
S
E
N
S
E
D
I = Internal Sensor
220 RF
Jack
Line- Out Jack
Power Jack
Downloa d Port
Detail of FX320
Display
100 IF
Line out
Temperature Gra ph
Humidit y Graph
Humidit y Scale
(or Cahenn el 2
scale)
Graph Legend
Temperature
% Humidity
Line in
To
optional
phone or
2nd Fax
Logger
100.0
90.0
80.0
70.0
60.0
%RH
50.0
40.0
30.0
20.0
10.0
0.0
CHART OF 08/18/00
Time Scal e
Date & Time wh en
Chart Data Be gan
Phone line in
Figure 4
Connecting
Multiple Units
General:
The FX430/435 logs data and formats it for display on a
faxed chart. At the end of the faxing interval period, it will
begin a new chart for the next period. The previous chart
will be faxed to the “FAX TO NUMBER” when the “NEXT
FAX TIME” occurs. If the transmission is unsuccessful, it
will retry every 10 minutes for up to 24 hours or until
the “SEND FAX” key is pressed. Pressing the “SEND FAX”
key will send the chart currently being built. If you want
to cancel the fax in retry mode, press “ON” and “ESC”
buttons.
While sending a fax, data logging is temporarily
interrupted. This will appear as a small gap in the graphed
data for as much time as it took to complete the fax
transmission.
6
3
Loading...
