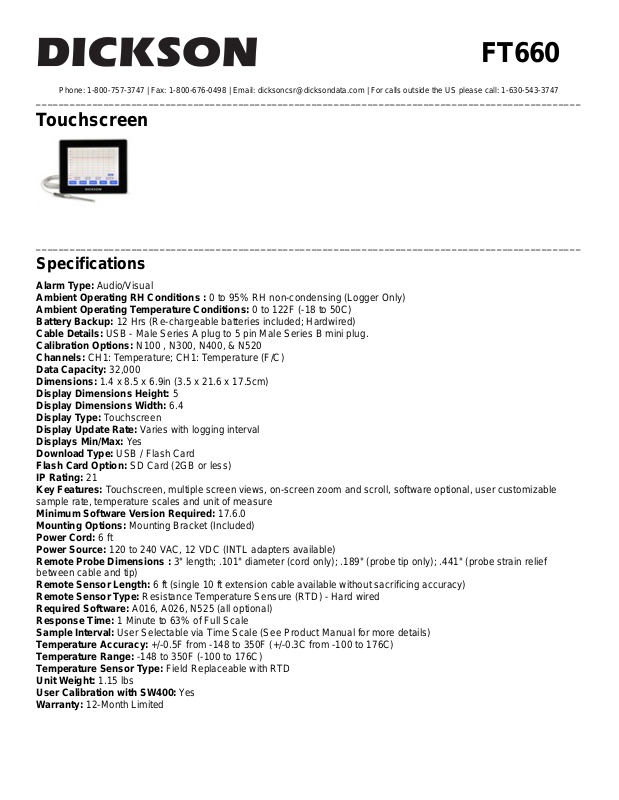

Dickson FT660 User Manual

FT660

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Touchscreen

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual
Ambient Operating RH Conditions : 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions: 0 to 122F (-18 to 50C)
Battery Backup: 12 Hrs (Re-chargeable batteries included; Hardwired)
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature; CH1: Temperature (F/C)
Data Capacity: 32,000
Dimensions: 1.4 x 8.5 x 6.9in (3.5 x 21.6 x 17.5cm)
Display Dimensions Height: 5
Display Dimensions Width: 6.4
Display Type: Touchscreen
Display Update Rate: Varies with logging interval
Displays Min/Max: Yes
Download Type: USB / Flash Card
Flash Card Option: SD Card (2GB or less)
IP Rating: 21
Key Features: Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable

sample rate, temperature scales and unit of measure

Minimum Software Version Required: 17.6.0
Mounting Options: Mounting Bracket (Included)
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL adapters available)
Remote Probe Dimensions : 3" length; .101" diameter (cord only); .189" (probe tip only); .441" (probe strain relief

between cable and tip)

Remote Sensor Length: 6 ft (single 10 ft extension cable available without sacrificing accuracy)
Remote Sensor Type: Resistance Temperature Sensure (RTD) - Hard wired
Required Software: A016, A026, N525 (all optional)
Response Time: 1 Minute to 63% of Full Scale
Sample Interval: User Selectable via Time Scale (See Product Manual for more details)
Temperature Accuracy: +/-0.5F from -148 to 350F (+/-0.3C from -100 to 176C)
Temperature Range: -148 to 350F (-100 to 176C)
Temperature Sensor Type: Field Replaceable with RTD
Unit Weight: 1.15 lbs
User Calibration with SW400: Yes
Warranty: 12-Month Limited

FT660

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories FT660

Replaceable Sensor

Platinum RTD Replaceable Temperature Sensor

Software

DicksonWare Software with USB Cable

Secure Software

DicksonWare Secure Software with USB Cable

Calibration Software

Logger Calibration Software

Memory Card

Removable Flash Memory Card

Card Reader Kit

Includes USB Reader and Flash Memory Card

FT660

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories FT660

AC Adapter

AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
